◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51277 - TFR/TFS MIDDLE EAST ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#77498) — 104 parça

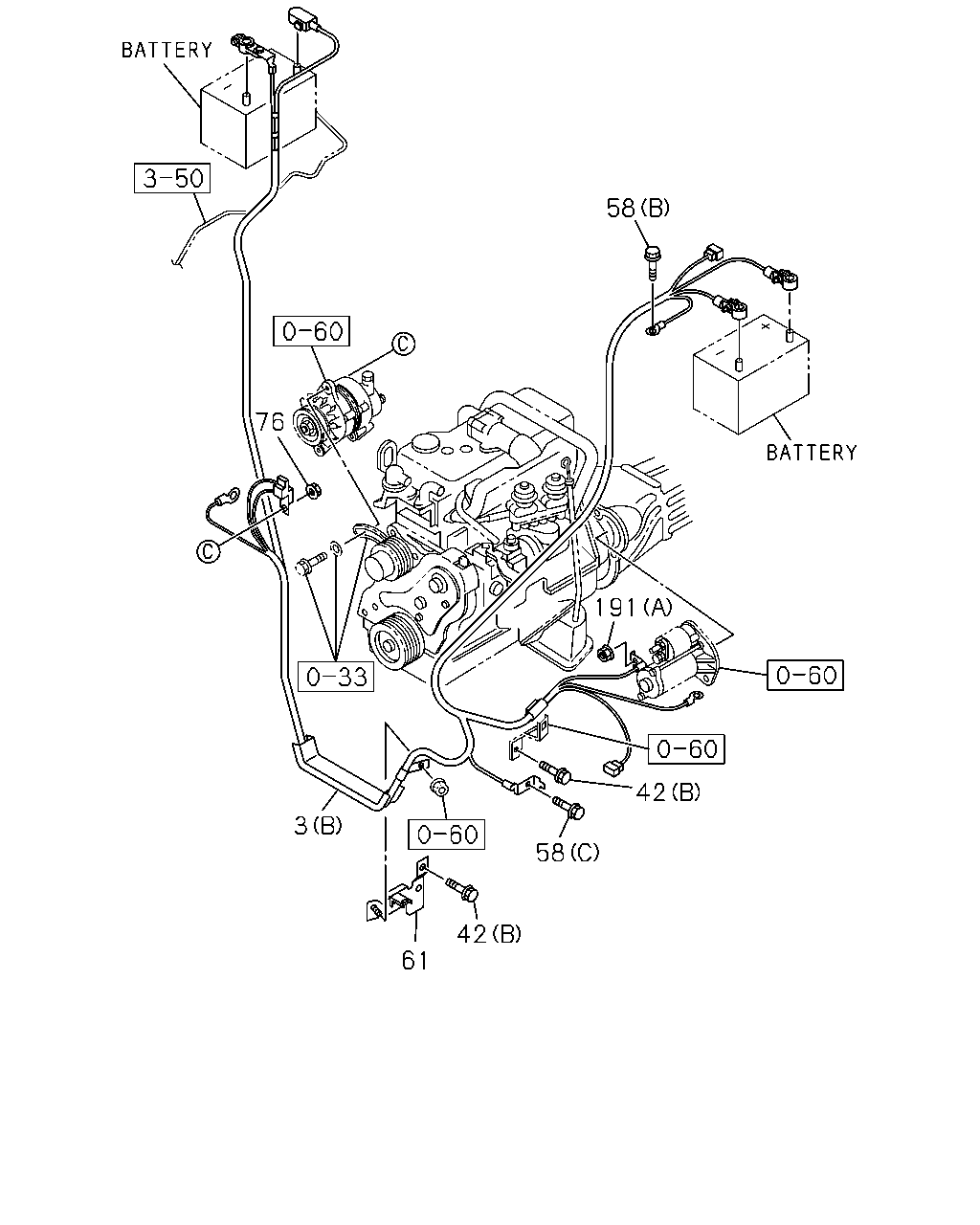

çizim 160313
58 76 191 42 3 58 42 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-200-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97237-004-4 01 1 0306-0310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97360-779-0 01 1 0311-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98005-199-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98005-201-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97307-438-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97380-856-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-98005-202-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98007-622-1 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0306- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0609 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0306- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0306-0402 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0403-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0306- ● ● ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0306-0402 ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0403-0508 ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0509-0609 ● ●
61 02.333 BRACKET; BATTERY CABLE 8-97260-935-2 01 1 0610- ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0508 ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
191 08.155 NUT; STARTER
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0306- ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0306-0508 ● ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ●

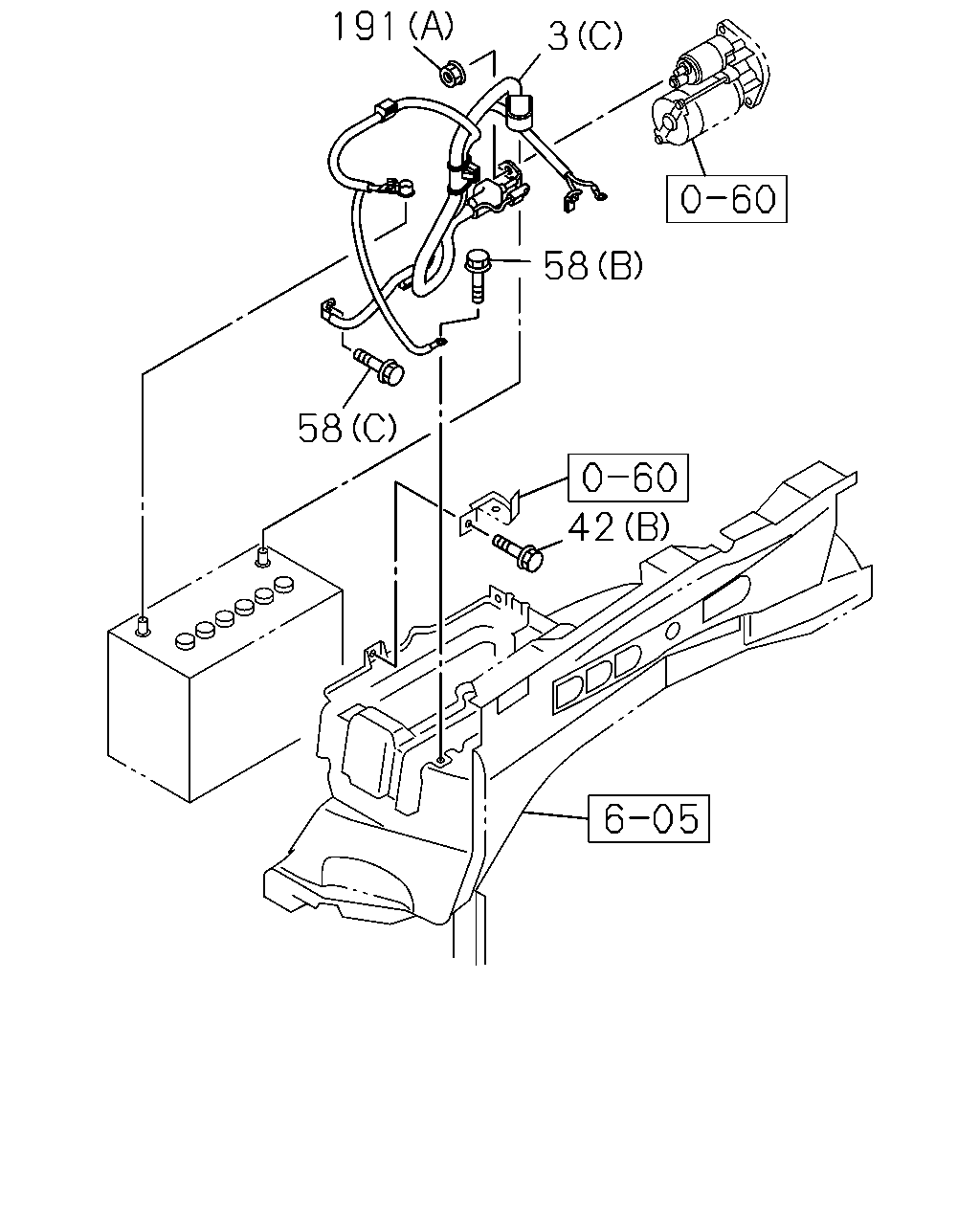

çizim 160341
191 3 58 58 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-200-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97237-004-4 01 1 0306-0310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97360-779-0 01 1 0311-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98005-199-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98005-201-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97307-438-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97380-856-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-98005-202-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98007-622-1 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0306- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0609 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0306- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0306-0402 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0403-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0306- ● ● ● ●
191 08.155 NUT; STARTER
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0306- ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0306-0508 ● ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ●

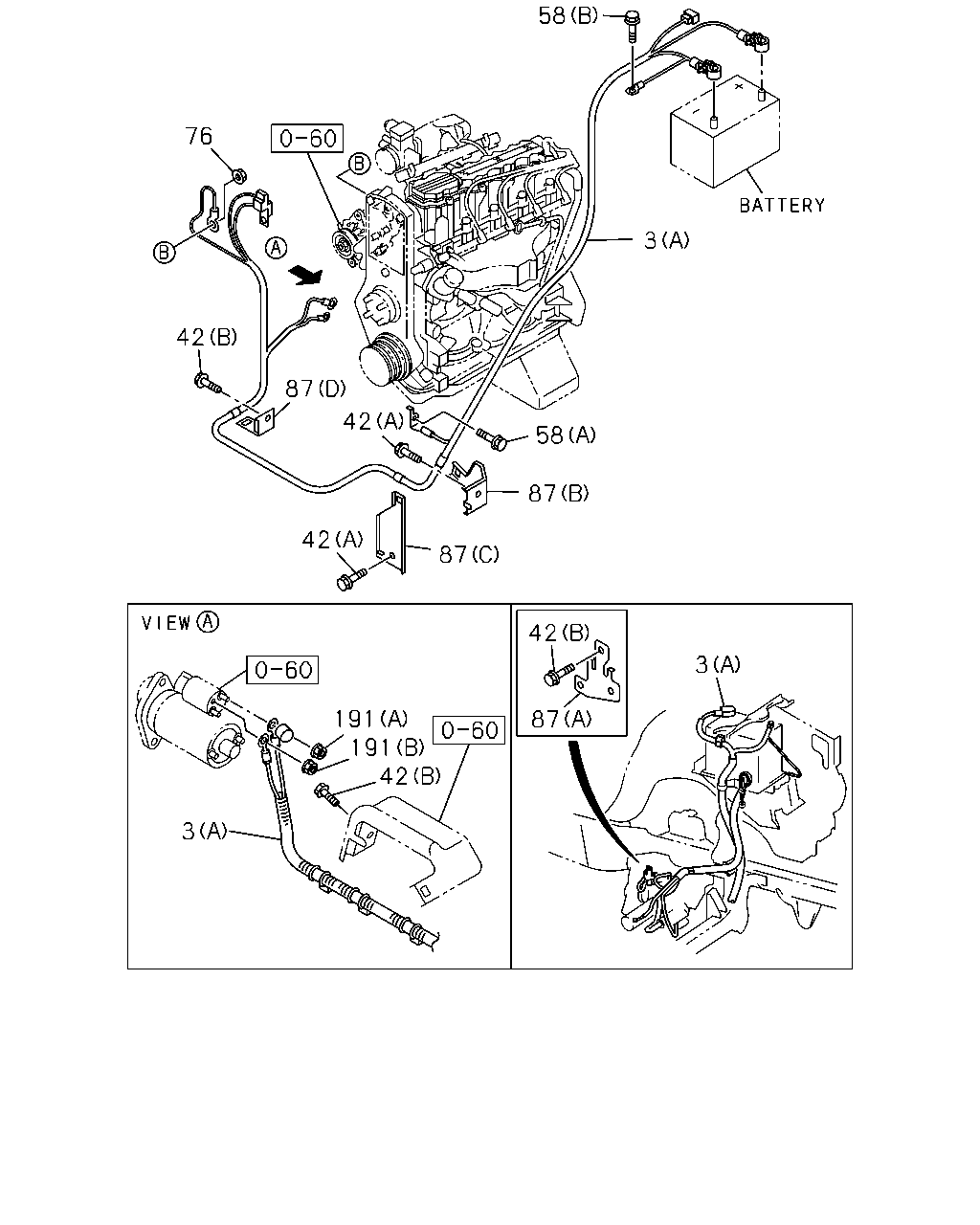

çizim 160352
58 76 3 42 87 42 58 87 42 87 42 3 191 191 42 87 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98005-200-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97237-004-4 01 1 0306-0310 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-97360-779-0 01 1 0311-0501 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(A) 		8-98005-199-0 01 1 0502-0609 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (A) 		8-98005-199-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97307-437-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-97380-855-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X2(TFB***) (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) EXC. SHIFT ON THE FLY<NR4> (B) 		8-98005-201-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) 		8-98005-201-0 01 1 0610- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97307-438-2 01 1 0306-0405 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-97380-856-0 01 1 0406-0501 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
4X4(TFS***) SHIFT ON THE FLY<NR4> (B) 		8-98005-202-0 01 1 0502-0609 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(C) 		8-98007-622-1 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 01 1 0610- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0306- ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0609 ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
(B) M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(A) M10X20 FLANGE 		0-28751-020-0 01 1 0306- ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0306-0402 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0403-0609 ● ●
58 02.343 BOLT; CABLE,BATTERY
(C) M10X20 FLANGE 		0-28651-020-0 01 1 0610- ● ●
58 02.343 BOLT; CABLE,BATTERY
(B) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0306- ● ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0508 ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
76 02.343 NUT; BATTERY CABLE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
87 02.343 BRACKET; HARNESS
4X4(TFS***) SHIFT ON THE FLY<NR4> (A) 		8-98044-184-0 01 1 0610- ●
87 02.343 BRACKET; HARNESS
(C) 		8-97236-166-0 01 1 0306- ●
87 02.343 BRACKET; HARNESS
(D) 		8-97241-141-0 01 1 0306- ●
87 02.343 BRACKET; HARNESS
(B) 		8-97307-629-0 01 1 0306- ●
191 08.155 NUT; STARTER
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0306- ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0306-0508 ● ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0509-0609 ● ● ●
191 08.155 NUT; STARTER
01.062 (A) M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
