0-60 — ENGINE ELECTRICAL CONTROL PARTS (#77497) — 474 parça

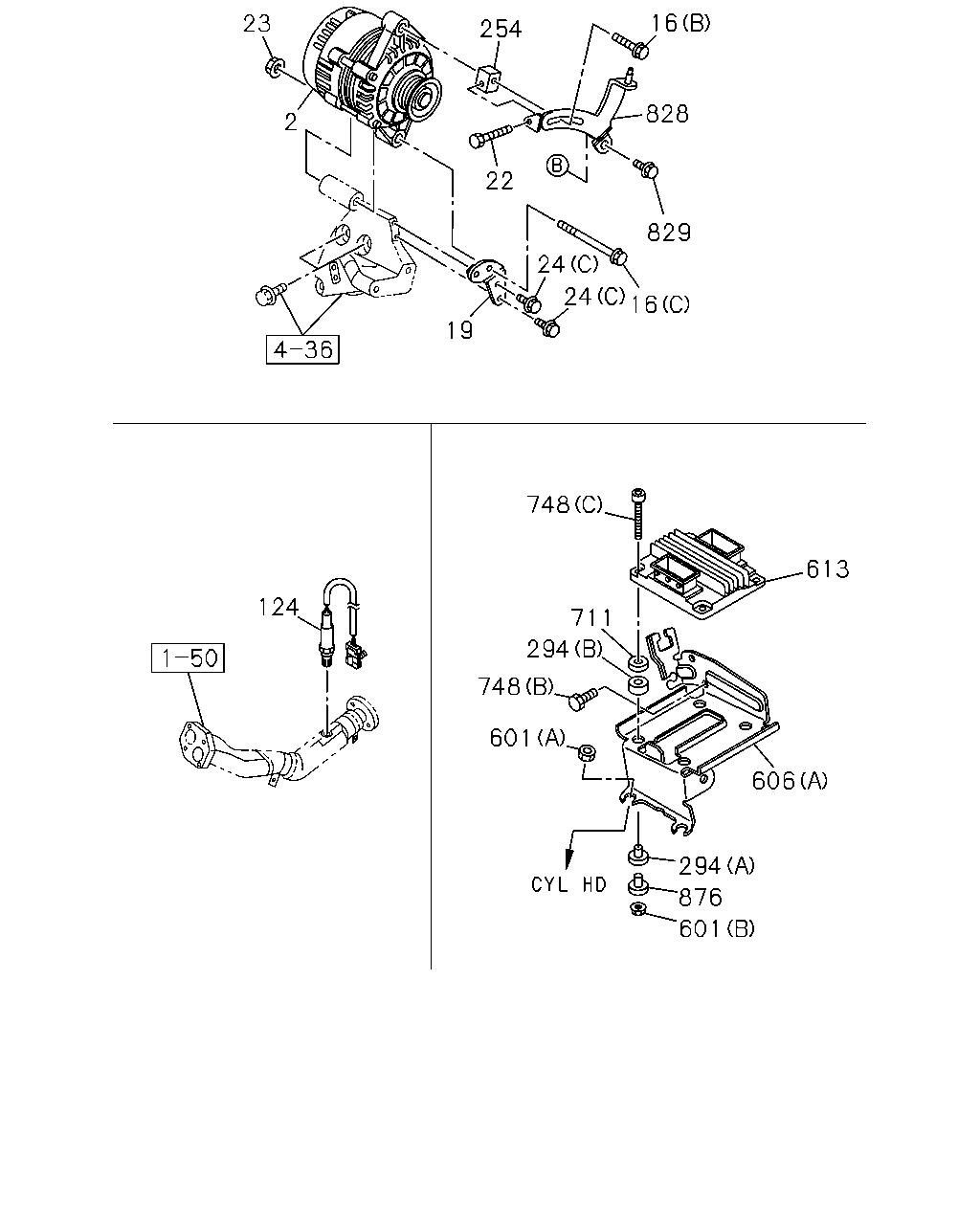

çizim 160275
16 23 254 828 2 22 829 24 24 16 19 748 613 124 711 294 748 601 606 294 876 601
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0610- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0306- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ●
19 02.277 BRACKET; GEN 8-92063-352-0 01 1 0306- ●
22 09.008 BOLT; GEN 8-92066-080-0 01 1 0306- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610- ● ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0306- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0306-0512 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601-0609 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0610- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0306-0609 ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0610-0909 ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
124 01.150 SENSOR; OXYGEN
EURO1 SPECIFICATION<NT1> 		8-25327-985-0 01 1 0306- ●
254 02.277 NUT; GEN BRKT
02.275 		8-92066-081-1 01 1 0306- ●
294 02.042 INSULATOR; SPACER
(A) 		8-92065-516-0 04 1 0306- ●
294 02.042 INSULATOR; SPACER
02.510 (B) 		8-92065-517-0 04 1 0306- ●
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0306- ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0306- ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98064-201-2 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98113-306-0 01 1 0810-1109 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98113-306-0 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-97364-729-2 01 1 0610-0709 ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-97364-731-2 01 1 0610-0709 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) 		8-98064-202-0 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(E) 		8-98064-202-0 01 1 0810-1109 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) 		8-98064-202-0 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-92066-169-0 01 1 0306- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98152-106-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98152-107-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
EURO1 SPECIFICATION<NT1> 		8-09387-459-0 01 1 0306- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97361-887-0 01 1 0306-0609 ●
711 02.510 WASHER; PL,CONT UNIT
00.206 		8-90220-983-0 04 1 0306- ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1109 ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ●
748 02.500 BOLT; CONT UNIT
01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306- ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0610- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
828 02.277 SHACKLE; GEN 8-92066-079-0 01 1 0306- ●
829 02.510 BOLT; SHACKLE
01.516 M8X20 FLANGE 		8-11097-731-0 01 1 0306-1009 ●
829 02.510 BOLT; SHACKLE
01.153 		8-11090-684-0 02 1 1010- ●
876 02.500 SPACER; CONT UNIT 8-92065-515-0 04 1 0306- ●

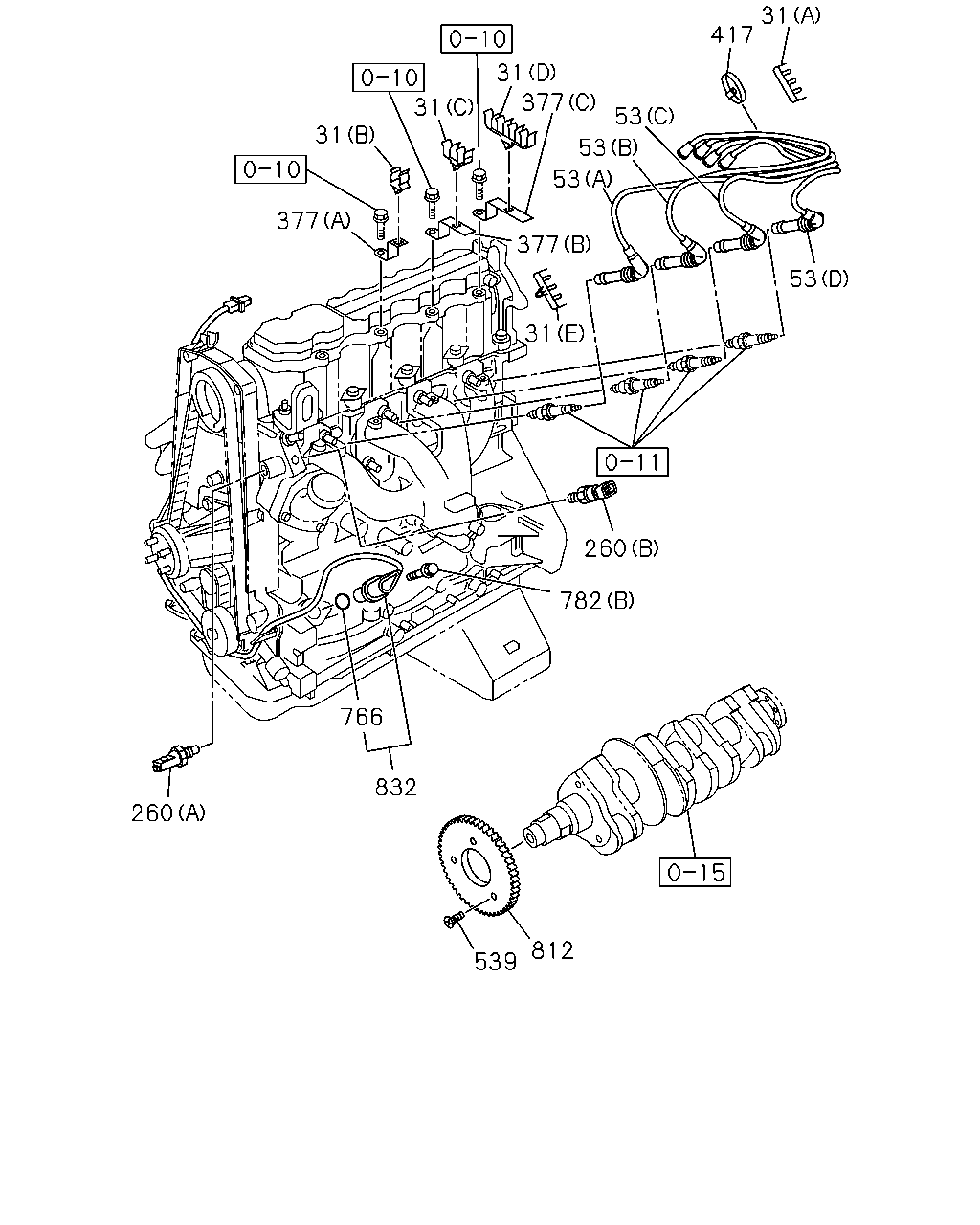

çizim 160282
31 417 31 377 31 53 31 53 53 377 377 53 31 260 782 766 832 260 812 539
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 02.251 CLIP; HIGH TENSION CABLE
(A) 		8-02965-736-0 01 1 0306-1009 ●
31 02.251 CLIP; HIGH TENSION CABLE
(B) 		8-90320-343-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(C) 		8-90320-344-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(D) 		8-90320-345-0 01 1 0306- ●
31 02.251 CLIP; HIGH TENSION CABLE
(E) 		8-90341-384-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(A) 		8-92066-027-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(B) 		8-92066-028-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(C) 		8-92066-029-0 01 1 0306- ●
53 02.240 CABLE; IGN PLUG
(D) 		8-92066-030-0 01 1 0306- ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-12146-312-0 01 1 0306-1009 ●
260 01.150 SENSOR; WATER TEMP
(B) 		8-15326-386-0 01 1 1010- ●
260 01.150 SENSOR; WATER TEMP
(A) 		8-92063-893-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(A) 		8-90460-630-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(B) 		8-90460-631-0 01 1 0306- ●
377 02.183 BRACKET; HIGH TENSION CABLE
(C) 		8-90493-625-0 01 1 0306- ●
417 02.420 CLIP 8-92138-212-0 01 1 0306-1009 ●
417 02.420 CLIP 8-90044-312-0 01 1 1010- ●
539 02.510 SCREW; SENSOR 8-90280-051-0 03 1 0306- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0306-0609 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
(B) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ●
812 02.510 ROTOR; SENSOR 8-90265-094-0 01 1 0306- ●
832 02.510 SENSOR; CRANK ANGLE & ENG SPD 8-10456-597-0 01 1 0306- ●

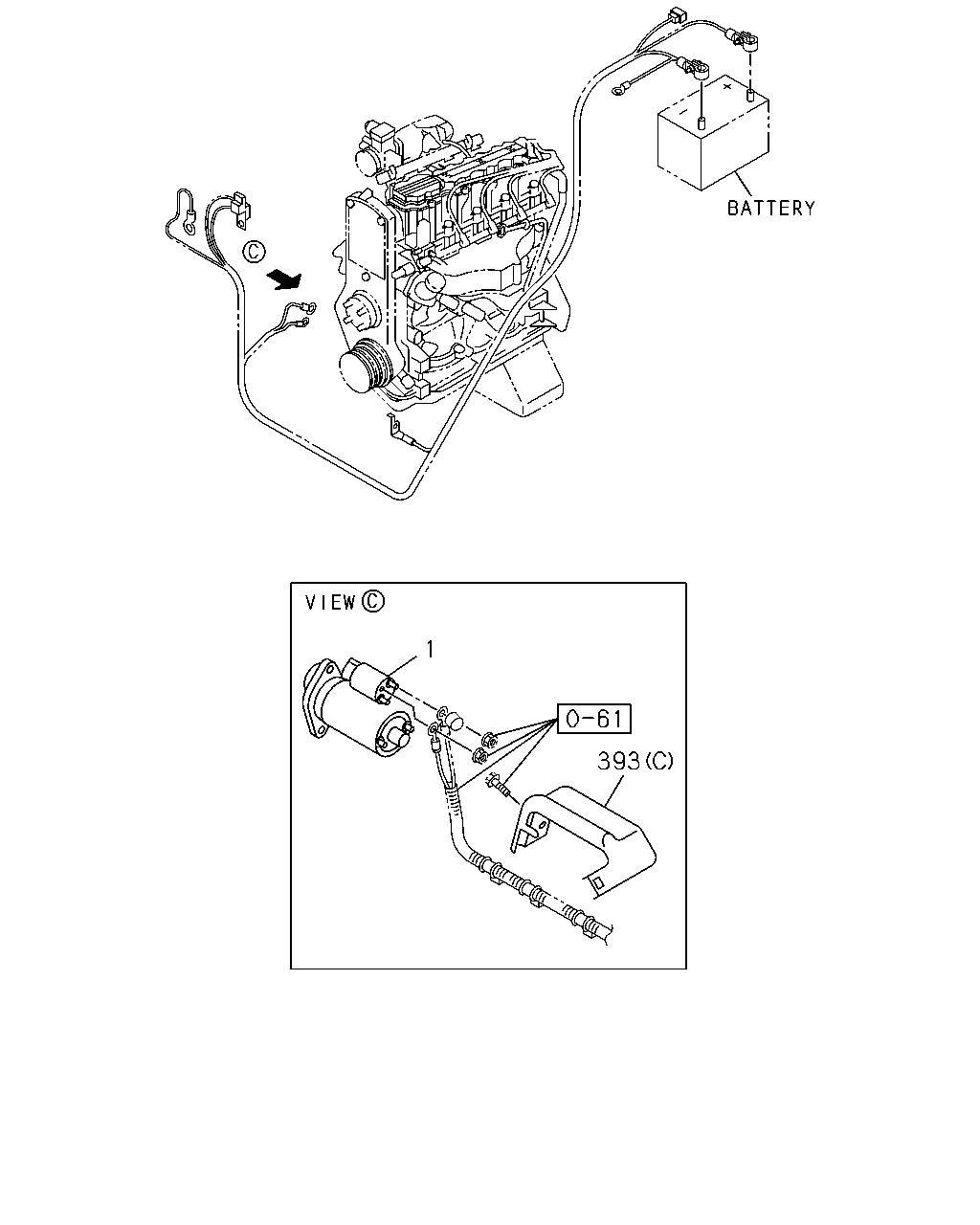

çizim 160283
1 393
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0609- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ●

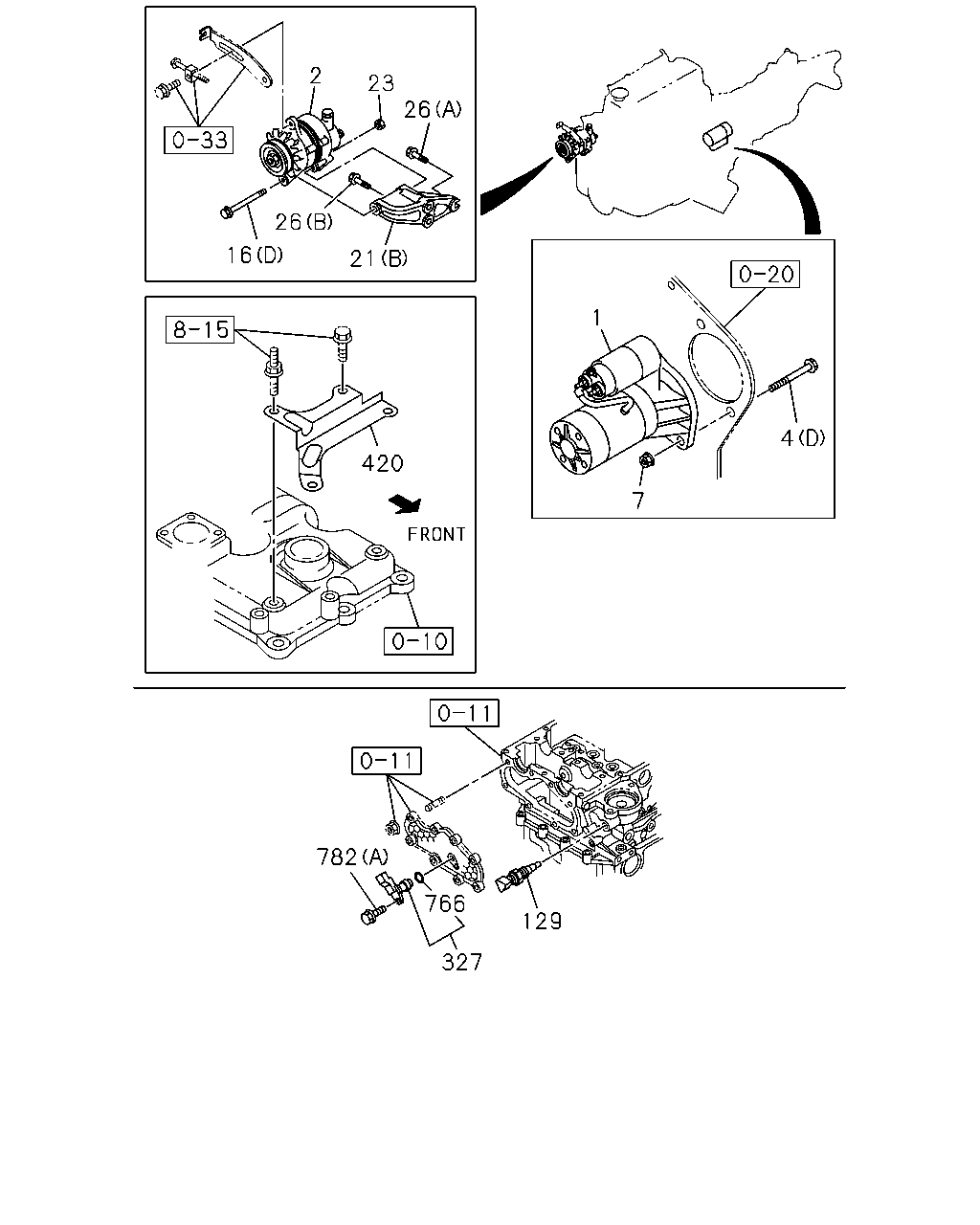

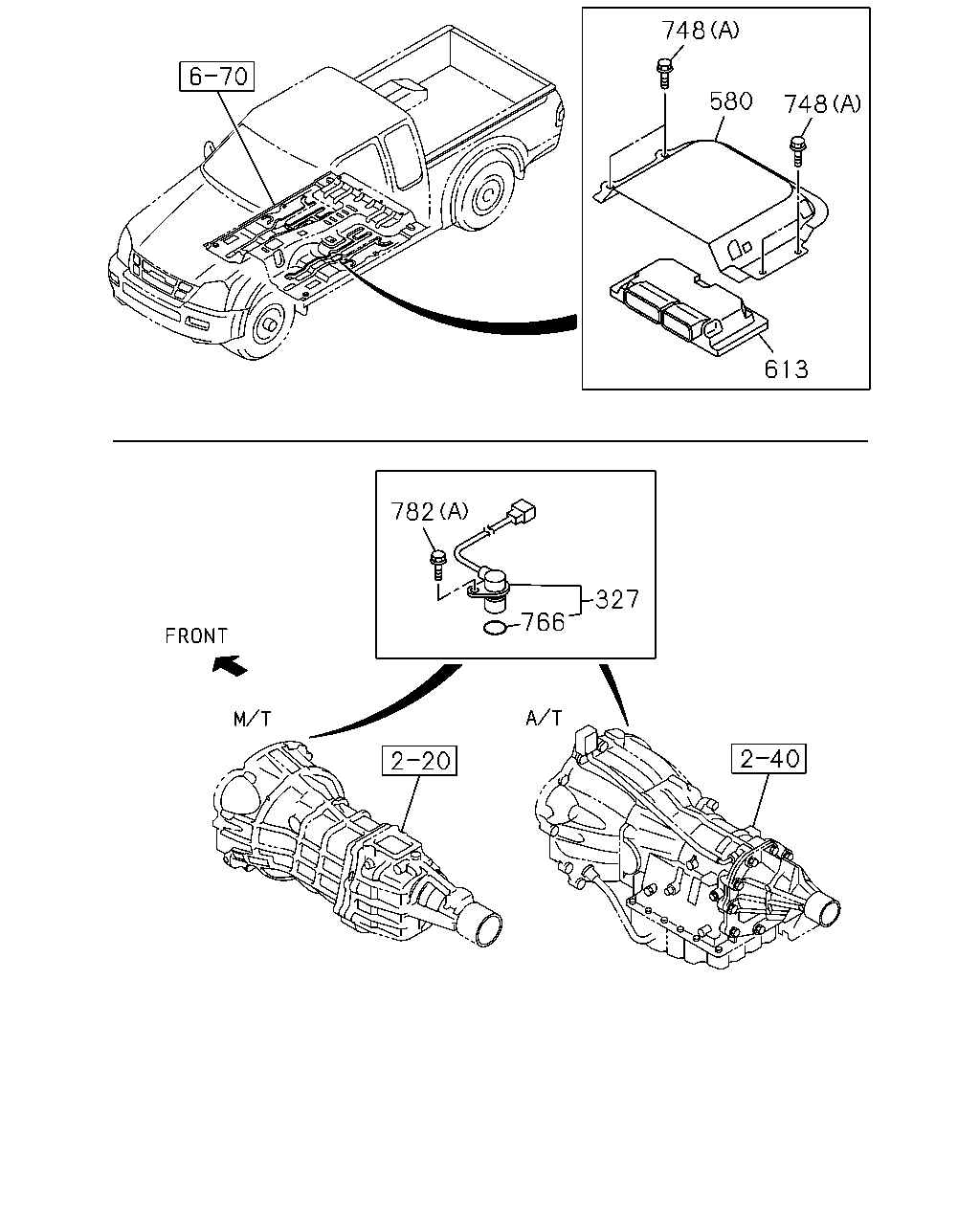

çizim 160306
2 23 26 26 16 21 1 4 420 7 782 766 129 327
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
4 02.042 BOLT; STARTER
(D) M12X60 		8-97161-846-1 02 1 0610- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0306- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0610- ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) M12 FLANGE 		0-91180-112-0 02 1 0306-0404 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0405-0609 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610- ● ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0610- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0306- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0610- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0306-0609 ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0610- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610- ● ●
26 02.277 BOLT; GEN BRKT
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0610- ●
26 02.277 BOLT; GEN BRKT
03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 0610- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0610- ●
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0306-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610- ●
420 02.183 BRACKET; HARNESS 8-98011-538-0 01 1 0610- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0306-0609 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
(B) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ●

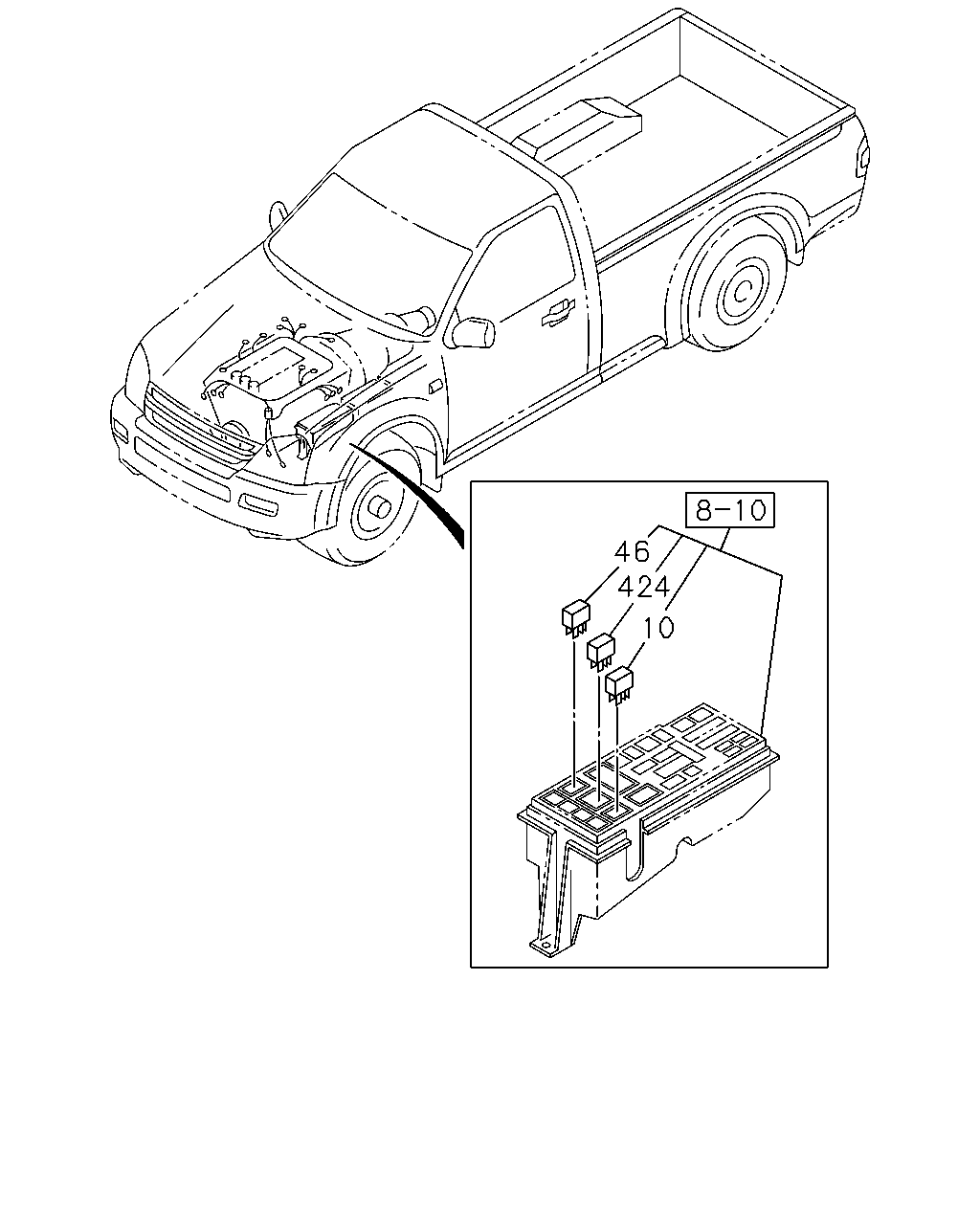

çizim 160308
46 424 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0610- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0610- ● ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0609 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ● ●

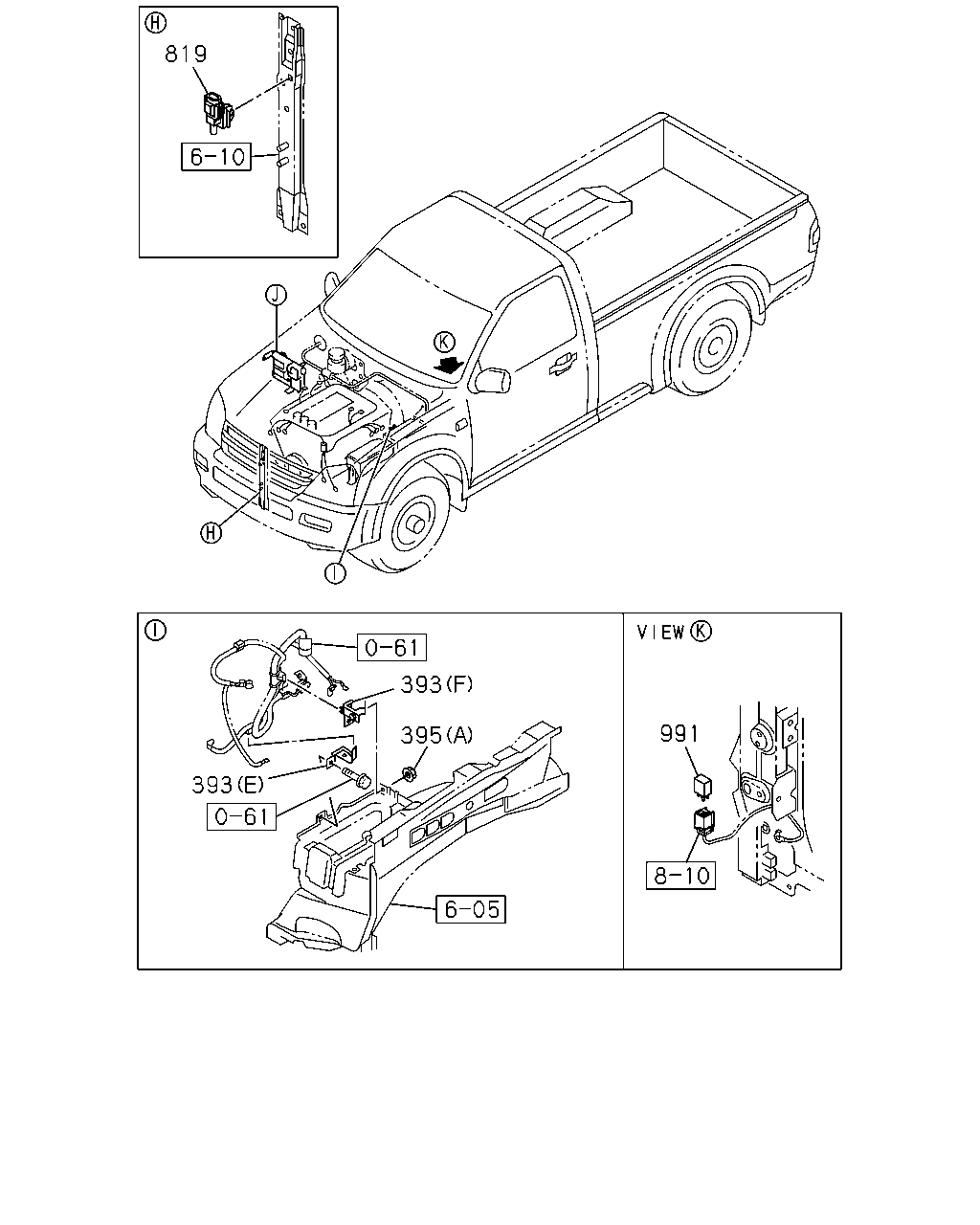

çizim 160312
819 393 991 395 393
BalonParca AdiParca NoAdetTipApplied Date A B C D
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0609- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0508 ● ● ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ●
819 01.150 SENSOR; MASS AIR FLOW (MAF)
OUTSIDE TEMPERATURE GAGE<UJH> 		8-98008-687-0 01 1 0610- ●
991 02.100 RELAY; STARTER CUT
02.485 12V YAZAKI 		8-97309-292-0 01 1 0710- ●
çizim 160315
748 580 748 613 782 327 766
BalonParca AdiParca NoAdetTipApplied Date A B C D
327 02.361 SENSOR; CAMSHAFT POSITION
03.670 		8-97324-402-1 01 1 0306-0609 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0610- ●
580 04.115 COVER; CONT UNIT 8-97319-493-1 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98152-106-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98152-107-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
EURO1 SPECIFICATION<NT1> 		8-09387-459-0 01 1 0306- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97361-887-0 01 1 0306-0609 ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1109 ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ●
748 02.500 BOLT; CONT UNIT
01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306- ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0610- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●
766 02.363 GASKET; SENSOR 8-10473-965-0 01 1 0306- ●
766 02.363 GASKET; SENSOR 8-98158-639-0 01 1 0306-0609 ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0610- ●
782 02.510 BOLT; SENSOR
(B) 		8-11093-881-0 01 1 0306- ●
782 02.510 BOLT; SENSOR
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0601 ●
782 02.510 BOLT; SENSOR
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602-0609 ●
782 02.510 BOLT; SENSOR
09.242 (A) M6X16 FLANGE 		0-28050-616-0 01 1 0610- ●

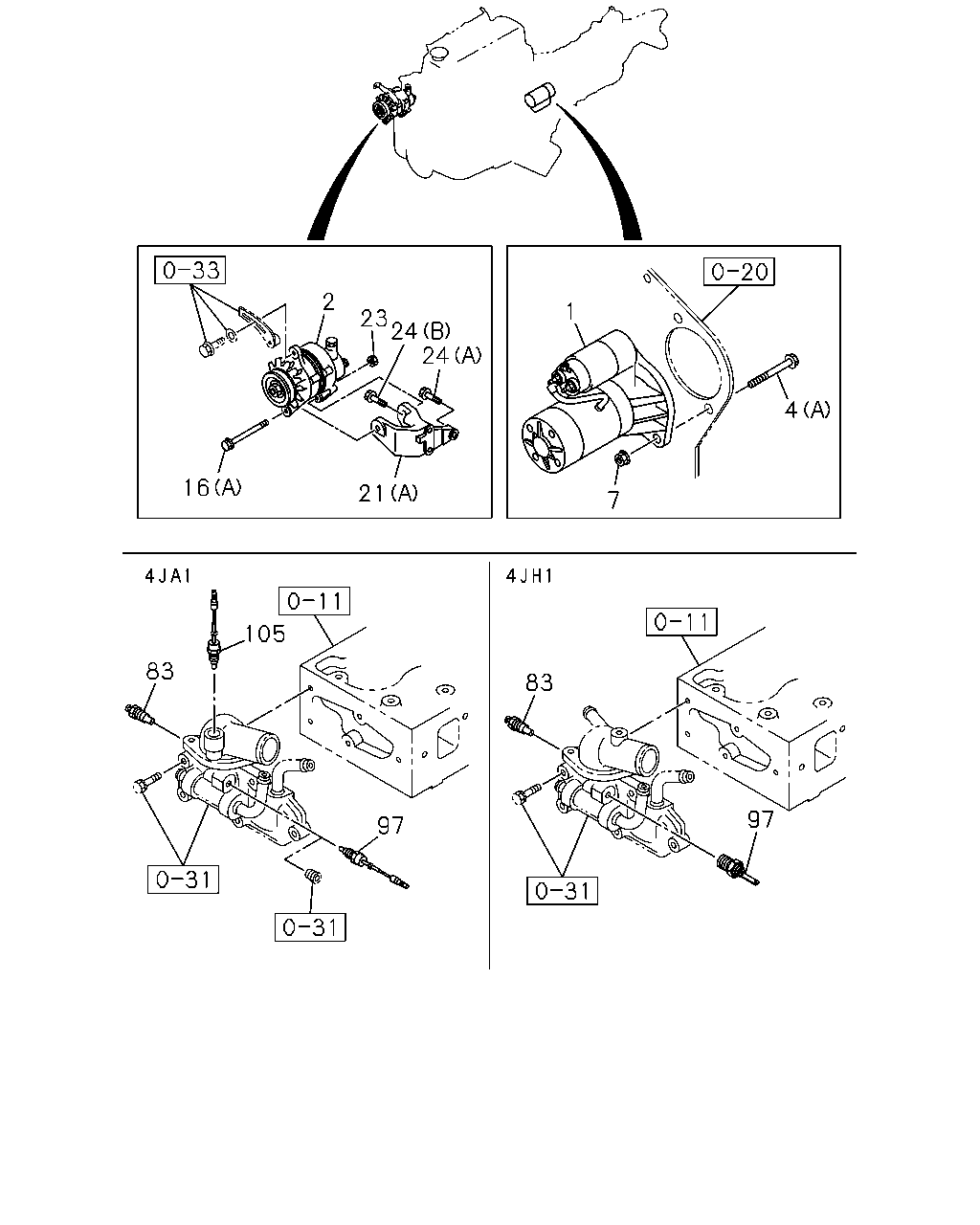

çizim 160332
2 1 23 24 24 4 16 21 7 105 83 83 97 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98006-084-0 01 1 0610-1012 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98153-004-0 01 1 1101-1106 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98196-585-0 01 1 1107-1211 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-98229-071-1 01 1 1212- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97327-218-1 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0306-0609 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97245-850-2 01 1 0610- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 100A 		8-92064-568-0 01 1 0306-0310 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97360-782-1 01 1 0311- ●
4 02.042 BOLT; STARTER
(D) M12X60 		8-97161-846-1 02 1 0610- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0306- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0610- ●
7 02.042 NUT; STARTER
M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) M12 FLANGE 		0-91180-112-0 02 1 0306-0404 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0405-0609 ● ●
7 02.042 NUT; STARTER
M12 FLANGE 		0-91180-112-0 02 1 0610- ● ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-1 01 1 0610- ●
16 02.277 BOLT; GEN
(B) 		8-11098-091-0 01 1 0306- ●
16 02.277 BOLT; GEN
(C) 		8-92138-526-0 01 1 0306- ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0306-0609 ● ●
16 02.277 BOLT; GEN
(A) M10X130 FLANGE 		0-28056-013-0 01 1 0610- ●
21 02.277 BRACKET; GEN
(B) 		8-97356-020-1 01 1 0610- ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0306-0609 ● ●
21 02.277 BRACKET; GEN
(A) 		8-94437-276-2 01 1 0610- ●
23 02.277 NUT; GEN
06.672 M10 FLANGE 		0-91280-210-0 01 1 0306- ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0306-0609 ● ●
23 02.277 NUT; GEN
04.085 M10 FLANGE 		0-91180-210-0 01 1 0610- ● ●
24 02.277 BOLT; GEN BRKT
(C) 		8-11090-683-0 02 1 0306- ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 0306-0512 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0601-0609 ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0610- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0306-0609 ● ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 0610-0909 ●
24 02.277 BOLT; GEN BRKT
17.185 (B) M10X70 W/LK WASHER 		0-50541-070-0 02 1 0910- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0306-0609 ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0610- ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0306-0609 ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0610- ●
97 01.150 SWITCH; THERMO,EGR CONT
EURO1 SPECIFICATION<NT1> 		8-94457-511-0 01 1 0306- ●
97 01.150 SWITCH; THERMO,EGR CONT 8-97069-786-1 01 1 0306-0609 ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 0306- ●

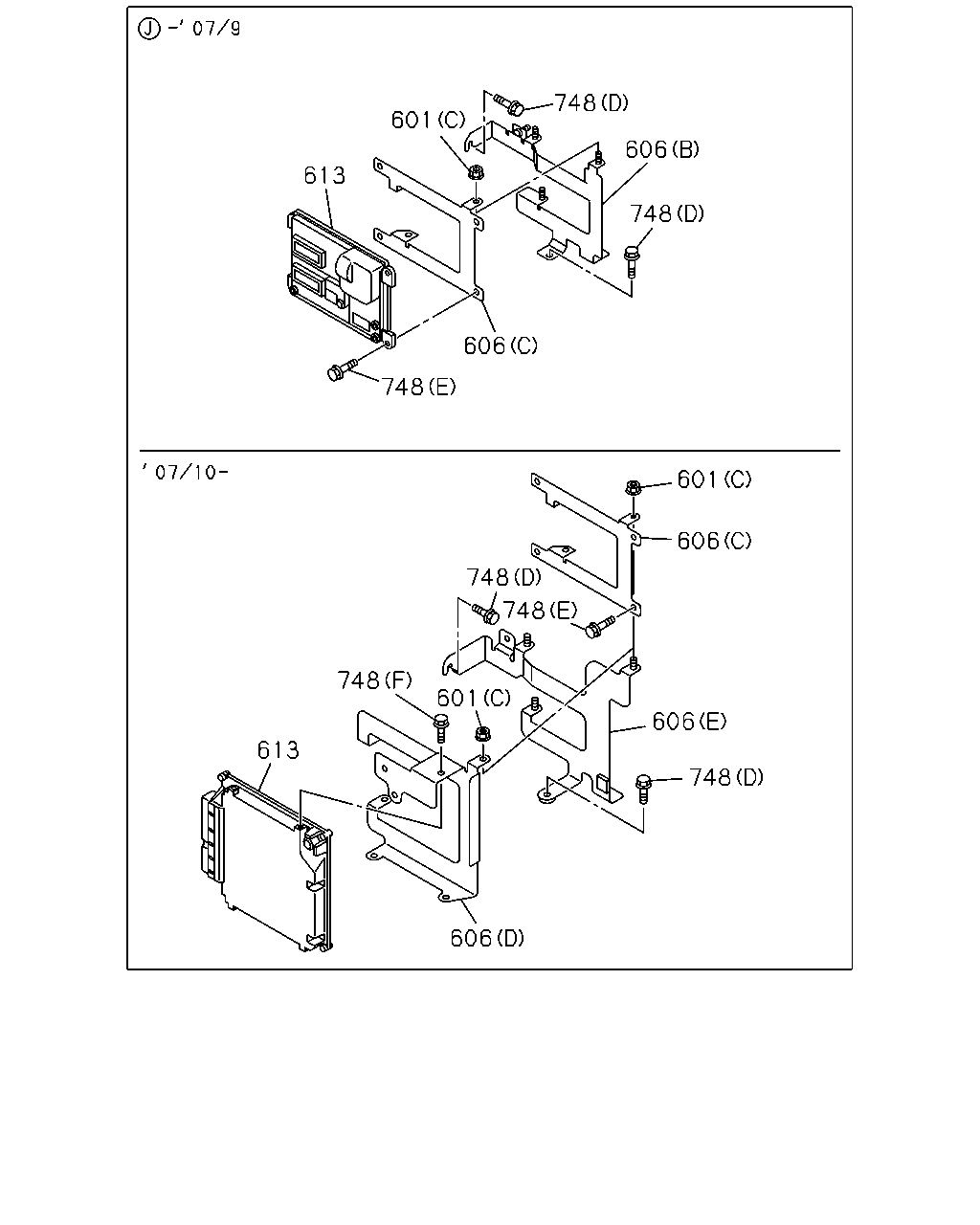

çizim 160336
748 601 606 613 748 606 748 601 606 748 748 748 601 606 613 748 606
BalonParca AdiParca NoAdetTipApplied Date A B C D
601 03.670 NUT; UNIT
01.062 (C) M6 FLANGE 		0-91180-106-0 03 1 0610- ●
601 03.670 NUT; UNIT
03.901 (A) 		8-11013-127-0 02 1 0306- ●
601 03.670 NUT; UNIT
02.042 (B) M6 		8-11094-425-0 04 1 0306- ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98064-201-2 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(D) 		8-98113-306-0 01 1 0810-1109 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (D) 		8-98113-306-0 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
(C) 		8-97364-729-2 01 1 0610-0709 ●
606 03.680 BRACKET; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> (C) 		8-97364-729-2 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(B) 		8-97364-731-2 01 1 0610-0709 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) 		8-98064-202-0 01 1 0710-0809 ●
606 03.680 BRACKET; CONT UNIT
(E) 		8-98064-202-0 01 1 0810-1109 ●
606 03.680 BRACKET; CONT UNIT
ELECTRONIC CONTROL<K20> (E) 		8-98064-202-0 01 1 1110- ●
606 03.680 BRACKET; CONT UNIT
(A) 		8-92066-169-0 01 1 0306- ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-108-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98126-978-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98135-370-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98152-106-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98170-820-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98170-820-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) ELECTRONIC CONTROL<K20> 		8-98097-109-0 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98126-979-0 01 1 0810-0901 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98135-374-0 01 1 0902-0909 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98152-107-1 01 1 0910-1007 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98170-825-1 01 1 1008-1109 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98170-825-1 01 1 1110- ●
613 03.670 CONTROL UNIT; ENG
EURO1 SPECIFICATION<NT1> 		8-09387-459-0 01 1 0306- ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EMISSION SYSTEM R15-04<K75> 		8-97361-892-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98017-354-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) 		8-98079-721-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> 		8-98057-412-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-412-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
A/T 4 SPEED-JATCO(RMK) EURO1 SPECIFICATION<NT1> 		8-97361-886-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EMISSION SYSTEM R15-04<K75> 		8-97361-893-0 01 1 0306-0609 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98017-353-8 01 1 0610-0704 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) 		8-98079-720-0 01 1 0705-0709 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98057-411-3 01 1 0710-0806 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 		8-98057-411-3 01 1 0807-0809 ●
613 03.670 CONTROL UNIT; ENG
M/T MUA 5 SPEED 5G(RSP) EURO1 SPECIFICATION<NT1> 		8-97361-887-0 01 1 0306-0609 ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 1110- ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 0810-1109 ●
748 02.500 BOLT; CONT UNIT
ELECTRONIC CONTROL<K20> 02.343 (F) M6X16 FLANGE 		0-28650-616-0 03 1 1110- ●
748 02.500 BOLT; CONT UNIT
01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0610-0709 ●
748 02.500 BOLT; CONT UNIT
EXC. ELECTRONIC CONTROL<K20> 01.428 (E) M6X25 HEX SOCKET 		0-58330-625-0 04 1 0710-0809 ●
748 02.500 BOLT; CONT UNIT
(C) 		8-92065-435-0 04 1 0306- ●
748 02.500 BOLT; CONT UNIT
(A) M6X10 FLANGE 		0-28080-610-0 04 1 0306-0601 ●
748 02.500 BOLT; CONT UNIT
03.671 (A) M6X10 FLANGE 		0-28050-610-0 04 1 0602-0609 ●
748 02.500 BOLT; CONT UNIT
03.162 (D) M6X20 FLANGE 		0-28650-620-0 03 1 0610- ●
748 02.500 BOLT; CONT UNIT
(B) 		8-92138-695-0 02 1 0306-0611 ●
748 02.500 BOLT; CONT UNIT
(B) 		8-98064-521-0 02 1 0612- ●

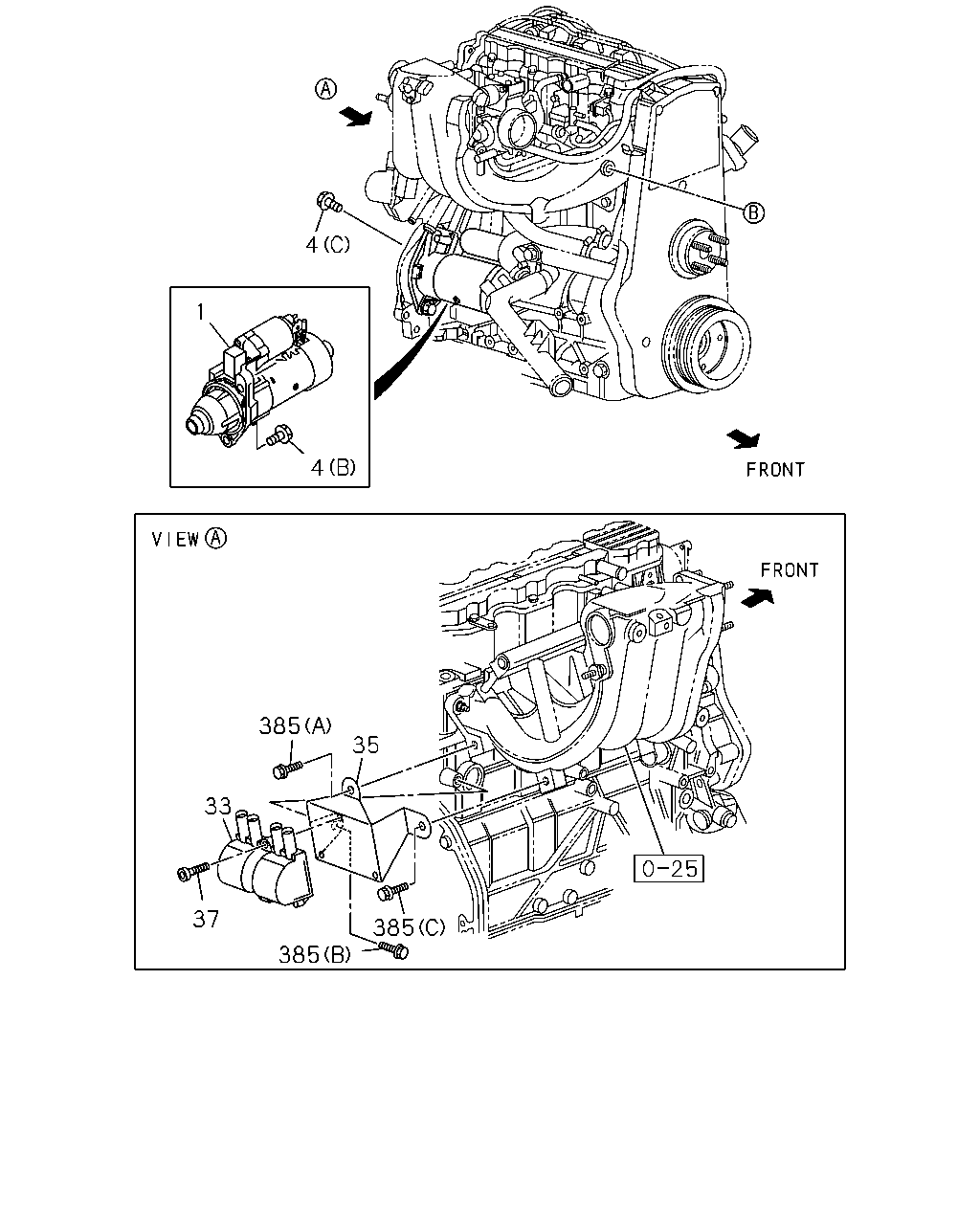

çizim 160338
4 1 4 385 35 33 37 385 385
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-199-0 01 1 0610- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92065-921-0 01 1 0306-1009 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-92067-925-0 01 1 1010- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-97365-824-0 01 1 0306-0604 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0605-0609 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.3KW 		8-98028-198-0 01 1 0610- ●
4 02.042 BOLT; STARTER
(D) M12X60 		8-97161-846-1 02 1 0610- ●
4 02.042 BOLT; STARTER
(B) M10X25 FLANGE 		0-28151-025-0 01 1 0306- ●
4 02.042 BOLT; STARTER
(C) 		8-11073-352-0 01 1 0306- ●
4 02.042 BOLT; STARTER
M/T MSG 5 SPEED(M75),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0306-0609 ● ●
4 02.042 BOLT; STARTER
M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M12X60 FLANGE 		0-28051-260-0 02 1 0610- ●
33 02.170 COIL ASM; IGN 8-01104-039-0 01 1 0306-1009 ●
33 02.170 COIL ASM; IGN 8-93363-483-0 01 1 1010- ●
35 02.183 BRACKET; IGN COIL 8-92064-829-0 01 1 0306- ●
37 02.559 BOLT; IGN COIL
02.500 		8-92065-435-0 03 1 0306- ●
385 02.183 BOLT; BRKT,IGN COIL
03.670 (A) 		8-11041-103-0 01 1 0306-1009 ●
385 02.183 BOLT; BRKT,IGN COIL
(B) 		8-11094-881-0 01 1 0306- ●
385 02.183 BOLT; BRKT,IGN COIL
(C) 		8-92138-664-0 01 1 0306- ●

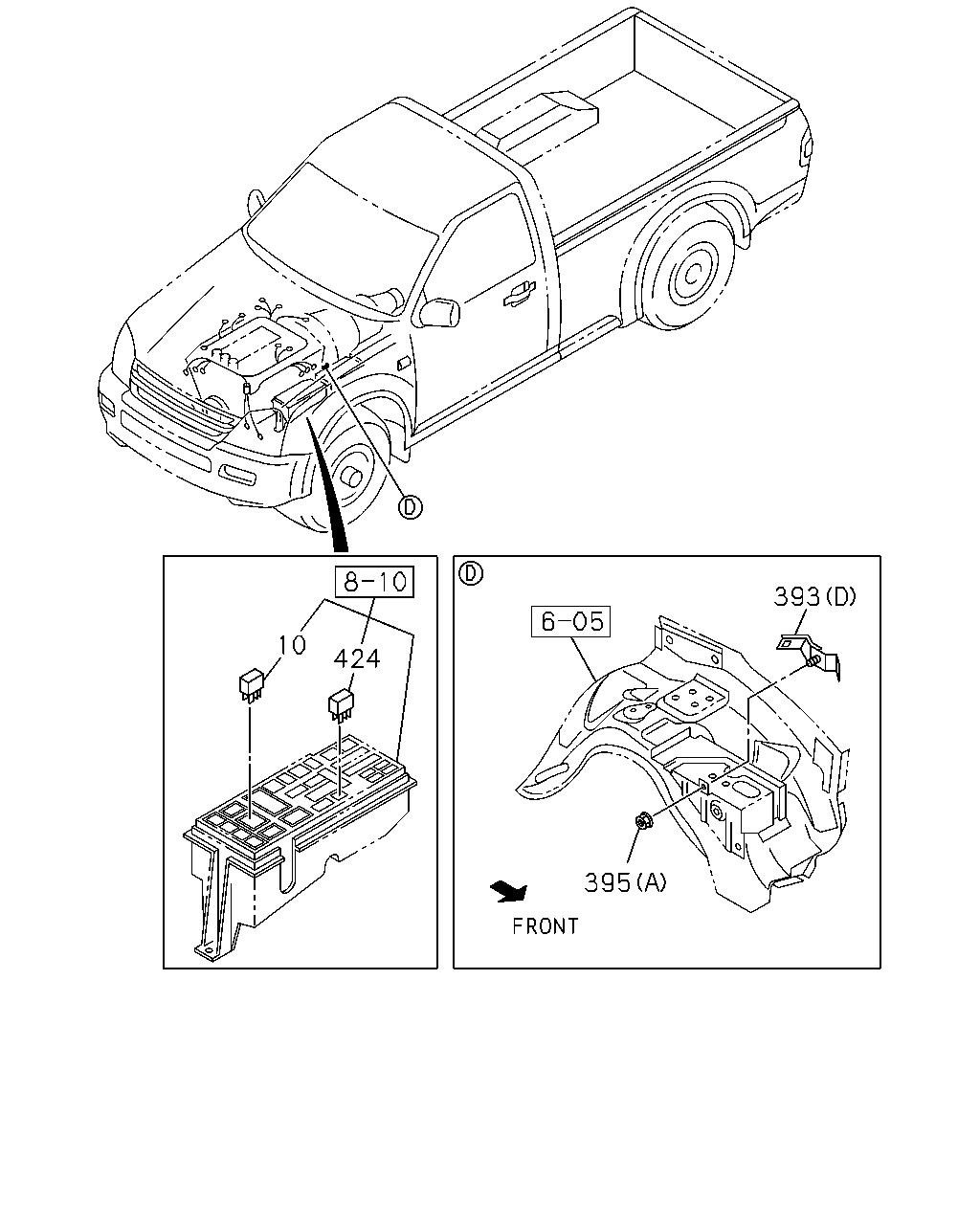

çizim 160348
393 10 424 395
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0610- ● ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0609- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0508 ● ● ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0609 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ● ●

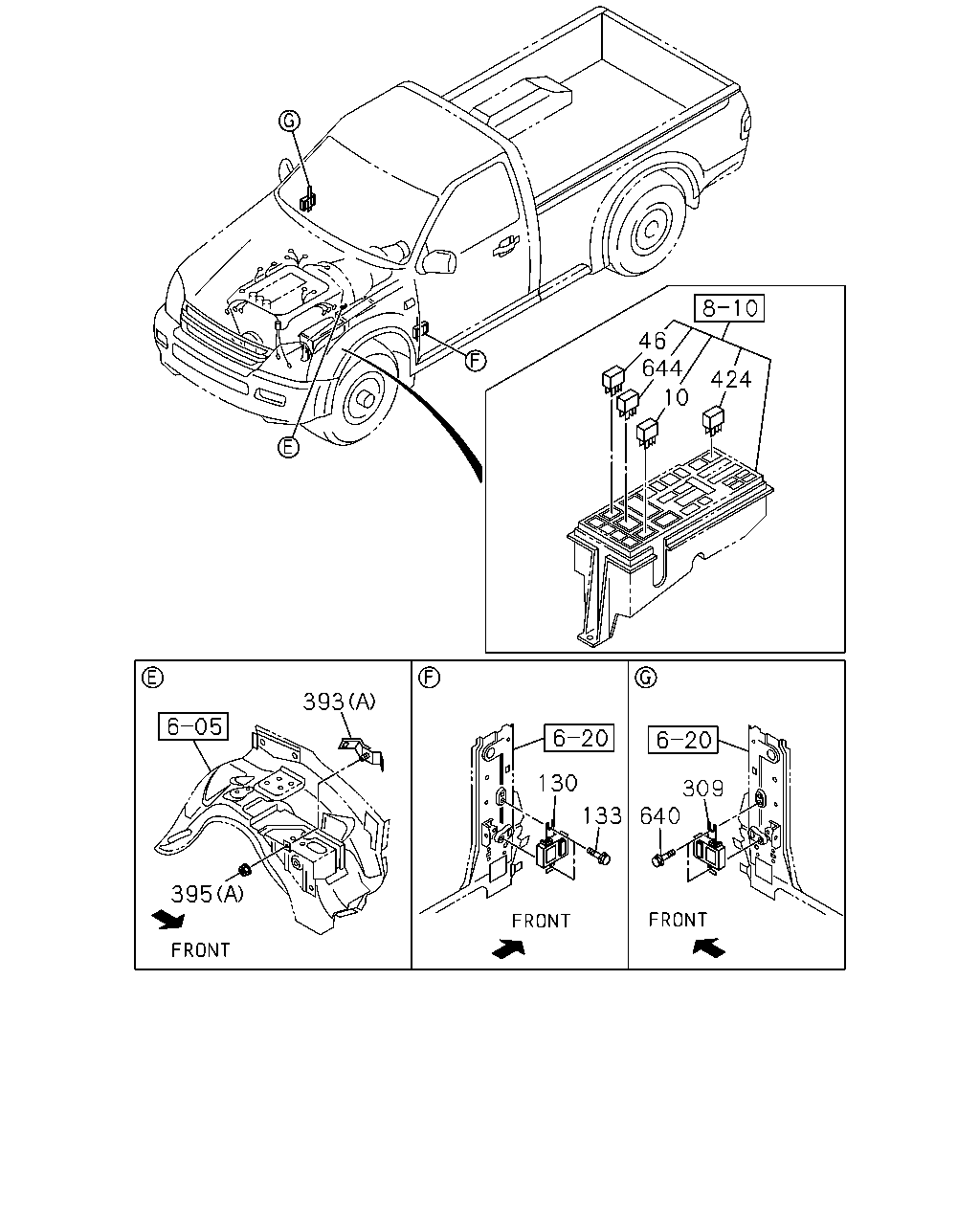

çizim 160364
46 644 424 10 393 130 309 640 133 395
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0509- ●
10 02.100 RELAY; STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0306-0609 ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ●
10 02.100 RELAY; STARTER
12V YAZAKI 		8-98146-837-0 01 1 0610- ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-97309-295-0 01 1 0306-0609 ● ●
46 02.510 RELAY; GLOW PLUG
02.100 12V YAZAKI 		8-98146-837-0 01 1 0610- ● ●
130 02.510 CONTROLLER; EGR
EURO1 SPECIFICATION<NT1> 		8-97332-298-1 01 1 0306- ●
133 02.500 BOLT; EGR CONTROLLER
EURO1 SPECIFICATION<NT1> 09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0306- ●
309 02.510 TIMER; AFTER GLOW,QOS 8-97361-319-3 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0609- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0508 ● ● ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ●
424 02.510 RELAY; SAFETY,STARTER
02.575 12V OMRON 		8-98005-407-0 01 1 0610- ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0406-0609 ● ● ●
424 02.510 RELAY; SAFETY,STARTER
02.485 12V YAZAKI 		8-97309-292-0 01 1 0610- ● ●
640 02.510 BOLT; BRKT,QOS GLOW TIMER
09.171 M6X16 FLANGE 		0-28450-616-0 02 1 0306- ●
644 02.510 RELAY; COLD START DEVICE
02.485 12V YAZAKI 		8-97309-294-0 01 1 0306-0508 ●
644 02.510 RELAY; COLD START DEVICE
02.485 12V YAZAKI 		8-97309-292-0 01 1 0509- ●

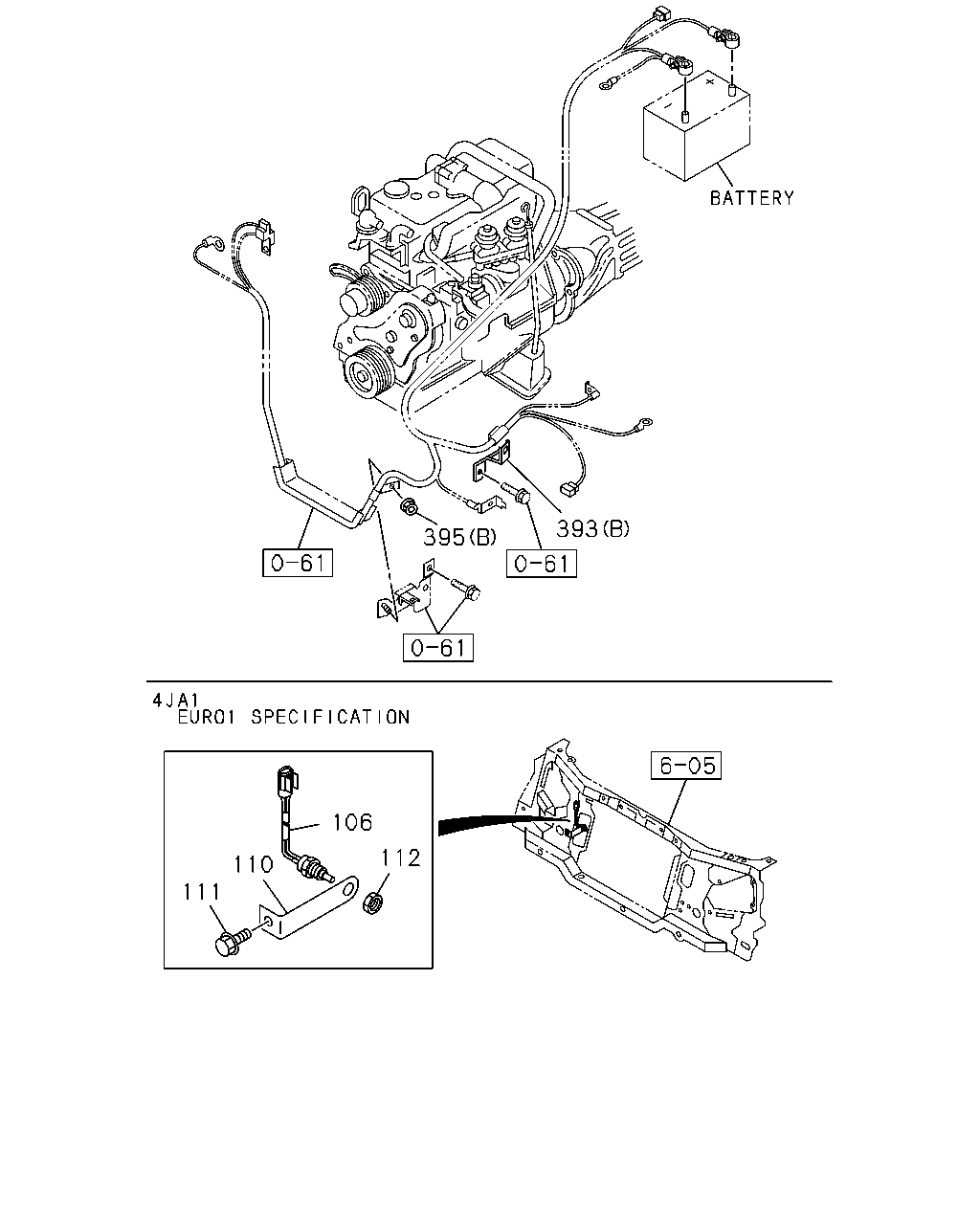

çizim 160371
393 395 106 112 110 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
106 01.150 SWITCH; THERMO,AIR
EURO1 SPECIFICATION<NT1> 		8-97043-749-0 01 1 0306- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EURO1 SPECIFICATION<NT1> 		8-97351-380-0 01 1 0306- ●
111 01.251 BOLT; SWITCH BRKT
EURO1 SPECIFICATION<NT1> 02.343 M8X16 FLANGE 		0-28050-816-0 01 1 0306- ●
112 01.251 NUT; SWITCH BRKT
EURO1 SPECIFICATION<NT1> 04.681 M16 		9-99111-416-0 01 1 0306-0602 ●
112 01.251 NUT; SWITCH BRKT
EURO1 SPECIFICATION<NT1> 00.785 M16 		0-91111-516-0 01 1 0603- ●
393 02.343 BRACKET; HARNESS TO BODY
(E) 		8-98050-833-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(F) 		8-98050-884-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(C) 		8-97236-167-0 01 1 0306- ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-97351-001-0 01 1 0306-0608 ●
393 02.343 BRACKET; HARNESS TO BODY
(D) 		8-98050-829-0 01 1 0609- ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-97236-163-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(A) 		8-98050-823-0 01 1 0610- ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0306-0402 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0403-0508 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-97241-143-1 01 1 0509-0608 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0609-0609 ● ●
393 02.343 BRACKET; HARNESS TO BODY
(B) 		8-98050-827-0 01 1 0610- ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0306-0508 ● ● ● ●
395 02.343 NUT; BRKT FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0509-0603 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ●
395 02.343 NUT; BRKT FIX
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0610- ● ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0306-0609 ● ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-97943-101-0 01 1 0610-0709 ●
395 02.343 NUT; BRKT FIX
16.320 (B) M6 FLANGE 		8-98049-362-0 01 1 0710- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
