Sayfa 0-57 - Isuzu EPC

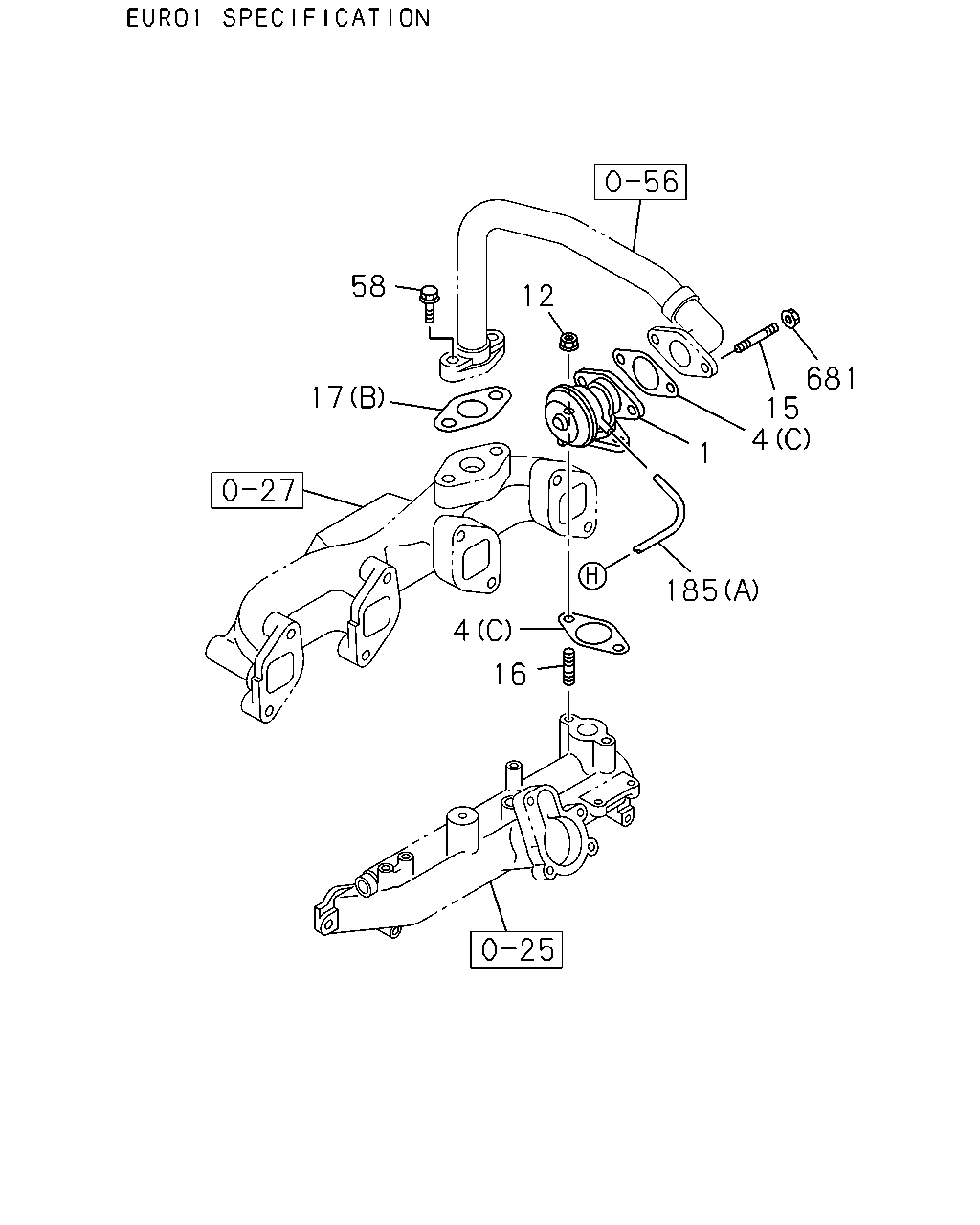

0-57 — EMISSION PIPING (#77496) — 415 parça

2 681 718 17 15 2 681 17 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97132-802-5	02	1	0306-	●
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97349-435-0	01	1	0306-0609		●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-			●
2	03.670 BOLT; EGR VLV 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-			●
2	03.670 BOLT; EGR VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 01.271 (A) M8X40 FLANGE	0-28080-840-0	04	1	0306-0512	●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 02.277 (A) M8X40 FLANGE	0-28050-840-0	04	1	0601-	●
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	04	1	0306-0602	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	04	1	0603-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
15	03.670 STUD; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8X40 L=52	0-41010-840-0	02	1	0807-0809			●
15	03.670 STUD; EGR PIPE 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0610-0806			●
15	03.670 STUD; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	03	1	0807-0809			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0604	●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-			●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.613 M8X45 L=57	8-94105-162-1	04	1	0306-0408	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X49 L=63	8-97019-478-0	04	1	0409-	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0810-			●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A)	8-94340-670-0	02	1	0306-0310	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B)	8-97324-052-0	01	1	0306-0609		●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	02	1	0610-1007			●
681	03.671 NUT; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	02	1	0807-0809			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-			●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	01	1	0306-0602		●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0609		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-0806			●
681	03.671 NUT; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	03	1	0807-0809			●

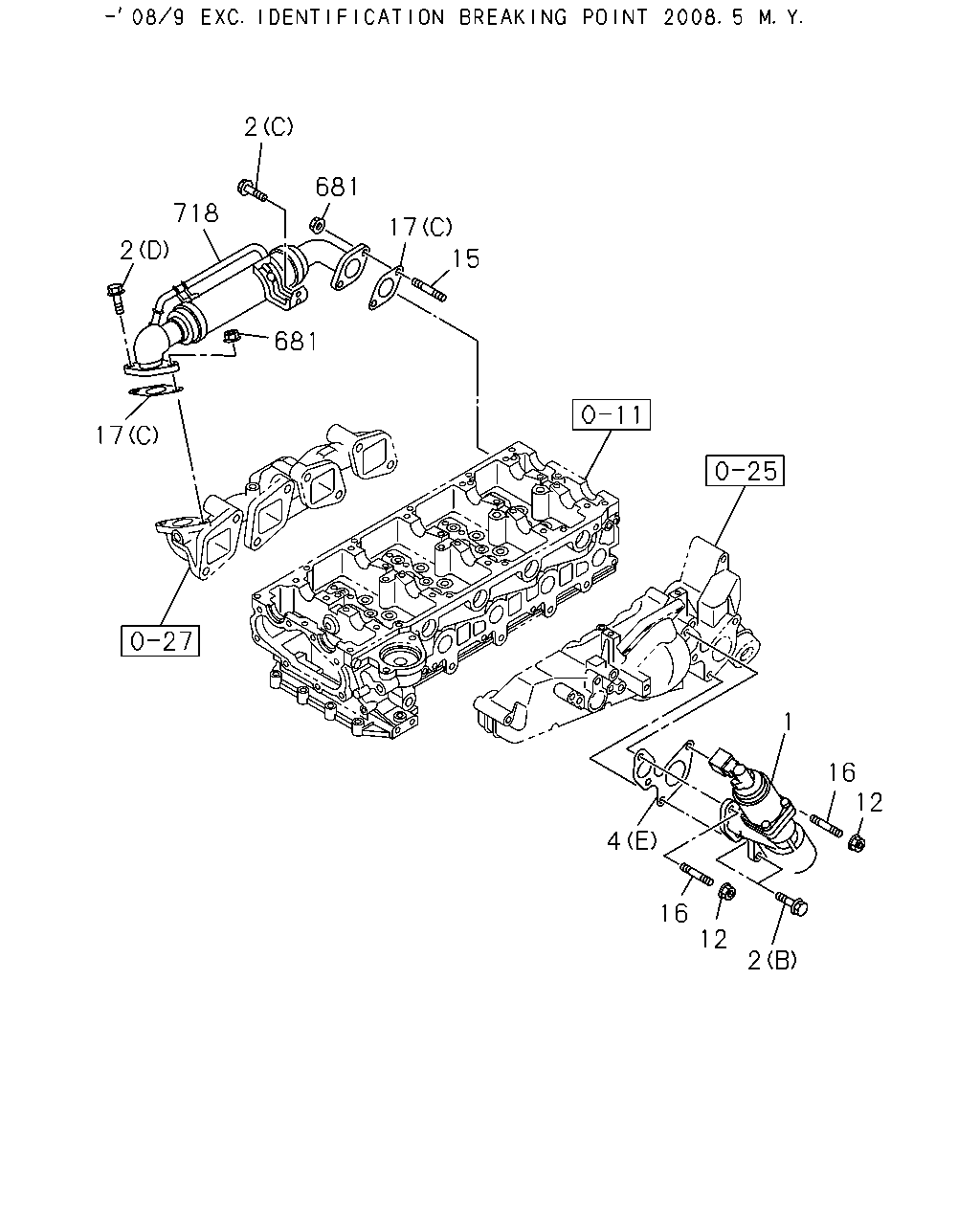

718	03.337 COOLER; EGR	8-98031-836-0	01	1	0610-0806			●
718	03.337 COOLER; EGR EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-98031-836-0	01	1	0807-0809			●

753 472 261 754 17 17 86 485 485 197 197 17 15 16 4 1 12 197 16 4 100 100 1 95 4 5 93 2 93 93 100 100 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97132-802-5	02	1	0306-	●
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97349-435-0	01	1	0306-0609		●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-			●
2	03.670 BOLT; EGR VLV 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-			●
2	03.670 BOLT; EGR VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 01.271 (A) M8X40 FLANGE	0-28080-840-0	04	1	0306-0512	●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 02.277 (A) M8X40 FLANGE	0-28050-840-0	04	1	0601-	●
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
5	03.670 ADAPTER ASM EURO1 SPECIFICATION<NT1>	8-97306-490-0	01	1	0306-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	04	1	0306-0602	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	04	1	0603-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
15	03.670 STUD; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8X40 L=52	0-41010-840-0	02	1	0807-0809			●
15	03.670 STUD; EGR PIPE 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0610-0806			●
15	03.670 STUD; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	03	1	0807-0809			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0604	●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-			●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.613 M8X45 L=57	8-94105-162-1	04	1	0306-0408	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X49 L=63	8-97019-478-0	04	1	0409-	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0810-			●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A)	8-94340-670-0	02	1	0306-0310	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B)	8-97324-052-0	01	1	0306-0609		●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	02	1	0610-1007			●
86	03.675 CLIP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
86	03.675 CLIP EURO1 SPECIFICATION<NT1> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0610-	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0610-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (C)	8-97260-312-4	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (D)	8-97943-449-0	01	1	0306-	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0306-	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0306-0609	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0610-	●
100	03.680 JOINT; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	01	1	0306-0609	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	01	1	0610-	●
100	03.680 JOINT; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	02	1	0306-0609	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	02	1	0610-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	02	1	0306-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	03	1	0306-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> (A)	8-97043-750-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> 03.675 (B)	8-97171-030-0	01	1	0306-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0306-	●
261	03.671 GROMMET EURO1 SPECIFICATION<NT1> 00.206	5-19389-002-0	03	1	0306-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0306-0609		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0306-0605	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0606-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0306-0605	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0606-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (B)	8-97943-321-0	01	1	0306-0609		●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97943-948-0	01	1	0403-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97943-948-0	01	1	0403-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> (B)	8-97944-146-0	04	1	0403-0609		●

753 472 261 754 17 17 86 485 197 17 15 197 16 4 16 4 1 12 100 95 1 93 4 5 2 93 100 100 93 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97132-802-5	02	1	0306-	●
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97349-435-0	01	1	0306-0609		●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-			●
2	03.670 BOLT; EGR VLV 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-			●
2	03.670 BOLT; EGR VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 01.271 (A) M8X40 FLANGE	0-28080-840-0	04	1	0306-0512	●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 02.277 (A) M8X40 FLANGE	0-28050-840-0	04	1	0601-	●
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
5	03.670 ADAPTER ASM EURO1 SPECIFICATION<NT1>	8-97306-490-0	01	1	0306-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	04	1	0306-0602	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	04	1	0603-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
15	03.670 STUD; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8X40 L=52	0-41010-840-0	02	1	0807-0809			●
15	03.670 STUD; EGR PIPE 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0610-0806			●
15	03.670 STUD; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	03	1	0807-0809			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0604	●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-			●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.613 M8X45 L=57	8-94105-162-1	04	1	0306-0408	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X49 L=63	8-97019-478-0	04	1	0409-	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0810-			●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A)	8-94340-670-0	02	1	0306-0310	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B)	8-97324-052-0	01	1	0306-0609		●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	02	1	0610-1007			●

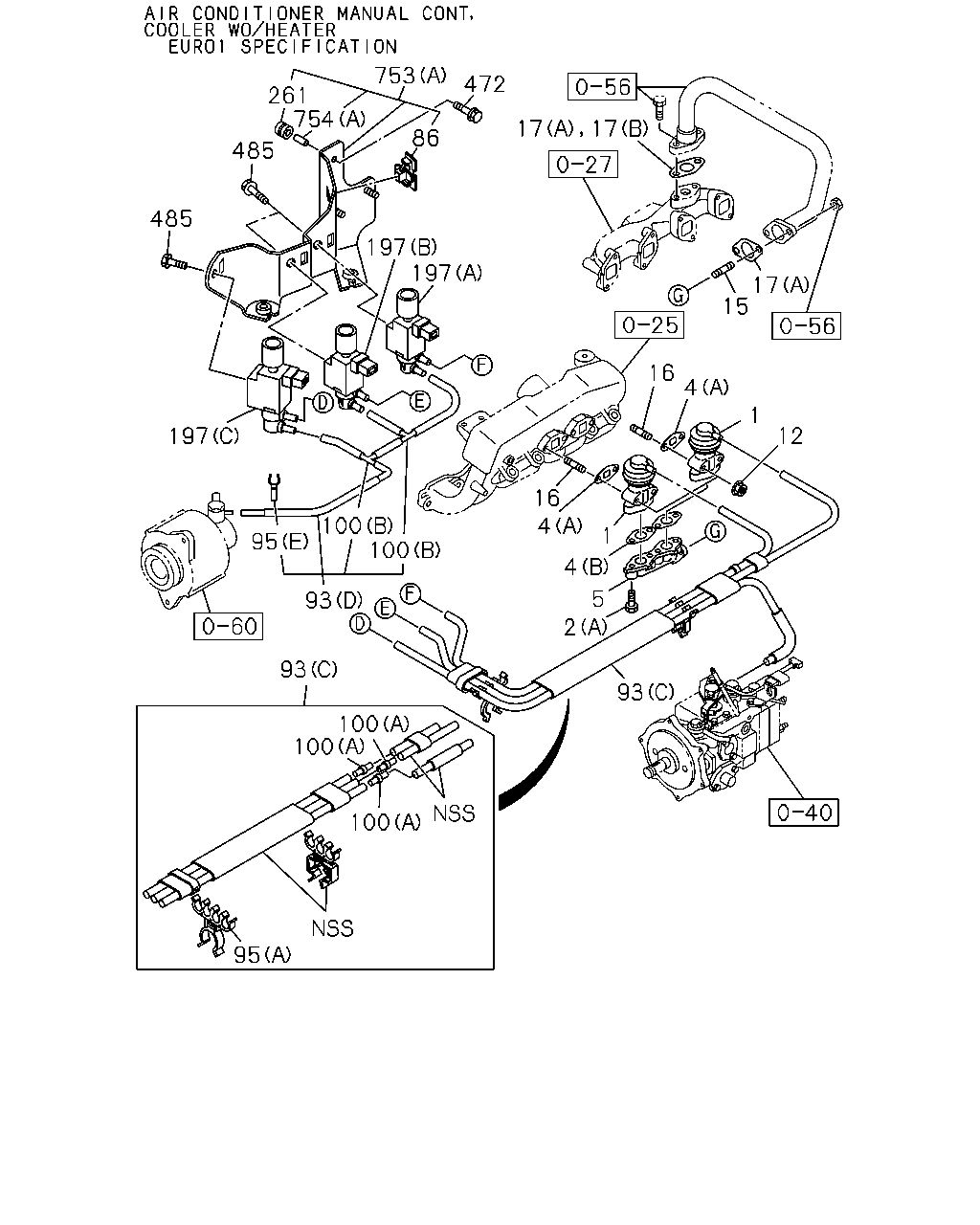

86	03.675 CLIP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
86	03.675 CLIP EURO1 SPECIFICATION<NT1> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0610-	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0610-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (C)	8-97260-312-4	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (D)	8-97943-449-0	01	1	0306-	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0306-	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0306-0609	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0610-	●
100	03.680 JOINT; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	01	1	0306-0609	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	01	1	0610-	●
100	03.680 JOINT; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	02	1	0306-0609	●
100	03.680 JOINT; HOSE HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	02	1	0610-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> (B) 3WAY	8-94210-631-0	02	1	0306-	●
100	03.680 JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) 2WAY	8-97165-694-0	03	1	0306-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> (A)	8-97043-750-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> 03.675 (B)	8-97171-030-0	01	1	0306-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0306-	●
261	03.671 GROMMET EURO1 SPECIFICATION<NT1> 00.206	5-19389-002-0	03	1	0306-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0306-0609		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0306-0605	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0606-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0306-0605	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0606-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (B)	8-97943-321-0	01	1	0306-0609		●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97943-948-0	01	1	0403-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97943-948-0	01	1	0403-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> (B)	8-97944-146-0	04	1	0403-0609		●

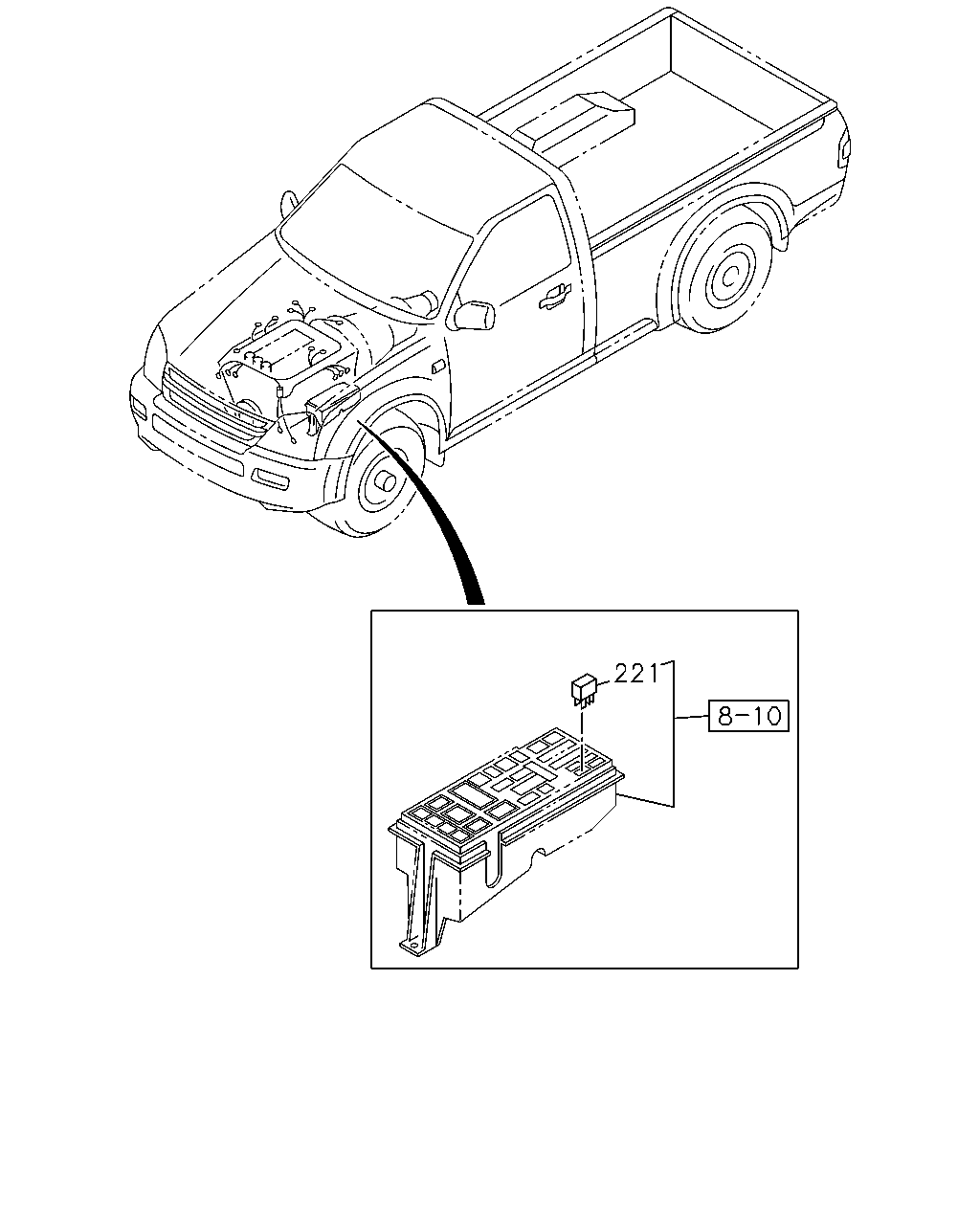

221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
221	03.670 RELAY; MAIN 02.575 12V OMRON	8-98005-407-0	01	1	0509-0609	●
221	03.670 RELAY; MAIN 02.485 12V YAZAKI	8-97309-292-0	01	1	0306-0609	●
221	03.670 RELAY; MAIN 12V YAZAKI	8-98146-834-0	01	1	0610-1109		●
221	03.670 RELAY; MAIN ELECTRONIC CONTROL<K20> 12V YAZAKI	8-98146-834-0	01	1	1110-		●

58 12 681 15 4 17 1 185 4 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

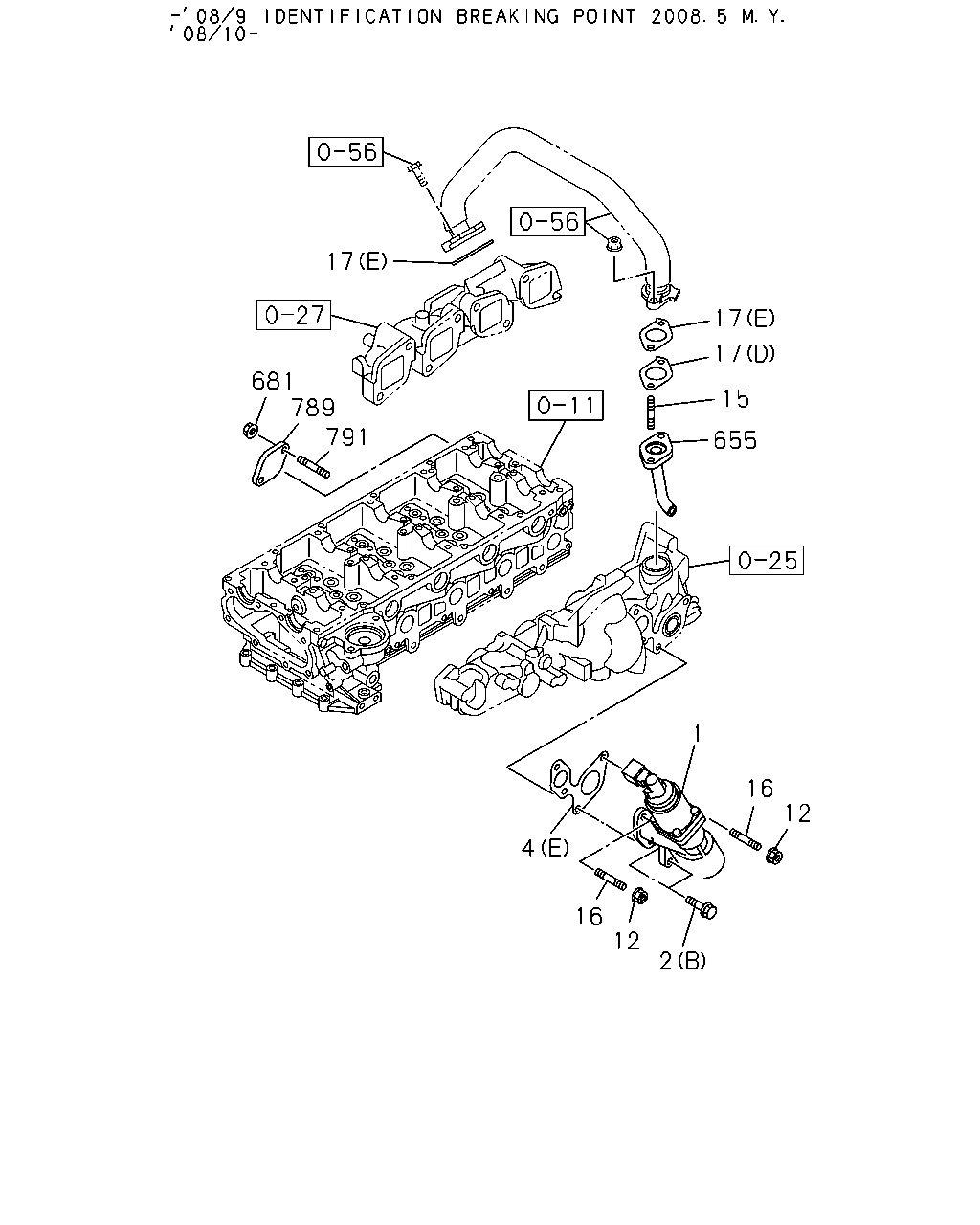

1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97132-802-5	02	1	0306-	●
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97349-435-0	01	1	0306-0609		●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-			●
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	04	1	0306-0602	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	04	1	0603-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
15	03.670 STUD; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8X40 L=52	0-41010-840-0	02	1	0807-0809			●
15	03.670 STUD; EGR PIPE 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0610-0806			●
15	03.670 STUD; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	03	1	0807-0809			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0604	●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-			●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.613 M8X45 L=57	8-94105-162-1	04	1	0306-0408	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X49 L=63	8-97019-478-0	04	1	0409-	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0810-			●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A)	8-94340-670-0	02	1	0306-0310	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B)	8-97324-052-0	01	1	0306-0609		●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	02	1	0610-1007			●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1> 03.670 M8X23 FLANGE	8-94103-629-2	02	1	0306-0408		●
58	03.417 BOLT; PIPE EURO1 SPECIFICATION<NT1> M8X23 FLANGE	8-97378-077-0	02	1	0409-0609		●

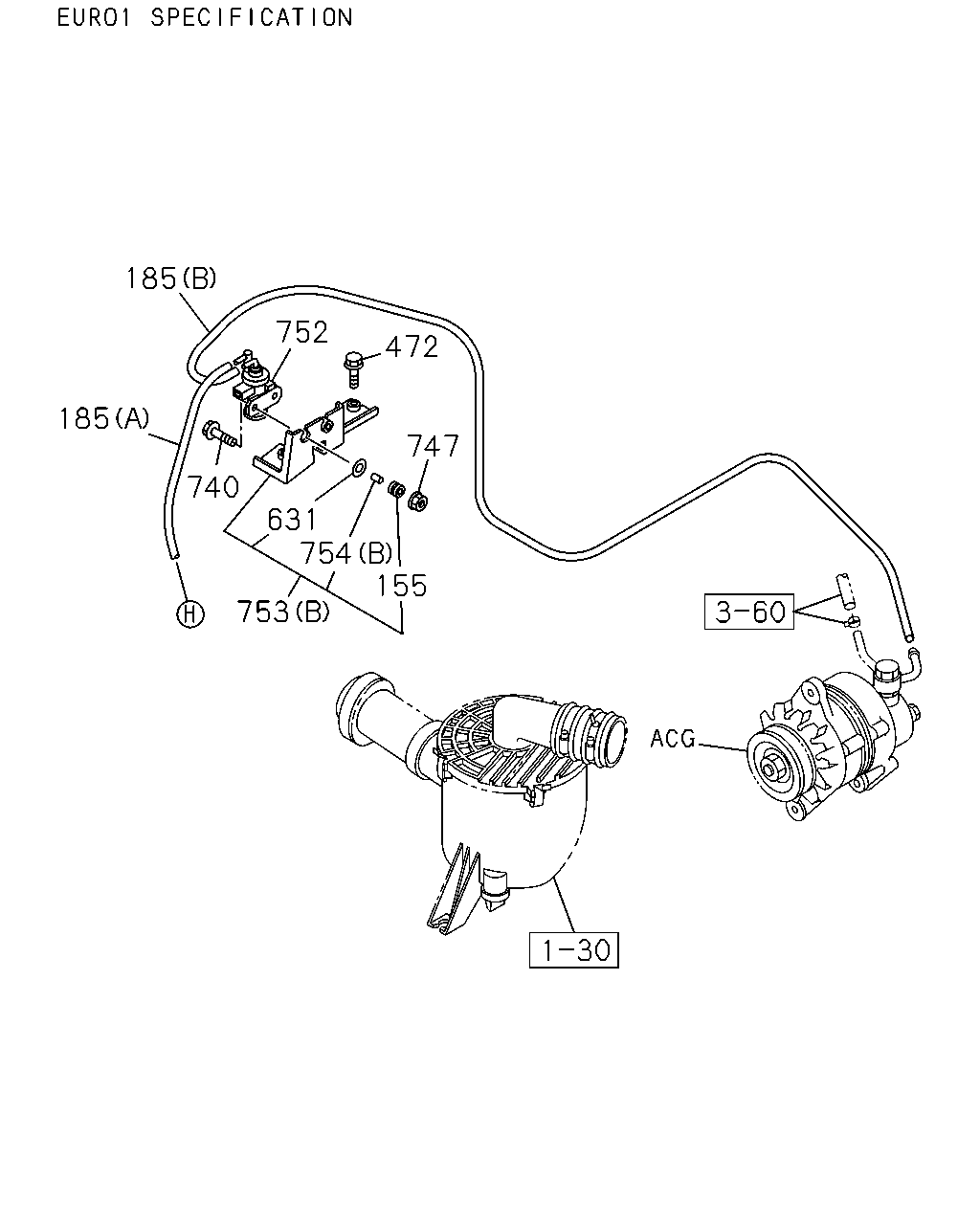

185	03.163 HOSE; RUBBER,VSV EURO1 SPECIFICATION<NT1> (B)	8-97320-372-3	01	1	0306-0609		●
185	03.163 HOSE; RUBBER,VSV EURO1 SPECIFICATION<NT1> (A)	8-97943-807-0	01	1	0306-0609		●
681	03.671 NUT; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	02	1	0807-0809			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-			●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	01	1	0306-0602		●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0609		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-0806			●
681	03.671 NUT; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	03	1	0807-0809			●

753 754 261 86 472 485 197 95 95 93 95 95 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

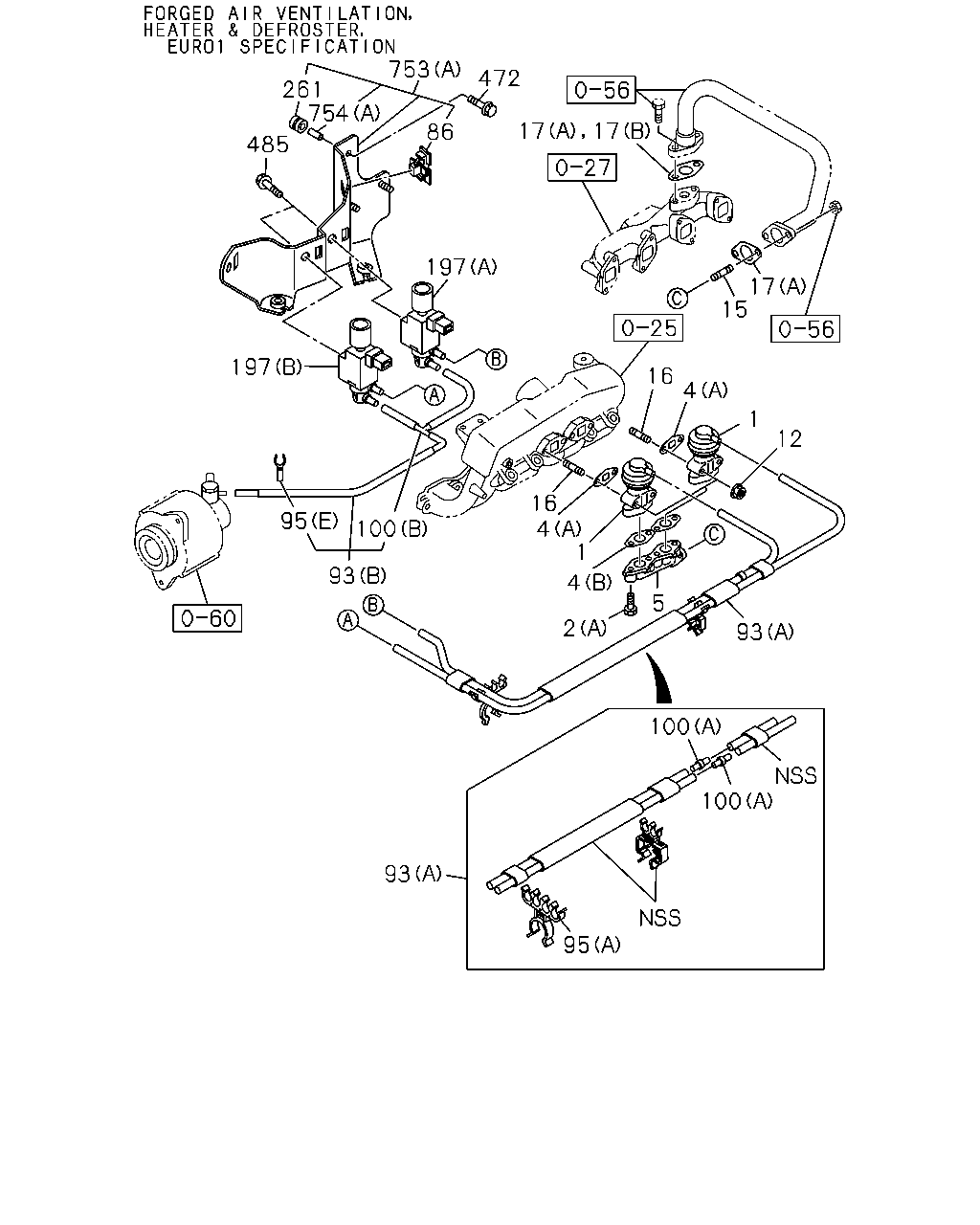

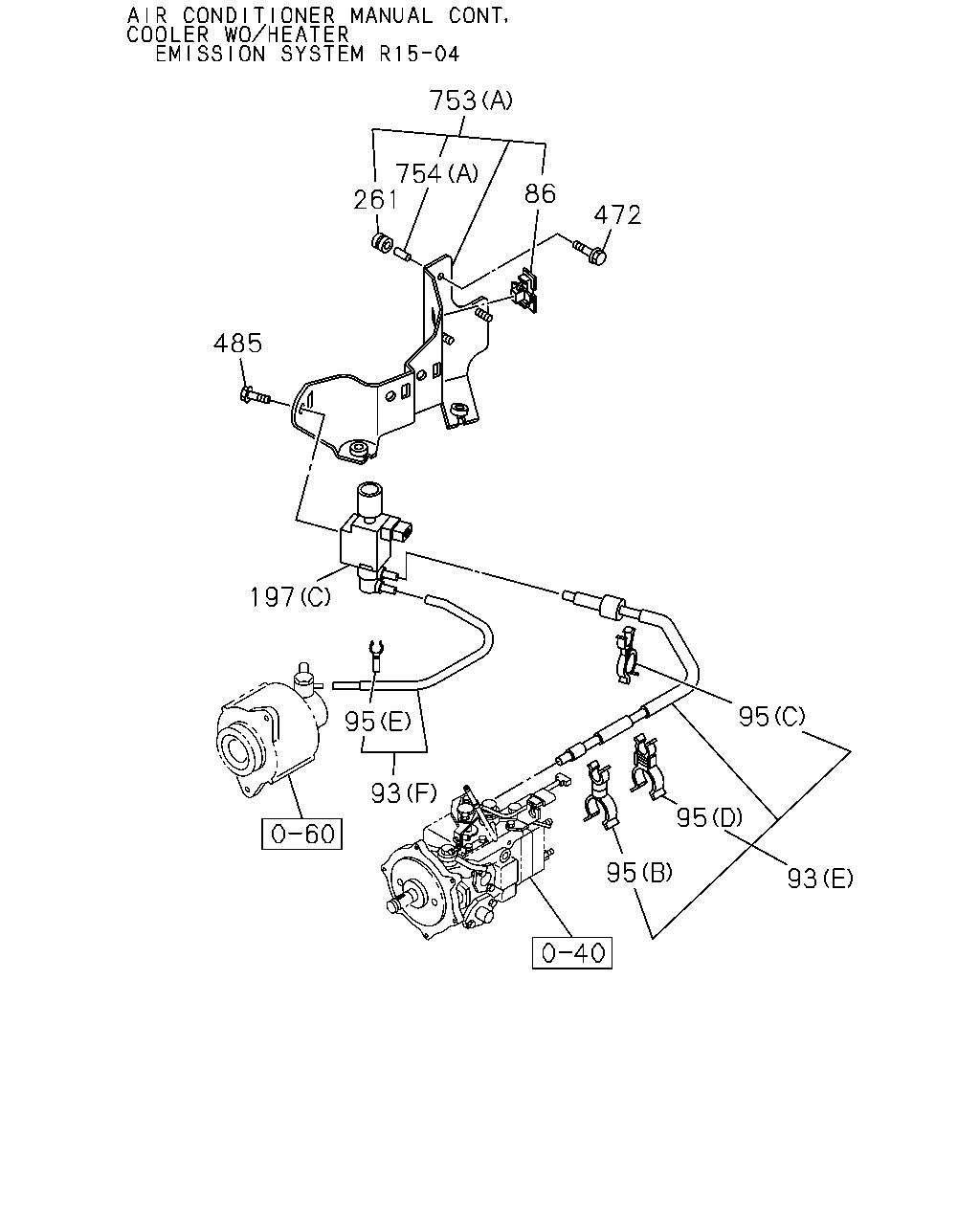

86	03.675 CLIP AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
86	03.675 CLIP EURO1 SPECIFICATION<NT1> 02.559 L=15	8-94315-436-1	01	1	0306-0402	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (A)	8-97260-313-4	01	1	0610-	●
93	03.675 HOSE ASM FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0306-0609	●
93	03.675 HOSE ASM HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 03.163 (B)	8-97943-450-0	01	1	0610-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (E)	8-97332-387-1	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.163 (F)	8-97943-451-0	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (C)	8-97260-312-4	01	1	0306-	●
93	03.675 HOSE ASM AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1> 03.163 (D)	8-97943-449-0	01	1	0306-	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0306-0402	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0403-0508	●
95	03.680 CLIP; HOSE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0509-0609	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> 02.589 (E) ID=13 & 16.5	8-94169-028-0	01	1	0610-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.430 (B) ID=6 & 16.5	8-94165-402-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 04.128 (C) ID=14.5 & 7.5	8-94315-424-0	01	1	0306-	●
95	03.680 CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 03.483 (D) ID=21 & 7.5	8-97309-946-0	01	1	0306-	●
95	03.680 CLIP; HOSE EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0306-0609	●
95	03.680 CLIP; HOSE HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60),COOLER WO/HEATER(C65) EURO1 SPECIFICATION<NT1> (A) ID=14.5 & 7X4	8-94368-499-0	01	1	0610-	●
197	03.670 VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.130 (C)	8-94384-336-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> (A)	8-97043-750-0	01	1	0306-	●
197	03.670 VALVE; VAC SWITCHING EURO1 SPECIFICATION<NT1> 03.675 (B)	8-97171-030-0	01	1	0306-	●
261	03.671 GROMMET AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206	5-19389-002-0	03	1	0306-	●
261	03.671 GROMMET EURO1 SPECIFICATION<NT1> 00.206	5-19389-002-0	03	1	0306-	●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0306-0609		●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0306-0605	●
485	03.671 BOLT; VSV AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0606-	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0306-0605	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION<NT1> 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	02	1	0606-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (B)	8-97943-321-0	01	1	0306-0609		●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97943-948-0	01	1	0403-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97943-948-0	01	1	0403-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> (B)	8-97944-146-0	04	1	0403-0609		●

17 17 17 681 789 791 15 655 1 16 12 4 16 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97132-802-5	02	1	0306-	●
1	03.670 VALVE; EGR EURO1 SPECIFICATION<NT1>	8-97349-435-0	01	1	0306-0609		●
1	03.670 VALVE; EGR	8-98013-911-1	01	1	0610-			●
2	03.670 BOLT; EGR VLV 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0610-			●
2	03.670 BOLT; EGR VLV 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 02.343 (C) M8X12 FLANGE	0-28050-812-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0610-0806			●
2	03.670 BOLT; EGR VLV EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.417 (D) M8X23 FLANGE	8-97378-077-0	01	1	0807-0809			●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 01.271 (A) M8X40 FLANGE	0-28080-840-0	04	1	0306-0512	●
2	03.670 BOLT; EGR VLV EURO1 SPECIFICATION<NT1> 02.277 (A) M8X40 FLANGE	0-28050-840-0	04	1	0601-	●
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	04	1	0306-0602	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	04	1	0603-	●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602		●
12	03.671 NUT; EGR VLV EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609		●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
15	03.670 STUD; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8X40 L=52	0-41010-840-0	02	1	0807-0809			●
15	03.670 STUD; EGR PIPE 01.540 M8X40 L=52	0-41010-840-0	02	1	0810-			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
15	03.670 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	03	1	0610-0806			●
15	03.670 STUD; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	03	1	0807-0809			●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.901 M8X25 L=37	9-04110-825-0	02	1	0306-0604	●
15	03.670 STUD; EGR PIPE EURO1 SPECIFICATION<NT1> 03.275 M8X25 L=37	0-41010-825-0	02	1	0605-	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97104-508-1	02	1	0306-0408		●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X20 L=31	8-97378-060-0	02	1	0409-0609		●
16	03.275 STUD; EGR VLV 01.073 M8X22 L=40	0-49140-822-0	02	1	0610-			●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.613 M8X45 L=57	8-94105-162-1	04	1	0306-0408	●
16	03.275 STUD; EGR VLV EURO1 SPECIFICATION<NT1> 03.342 M8X49 L=63	8-97019-478-0	04	1	0409-	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A) ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-670-0	02	1	1008-1205	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97324-052-0	02	1	1206-	●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (D) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-980-1	01	1	0810-			●
17	03.665 GASKET; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0807-0809			●
17	03.665 GASKET; EGR PIPE (E) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97942-749-0	02	1	0810-			●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (A)	8-94340-670-0	02	1	0306-0310	●
17	03.665 GASKET; EGR PIPE EURO1 SPECIFICATION<NT1> (B)	8-97324-052-0	01	1	0306-0609		●
17	03.665 GASKET; EGR PIPE (C) ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-2	02	1	0610-1007			●
655	03.675 PIPE; EGR VLV IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-267-1	01	1	0807-0809			●
655	03.675 PIPE; EGR VLV	8-98096-267-1	01	1	0810-			●
681	03.671 NUT; EGR PIPE IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	02	1	0807-0809			●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0810-			●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91150-208-0	01	1	0306-0602		●
681	03.671 NUT; EGR PIPE EURO1 SPECIFICATION<NT1> 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-0609		●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-0806			●
681	03.671 NUT; EGR PIPE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 01.540 M8 FLANGE	0-91180-208-0	03	1	0807-0809			●
789	03.670 COVER; COOLER,EGR IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98105-261-0	01	1	0807-0809			●
789	03.670 COVER; COOLER,EGR	8-98105-261-0	01	1	0810-			●
791	03.670 STUD; COVER IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL) 03.342 M8X22 L=33	8-94257-319-0	02	1	0807-0809			●
791	03.670 STUD; COVER 03.342 M8X22 L=33	8-94257-319-0	02	1	0810-			●

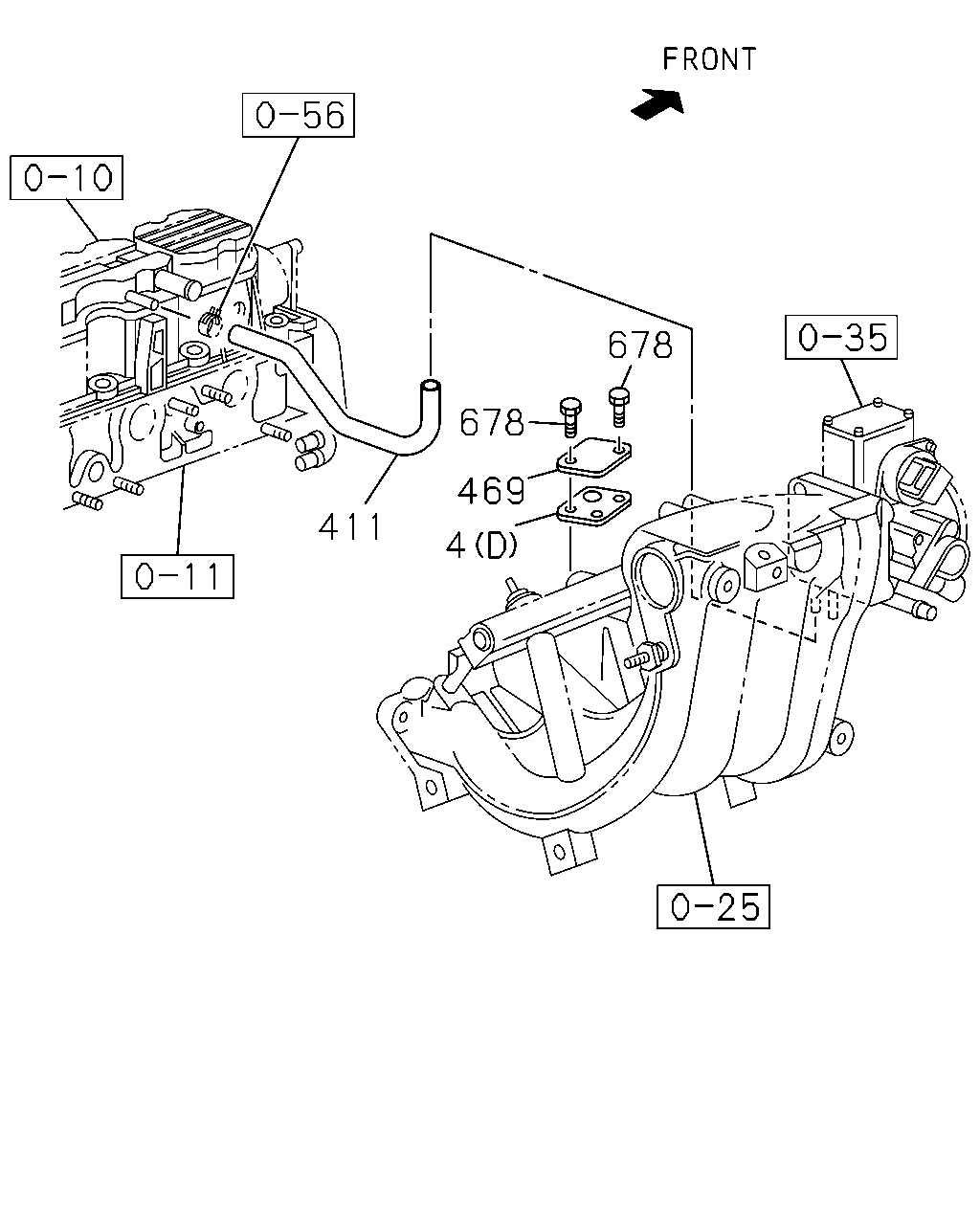

678 678 469 411 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	03.671 GASKET; EGR VLV (D)	8-92064-809-0	01	1	0306-1009				●
4	03.671 GASKET; EGR VLV (D)	8-92061-674-0	01	1	1010-				●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (A)	8-94334-338-1	02	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> (B)	8-94379-754-0	01	1	0306-	●
4	03.671 GASKET; EGR VLV EURO1 SPECIFICATION<NT1> 03.665 (C)	8-97324-052-0	02	1	0306-0609		●
4	03.671 GASKET; EGR VLV (E)	8-97356-711-3	01	1	0610-			●
411	03.417 HOSE; RUBBER,CYL HD COVER	8-92063-676-0	01	1	0306-				●
469	03.680 PLATE; EGR VLV	8-92065-430-0	01	1	0306-1009				●
469	03.680 PLATE; EGR VLV	8-92068-002-0	01	1	1010-				●
678	03.670 BOLT; PLATE	8-11041-103-0	02	1	0306-1009				●
678	03.670 BOLT; PLATE	8-92138-684-0	02	1	1010-				●

185 752 472 185 747 740 631 754 155 753

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	03.680 RUBBER; MTG,BRKT EURO1 SPECIFICATION<NT1> 03.671	8-97943-313-0	04	1	0403-0609		●
185	03.163 HOSE; RUBBER,VSV EURO1 SPECIFICATION<NT1> (B)	8-97320-372-3	01	1	0306-0609		●
185	03.163 HOSE; RUBBER,VSV EURO1 SPECIFICATION<NT1> (A)	8-97943-807-0	01	1	0306-0609		●
472	03.671 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0306-	●
472	03.671 BOLT; BRKT EURO1 SPECIFICATION<NT1> 03.680 M6X30 FLANGE	0-28650-630-0	02	1	0306-0609		●
631	03.417 WASHER; PL,BRKT EURO1 SPECIFICATION<NT1> 02.587 ID=6.4 OD=18	9-09160-706-0	04	1	0403-0606		●
631	03.417 WASHER; PL,BRKT EURO1 SPECIFICATION<NT1> 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-0609		●
740	03.680 BOLT; VAC REG VALVE EURO1 SPECIFICATION<NT1> M6X30 FLANGE	0-28650-630-0	02	1	0306-0609		●
747	03.671 NUT; VAC REG VALVE EURO1 SPECIFICATION<NT1> 01.062 M6 FLANGE	0-91180-106-0	02	1	0306-0609		●
752	03.670 VALVE; EVRV EURO1 SPECIFICATION<NT1>	8-97240-699-0	01	1	0306-0609		●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (B)	8-97943-321-0	01	1	0306-0609		●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97307-069-2	01	1	0306-0402	●
753	03.670 BRACKET; VALVE AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> (A)	8-97943-948-0	01	1	0403-	●
753	03.670 BRACKET; VALVE EURO1 SPECIFICATION<NT1> (A)	8-97943-948-0	01	1	0403-	●
754	03.647 BUSHING; RUBBER AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> 00.206 (A)	5-19389-009-0	03	1	0306-	●
754	03.647 BUSHING; RUBBER EURO1 SPECIFICATION<NT1> (B)	8-97944-146-0	04	1	0403-0609		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
