Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#77493) — 189 parça

58 29 29 57 26 28 28 118 313 48 48 219 219 118 313

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97080-301-2	01	1	0306-0308	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0309-0609	●	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97920-470-0	01	1	0610-0801	●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-97923-928-0	01	1	0802-	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0306-0609	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11	5-09623-002-0	02	1	0610-	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0306-0609		●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0610-			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0306-0512	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-0609	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0610-	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0306-0512	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-	●
48	01.531 CLIP; OIL PIPE (D)	8-97389-844-0	01	1	0610-			●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0306-	●
48	01.531 CLIP; OIL PIPE (B) ID=9 & 9 L=25	1-09701-212-2	01	1	0306-0609		●
48	01.531 CLIP; OIL PIPE (C)	8-97389-843-1	01	1	0610-			●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0306-0609		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0610-			●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0306-0308	●
57	01.519 PIPE; OIL,OIL JET	8-97912-536-2	01	1	0309-0309	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0310-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0610-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0306-0609	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0610-	●
118	01.531 BRACKET; CLIP,OIL PIPE (A)	8-97350-307-2	01	1	0306-	●
118	01.531 BRACKET; CLIP,OIL PIPE (B)	8-97328-187-0	01	1	0306-0609		●
219	01.531 BOLT; CLIP FIX,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	0306-0512	●	●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	0601-0609	●	●
219	01.531 BOLT; CLIP FIX,OIL PIPE 03.162 M6X35 FLANGE	0-28650-635-0	01	1	0610-	●
313	01.540 BOLT; PIPE BRKT 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0306-0512	●	●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0609	●	●
313	01.540 BOLT; PIPE BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-	●

567 458

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
458	01.426 CAP; RUBBER FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4	8-94217-809-0	01	1	0306-0609	●
458	01.426 CAP; RUBBER EMISSION SYSTEM R15-04<K75> 01.780 ID=4	8-94217-809-0	01	1	0306-0609		●
458	01.426 CAP; RUBBER HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 01.780 ID=4	8-94217-809-0	01	1	0610-	●
567	01.531 CLIP; PIPE FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8	8-94107-762-0	01	1	0306-0609	●
567	01.531 CLIP; PIPE EMISSION SYSTEM R15-04<K75> 03.145 ID=8	8-94107-762-0	01	1	0306-0609		●
567	01.531 CLIP; PIPE HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75> 03.145 ID=8	8-94107-762-0	01	1	0610-	●

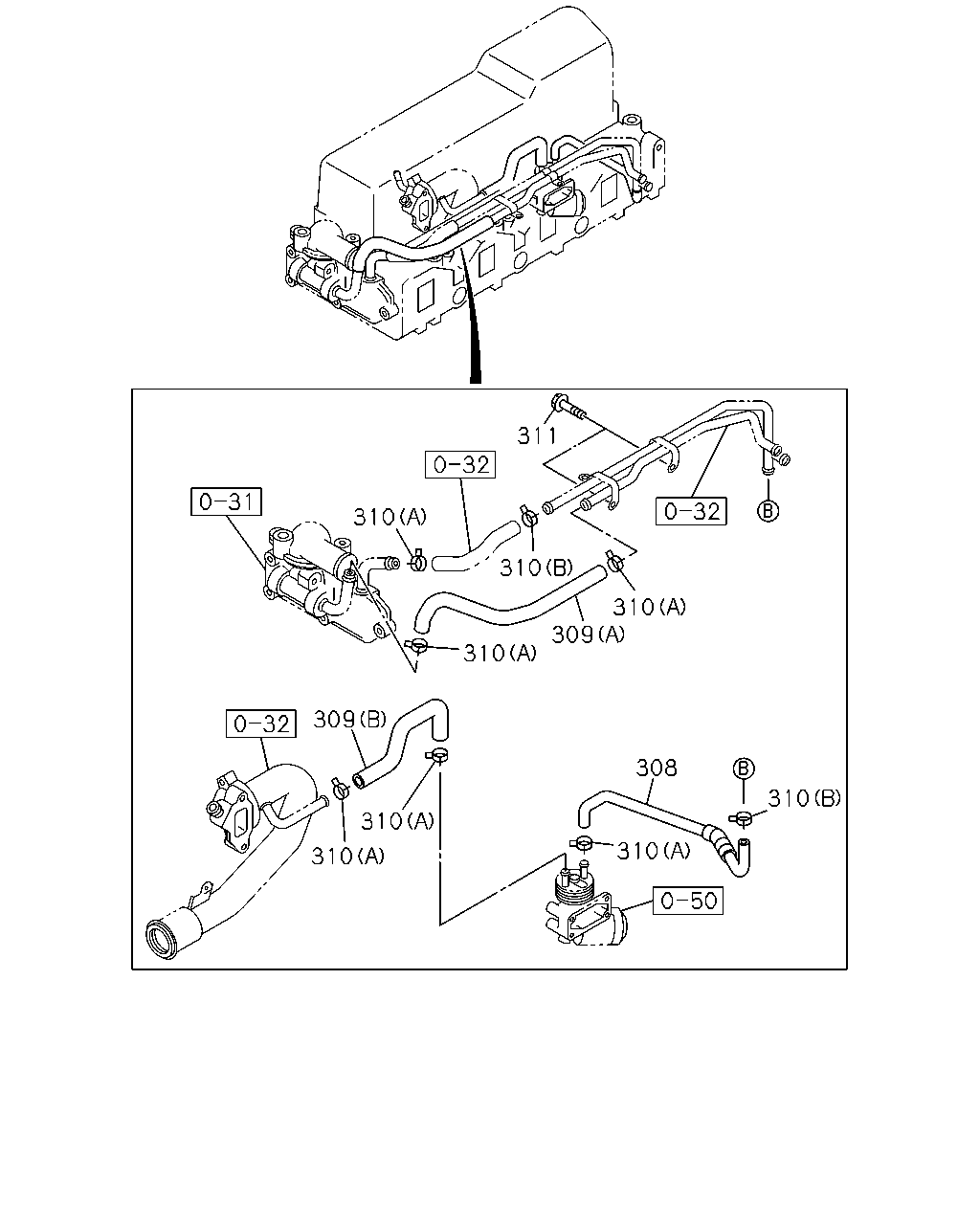

311 310 310 310 309 310 309 308 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-1	01	1	0306-0609	●	●
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	0610-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	0306-0609	●	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	0610-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	0306-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97329-648-1	01	1	0306-0609		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0306-0609	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0610-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0306-0609	●	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0610-	●
310	01.540 CLIP; WATER HOSE FIX 08.846 (C) ID=22	8-94382-401-0	02	1	0306-0609		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0306-0512	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-	●

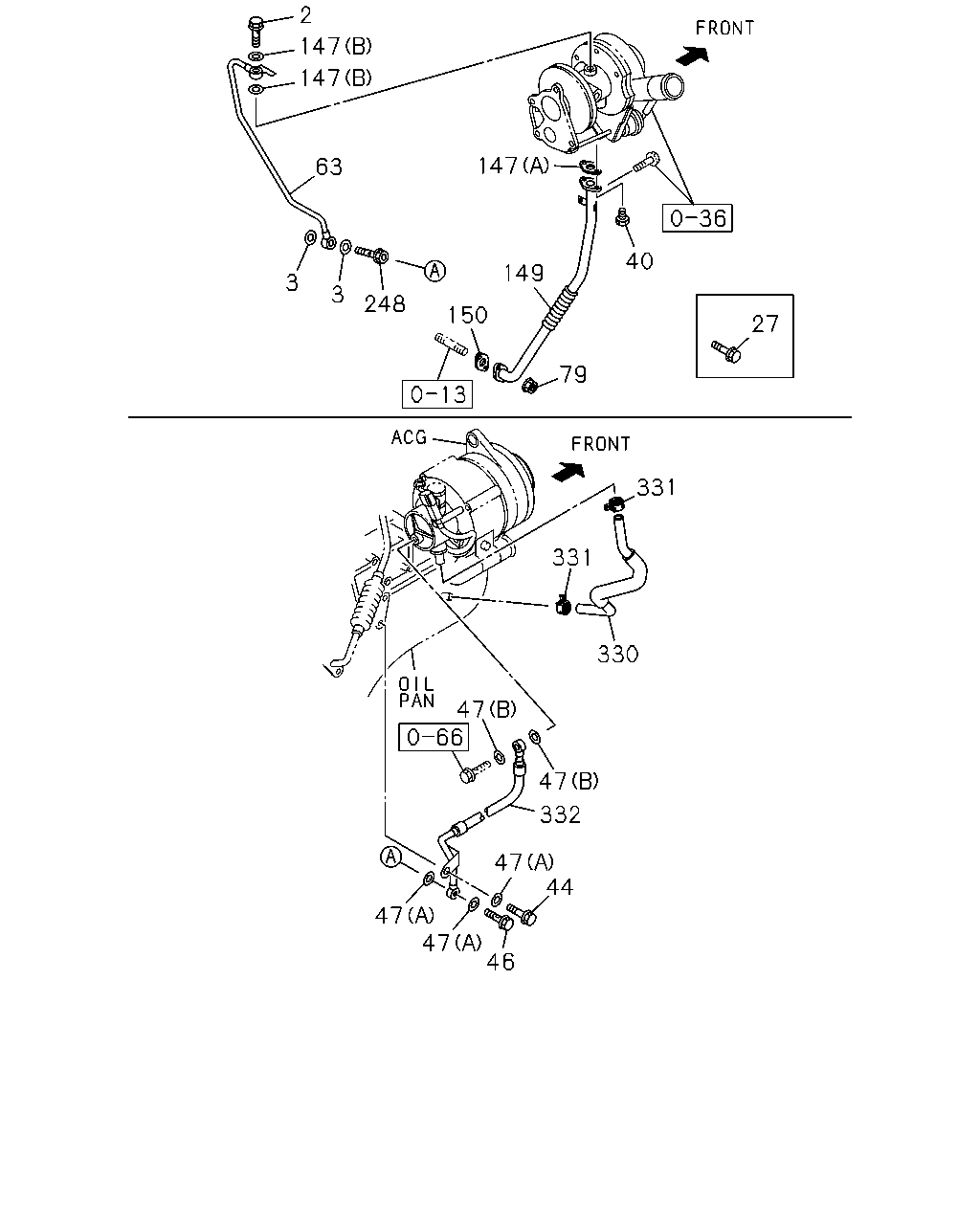

2 147 147 147 63 40 149 3 3 248 150 27 79 331 331 330 47 47 332 47 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0306-0609	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0610-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0306-0609	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-	●
27	01.531 BOLT; OIL PIPE FIX 00.206 M8X10 FLANGE	0-28080-810-0	01	1	0306-0512	●	●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	0601-0609	●	●
27	01.531 BOLT; OIL PIPE FIX 03.407 M8X10 FLANGE	0-28050-810-0	01	1	0610-	●
40	01.531 BOLT; OIL PIPE 02.559 M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0306-0310	●	●
40	01.531 BOLT; OIL PIPE 00.738 M6X16 FLANGE	0-28080-616-0	02	1	0311-0512	●	●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0601-0609	●	●
40	01.531 BOLT; OIL PIPE 09.242 M6X16 FLANGE	0-28050-616-0	02	1	0610-	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0610-			●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0306-0609	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0306-0609	●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE-BOLT	5-09675-018-1	01	1	0610-0906	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 FLANGE	8-98137-710-0	01	1	0907-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0306-0609	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0610-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0306-0609	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0610-	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0306-0609	●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0306-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97330-876-0	01	1	0306-0609		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0610-			●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0306-0609	●	●
79	01.531 NUT; OIL DRAIN PIPE 00.854 M8 FLANGE	5-09440-005-0	02	1	0610-0805	●
79	01.531 NUT; OIL DRAIN PIPE 04.634 M8 FLANGE	8-97581-233-0	02	1	0806-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0306-0609	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-	●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0306-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0306-0609		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97354-056-0	01	1	0610-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-1	01	1	0306-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97245-772-2	01	1	0306-0609		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0610-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0610-1007			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0306-0609	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0610-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0306-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED	8-97305-198-1	01	1	0306-0609		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	0610-			●
330	03.278 HOSE; VAC PUMP,RETURN	8-97353-830-0	01	1	0306-0609	●	●
330	03.278 HOSE; VAC PUMP,RETURN	8-97353-830-0	01	1	0610-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0306-0609	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0306-0609	●	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0610-	●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	01	1	0610-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	0306-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97324-653-1	01	1	0306-0609		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	0610-			●

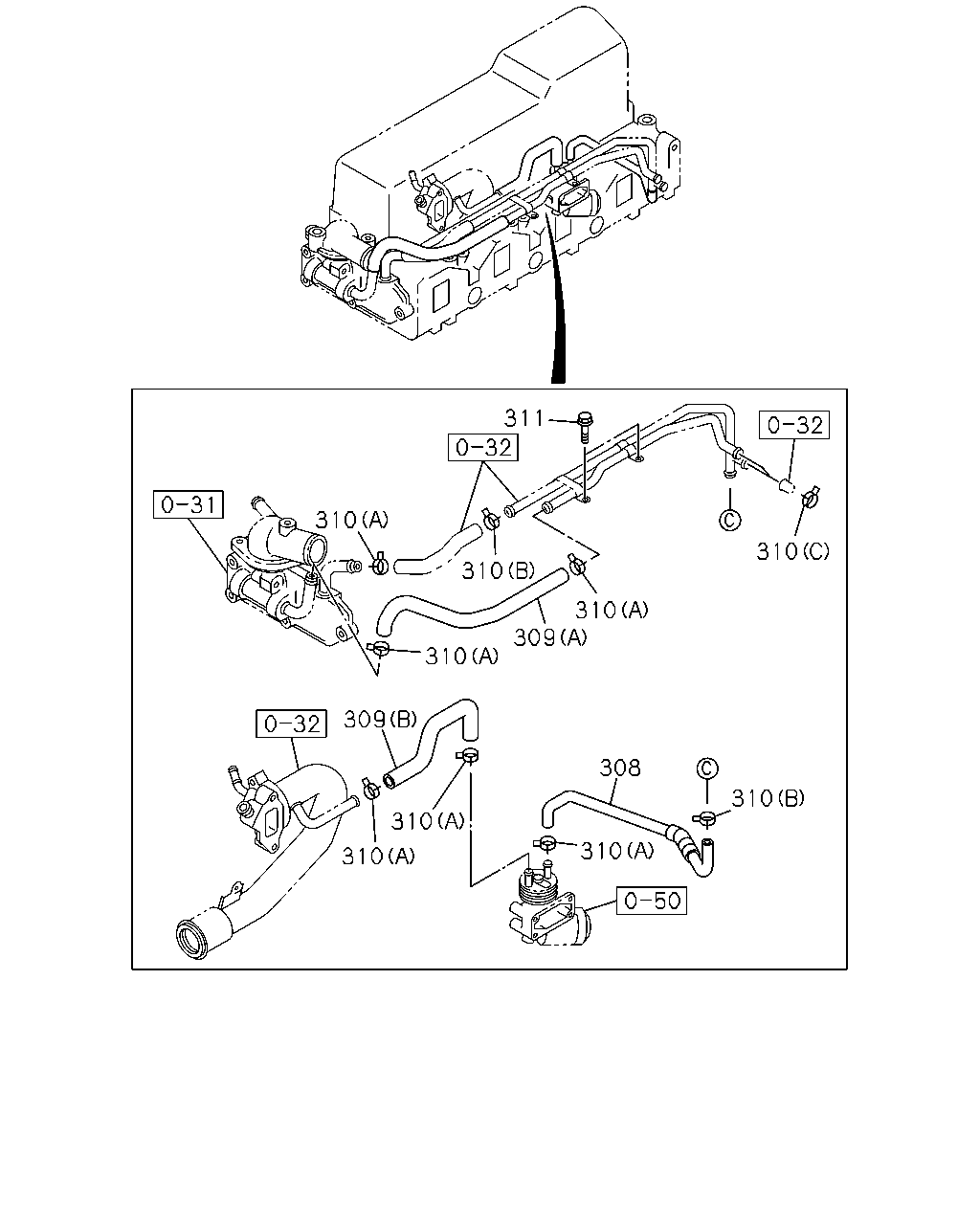

311 310 310 310 310 309 310 309 308 310 310 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-1	01	1	0306-0609	●	●
308	01.540 HOSE; OIL COOLER FEED	8-97362-329-3	01	1	0610-	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	0306-0609	●	●
309	01.540 HOSE; OIL COOLER RETURN (A)	8-97256-047-1	01	1	0610-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97213-919-2	01	1	0306-	●
309	01.540 HOSE; OIL COOLER RETURN (B)	8-97329-648-1	01	1	0306-0609		●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0306-0609	●	●
310	01.540 CLIP; WATER HOSE FIX 01.166 (A) ID=20.8	8-94125-862-1	06	1	0610-	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0306-0609	●	●
310	01.540 CLIP; WATER HOSE FIX 01.150 (B) ID=24	8-97010-605-0	02	1	0610-	●
310	01.540 CLIP; WATER HOSE FIX 08.846 (C) ID=22	8-94382-401-0	02	1	0306-0609		●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0306-0512	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-	●

2 147 63 147 48 48 248 44 3 3 147 414 149 150 534 563

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0306-0609	●	●
2	01.531 BOLT; EYE,OIL PIPE M10X27 FLANGE	8-94443-535-0	01	1	0610-	●		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0306-0609	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-	●
44	01.531 BOLT; CLIP,OIL PIPE 03.680 M6X30 FLANGE	0-28650-630-0	01	1	0610-			●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0306-0609	●	●
44	01.531 BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28650-820-0	01	1	0610-	●
48	01.531 CLIP; OIL PIPE (D)	8-97389-844-0	01	1	0610-			●
48	01.531 CLIP; OIL PIPE (A) ID=7 & 9 L=25	1-09701-228-3	01	1	0306-	●
48	01.531 CLIP; OIL PIPE (B) ID=9 & 9 L=25	1-09701-212-2	01	1	0306-0609		●
48	01.531 CLIP; OIL PIPE (C)	8-97389-843-1	01	1	0610-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97350-308-0	01	1	0306-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97330-876-0	01	1	0306-0609		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-98011-899-0	01	1	0610-			●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0306-0609	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0610-	●		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 03.358 (A)	8-94362-672-1	01	1	0306-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	0306-0609		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97354-056-0	01	1	0610-			●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97333-749-1	01	1	0306-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97245-772-2	01	1	0306-0609		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-98011-900-0	01	1	0610-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97920-587-0	01	1	0610-1007			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98132-018-1	01	1	1008-			●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0306-0609	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-1	01	1	0610-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED M14X25	8-94315-336-1	01	1	0306-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED	8-97305-198-1	01	1	0306-0609		●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 01.531 M10X24	8-97944-505-1	01	1	0610-			●
414	01.531 BOLT; OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0610-			●
534	01.531 NUT; OIL PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
563	01.531 STUD; OIL PIPE 02.510 M8X20 L=32	0-41010-820-0	02	1	0610-			●

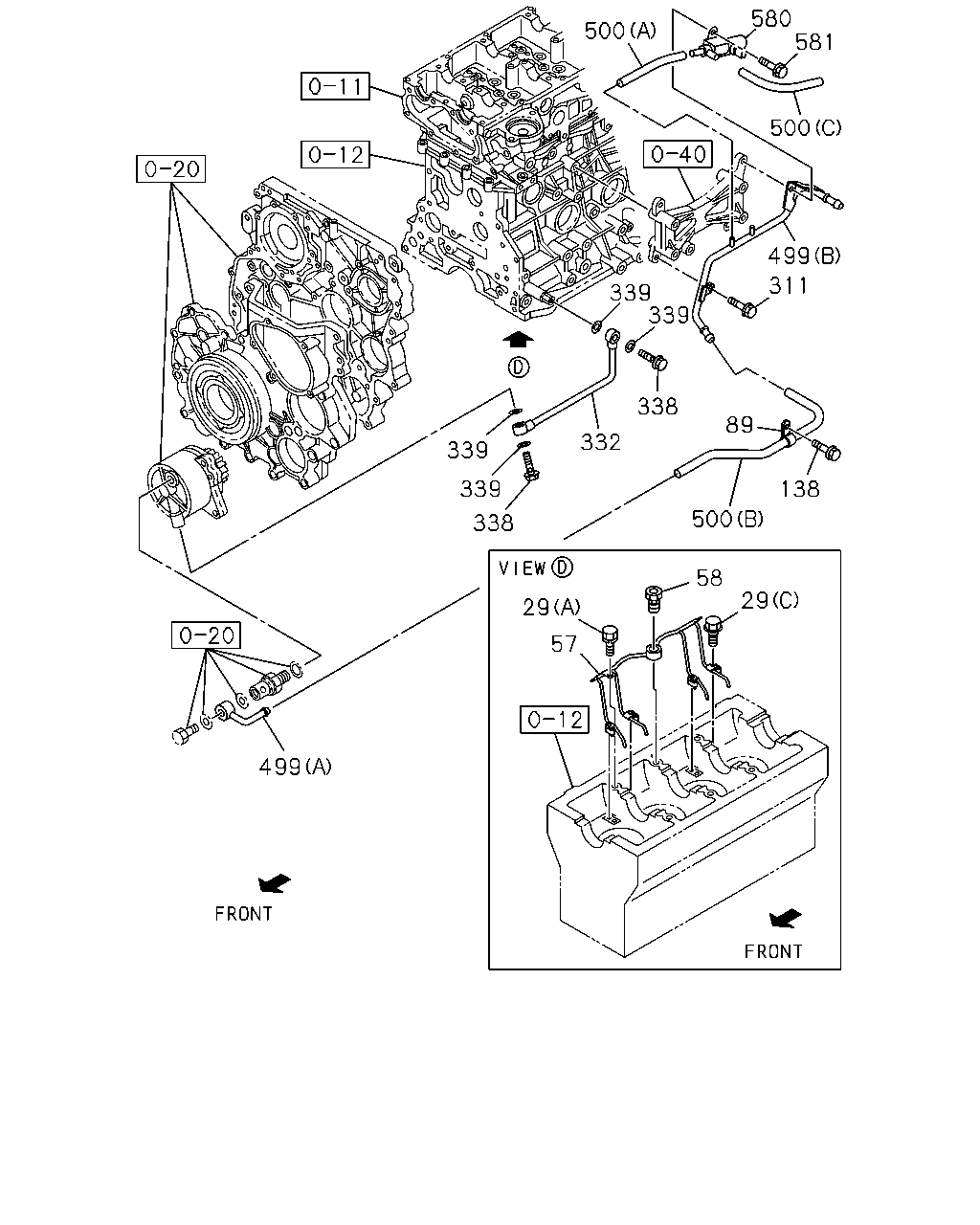

138 500 89 311 29 58 29 57 339 339 338 499 339 338 332 499 500 581 580 500 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	0306-0609		●
29	01.531 BOLT; OIL PIPE,OIL JET (C) M6X20 FLANGE	8-97380-673-1	04	1	0610-			●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0306-0512	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0601-0609	●	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	0610-	●		●
29	01.531 BOLT; OIL PIPE,OIL JET 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0306-0512	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0601-	●
57	01.519 PIPE; OIL,OIL JET	8-97116-971-1	01	1	0306-0609		●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-2	01	1	0610-			●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0306-0308	●
57	01.519 PIPE; OIL,OIL JET	8-97912-536-2	01	1	0309-0309	●
57	01.519 PIPE; OIL,OIL JET	8-94469-992-2	01	1	0310-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97379-464-0	01	1	0610-			●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0306-0609	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	0610-	●
89	04.681 CLIP; VAC HOSE ID=16 L=20	0-95235-536-0	01	1	0610-			●
138	01.531 BOLT; CLIP FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-			●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
311	01.531 BOLT; PIPE FIX 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0306-0512	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0609	●	●
311	01.531 BOLT; PIPE FIX 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0610-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97942-810-0	01	1	0306-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97324-653-1	01	1	0306-0609		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-98038-929-0	01	1	0610-			●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	8-97910-296-1	02	1	0610-			●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	0610-			●
499	04.681 PIPE; VACUUM (A)	8-98011-527-1	01	1	0610-			●
499	04.681 PIPE; VACUUM (B)	8-98013-802-1	01	1	0610-			●
500	04.681 HOSE; VACUUM (A)	0-04420-110-0	01	1	0610-			●
500	04.681 HOSE; VACUUM (B)	0-08508-230-0	01	1	0610-			●
500	04.681 HOSE; VACUUM 03.675 (C)	8-97369-589-0	01	1	0610-			●
580	01.531 VALVE; VAC SW 03.670	8-97352-145-0	01	1	0610-			●
581	01.531 BOLT; VSV 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0610-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
