0-40 — FUEL INJECTION SYSTEM (#77488) — 506 parça

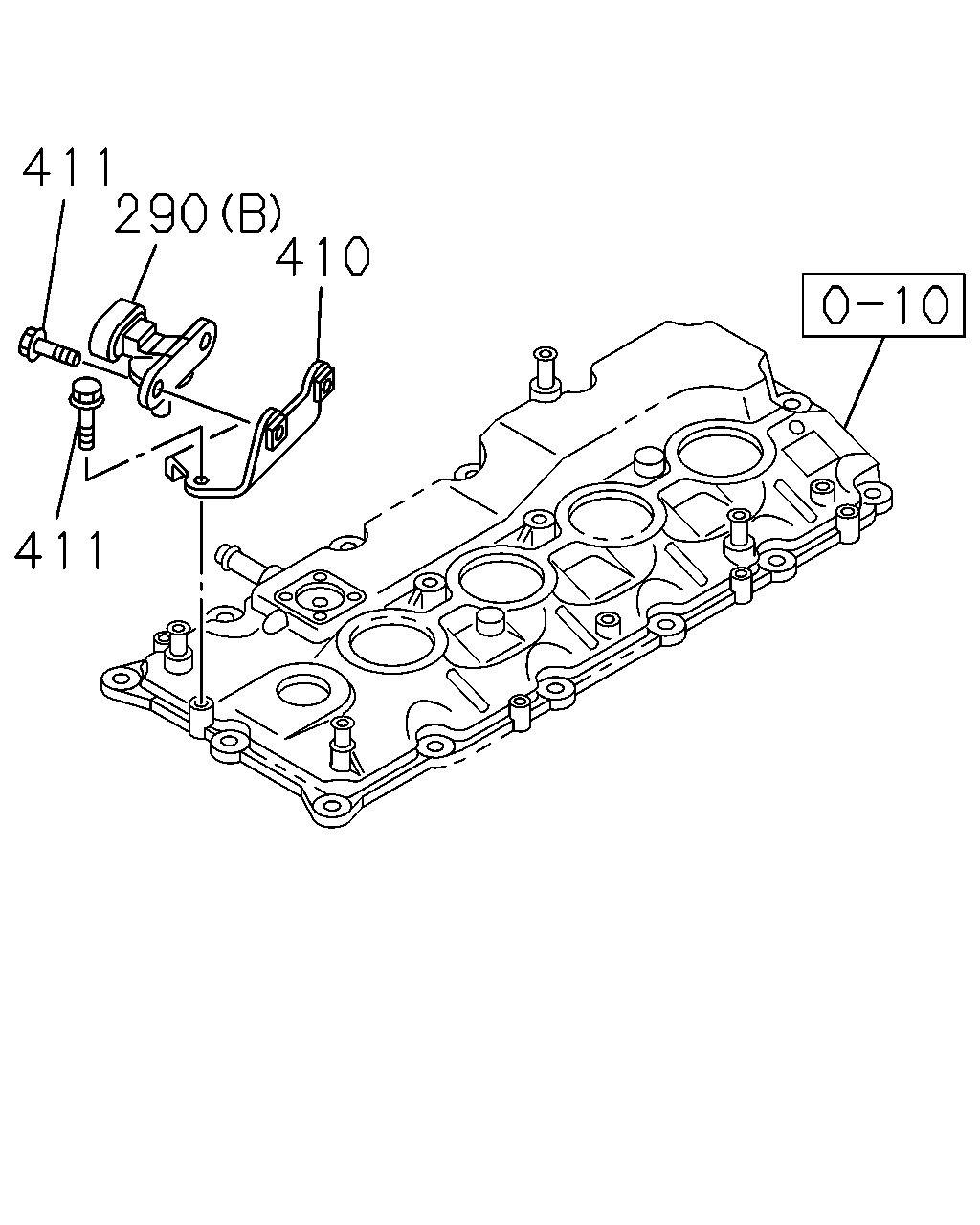

411 290 410 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

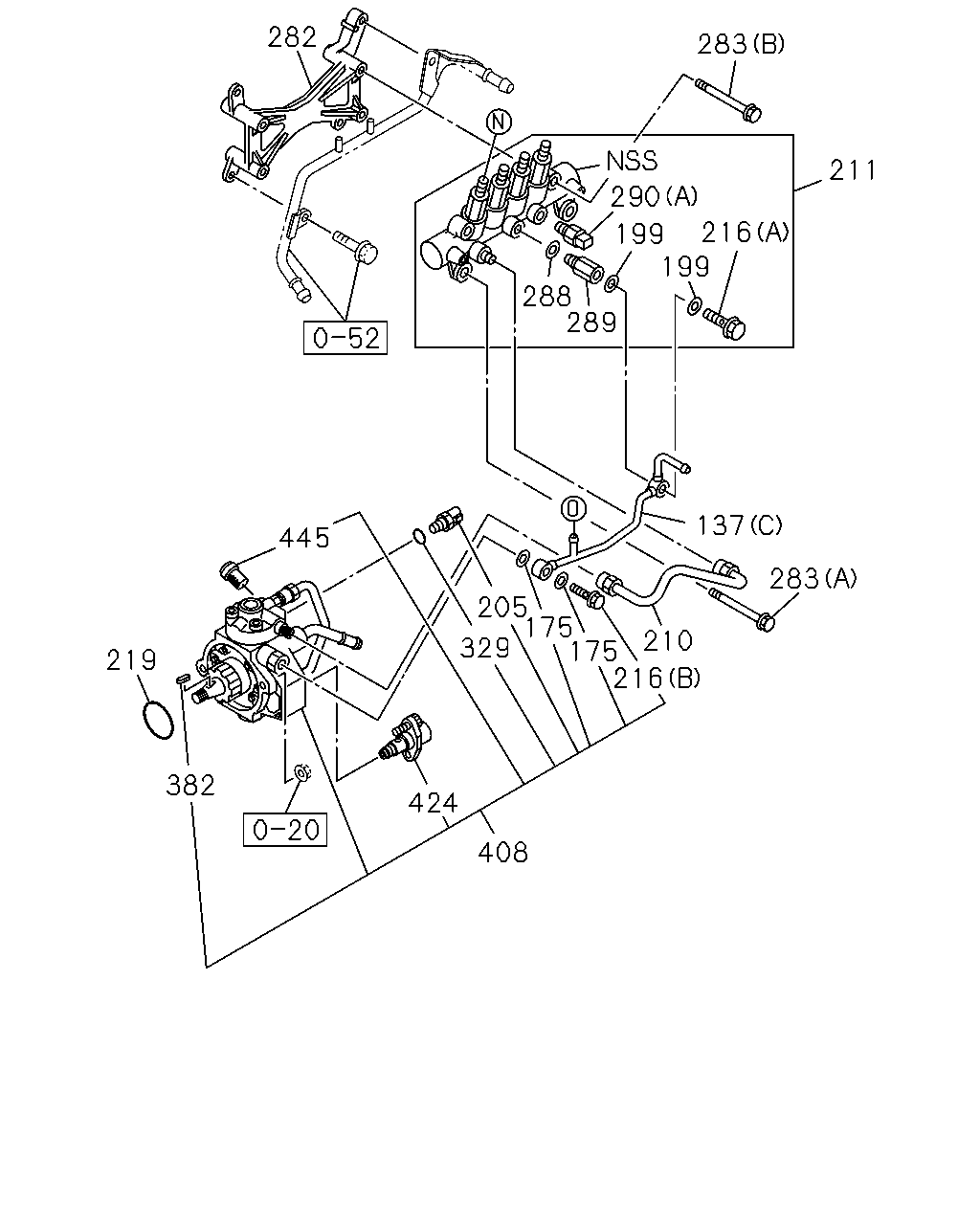

290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●
290	03.331 SENSOR; PRESS (A)	8-97318-684-0	01	1	0610-0708	●
290	03.331 SENSOR; PRESS (A)	8-98014-320-0	01	1	0709-1208	●
290	03.331 SENSOR; PRESS (A)	8-98181-616-0	01	1	1209-	●
410	03.331 BRACKET; SENSOR	8-98013-801-1	01	1	0610-	●
411	03.331 BOLT; SENSOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-	●
411	03.331 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0610-	●

68 68 68 68 110 68 110 341 341 93 34 19 31 63 137 18 36 17 32 16 31 34 36 36 36 29 30 29 50 66 1 140 44 43 76 81 78 47 45 138 80 80 72 140 43 272 61 35 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

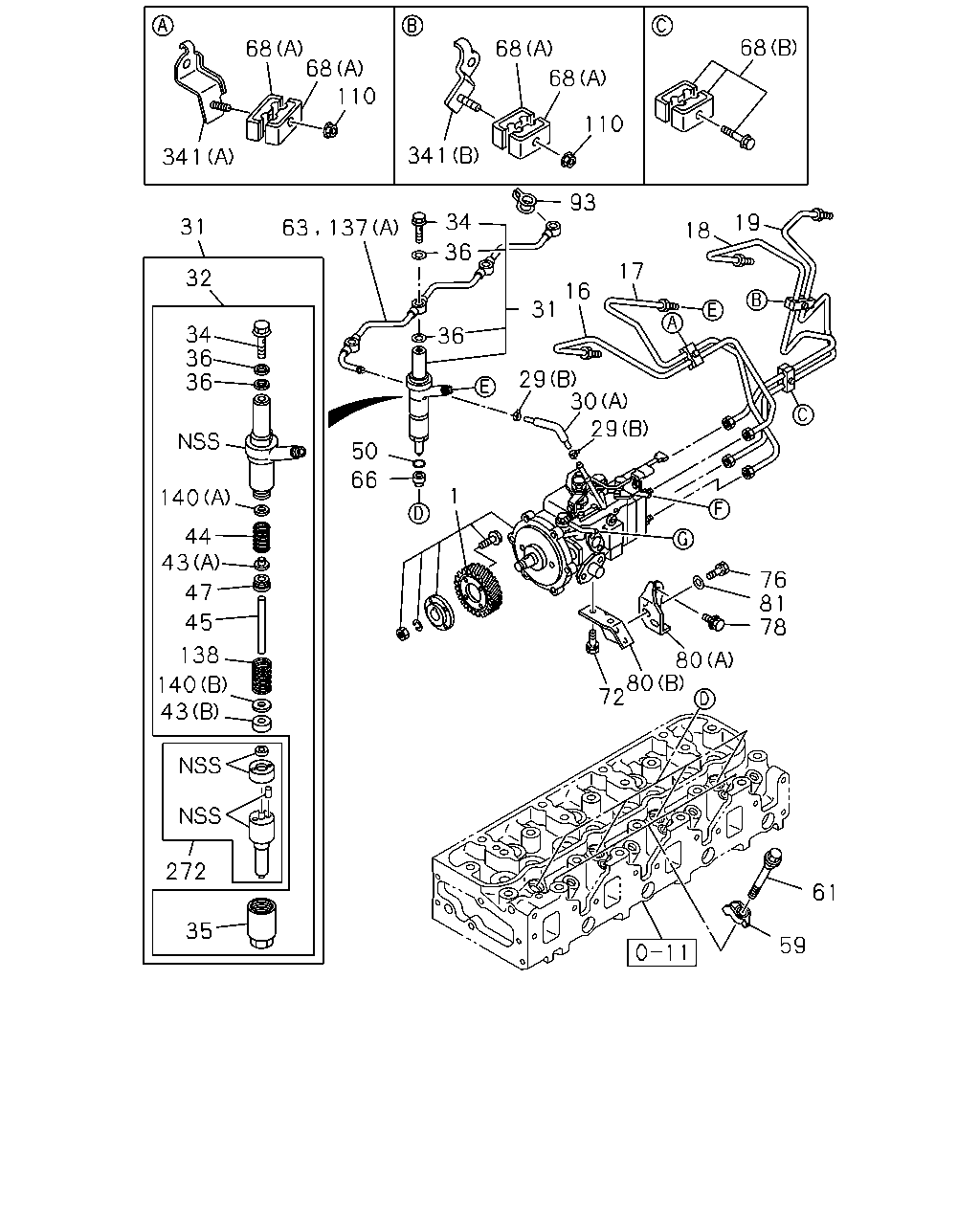

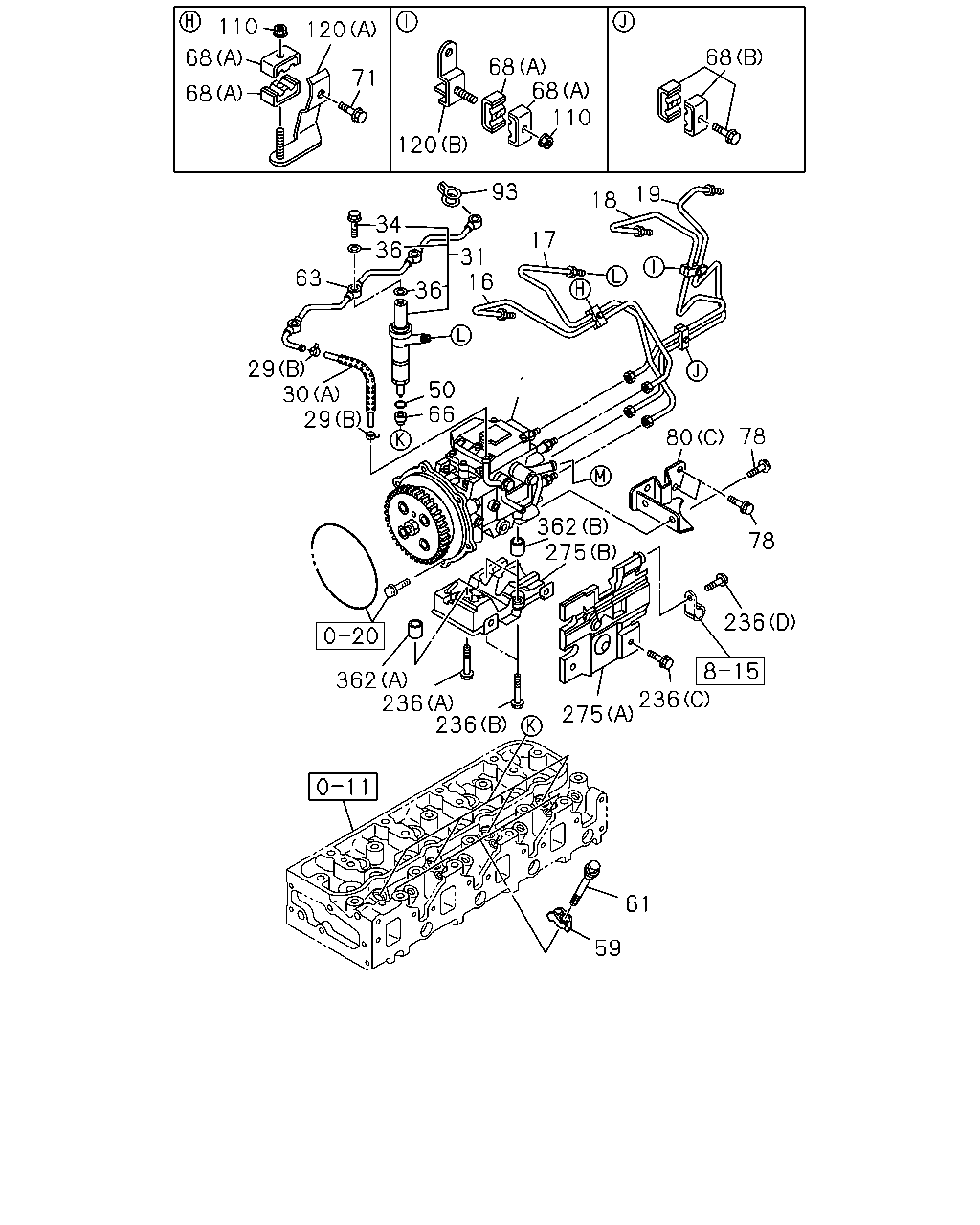

1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) EXC. TACHOMETER<U16>	8-98180-720-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. TACHOMETER<U16>	8-98180-719-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>	8-97350-398-3	01	1	0306-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>	8-97350-398-3	01	1	0610-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1>	8-97350-396-4	01	1	0306-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97326-739-3	01	1	0306-0609			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-97350-394-3	01	1	0306-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-97350-394-3	01	1	0610-0803		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-98110-564-0	01	1	0804-1103		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) TACHOMETER<U16>	8-98110-564-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-97350-393-3	01	1	0306-0803		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-98110-563-1	01	1	0804-1103		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) TACHOMETER<U16>	8-98110-563-1	01	1	1104-		●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609			●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-	●
16	03.330 PIPE; INJ NO.1	8-97287-521-0	01	1	0306-0311		●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	0312-		●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609			●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-	●
17	03.330 PIPE; INJ NO.2	8-97287-522-0	01	1	0306-0306		●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	0307-		●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609			●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-	●
18	03.330 PIPE; INJ NO.3	8-97287-523-0	01	1	0306-0311		●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	0312-		●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609			●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-	●
19	03.330 PIPE; INJ NO.4	8-97287-524-0	01	1	0306-0311		●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	0312-		●

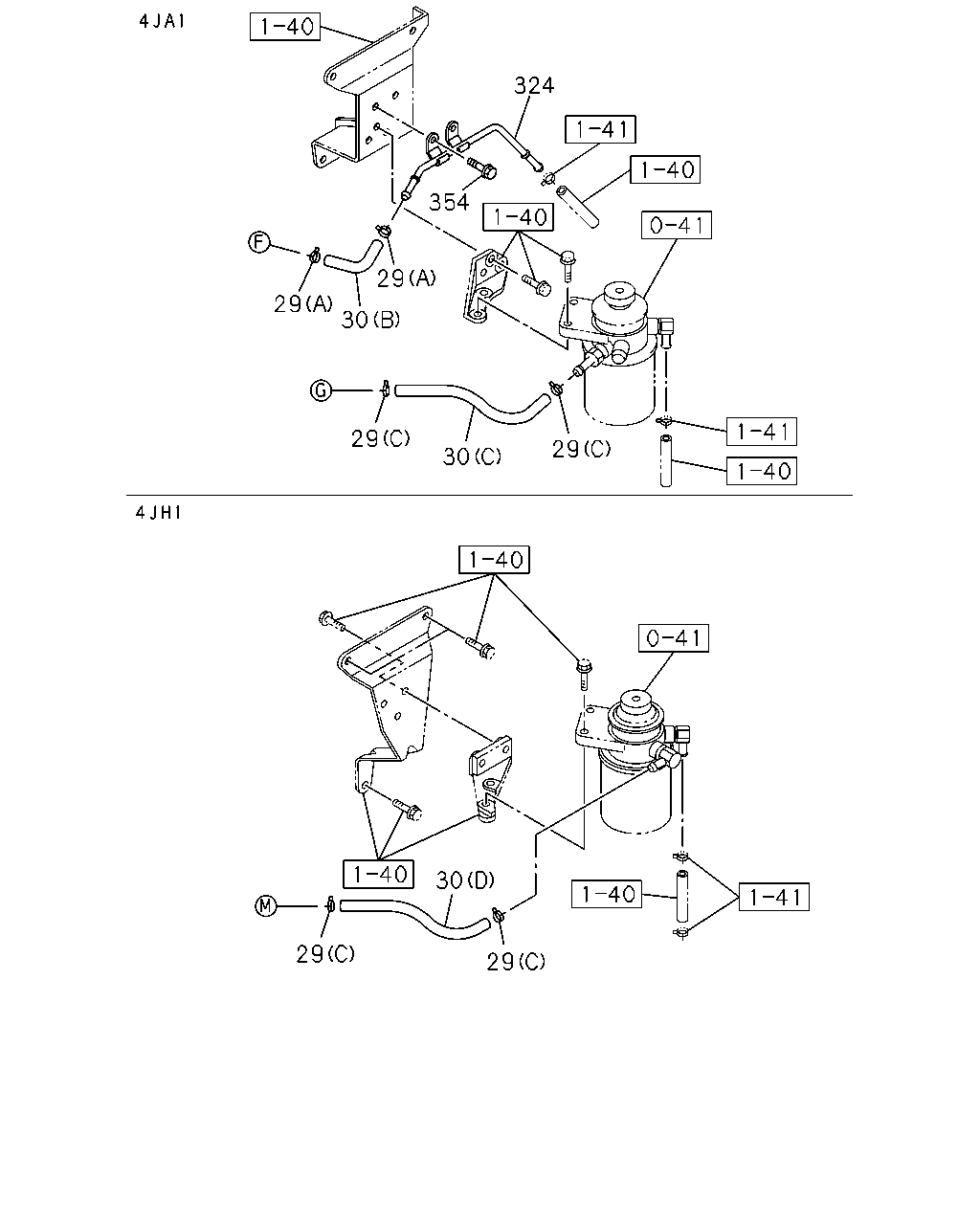

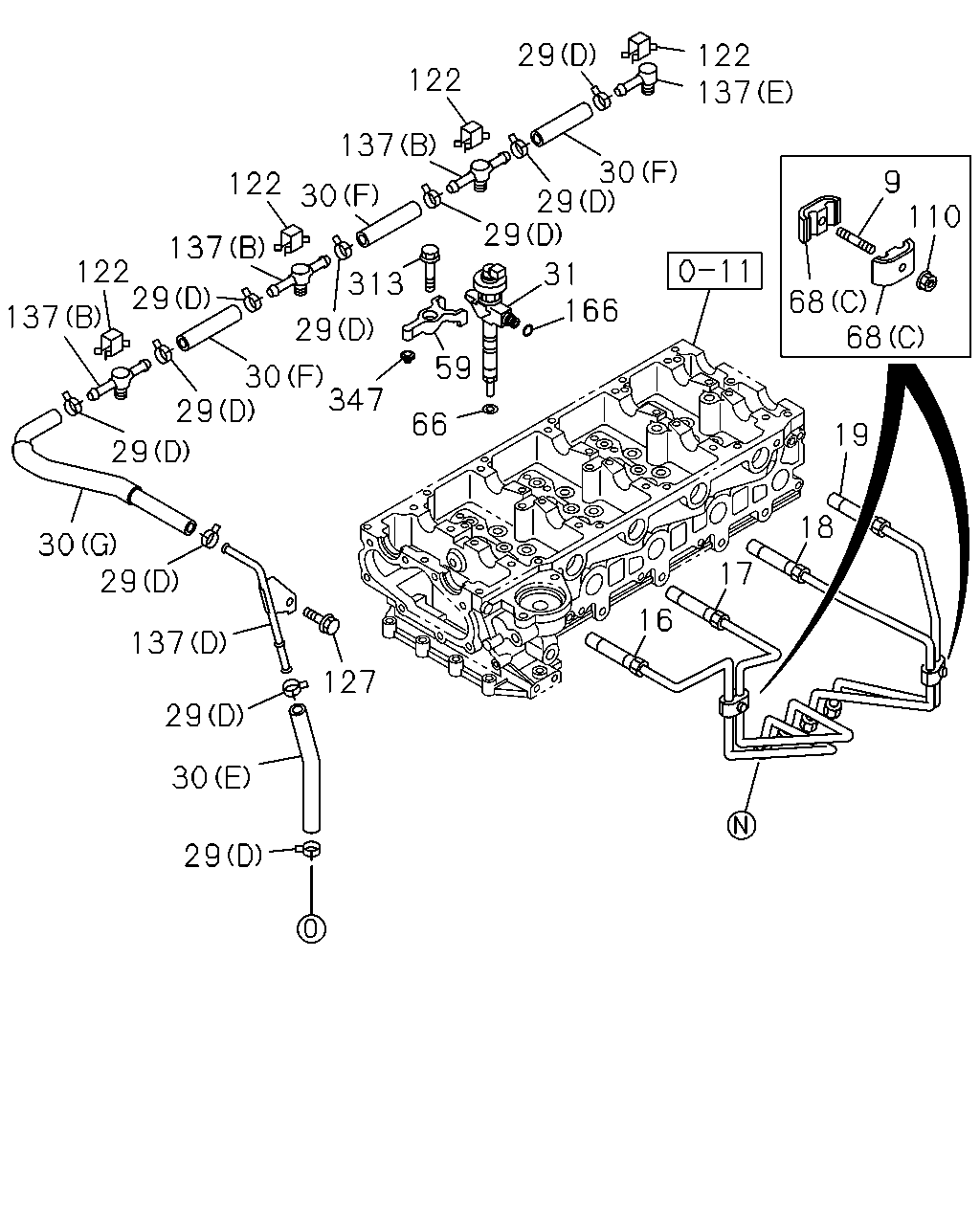

29	03.162 CLIP; HOSE (D) ID=10.5	8-97944-126-0	10	1	0610-	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0610-		●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0610-		●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96	8-98053-693-0	03	1	0612-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	0610-0810	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G)	8-98112-034-0	01	1	0811-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609		●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0610-1211		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-98135-263-1	01	1	1212-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-97352-907-0	01	1	0306-0609			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	8-98053-692-0	01	1	0612-	●
31	03.332 NOZZLE ASM; INJ COOLER WO/HEATER(C65)	8-98055-862-3	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0306-0501		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	0502-		●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0501			●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0502-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704	●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98011-604-5	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	1307-	●
32	03.332 HOLDER ASM; NOZZLE	8-97217-835-0	04	1	0306-		●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0306-0609		●	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0610-		●
35	03.330 NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-041-0	04	1	0306-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0306-0501		●	●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.00	8-97223-343-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.02	8-97223-344-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.04	8-97223-345-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.06	8-97223-346-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.08	8-97223-347-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.10	8-97223-348-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.12	8-97223-349-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.14	8-97223-350-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.16	8-97223-351-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.18	8-97223-352-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.20	8-97223-353-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.22	8-97223-354-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.24	8-97223-355-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.26	8-97223-356-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.28	8-97223-357-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.30	8-97223-358-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.32	8-97223-359-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.34	8-97223-360-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.36	8-97223-361-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.38	8-97223-362-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.40	8-97223-363-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.42	8-97223-364-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.44	8-97223-365-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.46	8-97223-366-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.48	8-97223-367-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.50	8-97223-368-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.52	8-97223-369-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.54	8-97223-370-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.56	8-97223-371-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.58	8-97223-372-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.60	8-97223-373-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.62	8-97223-374-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.64	8-97223-375-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.66	8-97223-376-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.68	8-97223-377-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.70	8-97223-378-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.72	8-97223-379-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.74	8-97223-380-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.76	8-97223-381-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.78	8-97223-382-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.80	8-97223-383-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.82	8-97223-384-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.84	8-97223-385-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.86	8-97223-386-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.88	8-97223-387-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.90	8-97223-388-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.92	8-97223-389-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.94	8-97223-390-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.96	8-97223-391-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=2.98	8-97223-392-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (B) T=3.00	8-97223-393-0	04	1	0306-		●
43	03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE (A)	8-97361-697-0	04	1	0306-		●
44	03.330 SPRING; NOZZLE,NOZZLE HOLDER	1-15343-003-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.25	8-97355-112-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.26	8-97355-113-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.27	8-97355-114-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.28	8-97355-115-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.29	8-97355-116-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.30	8-97355-117-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.31	8-97355-118-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.32	8-97355-119-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.33	8-97355-120-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.34	8-97355-121-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.35	8-97355-122-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.36	8-97355-123-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.37	8-97355-124-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.38	8-97355-125-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.39	8-97355-126-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.40	8-97355-127-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.41	8-97355-128-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.42	8-97355-129-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.43	8-97355-130-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.44	8-97355-131-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.45	8-97355-132-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.46	8-97355-133-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.47	8-97355-134-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.48	8-97355-135-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.49	8-97355-136-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.50	8-97355-137-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.51	8-97355-138-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.52	8-97355-139-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.53	8-97355-140-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.54	8-97355-141-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.55	8-97355-142-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.56	8-97355-143-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.57	8-97355-144-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.58	8-97355-145-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.59	8-97355-146-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.60	8-97355-147-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.61	8-97355-148-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.62	8-97355-149-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.63	8-97355-150-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.64	8-97355-151-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.65	8-97355-152-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.66	8-97355-153-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.67	8-97355-154-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.68	8-97355-155-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.69	8-97355-156-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.70	8-97355-157-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.71	8-97355-158-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.72	8-97355-159-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.73	8-97355-160-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.74	8-97355-161-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.75	8-97355-162-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.76	8-97355-163-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.77	8-97355-164-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.78	8-97355-165-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.79	8-97355-166-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.80	8-97355-167-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.81	8-97355-168-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.82	8-97355-169-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.83	8-97355-170-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.84	8-97355-171-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.85	8-97355-172-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.86	8-97355-173-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.87	8-97355-174-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.88	8-97355-175-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.89	8-97355-176-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.90	8-97355-177-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.91	8-97355-178-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.92	8-97355-179-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.93	8-97355-180-0	04	1	0306-		●
45	03.330 ROD; PUSH,NOZZLE HOLDER L=38.94	8-97355-182-0	04	1	0306-		●
47	03.332 SPACER; NOZZLE SPRING,NOZZLE HOL	8-97223-340-0	04	1	0306-		●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-2	04	1	0306-0609		●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-2	04	1	0610-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0609		●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0610-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0306-0609		●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0610-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0306-0402			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0403-0609		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0610-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-		●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0610-1210		●
68	03.162 CLIP; INJ PIPE 03.634 (A)	1-09701-240-0	04	1	1211-		●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0610-1212		●
68	03.162 CLIP; INJ PIPE (B)	8-98227-926-0	01	1	1301-		●
72	03.330 BOLT; BRKT TO INJ PUMP 01.516 M10X20 W/LK WASHER	0-50051-020-0	02	1	0306-0512		●
72	03.330 BOLT; BRKT TO INJ PUMP M10X20 W/LK WASHER	0-50551-020-0	02	1	0601-		●
76	03.330 BOLT; BRKT TO BRKT 01.073 M8X25 W/LK WASHER	0-50040-825-0	02	1	0306-0512		●
76	03.330 BOLT; BRKT TO BRKT 09.008 M8X25 W/LK WASHER	0-50540-825-0	02	1	0601-		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0306-0512		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0306-0512			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0601-0609			●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0306-0512			●
78	03.330 BOLT; BRKT TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0609			●
80	03.306 BRACKET; PUMP (C)	8-97287-698-3	01	1	0306-0609			●
80	03.306 BRACKET; PUMP (B)	8-97942-899-0	01	1	0306-0406		●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	0407-		●
80	03.306 BRACKET; PUMP (A)	8-97942-900-0	01	1	0306-0410		●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	0411-		●
81	03.330 WASHER; PL,BRKT TO PUMP 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	0306-0605		●
81	03.330 WASHER; PL,BRKT TO PUMP 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0606-		●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0403-0609		●	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0610-		●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0602		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0609		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-	●	●
137	03.163 PIPE ASM; LEAK OFF (E)	8-97315-230-2	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-97357-916-4	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-97372-938-3	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-94467-727-3	01	1	0306-0402		●
138	03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER	8-94174-141-0	04	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=1.20	1-15349-004-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.52	1-15349-044-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.54	1-15349-045-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.56	1-15349-046-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.58	1-15349-047-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.60	1-15349-048-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (A) T=0.70	1-15349-049-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.10	8-97116-029-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.20	8-97116-032-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.30	8-97116-033-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.40	8-97116-034-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.50	8-97116-035-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.51	8-97116-036-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.52	8-97116-037-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.53	8-97116-038-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.54	8-97116-039-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.55	8-97116-040-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.56	8-97116-041-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.57	8-97116-042-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.58	8-97116-043-0	AR	1	0306-		●
140	03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE (B) T=0.59	8-97116-044-0	AR	1	0306-		●
272	03.332 NOZZLE KIT; INJ	8-97362-572-0	04	1	0306-		●
341	03.330 BRACKET; CLIP,INJ PIPE (B)	8-97333-806-1	01	1	0306-		●
341	03.330 BRACKET; CLIP,INJ PIPE (A)	8-97287-511-2	01	1	0306-0306		●
341	03.330 BRACKET; CLIP,INJ PIPE (A)	8-97365-211-1	01	1	0307-		●

29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 68 137 29 59 30 347 29 66 19 29 18 30 29 17 16 137 127 29 30 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	03.340 STUD; CLIP 03.162 M6X25 L=36	8-97214-234-1	02	1	0610-	●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609			●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-	●
16	03.330 PIPE; INJ NO.1	8-97287-521-0	01	1	0306-0311		●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	0312-		●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609			●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-	●
17	03.330 PIPE; INJ NO.2	8-97287-522-0	01	1	0306-0306		●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	0307-		●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609			●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-	●
18	03.330 PIPE; INJ NO.3	8-97287-523-0	01	1	0306-0311		●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	0312-		●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609			●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-	●
19	03.330 PIPE; INJ NO.4	8-97287-524-0	01	1	0306-0311		●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	0312-		●
29	03.162 CLIP; HOSE (D) ID=10.5	8-97944-126-0	10	1	0610-	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0610-		●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0610-		●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96	8-98053-693-0	03	1	0612-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	0610-0810	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G)	8-98112-034-0	01	1	0811-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609		●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0610-1211		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-98135-263-1	01	1	1212-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-97352-907-0	01	1	0306-0609			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	8-98053-692-0	01	1	0612-	●
31	03.332 NOZZLE ASM; INJ COOLER WO/HEATER(C65)	8-98055-862-3	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0306-0501		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	0502-		●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0501			●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0502-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704	●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98011-604-5	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	1307-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0609		●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0610-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-		●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0610-1210		●
68	03.162 CLIP; INJ PIPE 03.634 (A)	1-09701-240-0	04	1	1211-		●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0610-1212		●
68	03.162 CLIP; INJ PIPE (B)	8-98227-926-0	01	1	1301-		●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0602		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0609		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-	●	●
122	03.162 CLIP; LEAK OFF PIPE	8-97315-286-0	04	1	0610-	●
127	03.162 BOLT; CLIP LEAK OFF PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (E)	8-97315-230-2	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-97357-916-4	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-97372-938-3	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-94467-727-3	01	1	0306-0402		●
166	03.304 GASKET; FUEL INJECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 03.332 ID=11 OD=14.8	9-09566-111-0	04	1	0610-	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-97372-144-0	04	1	0610-0707	●
313	03.330 BOLT; BRKT,INJ NOZZLE M8X50 W/WASHER	8-98095-575-0	04	1	0708-	●
347	03.332 PIN	8-97383-286-0	04	1	0610-1012	●
347	03.332 PIN	8-98165-035-0	04	1	1101-	●

282 288 289 199 216 199 290 211 283 137 283 210 216 175 175 205 329 445 219 382 424 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	03.163 PIPE ASM; LEAK OFF (E)	8-97315-230-2	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (B)	8-97315-231-2	03	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (C)	8-97357-916-4	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (D)	8-97372-938-3	01	1	0610-	●
137	03.163 PIPE ASM; LEAK OFF (A)	8-94467-727-3	01	1	0306-0402		●
175	03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 01.531 ID=10.2 OD=15.2	1-09630-083-0	02	1	0610-	●
199	03.332 GASKET; EYE BOLT	8-97602-218-0	02	1	0610-	●
205	03.320 SENSOR; FUEL TEMP 03.162	8-97216-283-0	01	1	0610-0611	●
205	03.320 SENSOR; FUEL TEMP	8-98023-581-0	01	1	0612-	●
210	03.330 PIPE; INJ,C/R	8-97388-902-0	01	1	0610-	●
211	03.331 RAIL ASM; COMMON	8-98011-888-0	01	1	0610-0708	●
211	03.331 RAIL ASM; COMMON	8-98052-238-1	01	1	0709-	●
216	03.162 BOLT; EYE (A)	8-98043-033-0	01	1	0610-	●
216	03.162 BOLT; EYE 03.280 (B)	9-88130-088-0	01	1	0610-	●
219	03.162 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7	1-09623-541-0	01	1	0610-	●
282	03.163 BRACKET; COMMON RAIL	8-98011-890-1	01	1	0610-	●
283	03.330 BOLT; COMMON RAIL 00.206 (A) M8X70 FLANGE	0-28050-870-0	02	1	0610-	●
283	03.330 BOLT; COMMON RAIL (B) M8X81 FLANGE	8-97354-584-0	02	1	0610-	●
288	03.331 GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0610-	●
289	03.331 LIMITER; FUEL PRESS	8-98032-549-0	01	1	0610-	●
290	03.331 SENSOR; PRESS (B)	8-98020-514-0	01	1	0610-	●
290	03.331 SENSOR; PRESS (A)	8-97318-684-0	01	1	0610-0708	●
290	03.331 SENSOR; PRESS (A)	8-98014-320-0	01	1	0709-1208	●
290	03.331 SENSOR; PRESS (A)	8-98181-616-0	01	1	1209-	●
329	03.335 GASKET; SENSOR,FUEL TEMP 03.304 ID=9.8 OD=11.7	9-09566-110-0	01	1	0610-	●
382	03.162 KEY; DRIVE SHAFT	8-97375-384-0	01	1	1008-	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-97311-373-9	01	1	0610-1007	●
408	03.306 PUMP ASM; FUEL,SUPPLY	8-98155-988-1	01	1	1008-	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP W/ADAPTER	8-98145-453-0	01	1	0610-0905	●
424	03.332 OVERHAUL KIT; SUPPLY PUMP	8-98145-455-0	01	1	0906-	●
445	03.330 SCREW; FILTER,INLET	8-98209-778-0	01	1	1008-	●

110 120 68 68 68 68 110 71 68 120 93 19 18 34 36 17 31 16 63 36 29 30 29 1 50 66 78 80 362 275 78 236 236 362 236 236 275 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> HEATER & DEFROSTER(C42) EXC. TACHOMETER<U16>	8-98180-720-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EMISSION SYSTEM R15-04<K75> AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EXC. TACHOMETER<U16>	8-98180-719-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>	8-97350-398-3	01	1	0306-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EURO1 SPECIFICATION<NT1>	8-97350-398-3	01	1	0610-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EURO1 SPECIFICATION<NT1>	8-97350-396-4	01	1	0306-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97326-739-3	01	1	0306-0609			●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-97350-394-3	01	1	0306-0609		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-97350-394-3	01	1	0610-0803		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) EMISSION SYSTEM R15-04<K75>	8-98110-564-0	01	1	0804-1103		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. HEATER & DEFROSTER(C42) TACHOMETER<U16>	8-98110-564-0	01	1	1104-		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-97350-393-3	01	1	0306-0803		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) EMISSION SYSTEM R15-04<K75>	8-98110-563-1	01	1	0804-1103		●
1	03.306 PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AIR CONDITIONER MANUAL CONT(C60), COOLERWO/HEATER(C65) TACHOMETER<U16>	8-98110-563-1	01	1	1104-		●
16	03.330 PIPE; INJ NO.1	8-97255-017-2	01	1	0306-0609			●
16	03.330 PIPE; INJ NO.1	8-98011-606-0	01	1	0610-	●
16	03.330 PIPE; INJ NO.1	8-97287-521-0	01	1	0306-0311		●
16	03.330 PIPE; INJ NO.1	8-97373-733-0	01	1	0312-		●
17	03.330 PIPE; INJ NO.2	8-97255-018-2	01	1	0306-0609			●
17	03.330 PIPE; INJ NO.2	8-98043-684-0	01	1	0610-	●
17	03.330 PIPE; INJ NO.2	8-97287-522-0	01	1	0306-0306		●
17	03.330 PIPE; INJ NO.2	8-97365-210-0	01	1	0307-		●
18	03.330 PIPE; INJ NO.3	8-97255-019-2	01	1	0306-0609			●
18	03.330 PIPE; INJ NO.3	8-98011-608-0	01	1	0610-	●
18	03.330 PIPE; INJ NO.3	8-97287-523-0	01	1	0306-0311		●
18	03.330 PIPE; INJ NO.3	8-97373-734-0	01	1	0312-		●
19	03.330 PIPE; INJ NO.4	8-97255-020-2	01	1	0306-0609			●
19	03.330 PIPE; INJ NO.4	8-98011-609-0	01	1	0610-	●
19	03.330 PIPE; INJ NO.4	8-97287-524-0	01	1	0306-0311		●
19	03.330 PIPE; INJ NO.4	8-97373-735-0	01	1	0312-		●
29	03.162 CLIP; HOSE (D) ID=10.5	8-97944-126-0	10	1	0610-	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0610-		●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0610-		●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96	8-98053-693-0	03	1	0612-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	0610-0810	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G)	8-98112-034-0	01	1	0811-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609		●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0610-1211		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-98135-263-1	01	1	1212-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-97352-907-0	01	1	0306-0609			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	8-98053-692-0	01	1	0612-	●
31	03.332 NOZZLE ASM; INJ COOLER WO/HEATER(C65)	8-98055-862-3	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-97217-642-0	04	1	0306-0501		●
31	03.332 NOZZLE ASM; INJ	8-97382-946-0	04	1	0502-		●
31	03.332 NOZZLE ASM; INJ	8-97306-020-1	04	1	0306-0501			●
31	03.332 NOZZLE ASM; INJ	8-97382-948-0	04	1	0502-0609			●
31	03.332 NOZZLE ASM; INJ	8-98011-604-0	04	1	0610-0704	●
31	03.332 NOZZLE ASM; INJ HEATER & DEFROSTER(C42),AIR CONDITIONERMANUAL CONT(C60)	8-98011-604-5	04	1	0705-1306	●
31	03.332 NOZZLE ASM; INJ	8-98011-604-5	04	1	1307-	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0306-0609		●	●
34	03.330 BOLT; EYE,NOZZLE HOLDER 03.306	8-94320-307-0	04	1	0610-		●
36	03.332 GASKET; RETURN PIPE,NOZZLE HOLDE	8-97084-347-0	08	1	0306-0501		●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-2	04	1	0306-0609		●	●
50	03.332 GASKET; NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97287-402-2	04	1	0610-		●
59	03.332 CLAMP; NOZZLE HOLDER	8-98011-528-2	04	1	0610-0710	●
59	03.332 CLAMP; NOZZLE HOLDER	8-98092-539-0	04	1	0711-	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0306-0609		●	●
59	03.332 CLAMP; NOZZLE HOLDER	8-97259-884-0	04	1	0610-		●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0306-0609		●	●
61	03.332 BOLT; CLAMP NOZZLE HOLDER	8-94468-020-2	04	1	0610-		●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0306-0402			●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0403-0609		●	●
63	03.163 PIPE; FUEL,NOZZLE LEAK OFF	8-94467-727-3	01	1	0610-		●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98057-731-0	04	1	0610-0701	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98077-165-0	04	1	0702-1012	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98181-540-0	04	1	1101-	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0306-0609		●	●
66	03.332 GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) ID=7.2 OD=15.0 T=6.6	8-97171-331-0	04	1	0610-		●
68	03.162 CLIP; INJ PIPE (C)	8-97213-481-0	04	1	0610-	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (A)	1-09701-132-1	04	1	0610-1210		●
68	03.162 CLIP; INJ PIPE 03.634 (A)	1-09701-240-0	04	1	1211-		●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0306-0609		●	●
68	03.162 CLIP; INJ PIPE (B)	8-97224-041-1	01	1	0610-1212		●
68	03.162 CLIP; INJ PIPE (B)	8-98227-926-0	01	1	1301-		●
71	03.162 BOLT; BRKT 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0306-0512			●
71	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0601-0609			●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0306-0512		●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
78	03.330 BOLT; BRKT TO C/BL 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0306-0512			●
78	03.330 BOLT; BRKT TO C/BL 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0601-0609			●
78	03.330 BOLT; BRKT TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0306-0512			●
78	03.330 BOLT; BRKT TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0609			●
80	03.306 BRACKET; PUMP (C)	8-97287-698-3	01	1	0306-0609			●
80	03.306 BRACKET; PUMP (B)	8-97942-899-0	01	1	0306-0406		●
80	03.306 BRACKET; PUMP (B)	8-97368-671-0	01	1	0407-		●
80	03.306 BRACKET; PUMP (A)	8-97942-900-0	01	1	0306-0410		●
80	03.306 BRACKET; PUMP (A)	8-97368-670-0	01	1	0411-		●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0403-0609		●	●
93	03.162 GASKET; LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97375-236-0	04	1	0610-		●
110	03.330 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	02	1	0306-0602		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-0609		●	●
110	03.330 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	02	1	0610-	●	●
120	03.330 BRACKET; INJ PIPE (A)	8-97313-942-1	01	1	0306-0609			●
120	03.330 BRACKET; INJ PIPE (B)	8-97313-943-1	01	1	0306-0609			●
236	03.335 BOLT; COVER 00.206 (C) M8X10 FLANGE	0-28080-810-0	02	1	0306-0512			●
236	03.335 BOLT; COVER 03.407 (A) M8X10 FLANGE	0-28050-810-0	02	1	0601-0609			●
236	03.335 BOLT; COVER 09.171 (A) M10X45 FLANGE	0-28181-045-0	01	1	0306-0512			●
236	03.335 BOLT; COVER 09.181 (C) M10X45 FLANGE	0-28151-045-0	01	1	0601-0609			●
236	03.335 BOLT; COVER 08.900 (B) M10X50 FLANGE	0-28181-050-0	02	1	0306-0512			●
236	03.335 BOLT; COVER 02.042 (D) M10X50 FLANGE	0-28151-050-0	02	1	0601-0609			●
236	03.335 BOLT; COVER 02.664 (D) M8X20 FLANGE	0-28680-820-0	01	1	0306-0512			●
236	03.335 BOLT; COVER 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-0609			●
275	03.335 COVER; INJ PUMP (A)	8-97329-014-0	01	1	0306-0609			●
275	03.335 COVER; INJ PUMP (B)	8-97329-016-0	01	1	0306-0609			●
362	03.330 PIPE; GUIDE (A)	8-97287-007-0	01	1	0306-0609			●
362	03.330 PIPE; GUIDE (B)	8-97287-008-0	02	1	0306-0609			●

324 354 29 29 30 29 29 30 30 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
29	03.162 CLIP; HOSE (D) ID=10.5	8-97944-126-0	10	1	0610-	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.280 (C) ID=17.1	8-94122-679-0	02	1	0610-		●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0306-0609		●	●
29	03.162 CLIP; HOSE 03.163 (B) ID=11	8-97173-219-0	02	1	0610-		●
29	03.162 CLIP; HOSE 01.219 (A) ID=12	8-94238-610-0	02	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=98	8-97354-652-0	03	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (F) L=96	8-98053-693-0	03	1	0612-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G) L=150	8-97362-306-2	01	1	0610-0810	●
30	03.163 HOSE; RUBBER,FUEL LEAK (G)	8-98112-034-0	01	1	0811-	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0306-0609		●	●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-97364-773-0	01	1	0610-1211		●
30	03.163 HOSE; RUBBER,FUEL LEAK (A) L=320	8-98135-263-1	01	1	1212-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (B) L=110 SERVICED BY L=3000	0-01256-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (C) L=210 SERVICED BY L=3000	0-01262-300-0	01	1	0306-		●
30	03.163 HOSE; RUBBER,FUEL LEAK (D)	8-97352-907-0	01	1	0306-0609			●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	0-01804-130-0	01	1	0610-0611	●
30	03.163 HOSE; RUBBER,FUEL LEAK (E) L=130	8-98053-692-0	01	1	0612-	●
324	03.330 PIPE; FUEL RETURN	8-97287-516-4	01	1	0306-		●
354	03.163 BOLT; FUEL PIPE 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0306-0512		●
354	03.163 BOLT; FUEL PIPE 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
