0-36 — TURBOCHARGER SYSTEM (#77486) — 132 parça

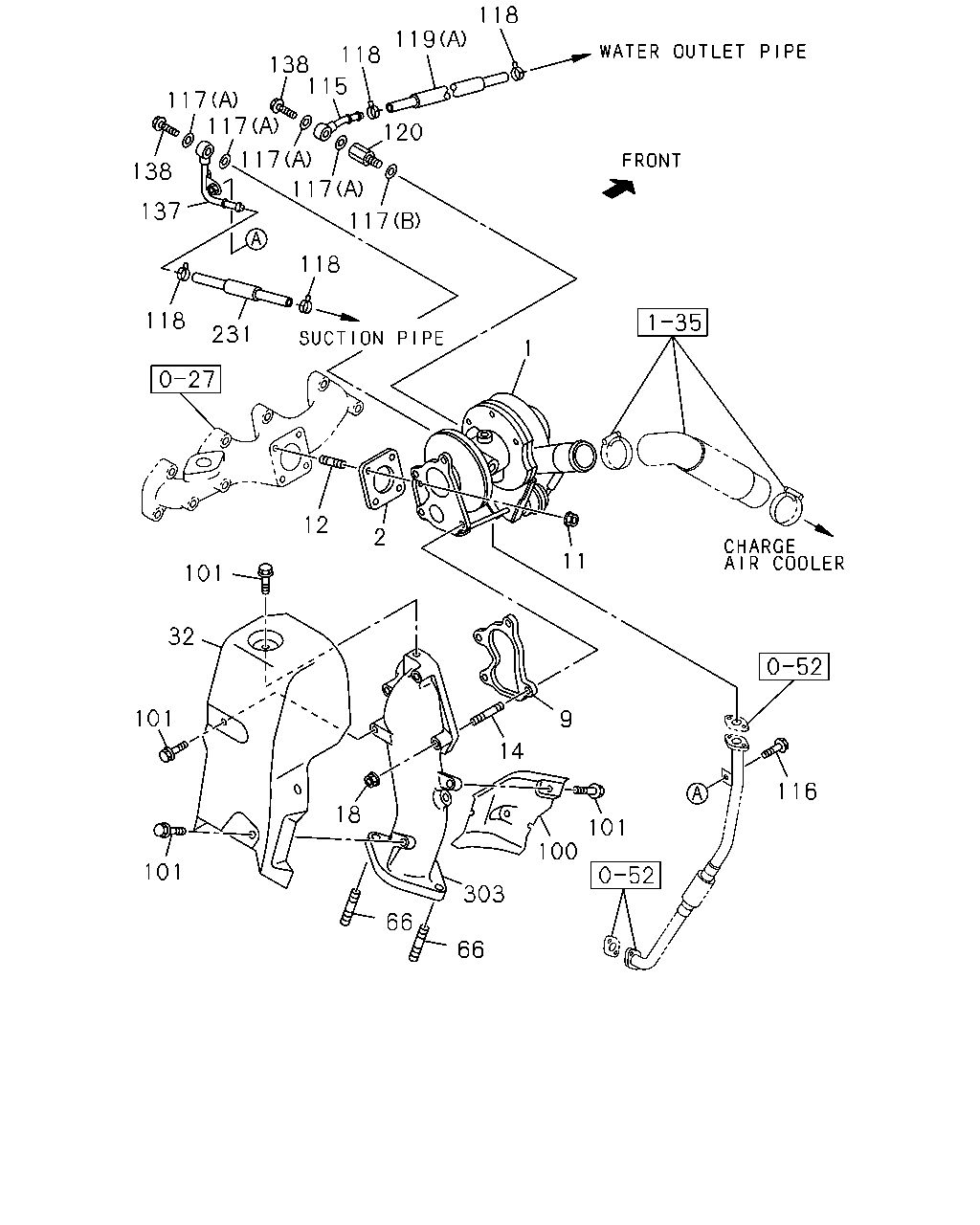

118 119 118 138 115 117 117 120 117 138 117 137 117 118 118 231 1 12 2 11 101 32 101 9 14 116 18 101 100 101 303 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0306-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0306-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0610-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0306-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0306-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-726-0	01	1	0306-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-604-0	01	1	0306-0609		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0306-0609	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0306-0408	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0609	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	08	1	0306-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0407-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0306-0406		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0407-0607	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0608-0609	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0610-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0306-0609	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0610-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97087-029-0	01	1	0306-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER 03.602	8-97300-338-1	01	1	0306-0609		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-0611			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0612-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0306-0609	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0610-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0306-0609	●	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0610-	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0306-0512	●	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0601-0609	●	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0610-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0306-0609		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98011-902-0	01	1	0610-			●
116	03.342 BOLT; WATER PIPE 00.685 M6X12 W/LK WASHER	0-50040-612-0	01	1	0306-0512		●
116	03.342 BOLT; WATER PIPE M6X12 W/LK WASHER	0-50540-612-0	01	1	0601-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-94472-584-1	01	1	0306-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0306-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	04	1	0610-			●
118	03.342 CLIP; WATER HOSE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) ID=12.8	8-97944-125-0	04	1	0807-0809			●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0306-0609		●
118	03.342 CLIP; WATER HOSE ID=12.8	8-97944-125-0	10	1	0610-0806			●
118	03.342 CLIP; WATER HOSE ID=12.8	8-97944-125-0	06	1	0807-			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR	8-94340-669-1	01	1	0306-0609		●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-			●
120	01.097 ADAPTER; WATER	8-94472-583-0	01	1	0306-0609		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97086-342-0	01	1	0306-0609		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98011-903-0	01	1	0610-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0306-0609		●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	0610-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0306-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●
303	03.440 ADAPTER; THROTTLE BODY,EXH	8-97139-725-0	01	1	0306-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH	8-97087-028-1	01	1	0306-0609		●

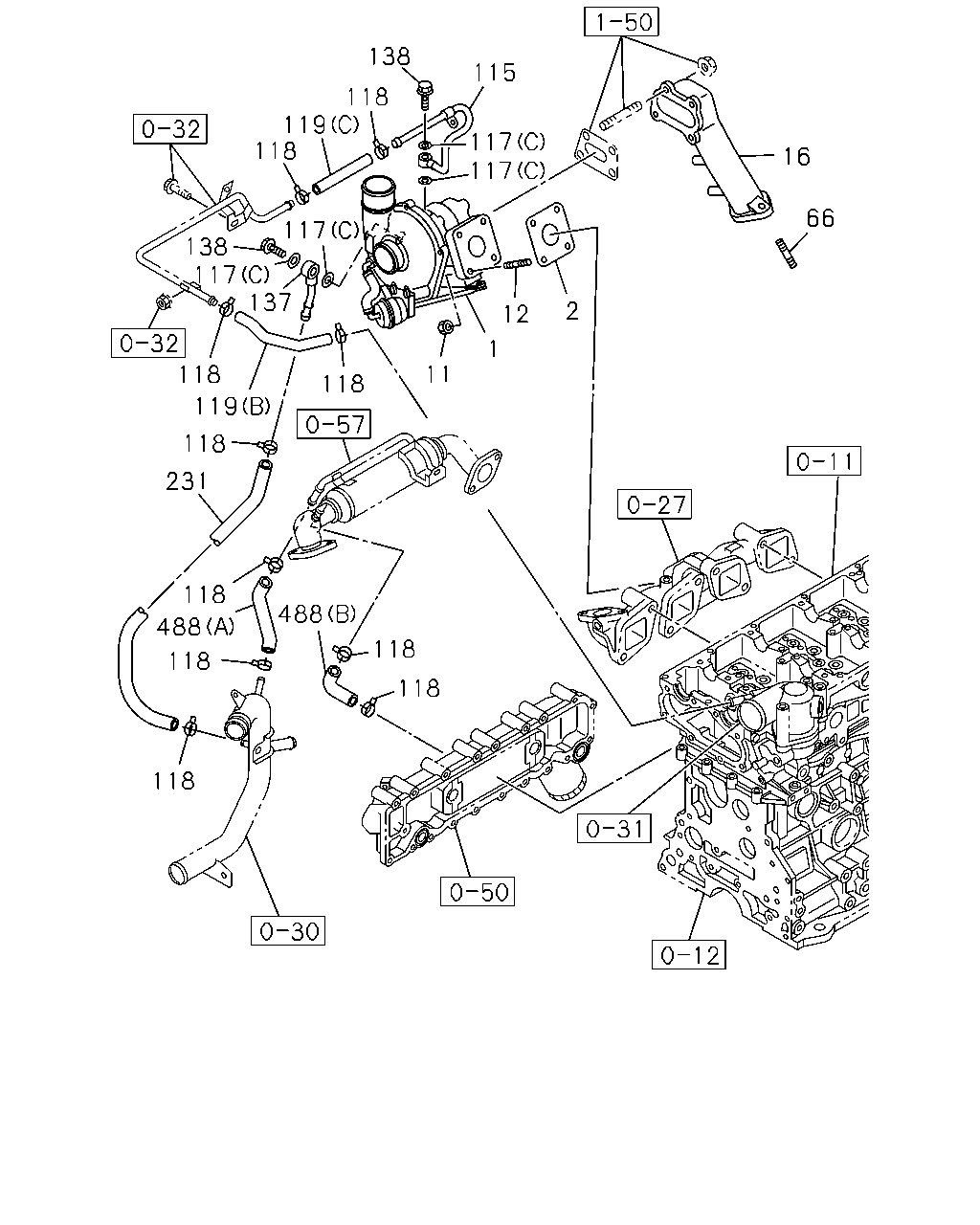

138 118 119 118 138 117 137 118 119 118 231 118 488 118 118 488 118 118 118 117 11 1 12 2 117 117 115 16 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0306-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0306-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0610-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0306-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0306-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-			●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0306-0609	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0306-0408	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0609	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-	●		●
16	03.609 ADAPTER; EXH PIPE	8-98011-531-1	01	1	0610-			●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-0611			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0612-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0306-0609	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0610-	●
115	03.342 PIPE; WATER,TURBOCHARGER OUT 01.097	8-97063-234-0	01	1	0306-0609		●
115	03.342 PIPE; WATER,TURBOCHARGER OUT	8-98011-902-0	01	1	0610-			●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) T=2.5	8-94472-584-1	01	1	0306-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=12.2	9-09571-412-0	04	1	0306-0609		●
117	03.342 GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (C) ID=14.2 OD=20.0	9-09571-414-0	04	1	0610-			●
118	03.342 CLIP; WATER HOSE EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) ID=12.8	8-97944-125-0	04	1	0807-0809			●
118	03.342 CLIP; WATER HOSE 01.153 ID=12.8	8-94367-943-0	04	1	0306-0609		●
118	03.342 CLIP; WATER HOSE ID=12.8	8-97944-125-0	10	1	0610-0806			●
118	03.342 CLIP; WATER HOSE ID=12.8	8-97944-125-0	06	1	0807-			●
119	03.342 HOSE; WATER,TURBOCHARGER 01.097 (C) L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●
119	03.342 HOSE; WATER,TURBOCHARGER (A) L=250 W/INSULATOR	8-94340-669-1	01	1	0306-0609		●
119	03.342 HOSE; WATER,TURBOCHARGER (B)	8-97369-590-1	01	1	0610-			●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-97086-342-0	01	1	0306-0609		●
137	01.097 PIPE; WATER,TURBOCHARGER IN	8-98011-903-0	01	1	0610-			●
138	03.342 BOLT; EYE,WATER PIPE 01.531 M12X24 EYE-BOLT	1-09675-081-0	02	1	0306-0609		●
138	03.342 BOLT; EYE,WATER PIPE M14X31 EYE-BOLT	8-98037-067-0	02	1	0610-			●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT L=160 W/INSULATOR	8-94325-255-0	01	1	0306-0609		●
231	03.342 HOSE; RUBBER,TURBOCHARGER OUT 01.097 L=210 SERVICED BY L=3000	0-03559-300-0	01	1	0610-			●
488	03.163 HOSE; RUBBER 01.097 (B) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0610-0806			●
488	03.163 HOSE; RUBBER EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 01.097 (B) L=150 SERVICED BY L=3000	0-03559-300-0	01	1	0807-0809			●
488	03.163 HOSE; RUBBER 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0610-0806			●
488	03.163 HOSE; RUBBER EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL) 01.097 (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0807-0809			●

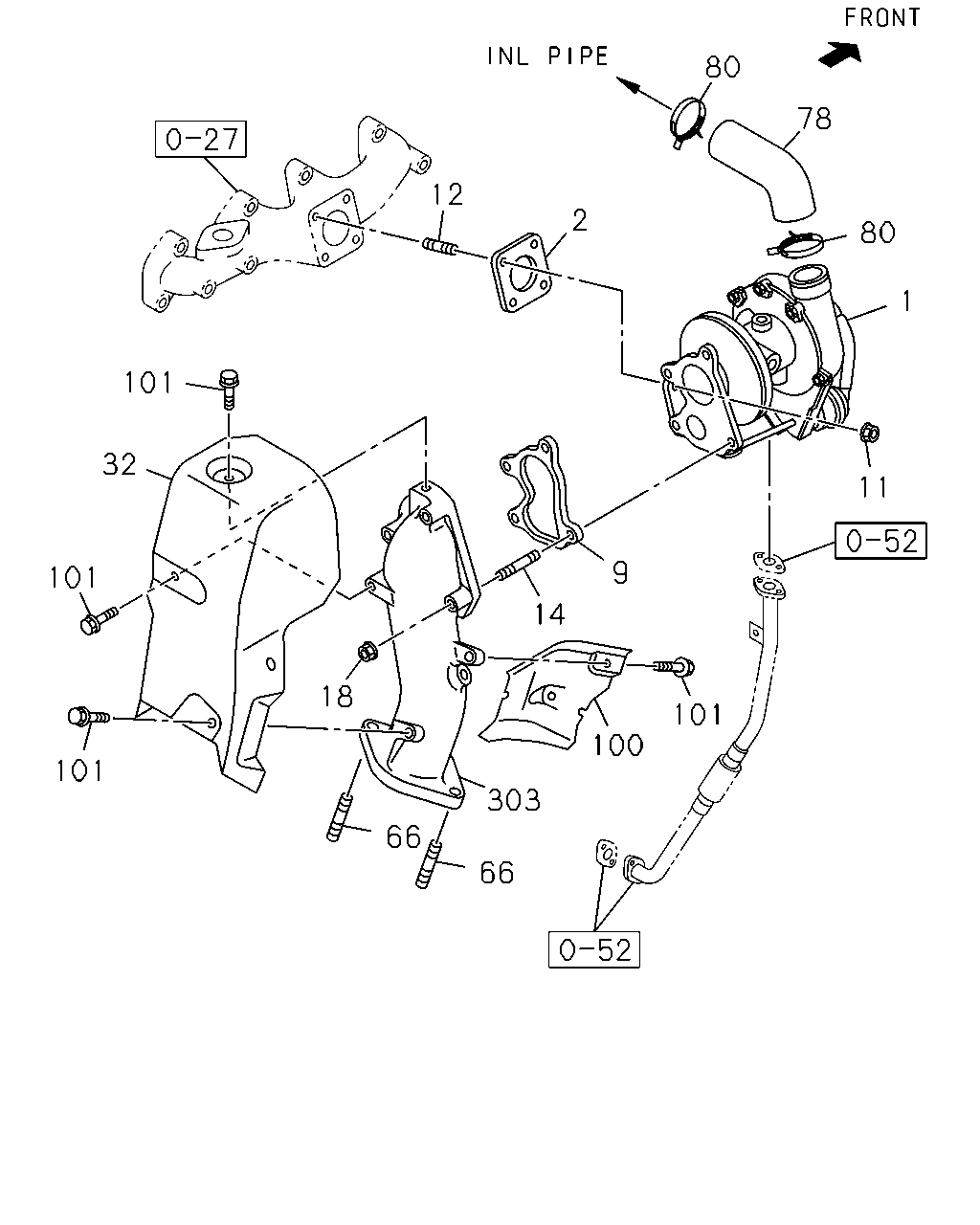

80 78 12 2 80 1 101 32 11 9 101 14 18 101 100 101 303 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	03.342 TURBOCHARGER ASM	8-97240-210-2	01	1	0306-	●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97354-423-4	01	1	0306-0609		●
1	03.342 TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98011-892-3	01	1	0610-			●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97315-266-0	01	1	0306-	●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-605-0	01	1	0306-0609		●
2	03.342 GASKET; TURBOCHARGER TO EXH MANI ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97912-697-0	01	1	0610-			●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97139-726-0	01	1	0306-	●
9	03.342 GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94433-604-0	01	1	0306-0609		●
11	03.342 NUT; TURBOCHARGER M8 FLANGE	8-97379-384-0	04	1	0610-			●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0306-0609	●	●
11	03.342 NUT; TURBOCHARGER 03.613 M8 FLANGE	8-97161-607-0	04	1	0610-	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0306-0408	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-0609	●	●
12	03.342 STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0610-	●		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	08	1	0306-0406	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0407-0408	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0306-0406		●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	04	1	0407-0607	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0608-0609	●	●
14	03.342 STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97378-067-0	04	1	0610-	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0306-0609	●	●
18	03.613 NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0610-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER	8-97087-029-0	01	1	0306-	●
32	03.342 PROTECTOR; HEAT,TURBOCHARGER 03.602	8-97300-338-1	01	1	0306-0609		●
66	03.342 STUD; EXH PIPE M10X22 L=43	0-43211-022-0	02	1	0610-0611			●
66	03.342 STUD; EXH PIPE M10X25 L=40	0-44011-025-0	02	1	0612-			●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0306-0609	●	●
66	03.342 STUD; EXH PIPE 03.613 M10X38 L=53	5-09302-007-0	02	1	0610-	●
78	03.342 HOSE; INL PIPE,TURBOCHARGER	8-97096-628-3	01	1	0306-	●
80	03.407 CLIP; CONN HOSE,TURBOCHARGER ID=45.5-56.5	8-97131-943-0	02	1	0306-	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0306-0609	●	●
100	03.417 PROTECTOR; HEAT,EXH MANIF	8-97038-109-1	01	1	0610-	●
101	03.602 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	06	1	0306-0512	●	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0601-0609	●	●
101	03.602 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	06	1	0610-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH	8-97139-725-0	01	1	0306-	●
303	03.440 ADAPTER; THROTTLE BODY,EXH	8-97087-028-1	01	1	0306-0609		●
