Isuzu WW
▶
PICKUP
▶
TFR
▶
51277 - TFR/TFS MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#77480) — 19 parça
Tümü
A - 4JA1-T ENG
B - 4JH1-TC ENG
C - C24SE ENG
◀
[028A] 4JA1,4JH1 (12 parça)
[028A] C24SE (7 parça)
▶
12
13
65
32
32
52
32
43
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0306-0609
●
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0610-
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0306-0604
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-0609
●
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0610-
●
32
03.417 CLIP; VENT HOSE
03.265 ID=20.4
8-94121-113-0
02
1
0306-
●
32
03.417 CLIP; VENT HOSE
03.265 ID=20.4
8-94121-113-0
04
1
0306-0609
●
43
03.278 HOSE; PCV
8-97304-253-1
01
1
0306-0609
●
52
03.278 HOSE; PCV
8-97306-435-2
01
1
0306-
●
52
03.278 HOSE; PCV
8-97349-608-0
01
1
0306-0609
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0306-0609
●
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0610-
●

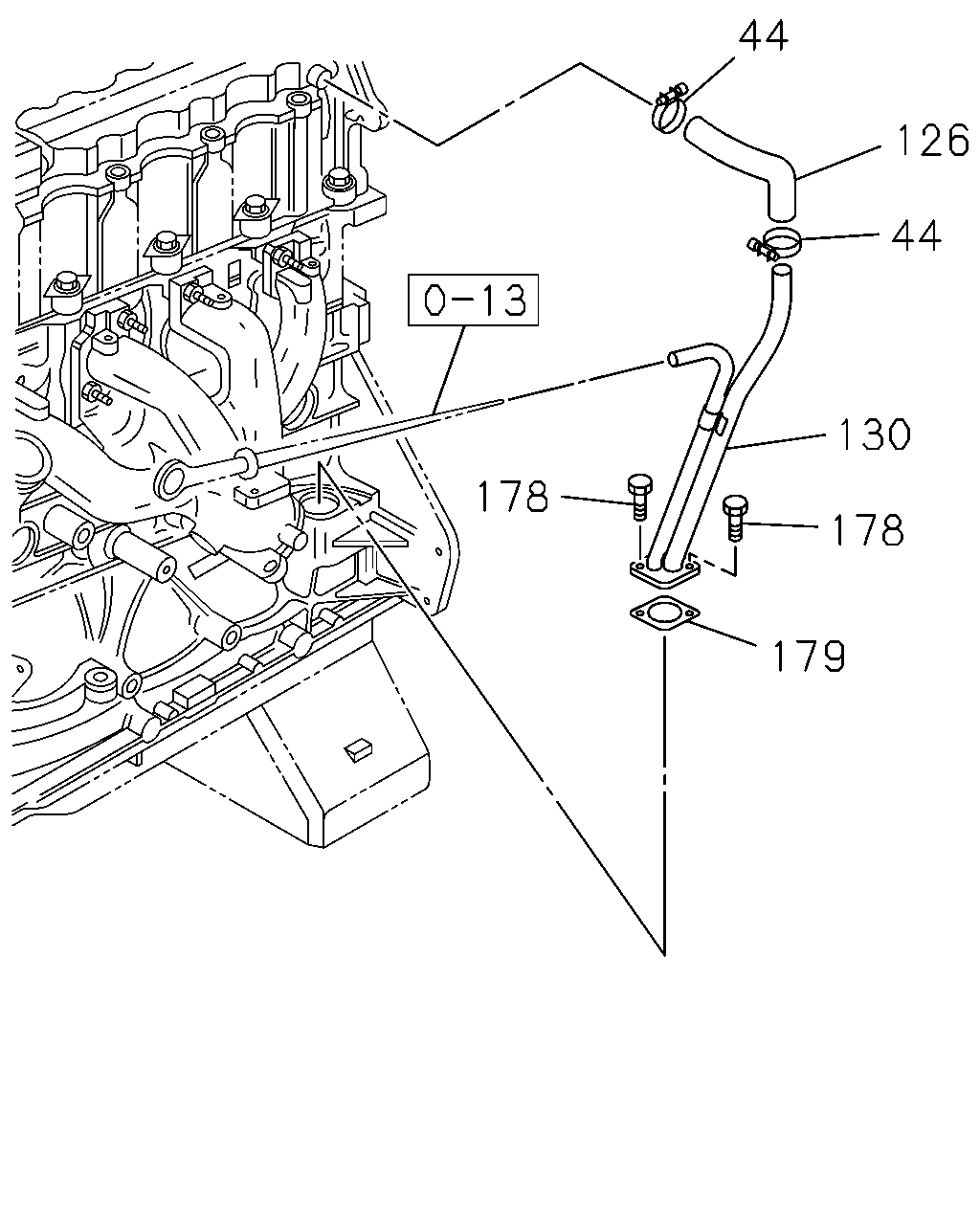

44
126
44
130
178
178
179
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
44
03.278 CLIP; HOSE,PCV
8-90467-971-0
02
1
0306-
●
126
01.762 HOSE; RUBBER,PCV
8-90409-617-0
01
1
0306-
●
130
03.278 PIPE; PCV
8-92062-793-0
01
1
0306-
●
178
03.278 BOLT; PIPE
8-11052-954-0
02
1
0306-1009
●
178
03.278 BOLT; PIPE
04.054
8-92138-813-0
02
1
1010-
●
179
03.278 GASKET; PIPE
8-90500-571-0
01
1
0306-1009
●
179
03.278 GASKET; PIPE
8-92067-502-0
01
1
1010-
●
