6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#7748) — 83 parça

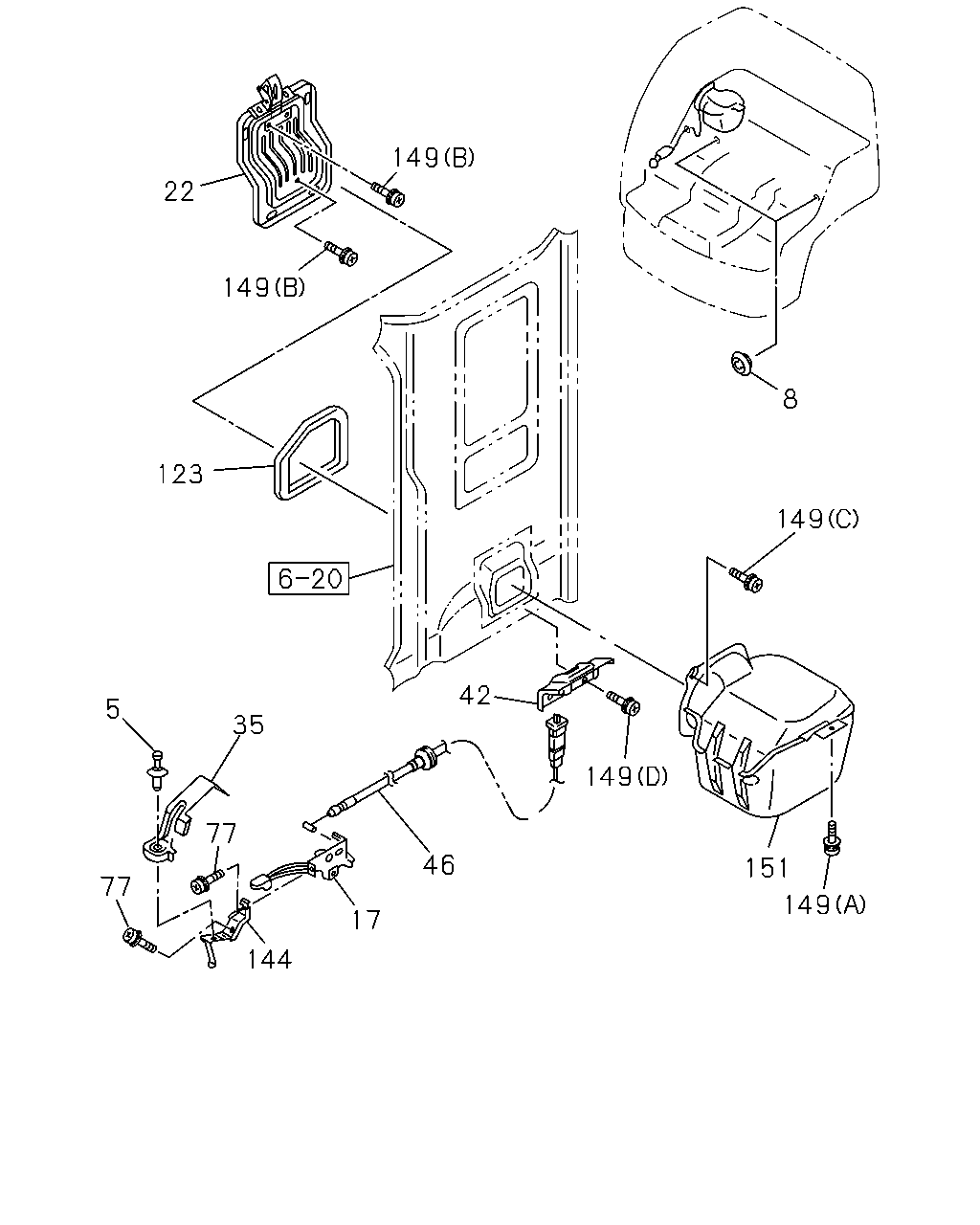

149 22 149 8 123 149 42 5 35 149 77 46 151 77 149 17 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	FASTENER ID=6X6 OD=8	1-09987-194-0	01	1	0004-	●
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	01	1	9902-0003		●
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	01	1	0004-		●
8	GROMMET; BOARD FIX OD=28	8-94279-720-0	01	1	0004-	●
8	GROMMET; BOARD FIX EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	02	1	9902-		●
17	KNOB; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-73328-018-0	01	1	9902-0003		●
17	KNOB; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-73328-018-0	01	1	0004-		●
17	KNOB; LUGGAGE SIDE	1-73328-018-0	01	1	0004-	●
22	LID; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-71707-063-0	01	1	9902-0003		●
22	LID; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-71707-063-0	01	1	0004-		●
22	LID; LUGGAGE SIDE	1-71707-063-0	01	1	0004-	●
35	COVER; LUGGAGE	1-79517-005-1	01	1	0004-	●
42	BRACKET ASM; HOOK BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-068-1	01	1	9902-0003		●
42	BRACKET ASM; HOOK BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-068-1	01	1	0004-		●
42	BRACKET ASM; HOOK	1-71797-068-1	01	1	0004-	●
46	LOCK; RR COMPT LID BAGGAGE BOX CAB RR SIDE<TBM> L=883.5	1-79517-003-0	01	1	9902-9906		●
46	LOCK; RR COMPT LID BAGGAGE BOX CAB RR SIDE<TBM> L=886.5	1-79517-007-0	01	1	9907-		●
46	LOCK; RR COMPT LID L=2842	1-79517-008-0	01	1	0004-	●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	9902-9908		●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	9909-0003		●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	0004-		●
77	SCREW; BRKT M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	0004-	●
123	SEAL; REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-061-0	01	1	9902-0003		●
123	SEAL; REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-061-0	01	1	0004-		●
123	SEAL; REAR	1-71797-061-0	01	1	0004-	●
144	BRACKET BAGGAGE BOX CAB RR SIDE<TBM>	1-73907-583-3	01	1	9902-		●
144	BRACKET	1-73907-267-2	01	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0004-		●
149	SCREW; BRKT (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-		●
149	SCREW; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0004-		●
149	SCREW; BRKT (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0004-		●
149	SCREW; BRKT (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0004-	●
151	BOX ASM BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-951-2	01	1	9902-0003		●
151	BOX ASM BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-951-2	01	1	0004-		●
151	BOX ASM	1-71797-951-2	01	1	0004-	●

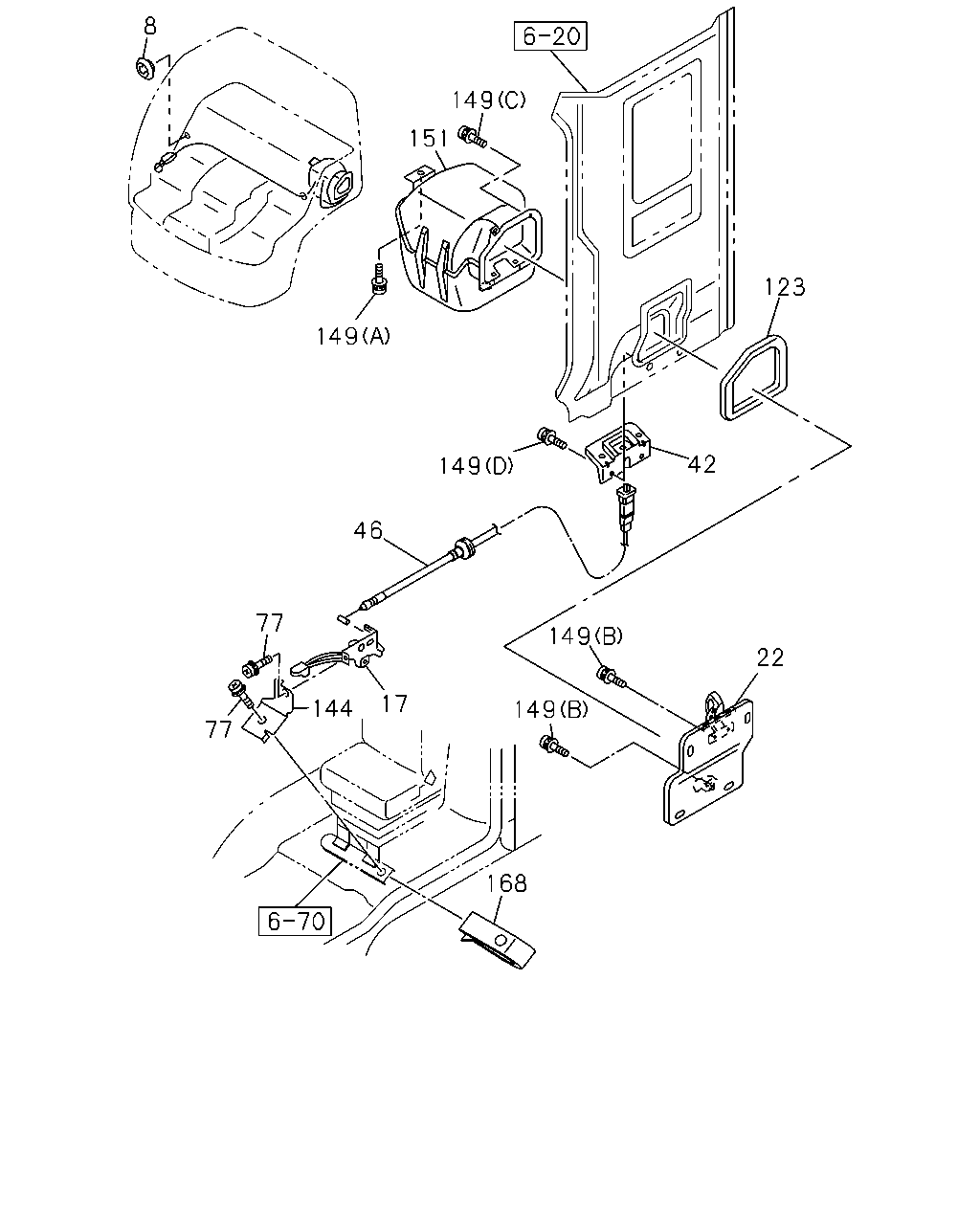

8 149 151 123 149 42 149 46 77 149 22 17 144 149 77 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	01	1	9902-0003		●
8	GROMMET; BOARD FIX BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	01	1	0004-		●
8	GROMMET; BOARD FIX OD=28	8-94279-720-0	01	1	0004-	●
8	GROMMET; BOARD FIX EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=28	8-94279-720-0	02	1	9902-		●
17	KNOB; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-73328-018-0	01	1	9902-0003		●
17	KNOB; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-73328-018-0	01	1	0004-		●
17	KNOB; LUGGAGE SIDE	1-73328-018-0	01	1	0004-	●
22	LID; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-71707-063-0	01	1	9902-0003		●
22	LID; LUGGAGE SIDE BAGGAGE BOX CAB RR SIDE<TBM>	1-71707-063-0	01	1	0004-		●
22	LID; LUGGAGE SIDE	1-71707-063-0	01	1	0004-	●
42	BRACKET ASM; HOOK BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-068-1	01	1	9902-0003		●
42	BRACKET ASM; HOOK BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-068-1	01	1	0004-		●
42	BRACKET ASM; HOOK	1-71797-068-1	01	1	0004-	●
46	LOCK; RR COMPT LID BAGGAGE BOX CAB RR SIDE<TBM> L=883.5	1-79517-003-0	01	1	9902-9906		●
46	LOCK; RR COMPT LID BAGGAGE BOX CAB RR SIDE<TBM> L=886.5	1-79517-007-0	01	1	9907-		●
46	LOCK; RR COMPT LID L=2842	1-79517-008-0	01	1	0004-	●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	9902-9908		●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	9909-0003		●
77	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	0004-		●
77	SCREW; BRKT M6X20 W/LK&PL WASHER	8-94279-403-0	02	1	0004-	●
123	SEAL; REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-061-0	01	1	9902-0003		●
123	SEAL; REAR BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-061-0	01	1	0004-		●
123	SEAL; REAR	1-71797-061-0	01	1	0004-	●
144	BRACKET BAGGAGE BOX CAB RR SIDE<TBM>	1-73907-583-3	01	1	9902-		●
144	BRACKET	1-73907-267-2	01	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0004-		●
149	SCREW; BRKT (D) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-		●
149	SCREW; BRKT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0004-		●
149	SCREW; BRKT (B) M6X16 W/LK&PL WASHER	8-94279-402-0	02	1	0004-	●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	9902-0003		●
149	SCREW; BRKT BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0004-		●
149	SCREW; BRKT (C) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0004-	●
151	BOX ASM BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-951-2	01	1	9902-0003		●
151	BOX ASM BAGGAGE BOX CAB RR SIDE<TBM>	1-71797-951-2	01	1	0004-		●
151	BOX ASM	1-71797-951-2	01	1	0004-	●
168	NUT; BRKT BAGGAGE BOX CAB RR SIDE<TBM>	1-09984-156-0	01	1	9902-		●
