Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#77479) — 242 parça

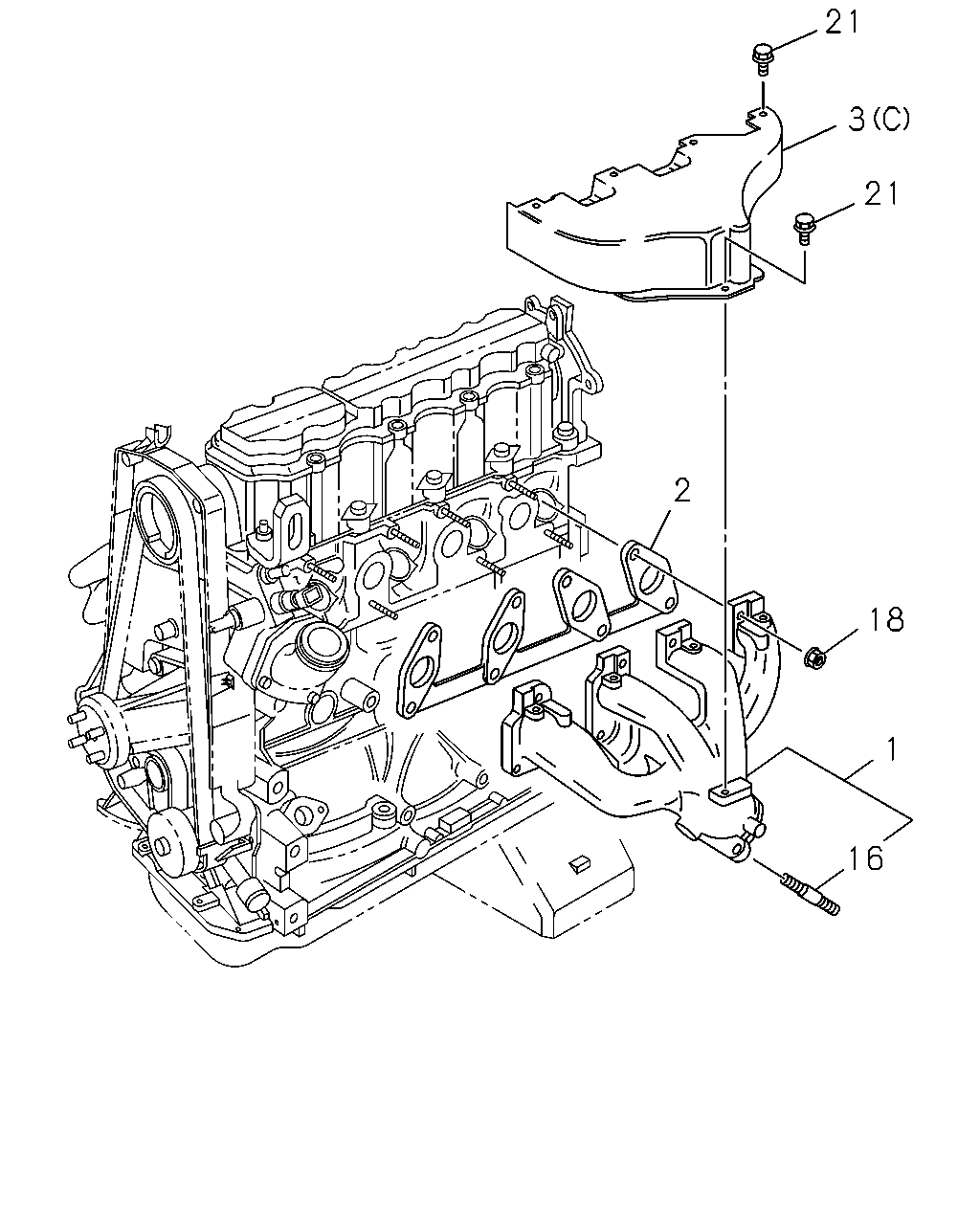

21 3 21 2 18 1 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-265-0	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST	8-98096-265-0	01	1	0810-	●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	0306-1009		●
1	03.601 MANIFOLD; EXHAUST	8-92067-685-0	01	1	1010-		●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97183-453-0	01	1	0306-			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97188-177-0	01	1	0306-1205			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97942-750-0	01	1	1206-			●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97313-257-0	01	1	0306-0609				●
1	03.601 MANIFOLD; EXHAUST	8-97372-786-1	01	1	0610-0806	●
1	03.601 MANIFOLD; EXHAUST EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-97372-786-1	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97324-153-0	01	1	0306-0609				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97356-028-2	01	1	0610-1406	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98229-782-0	01	1	1407-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-92060-515-0	01	1	0306-1009		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-90409-644-0	01	1	1010-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0306-0609			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-2	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97360-036-3	01	1	0610-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-90500-963-0	01	1	0306-1009		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-93259-380-0	01	1	1010-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0610-			●
16	03.604 STUD; EXH PIPE TO MANIF	8-11077-512-0	04	1	0306-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0610-	●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	0306-1009		●
18	03.604 NUT; EXH MANIF 03.275	8-93252-009-0	08	1	1010-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	0306-1009		●
21	03.604 BOLT; HEAT PROTECTOR	8-93218-701-0	05	1	1010-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-			●

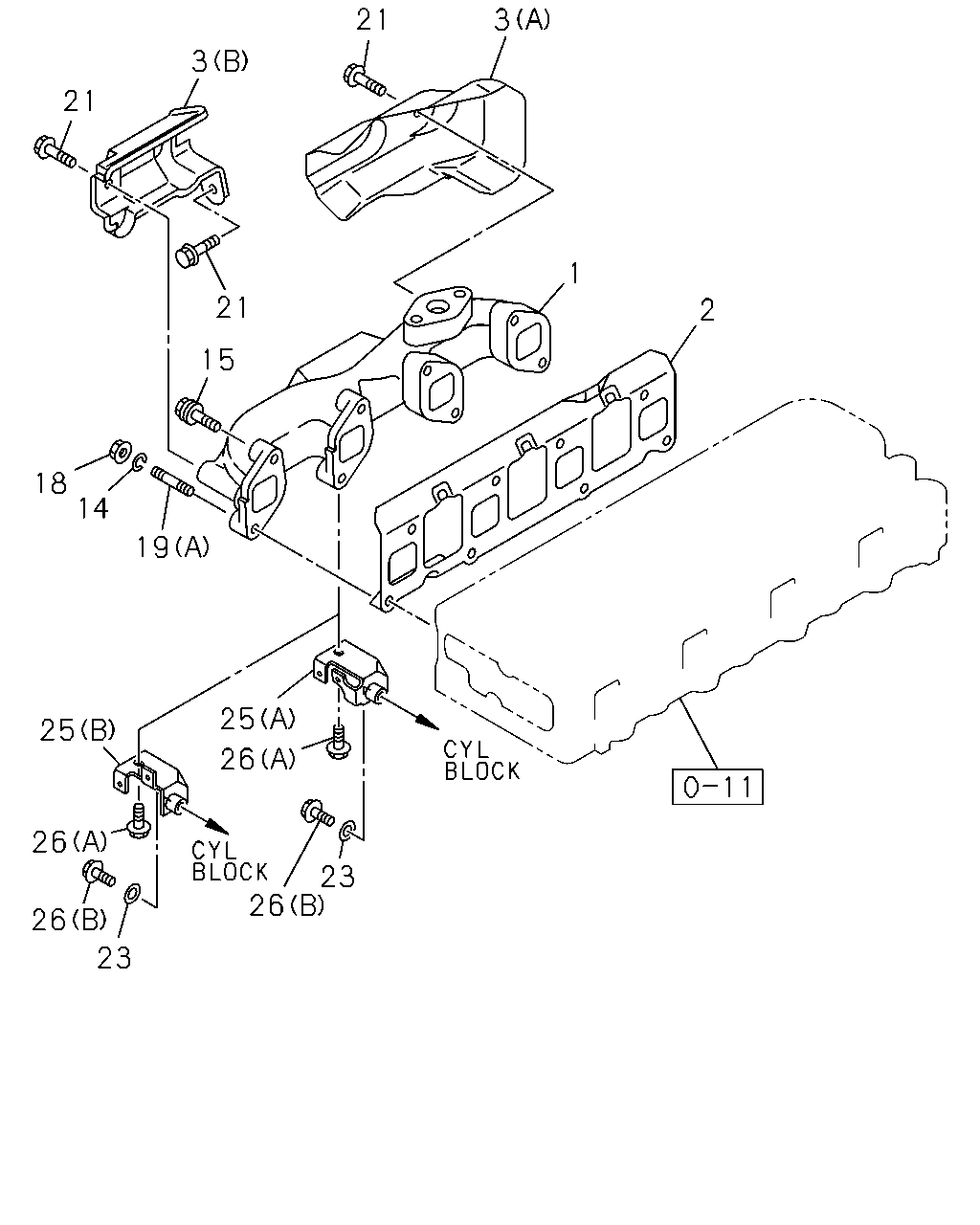

21 3 21 3 21 1 2 18 14 19 25 26 26 23 26 23 26 25 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-265-0	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST	8-98096-265-0	01	1	0810-	●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	0306-1009		●
1	03.601 MANIFOLD; EXHAUST	8-92067-685-0	01	1	1010-		●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97183-453-0	01	1	0306-			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97188-177-0	01	1	0306-1205			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97942-750-0	01	1	1206-			●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97313-257-0	01	1	0306-0609				●
1	03.601 MANIFOLD; EXHAUST	8-97372-786-1	01	1	0610-0806	●
1	03.601 MANIFOLD; EXHAUST EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-97372-786-1	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97324-153-0	01	1	0306-0609				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97356-028-2	01	1	0610-1406	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98229-782-0	01	1	1407-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-92060-515-0	01	1	0306-1009		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-90409-644-0	01	1	1010-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0306-0609			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-2	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97360-036-3	01	1	0610-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-90500-963-0	01	1	0306-1009		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-93259-380-0	01	1	1010-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0610-			●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0306-0609			●	●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0610-			●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0306-0609			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0610-			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0610-	●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	0306-1009		●
18	03.604 NUT; EXH MANIF 03.275	8-93252-009-0	08	1	1010-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	04	1	0911-1007	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	1008-	●
19	03.604 STUD; MANIF TO CYL HD (B) M10X33 L=48	8-97379-383-0	06	1	0610-	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-94391-665-0	02	1	0610-0704	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	0705-0910	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97048-055-1	02	1	0306-0408			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0409-0609			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	0306-1009		●
21	03.604 BOLT; HEAT PROTECTOR	8-93218-701-0	05	1	1010-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-			●
23	03.613 WASHER; PL EXH MANIF BRKT 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0404-0407				●
23	03.613 WASHER; PL EXH MANIF BRKT 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	0408-0605			●	●
23	03.613 WASHER; PL EXH MANIF BRKT 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0606-0609			●	●
23	03.613 WASHER; PL EXH MANIF BRKT 02.559 ID=8.4 OD=18	0-91614-608-0	01	1	0610-			●
25	03.602 BRACKET; EXH MANIF (B)	8-97161-202-1	01	1	0306-0609				●
25	03.602 BRACKET; EXH MANIF (A)	8-97188-069-0	02	1	0306-0402			●
25	03.602 BRACKET; EXH MANIF (A)	8-97188-069-1	01	1	0403-			●
26	03.602 BOLT; BRKT TO EXH MANIF 03.604 (B) M8X14 FLANGE	8-94312-699-1	01	1	0306-0408			●	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0409-0609			●	●
26	03.602 BOLT; BRKT TO EXH MANIF 03.613 (B) M8X14 FLANGE	8-97378-075-0	01	1	0610-			●
26	03.602 BOLT; BRKT TO EXH MANIF 03.275 (A) M8X30 FLANGE	0-28080-830-0	01	1	0306-0512			●	●
26	03.602 BOLT; BRKT TO EXH MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	0601-0609			●	●
26	03.602 BOLT; BRKT TO EXH MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	01	1	0610-			●

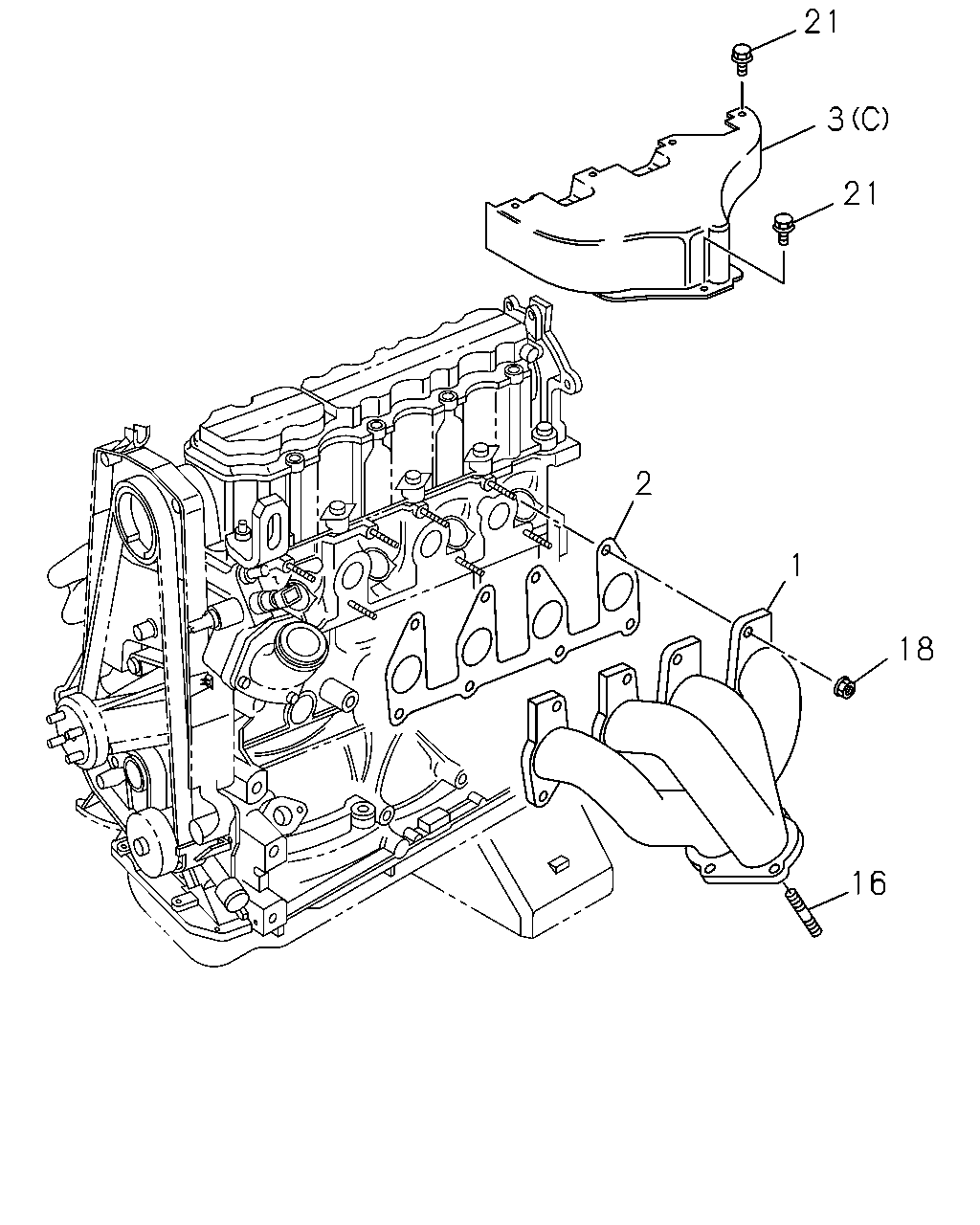

21 3 21 2 1 18 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-265-0	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST	8-98096-265-0	01	1	0810-	●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	0306-1009		●
1	03.601 MANIFOLD; EXHAUST	8-92067-685-0	01	1	1010-		●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97183-453-0	01	1	0306-			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97188-177-0	01	1	0306-1205			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97942-750-0	01	1	1206-			●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97313-257-0	01	1	0306-0609				●
1	03.601 MANIFOLD; EXHAUST	8-97372-786-1	01	1	0610-0806	●
1	03.601 MANIFOLD; EXHAUST EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-97372-786-1	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97324-153-0	01	1	0306-0609				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97356-028-2	01	1	0610-1406	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98229-782-0	01	1	1407-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-92060-515-0	01	1	0306-1009		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-90409-644-0	01	1	1010-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0306-0609			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-2	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97360-036-3	01	1	0610-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-90500-963-0	01	1	0306-1009		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-93259-380-0	01	1	1010-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0610-			●
16	03.604 STUD; EXH PIPE TO MANIF	8-11077-512-0	04	1	0306-		●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0610-	●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	0306-1009		●
18	03.604 NUT; EXH MANIF 03.275	8-93252-009-0	08	1	1010-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	0306-1009		●
21	03.604 BOLT; HEAT PROTECTOR	8-93218-701-0	05	1	1010-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-			●

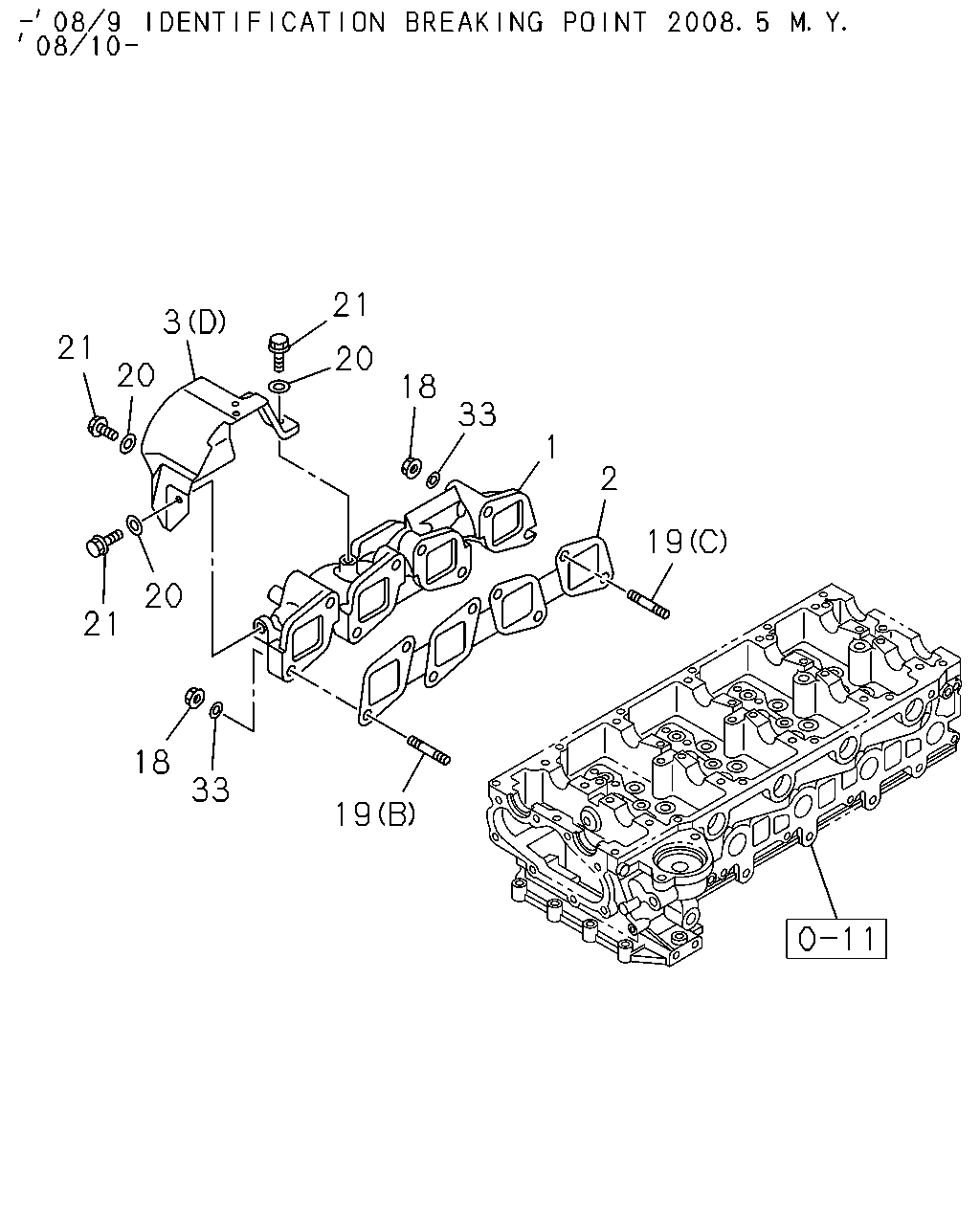

21 3 21 20 20 18 33 1 2 19 20 21 18 33 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-265-0	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST	8-98096-265-0	01	1	0810-	●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	0306-1009		●
1	03.601 MANIFOLD; EXHAUST	8-92067-685-0	01	1	1010-		●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97183-453-0	01	1	0306-			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97188-177-0	01	1	0306-1205			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97942-750-0	01	1	1206-			●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97313-257-0	01	1	0306-0609				●
1	03.601 MANIFOLD; EXHAUST	8-97372-786-1	01	1	0610-0806	●
1	03.601 MANIFOLD; EXHAUST EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-97372-786-1	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97324-153-0	01	1	0306-0609				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97356-028-2	01	1	0610-1406	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98229-782-0	01	1	1407-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-92060-515-0	01	1	0306-1009		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-90409-644-0	01	1	1010-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0306-0609			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-2	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97360-036-3	01	1	0610-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-90500-963-0	01	1	0306-1009		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-93259-380-0	01	1	1010-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0610-			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0610-	●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	0306-1009		●
18	03.604 NUT; EXH MANIF 03.275	8-93252-009-0	08	1	1010-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	04	1	0911-1007	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	1008-	●
19	03.604 STUD; MANIF TO CYL HD (B) M10X33 L=48	8-97379-383-0	06	1	0610-	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-94391-665-0	02	1	0610-0704	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	0705-0910	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97048-055-1	02	1	0306-0408			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0409-0609			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0610-			●
20	00.413 WASHER; PL,HEAT PROTECTOR ID=6.4	0-91610-606-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	0306-1009		●
21	03.604 BOLT; HEAT PROTECTOR	8-93218-701-0	05	1	1010-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	0610-	●

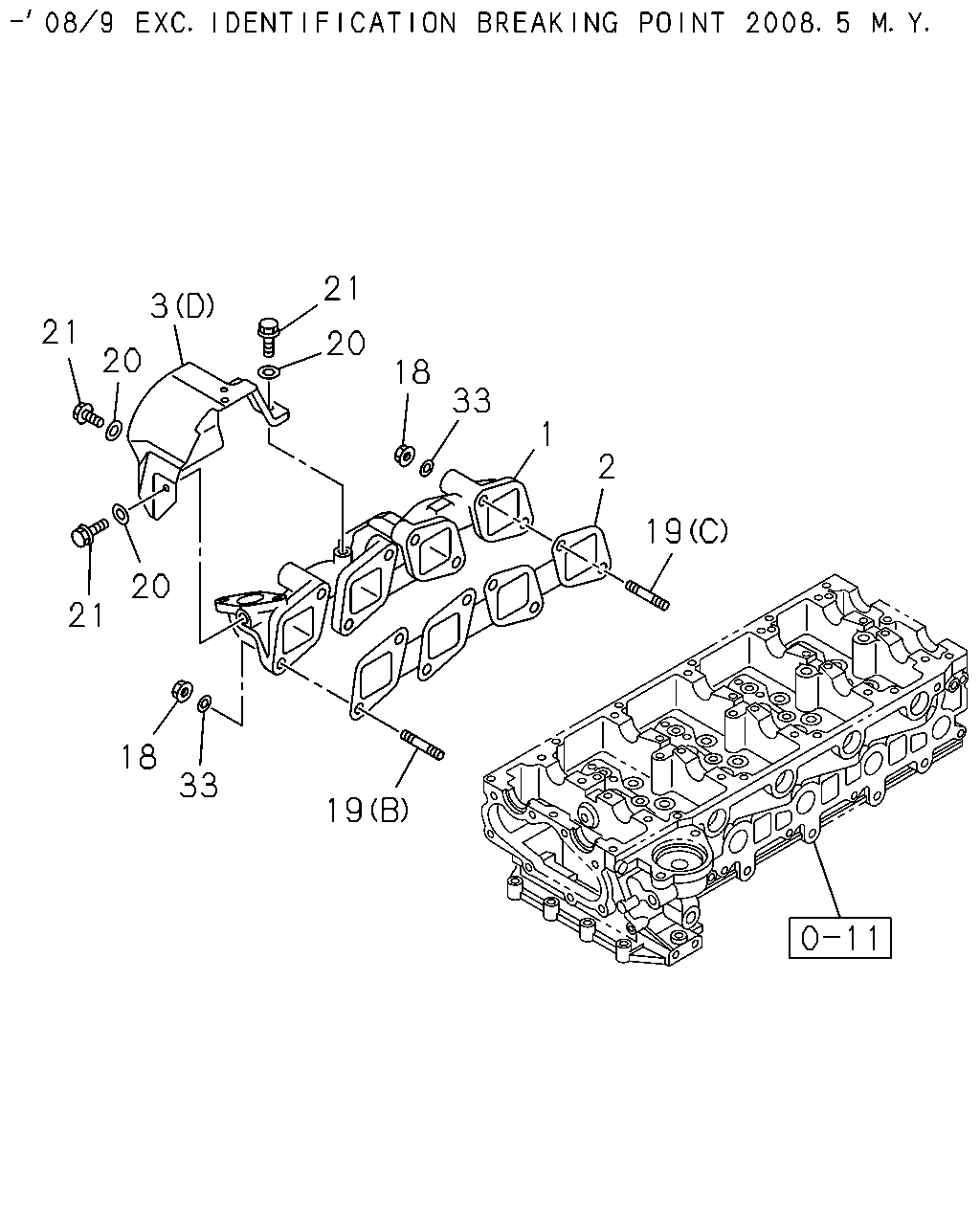

21 3 21 20 20 18 33 1 2 19 20 21 18 33 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST IDENTIFICATION BREAKING POINT 2008.5 M. Y.(BRL)	8-98096-265-0	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST	8-98096-265-0	01	1	0810-	●
1	03.601 MANIFOLD; EXHAUST	8-92063-670-0	01	1	0306-1009		●
1	03.601 MANIFOLD; EXHAUST	8-92067-685-0	01	1	1010-		●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97183-453-0	01	1	0306-			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97188-177-0	01	1	0306-1205			●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97942-750-0	01	1	1206-			●
1	03.601 MANIFOLD; EXHAUST EMISSION SYSTEM R15-04<K75>	8-97313-257-0	01	1	0306-0609				●
1	03.601 MANIFOLD; EXHAUST	8-97372-786-1	01	1	0610-0806	●
1	03.601 MANIFOLD; EXHAUST EXC. IDENTIFICATION BREAKING POINT 2008 .5 M.Y.(BRL)	8-97372-786-1	01	1	0807-0809	●
1	03.601 MANIFOLD; EXHAUST EURO1 SPECIFICATION<NT1>	8-97324-153-0	01	1	0306-0609				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97356-028-2	01	1	0610-1406	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-98229-782-0	01	1	1407-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-92060-515-0	01	1	0306-1009		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-90409-644-0	01	1	1010-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0306-0609			●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-2	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97360-036-3	01	1	0610-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-90500-963-0	01	1	0306-1009		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-93259-380-0	01	1	1010-		●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97920-417-1	01	1	0610-			●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0306-0609			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-97920-418-1	01	1	0610-			●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0610-	●
18	03.604 NUT; EXH MANIF	8-11082-413-0	08	1	0306-1009		●
18	03.604 NUT; EXH MANIF 03.275	8-93252-009-0	08	1	1010-		●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0306-0602			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0609			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-			●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	04	1	0911-1007	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	1008-	●
19	03.604 STUD; MANIF TO CYL HD (B) M10X33 L=48	8-97379-383-0	06	1	0610-	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-94391-665-0	02	1	0610-0704	●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	02	1	0705-0910	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97048-055-1	02	1	0306-0408			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0409-0609			●	●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0610-			●
20	00.413 WASHER; PL,HEAT PROTECTOR ID=6.4	0-91610-606-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR 03.671 M6X10 FLANGE	0-28050-610-0	03	1	0610-	●
21	03.604 BOLT; HEAT PROTECTOR	8-11073-032-0	05	1	0306-1009		●
21	03.604 BOLT; HEAT PROTECTOR	8-93218-701-0	05	1	1010-		●
21	03.604 BOLT; HEAT PROTECTOR 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0610-			●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	03	1	0306-0512			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0601-0609			●	●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	03	1	0610-			●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	0610-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
