0-22 — ENGINE MOUNTING (#77477) — 274 parça

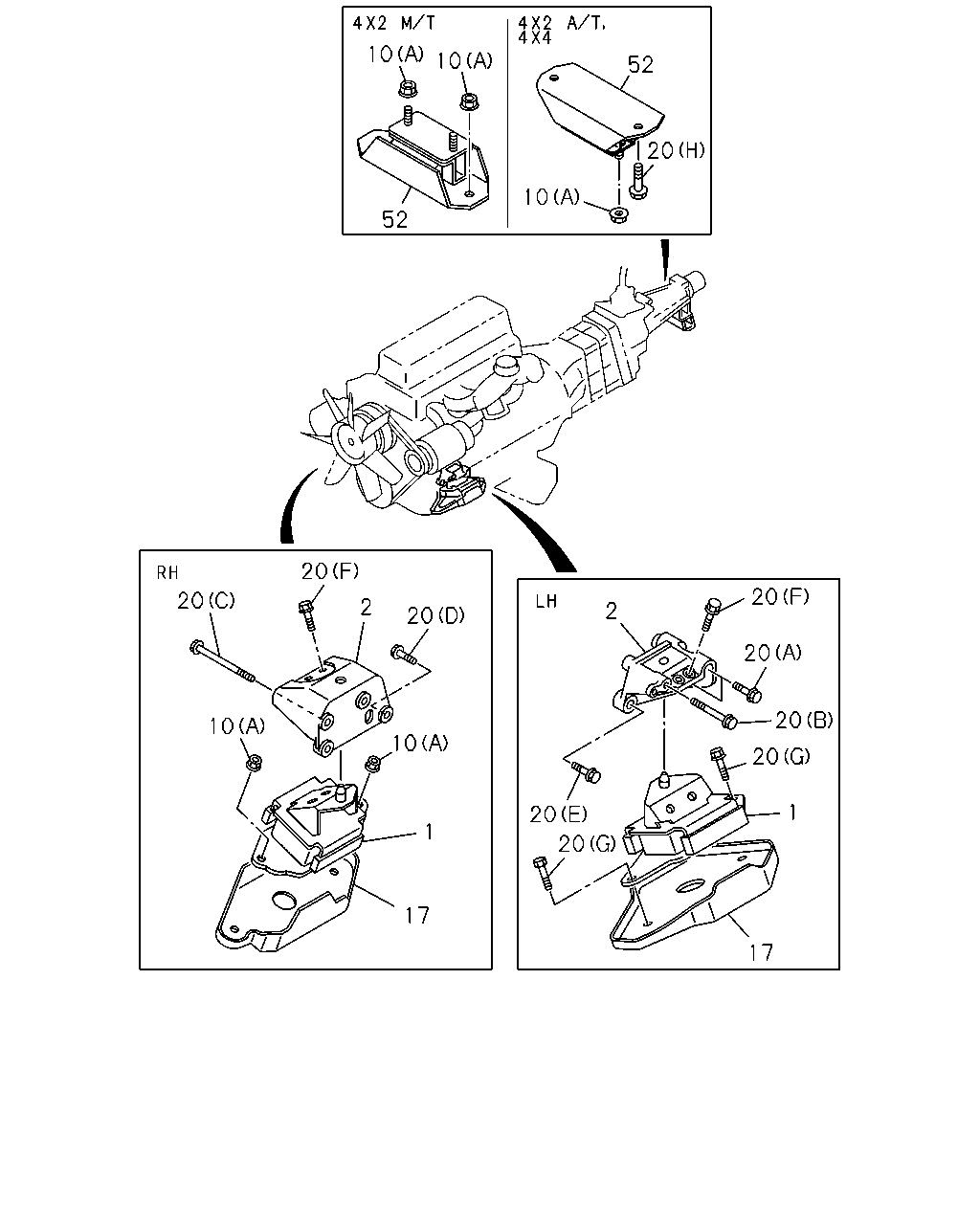

çizim 160204
10 10 52 20 10 52 20 20 20 2 2 20 20 20 10 10 20 1 20 1 20 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0306-0402 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0403-0508 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0509-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0306-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0610- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-97367-271-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-98051-335-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-269-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-97367-270-0 01 1 0306-0707 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-98051-334-0 01 1 0708- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0610- ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0610- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0306- ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0306- ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0610- ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0610- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0306- ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97350-437-1 01 1 0306-0406 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0407-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0610- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97365-235-0 01 1 0306-0407 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0408-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(M) M10X20 FLANGE 		0-28051-020-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
03.613 (L) M10X40 FLANGE 		0-28651-040-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0610- ●
20 00.029 BOLT; ENG FOOT
(K) M10X16 FLANGE 		0-28151-016-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 03 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0306-0402 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0403-0609 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0306-0609 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
09.198 (B) M10X100 FLANGE 		0-28081-000-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28081-080-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
03.405 (D) M10X25 FLANGE 		0-28681-025-0 03 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28881-445-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
01.652 (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
04.785 (J) M10X20 FLANGE 		0-28781-020-0 01 1 0306-0601 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0602- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-336-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97371-778-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98051-340-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) 		8-97367-278-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-278-0 01 1 0306-0402 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0403-0408 ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) 		8-98051-338-0 01 1 0610- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98051-338-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97367-281-0 01 1 0306-0404 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97373-164-0 01 1 0405-0408 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97371-779-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) 		8-98051-342-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-277-0 01 1 0306-0405 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-631-0 01 1 0406-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-98051-337-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-276-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-630-0 01 1 0403-0408 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-777-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-339-0 01 1 0610- ●

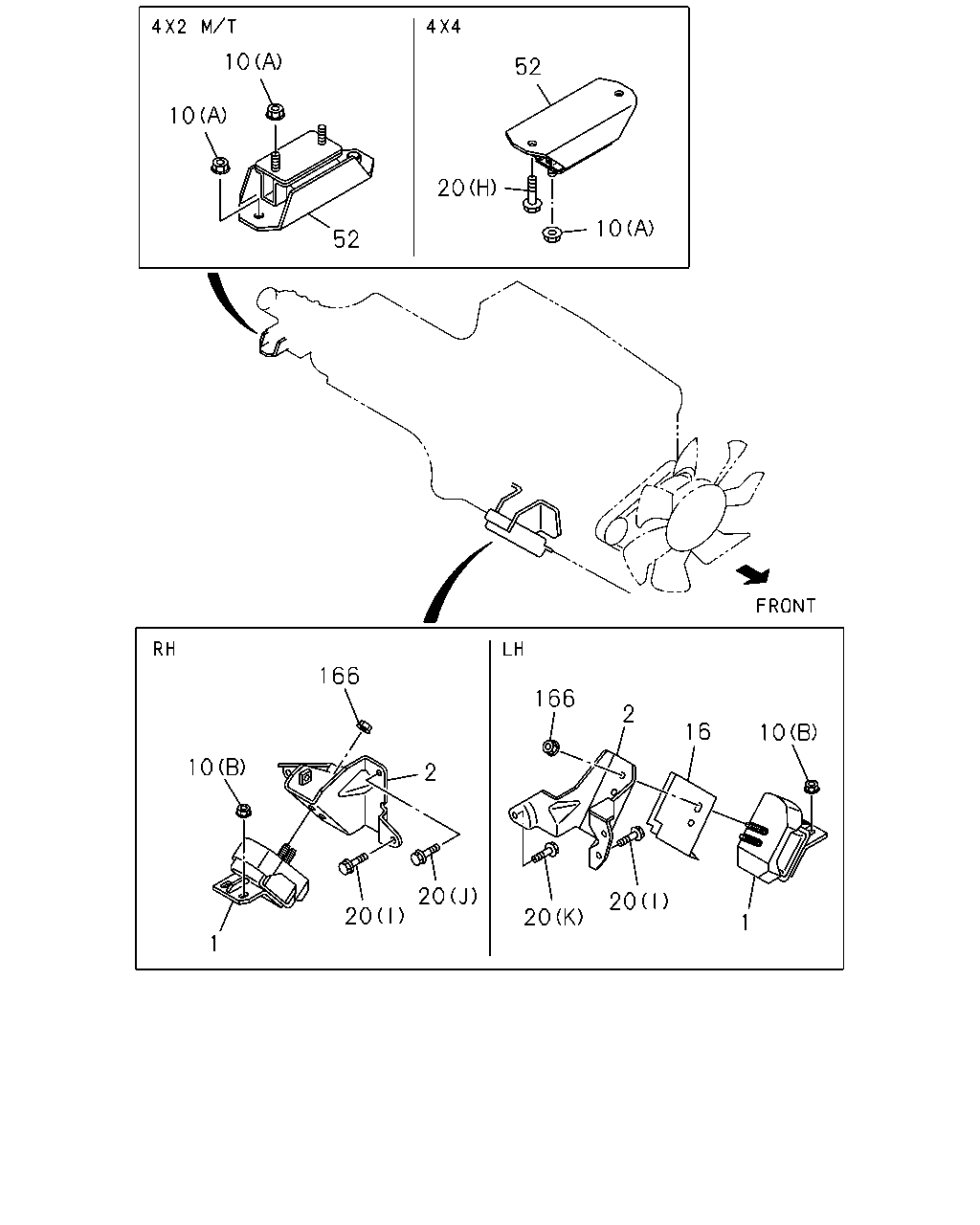

çizim 160217
10 52 10 20 10 52 166 166 2 16 10 10 2 20 20 20 20 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0306-0402 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0403-0508 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0509-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0306-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0610- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-97367-271-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-98051-335-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-269-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-97367-270-0 01 1 0306-0707 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-98051-334-0 01 1 0708- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0610- ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0610- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0306- ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0306- ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0610- ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0610- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0306- ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
16 07.039 PROTECTOR; HEAT,ENG MTG,FRT 8-97327-570-3 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(M) M10X20 FLANGE 		0-28051-020-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
03.613 (L) M10X40 FLANGE 		0-28651-040-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0610- ●
20 00.029 BOLT; ENG FOOT
(K) M10X16 FLANGE 		0-28151-016-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 03 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0306-0402 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0403-0609 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0306-0609 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
09.198 (B) M10X100 FLANGE 		0-28081-000-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28081-080-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
03.405 (D) M10X25 FLANGE 		0-28681-025-0 03 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28881-445-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
01.652 (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
04.785 (J) M10X20 FLANGE 		0-28781-020-0 01 1 0306-0601 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0602- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-336-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97371-778-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98051-340-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) 		8-97367-278-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-278-0 01 1 0306-0402 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0403-0408 ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) 		8-98051-338-0 01 1 0610- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98051-338-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97367-281-0 01 1 0306-0404 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97373-164-0 01 1 0405-0408 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97371-779-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) 		8-98051-342-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-277-0 01 1 0306-0405 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-631-0 01 1 0406-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-98051-337-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-276-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-630-0 01 1 0403-0408 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-777-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-339-0 01 1 0610- ●
166 00.002 NUT; SUPPORT RUBBER
04.085 M10 FLANGE 		0-91180-210-0 04 1 0306- ●

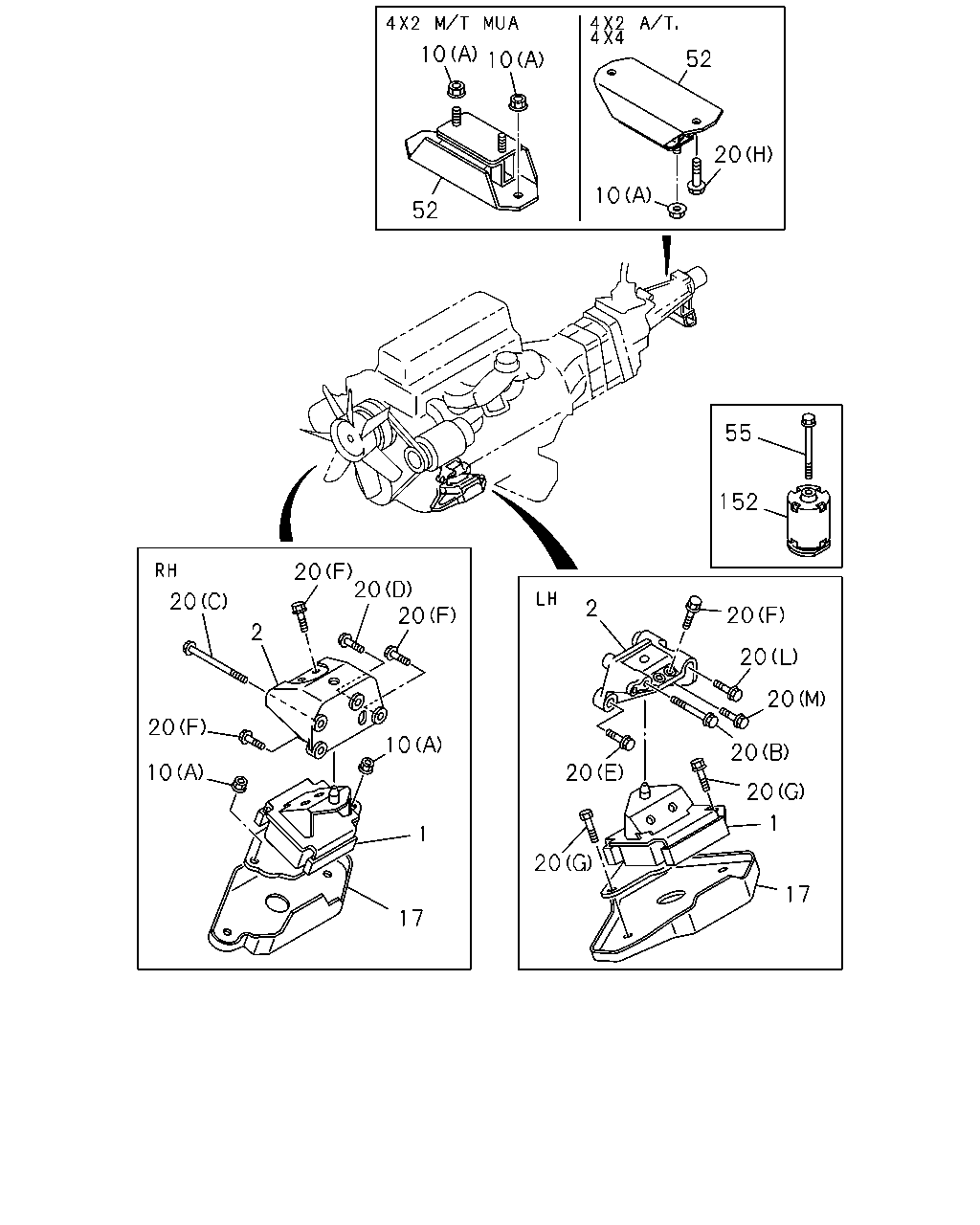

çizim 160227
10 52 10 20 10 52 55 152 20 20 20 20 2 20 2 20 20 20 10 20 10 20 20 1 1 20 17 17
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.027 RUBBER; ENG FOOT,FRT 8-97363-543-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0306-0402 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0403-0508 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0509-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-272-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0306-0609 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-273-0 01 1 0610- ● ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-97367-271-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X2(TFB***) 		8-98051-335-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97367-269-0 01 1 0306-0609 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98051-333-0 01 1 0610- ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-97367-270-0 01 1 0306-0707 ●
1 00.027 RUBBER; ENG FOOT,FRT
4X4(TFS***) 		8-98051-334-0 01 1 0708- ●
2 00.029 FOOT; ENG 8-97355-476-0 01 1 0610- ●
2 00.029 FOOT; ENG 8-97355-478-1 01 1 0610- ●
2 00.029 FOOT; ENG 8-97234-896-1 01 1 0306- ●
2 00.029 FOOT; ENG 8-97234-897-0 01 1 0306- ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97308-036-2 01 1 0610- ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0306-0609 ● ●
2 00.029 FOOT; ENG 8-97943-686-0 01 1 0610- ●
10 04.085 NUT; MTG RUBBER
(B) M10 FLANGE 		8-94126-973-0 04 1 0306- ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0306-0508 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0509-0609 ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ● ●
10 04.085 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) (A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ● ●
10 04.085 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 0610- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97350-437-1 01 1 0306-0406 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0407-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97381-228-0 01 1 0610- ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97365-235-0 01 1 0306-0407 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0408-0609 ● ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97385-745-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(M) M10X20 FLANGE 		0-28051-020-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
03.613 (L) M10X40 FLANGE 		0-28651-040-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0610- ●
20 00.029 BOLT; ENG FOOT
(K) M10X16 FLANGE 		0-28151-016-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28751-025-0 03 1 0306- ●
20 00.029 BOLT; ENG FOOT
(I) M10X40 FLANGE 		0-28751-040-0 01 1 0306- ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0306-0402 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0403-0609 ● ●
20 00.029 BOLT; ENG FOOT
(G) M10X25 FLANGE 		0-28651-025-0 02 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0306-0609 ● ●
20 00.029 BOLT; ENG FOOT
(F) M10X30 FLANGE 		0-28651-030-0 04 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0306-0508 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ● ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0509-0609 ●
20 00.029 BOLT; ENG FOOT
4X4(TFS***) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ● ● ●
20 00.029 BOLT; ENG FOOT
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) (H) M10X35 FLANGE 		0-28751-035-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
09.198 (B) M10X100 FLANGE 		0-28081-000-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.181 (B) M10X100 FLANGE 		0-28051-000-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
(C) M10X80 FLANGE 		0-28081-080-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
09.173 (C) M10X80 FLANGE 		0-28051-080-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
03.405 (D) M10X25 FLANGE 		0-28681-025-0 03 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 03 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(D) M10X25 FLANGE 		0-28651-025-0 01 1 0610- ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28881-445-0 01 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
(E) M14X45 FLANGE 		0-28851-445-0 01 1 0610- ● ●
20 00.029 BOLT; ENG FOOT
01.652 (A) M10X25 W/LK WASHER 		0-50041-025-0 02 1 0306-0512 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0601-0609 ● ●
20 00.029 BOLT; ENG FOOT
04.439 (A) M10X25 W/LK WASHER 		0-50541-025-0 02 1 0610- ●
20 00.029 BOLT; ENG FOOT
04.785 (J) M10X20 FLANGE 		0-28781-020-0 01 1 0306-0601 ●
20 00.029 BOLT; ENG FOOT
02.343 (J) M10X20 FLANGE 		0-28751-020-0 01 1 0602- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-336-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97371-778-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-98051-340-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) 		8-97367-278-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-278-0 01 1 0306-0402 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0403-0408 ● ● ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5G(RSP) 		8-97367-632-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED5G(RSP) 		8-98051-338-0 01 1 0610- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98051-338-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97367-281-0 01 1 0306-0404 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97373-164-0 01 1 0405-0408 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) 		8-97371-779-0 01 1 0409-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 4 SPEED-JATCO(RMK) HIGH RIDE SUSPENSION(7YC) 		8-98051-342-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-277-0 01 1 0306-0405 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-97367-631-0 01 1 0406-0609 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) 		8-98051-337-0 01 1 0610- ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-276-0 01 1 0306-0402 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97367-630-0 01 1 0403-0408 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-97371-777-0 01 1 0409-0609 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 		8-98051-339-0 01 1 0610- ●
55 00.002 BOLT; BRKT,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 4 SPEED-JATCO(RMK) M10X120 		8-98051-536-0 01 1 0610- ●
152 00.027 DAMPER; DYNAMIC,ENG MTG
4X4 CREW CAB(TFS*W*) A/T 4 SPEED-JATCO(RMK) 		8-97373-873-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
