Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#77476) — 272 parça

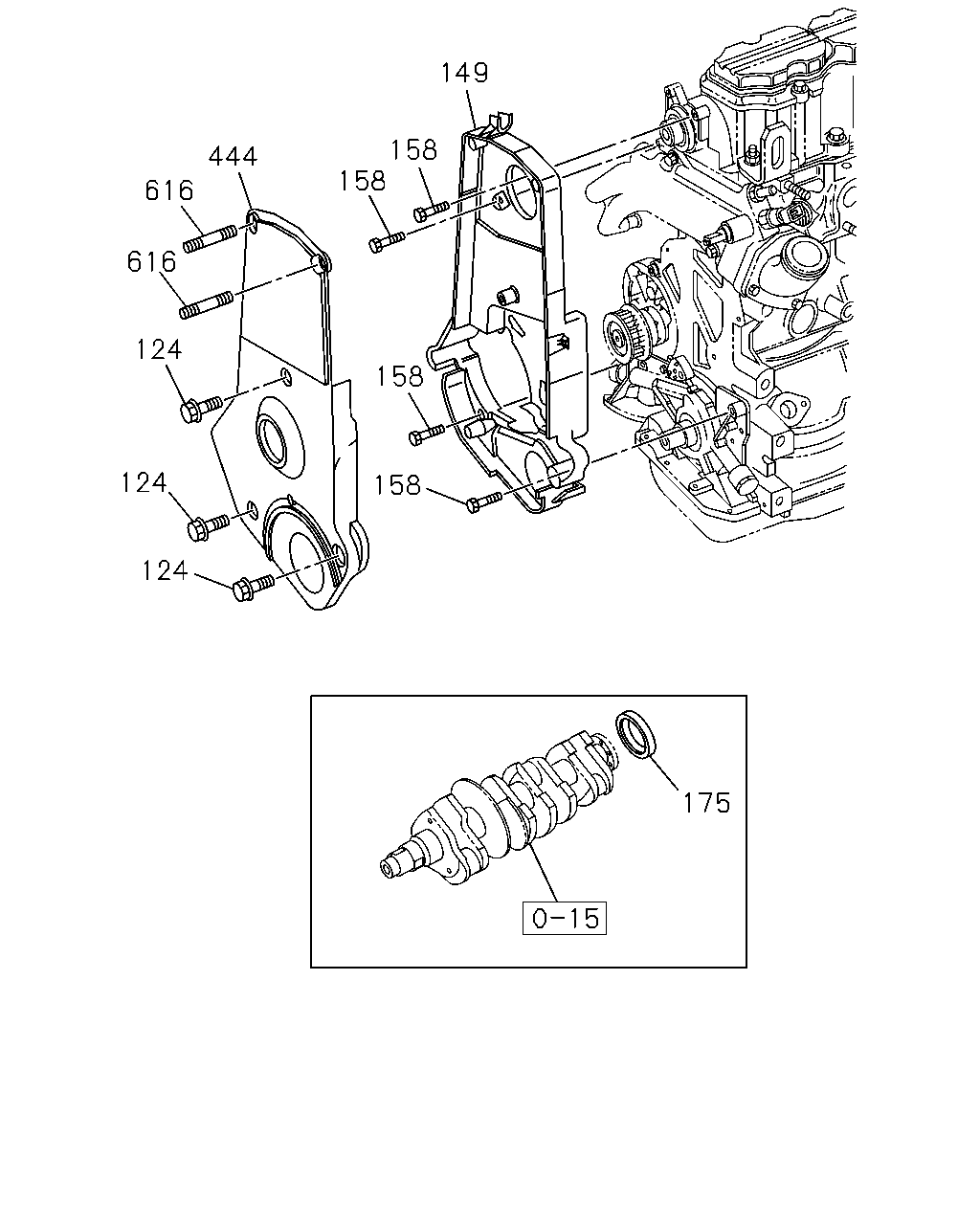

149 158 158 444 616 616 124 158 124 158 124 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0610-	●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0306-1009		●
124	00.206 BOLT; TIMING COVER	8-93218-716-0	03	1	1010-		●
149	00.206 PLATE; FRT,C/BL	8-92063-474-0	01	1	0306-		●
158	00.206 BOLT; FRT PLATE	8-90265-761-0	04	1	0306-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0306-1009		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-93348-562-0	01	1	1010-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0306-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●
444	00.206 COVER; TIMING CASE	8-92063-648-0	01	1	0306-		●
616	00.206 STUD; TIMING COVER	8-92064-377-0	03	1	0306-1009		●
616	00.206 STUD; TIMING COVER	8-92064-377-0	02	1	1010-		●

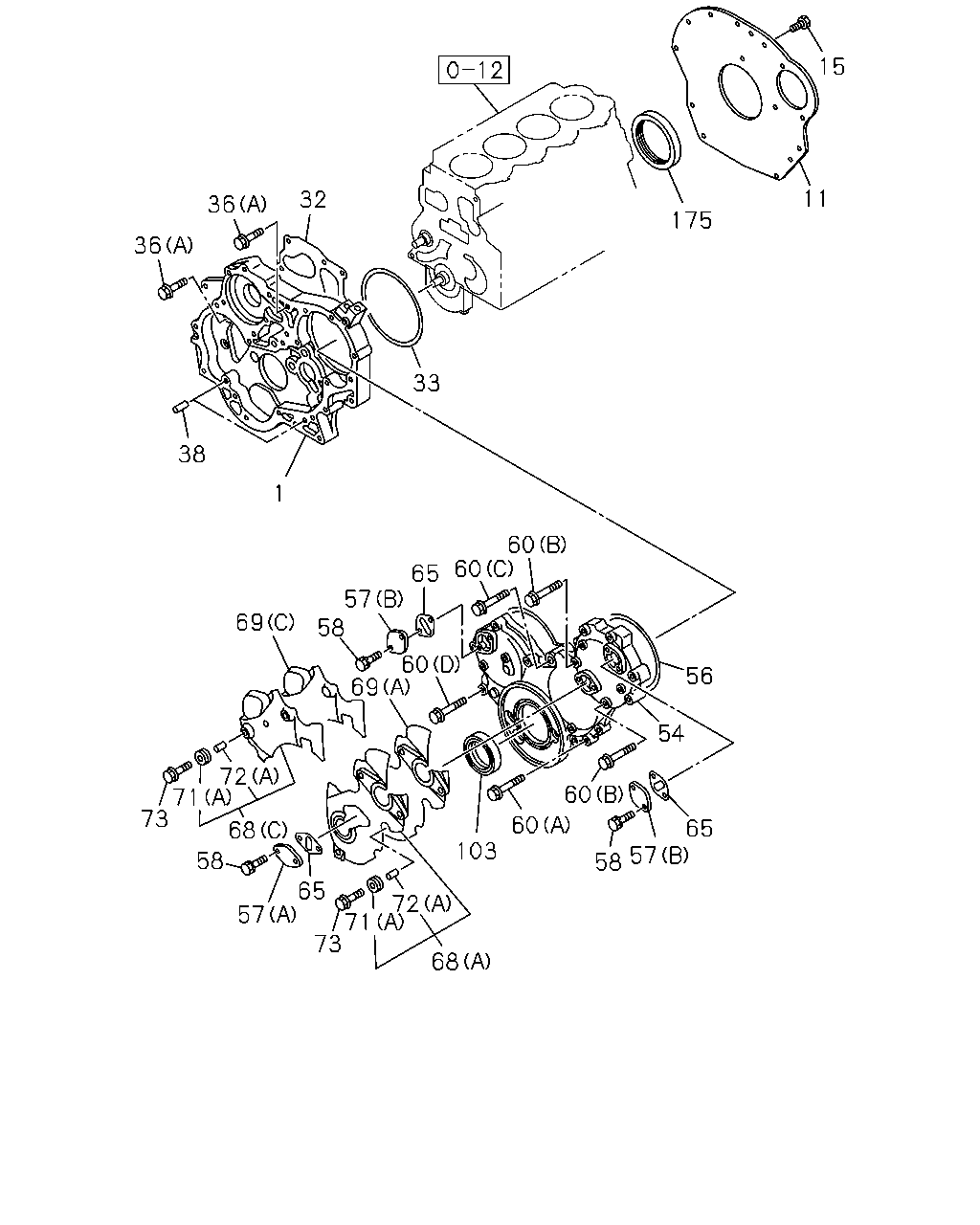

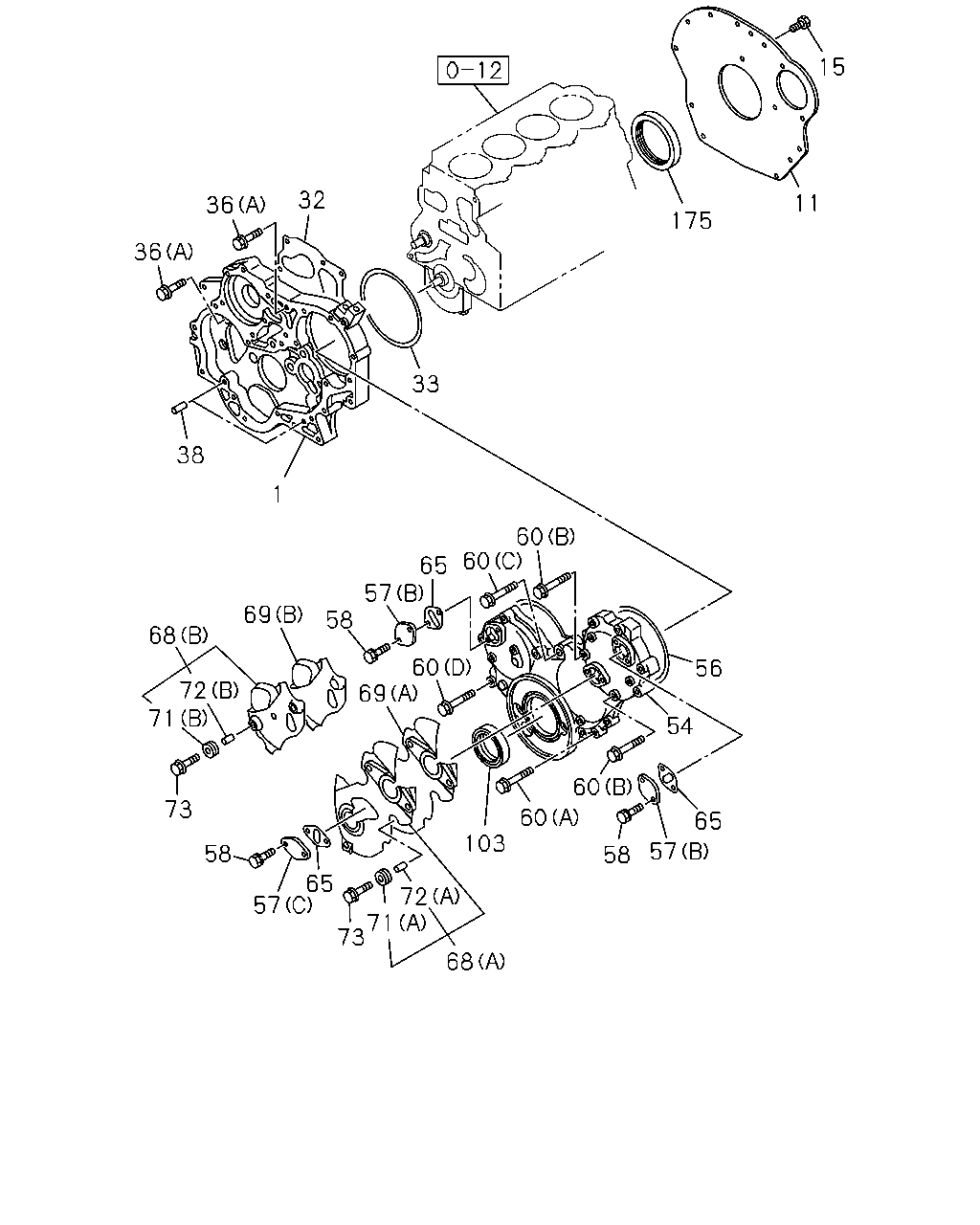

15 32 11 36 175 36 33 38 1 60 60 65 57 69 58 68 60 56 72 71 69 54 60 73 60 65 103 57 58 58 65 57 72 71 73 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR THAI ENGNEERING PRO 15X5.50F STAMP, BLACK	8-97367-309-3	01	1	0610-1007	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1008-	●
1	00.206 CASE; TIMING GEAR	8-97306-429-1	01	1	0306-			●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0306-0609				●
1	00.206 CASE; TIMING GEAR SW & SONS CO.,LTD.	8-97945-261-1	01	1	0610-1007	●
11	00.683 PLATE; RR,C/BL	8-98020-515-1	01	1	0610-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0306-0609			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0610-			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0306-0609			●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0610-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	0306-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0306-0609				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0610-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0306-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0306-0609				●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE	0-28050-860-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0610-	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0610-0909			●
36	00.206 BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-			●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0610-0909			●
36	00.206 BOLT; GEAR CASE 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0306-0609			●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0610-			●
54	00.206 COVER; GEAR CASE	8-97306-431-2	01	1	0306-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0306-0609				●
54	00.206 COVER; GEAR CASE	8-97367-312-4	01	1	0610-1201	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1202-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0306-0609			●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0610-			●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0306-0609			●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0610-			●
57	00.206 COVER; TIMING CHECK HOLE (C)	8-97353-706-2	01	1	0306-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0306-0609				●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0306-0403			●	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0512			●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-0609			●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0610-			●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0306-0609			●	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0610-			●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE	0-28050-830-0	08	1	0610-			●
60	00.206 BOLT; COVER TO CASE 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0610-			●
60	00.206 BOLT; COVER TO CASE (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0610-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97027-601-1	03	1	0306-0311			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0609			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0610-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97255-034-1	01	1	0306-0609			●	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97255-034-1	01	1	0610-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97943-086-0	01	1	0306-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0306-0609				●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-0	01	1	0306-0609			●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-1	01	1	0610-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97306-548-1	01	1	0306-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0306-0609				●
71	00.206 RUBBER; MTG,COVER (A)	5-19389-002-0	03	1	0306-			●
71	00.206 RUBBER; MTG,COVER (B)	8-97914-631-0	03	1	0306-			●
71	00.206 RUBBER; MTG,COVER (A)	5-19389-002-0	05	1	0306-0609				●
72	00.206 BUSHING; SPACER,COVER TO COVER (A)	5-19389-009-0	03	1	0306-			●
72	00.206 BUSHING; SPACER,COVER TO COVER (B)	8-97914-630-1	03	1	0306-			●
72	00.206 BUSHING; SPACER,COVER TO COVER (A)	5-19389-009-0	05	1	0306-0609				●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-1007	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0306-0403			●	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0512			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0609			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0610-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	0610-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0306-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0610-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0306-1009		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-93348-562-0	01	1	1010-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0306-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●

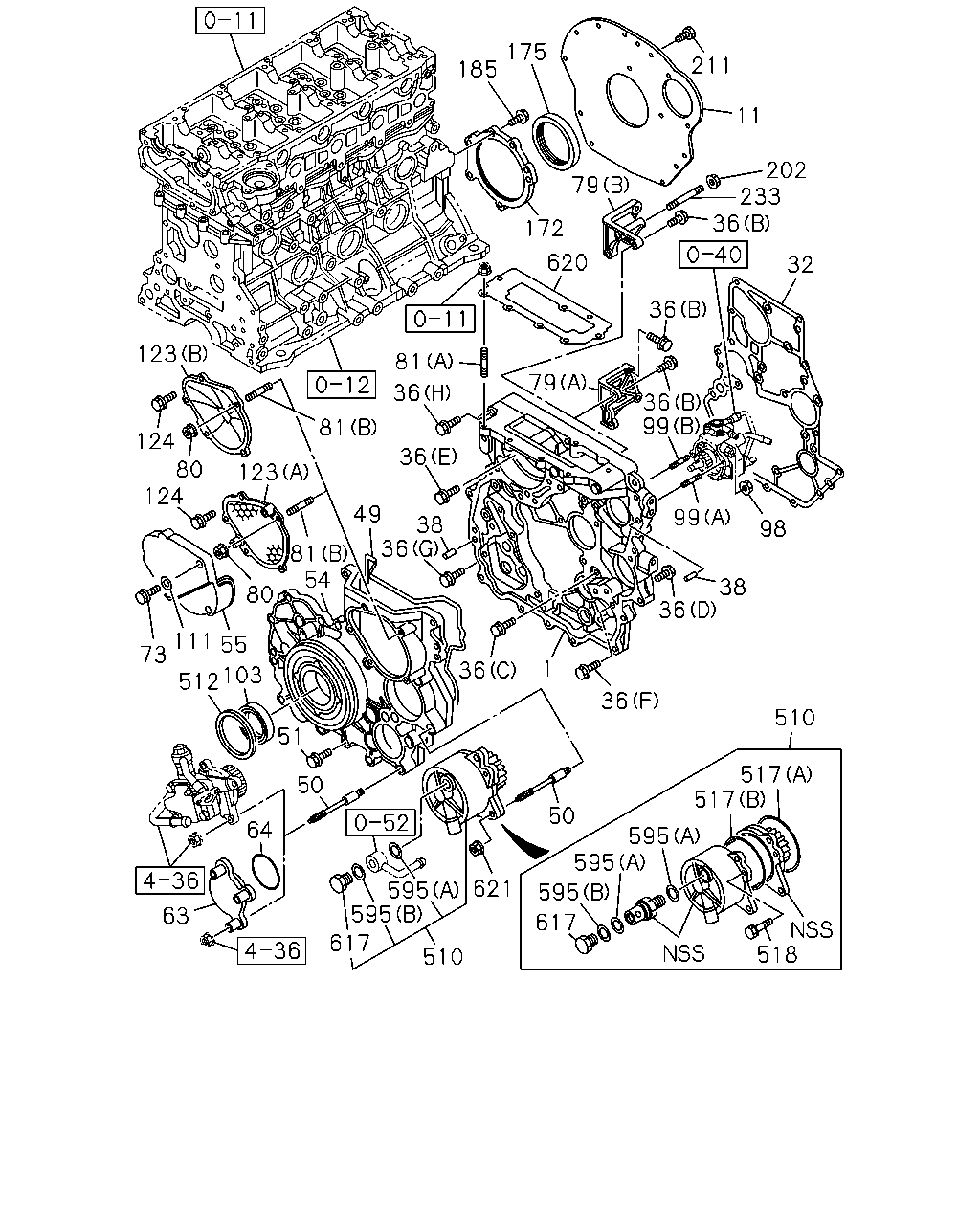

175 185 79 11 211 202 233 36 32 36 172 620 81 36 36 38 49 81 123 124 124 80 123 81 54 80 73 111 55 512 103 51 50 64 63 617 510 595 595 621 595 617 595 595 50 517 517 510 518 36 36 38 98 99 99 36 79 36 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR THAI ENGNEERING PRO 15X5.50F STAMP, BLACK	8-97367-309-3	01	1	0610-1007	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1008-	●
1	00.206 CASE; TIMING GEAR	8-97306-429-1	01	1	0306-			●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0306-0609				●
1	00.206 CASE; TIMING GEAR SW & SONS CO.,LTD.	8-97945-261-1	01	1	0610-1007	●
11	00.683 PLATE; RR,C/BL	8-98020-515-1	01	1	0610-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0306-0609			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0610-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	0306-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0306-0609				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE	0-28050-860-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0610-	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0610-0909			●
36	00.206 BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-			●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0610-0909			●
36	00.206 BOLT; GEAR CASE 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0306-0609			●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0610-			●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0610-	●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0610-	●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0610-	●
54	00.206 COVER; GEAR CASE	8-97306-431-2	01	1	0306-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0306-0609				●
54	00.206 COVER; GEAR CASE	8-97367-312-4	01	1	0610-1201	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1202-	●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0610-1007	●
63	00.206 COVER; P/S EXC. POWER STEERING<N40>	8-97367-336-2	01	1	0610-	●
64	00.206 GASKET; COVER,P/S EXC. POWER STEERING<N40> ID=59.6	8-97109-679-0	01	1	0610-	●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-1007	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0306-0403			●	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0512			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0609			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0610-			●
79	00.219 BRACKET; GEAR CASE COVER (A)	8-97370-390-2	01	1	0610-1007	●
79	00.219 BRACKET; GEAR CASE COVER (B)	8-98107-106-0	01	1	1008-	●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0610-	●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0610-	●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0610-	●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0610-	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48	0-49140-830-0	01	1	0610-1007	●
99	00.206 STUD; INJ PUMP 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	1008-	●
99	00.206 STUD; INJ PUMP (B) M8X45 L=63	0-49140-845-0	01	1	0610-1007	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	0610-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0306-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0610-			●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0610-0705	●
111	00.206 WASHER; PL ID=6.4 OD=22	0-91614-806-0	02	1	0706-1007	●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0610-1007	●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1008-	●
124	00.206 BOLT; TIMING COVER 09.242 M6X16 FLANGE	0-28050-616-0	03	1	0610-	●
124	00.206 BOLT; TIMING COVER	8-11087-874-0	03	1	0306-1009		●
124	00.206 BOLT; TIMING COVER	8-93218-716-0	03	1	1010-		●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	0610-	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0306-1009		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-93348-562-0	01	1	1010-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0306-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0610-	●
202	00.206 NUT; BRKT 01.540 M8 FLANGE	0-91180-208-0	01	1	1008-	●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	0911-	●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	0810-0910	●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	0710-0809	●
211	00.669 BOLT; HSG 00.683 M12X25	8-97916-324-1	03	1	0610-0709	●
233	00.669 STUD; BRKT 03.275 M8X71 L=83	8-97367-083-0	01	1	1008-	●
510	04.895 PUMP ASM; VACUUM	8-97312-081-5	01	1	0610-1004	●
510	04.895 PUMP ASM; VACUUM	8-98162-749-0	01	1	1005-1009	●
510	04.895 PUMP ASM; VACUUM	8-98178-027-2	01	1	1010-1302	●
510	04.895 PUMP ASM; VACUUM	8-98211-157-0	01	1	1303-1312	●
510	04.895 PUMP ASM; VACUUM	8-98251-765-0	01	1	1401-	●
512	04.895 RUBBER; SPACE	8-97373-716-0	01	1	0610-	●
517	04.895 GASKET; VAC PUMP (A)	0-95690-271-0	01	1	0610-	●
517	04.895 GASKET; VAC PUMP (B)	8-97184-175-0	01	1	0610-1312	●
517	04.895 GASKET; VAC PUMP (B)	8-98251-768-0	01	1	1401-	●
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	0610-	●
595	00.213 GASKET; VLV 03.280 (A) ID=18 OD=24	5-19679-002-0	02	1	0610-	●
595	00.213 GASKET; VLV 03.280 (B) ID=12 OD=24	5-19679-003-0	01	1	0610-	●
617	00.206 BOLT; CHECK VLV	8-97376-402-0	01	1	0610-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.40 1-NOTCH	8-97328-828-2	01	1	0610-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.45 2-NOTCH	8-97331-631-2	01	1	0610-	●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) T=1.50 3-NOTCH	8-97331-632-2	01	1	0610-	●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0610-	●

15 11 32 36 175 36 33 38 1 60 60 65 57 58 69 60 56 69 54 72 71 73 60 60 65 57 58 68 103 58 65 72 71 73 57 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR THAI ENGNEERING PRO 15X5.50F STAMP, BLACK	8-97367-309-3	01	1	0610-1007	●
1	00.206 CASE; TIMING GEAR	8-98074-747-1	01	1	1008-	●
1	00.206 CASE; TIMING GEAR	8-97306-429-1	01	1	0306-			●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0306-0609				●
1	00.206 CASE; TIMING GEAR SW & SONS CO.,LTD.	8-97945-261-1	01	1	0610-1007	●
11	00.683 PLATE; RR,C/BL	8-98020-515-1	01	1	0610-	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0306-0609			●	●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	0610-			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0306-0609			●	●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0610-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-426-1	01	1	0306-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0306-0609				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0610-	●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0306-			●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0306-0609				●
36	00.206 BOLT; GEAR CASE 02.343 (C) M8X16 FLANGE	0-28050-816-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.338 (D) M8X20 FLANGE	0-28050-820-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.162 (E) M8X35 FLANGE	0-28050-835-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0610-	●
36	00.206 BOLT; GEAR CASE 04.686 (H) M8X60 FLANGE	0-28050-860-0	01	1	0610-	●
36	00.206 BOLT; GEAR CASE 06.216 (G) M8X25 FLANGE	0-28650-825-0	15	1	0610-	●
36	00.206 BOLT; GEAR CASE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	0610-	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0610-0909			●
36	00.206 BOLT; GEAR CASE (A) M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-			●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0306-0609			●	●
36	00.206 BOLT; GEAR CASE 01.252 (A) M8X45 W/LK WASHER	0-50040-845-0	02	1	0610-0909			●
36	00.206 BOLT; GEAR CASE 03.704 (A) M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-			●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0306-0609			●	●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0610-			●
54	00.206 COVER; GEAR CASE	8-97306-431-2	01	1	0306-			●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0306-0609				●
54	00.206 COVER; GEAR CASE	8-97367-312-4	01	1	0610-1201	●
54	00.206 COVER; GEAR CASE	8-98170-215-0	01	1	1202-	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0306-0609			●	●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0610-			●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0306-0609			●	●
57	00.206 COVER; TIMING CHECK HOLE (B)	5-11321-009-0	02	1	0610-			●
57	00.206 COVER; TIMING CHECK HOLE (C)	8-97353-706-2	01	1	0306-			●
57	00.206 COVER; TIMING CHECK HOLE (A)	8-97304-608-1	01	1	0306-0609				●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0306-0403			●	●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0512			●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-0609			●	●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0610-			●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0306-0609			●	●
60	00.206 BOLT; COVER TO CASE 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0610-			●
60	00.206 BOLT; COVER TO CASE 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (A) M8X30 FLANGE	0-28050-830-0	08	1	0610-			●
60	00.206 BOLT; COVER TO CASE 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0610-			●
60	00.206 BOLT; COVER TO CASE (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0306-0512			●	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0609			●	●
60	00.206 BOLT; COVER TO CASE (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0610-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97027-601-1	03	1	0306-0311			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0609			●	●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0610-			●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97255-034-1	01	1	0306-0609			●	●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97255-034-1	01	1	0610-			●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97943-086-0	01	1	0306-			●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-97358-022-0	01	1	0306-0609				●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-0	01	1	0306-0609			●	●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-009-1	01	1	0610-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97306-548-1	01	1	0306-			●
69	00.206 SEAL; RUBBER,COVER TO COVER (C)	8-97329-011-0	01	1	0306-0609				●
71	00.206 RUBBER; MTG,COVER (A)	5-19389-002-0	03	1	0306-			●
71	00.206 RUBBER; MTG,COVER (B)	8-97914-631-0	03	1	0306-			●
71	00.206 RUBBER; MTG,COVER (A)	5-19389-002-0	05	1	0306-0609				●
72	00.206 BUSHING; SPACER,COVER TO COVER (A)	5-19389-009-0	03	1	0306-			●
72	00.206 BUSHING; SPACER,COVER TO COVER (B)	8-97914-630-1	03	1	0306-			●
72	00.206 BUSHING; SPACER,COVER TO COVER (A)	5-19389-009-0	05	1	0306-0609				●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-1007	●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0306-0403			●	●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0512			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0609			●	●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0610-			●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97943-951-0	01	1	0610-	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0306-0609			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0610-			●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-90298-408-0	01	1	0306-1009		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-93348-562-0	01	1	1010-		●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0306-0609			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=95 OD=118	8-97071-561-1	01	1	0610-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
