Sayfa 0-15 - Isuzu EPC

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#77475) — 702 parça

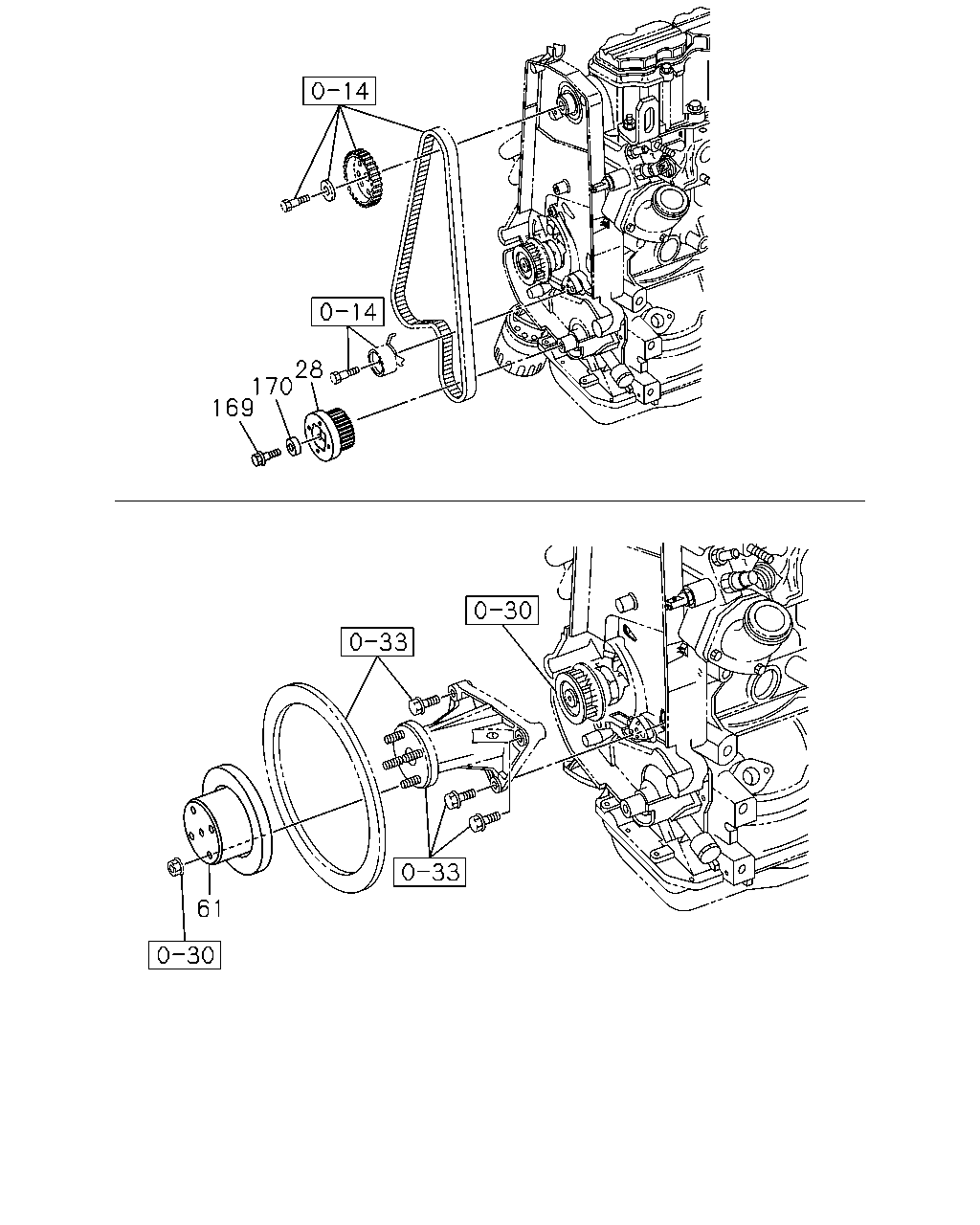

28 170 169 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0306-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	0306-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0306-0609				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0610-	●
169	00.659 BOLT; GEAR TO CRANKSHAFT	8-11085-932-0	01	1	0306-		●
170	00.659 WASHER; GEAR TO CRANKSHAFT	8-92023-395-0	01	1	0306-1009		●
170	00.659 WASHER; GEAR TO CRANKSHAFT	8-93271-884-0	01	1	1010-		●

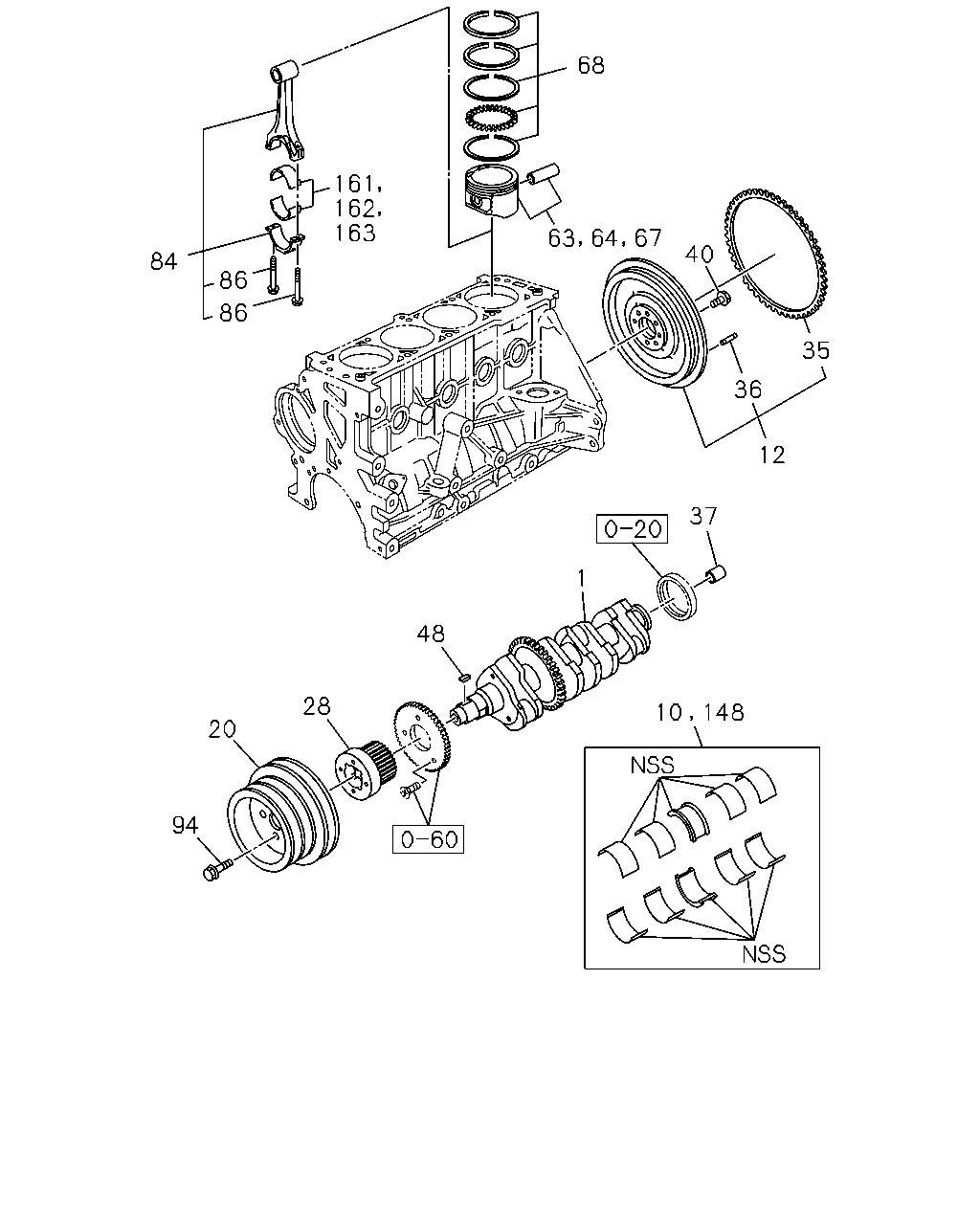

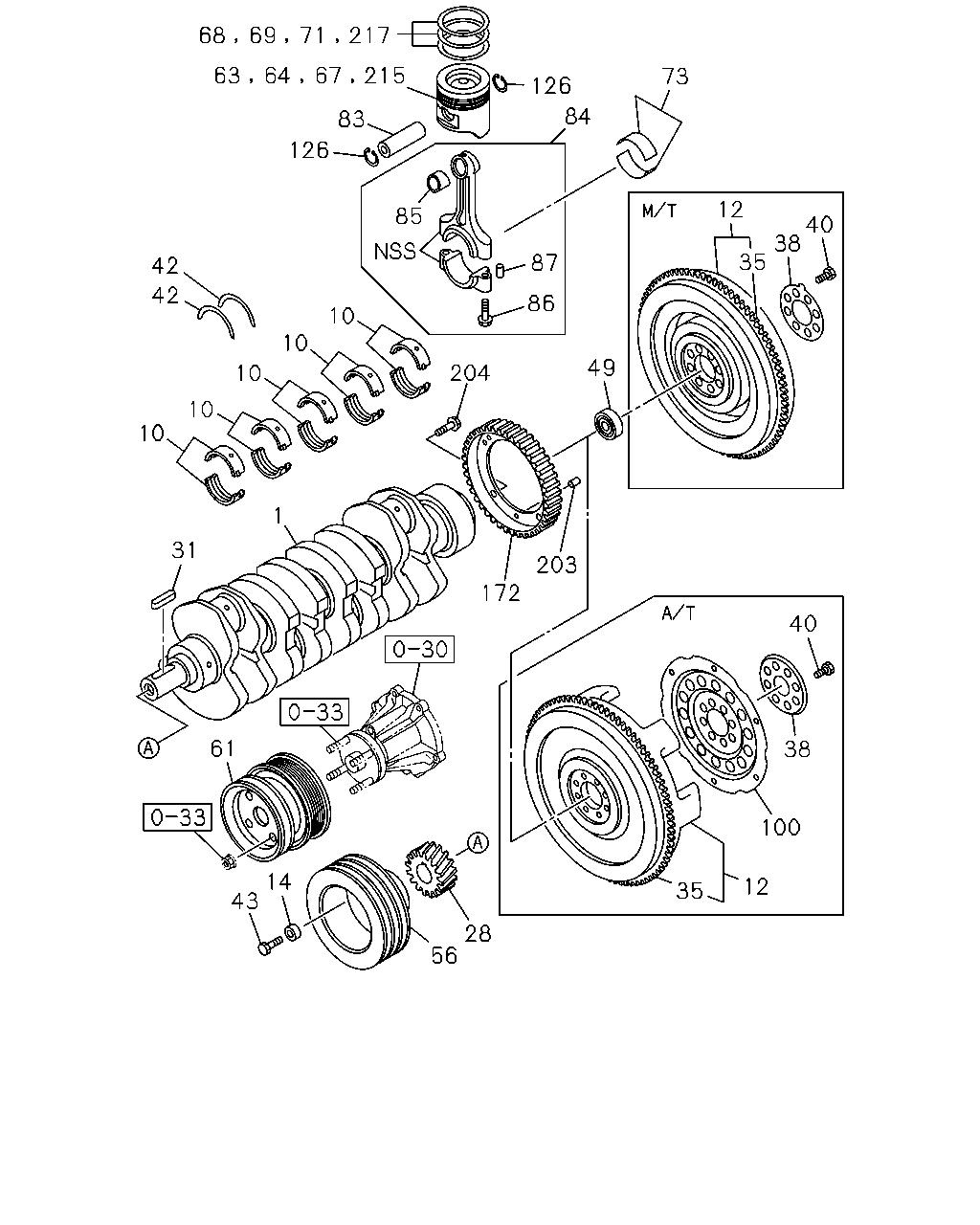

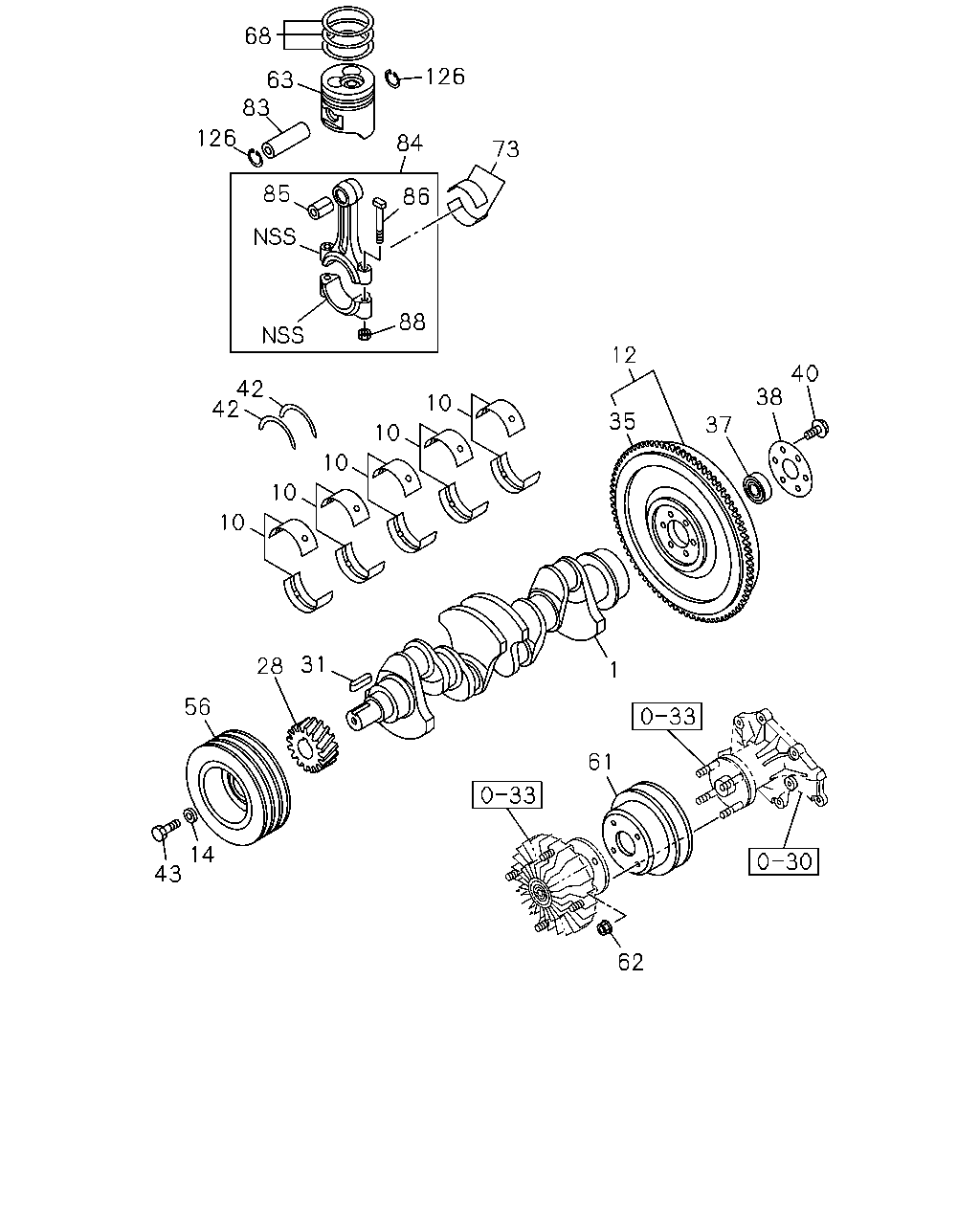

61 1 35 37 38 40 12 10 10 10 10 42 42 10 28 31 56 14 43 62 73 84 86 88 85 126 83 63 68 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1404-	●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0306-		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0306-0609				●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	0610-	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0306-0905			●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	0906-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0306-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97388-502-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97388-503-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97388-504-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97388-505-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD RED	8-97388-506-0	05	1	0610-	●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0306-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	0306-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-2	01	1	0306-0609				●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-97920-004-1	01	1	0610-0703	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	0704-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP)	8-97249-214-1	01	1	0306-0609				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97912-517-1	01	1	0610-	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0306-0609			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0610-	●		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	0610-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0306-0609			●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0610-1403			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1404-	●		●
35	00.673 GEAR; RING Z=108	8-97912-516-1	01	1	0610-	●
35	00.673 GEAR; RING Z=135	8-90136-995-0	01	1	0306-1009		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0306-0410			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0411-0412			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0501-0609			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0306-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0306-0609			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP) 00.649 NSK	9-00090-679-0	01	1	0306-0609				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0610-			●
38	00.862 WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-1	01	1	0610-	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0306-0609			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) 00.669	8-94133-970-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0610-1005			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	0610-1005	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	1006-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97941-069-0	08	1	0610-	●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0306-1009		●
40	00.669 BOLT; FLYWHEEL	8-93288-625-0	06	1	1010-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0306-0609			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) M13X36	8-97065-984-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0610-	●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0306-1009		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	0306-0411			●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	0412-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0306-0411				●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-0609				●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-98138-817-0	01	1	1004-1004			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0306-0609			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0610-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	0306-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97350-548-1	01	1	0306-0609				●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0610-	●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0306-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	0306-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0306-0609				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0610-	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0306-0609			●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0610-			●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	0610-	●
63	00.629 PISTON	8-93292-774-0	04	1	0306-1009		●
63	00.629 PISTON	8-92061-386-0	04	1	1010-		●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0306-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0306-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97305-585-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	0610-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97305-586-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	0610-	●
68	00.643 RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1201-	●
68	00.643 RING SET; PISTON,STANDARD	8-98077-915-0	04	1	0610-0704	●
68	00.643 RING SET; PISTON,STANDARD	8-98082-538-0	04	1	0705-0710	●
68	00.643 RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	0711-	●
68	00.643 RING SET; PISTON,STANDARD	8-92066-631-0	01	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD	8-92029-793-0	01	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	0306-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0306-0609				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	0610-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0306-0609			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0610-			●
83	00.636 PIN; PISTON	8-97311-928-2	04	1	0610-0910	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	0911-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0306-0609			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0610-			●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0306-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0306-0502				●
84	00.603 ROD ASM; CONN	8-98012-602-1	04	1	0503-0609				●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	0610-	●
84	00.603 ROD ASM; CONN	8-94333-119-3	04	1	0306-0503			●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	0504-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97288-551-0	04	1	0306-0706			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0707-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0306-0609				●
85	00.613 BUSHING; CONNROD	8-97311-438-0	04	1	0610-0712	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0801-	●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0306-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	0306-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0306-0609				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0702	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0703-	●
88	00.623 NUT; CONNROD 00.626 M11	5-09409-016-0	08	1	0306-			●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0610-	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0306-0609			●	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0610-			●

28 170 169 42 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0306-1009		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	0306-0411			●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	0412-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0306-0411				●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-0609				●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	0610-	●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0306-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	0306-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0306-0609				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0610-	●
169	00.659 BOLT; GEAR TO CRANKSHAFT	8-11085-932-0	01	1	0306-		●
170	00.659 WASHER; GEAR TO CRANKSHAFT	8-92023-395-0	01	1	0306-1009		●
170	00.659 WASHER; GEAR TO CRANKSHAFT	8-93271-884-0	01	1	1010-		●

161 162 163 36 84 86 86 40 12 37 1 48 28 10 148 20 94 68 69 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1404-	●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0306-		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0306-0609				●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	0610-	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0306-0905			●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	0906-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0306-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97388-502-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97388-503-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97388-504-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97388-505-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD RED	8-97388-506-0	05	1	0610-	●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0306-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	0306-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-2	01	1	0306-0609				●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-97920-004-1	01	1	0610-0703	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	0704-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP)	8-97249-214-1	01	1	0306-0609				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97912-517-1	01	1	0610-	●
20	00.659 DAMPER; CR/SHF	8-92063-589-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
36	00.862 PIN; FLYWHEEL	8-92061-816-0	03	1	0306-1009		●
36	00.862 PIN; FLYWHEEL	8-90322-716-0	03	1	1010-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0306-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0306-0609			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP) 00.649 NSK	9-00090-679-0	01	1	0306-0609				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0610-			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97941-069-0	08	1	0610-	●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0306-1009		●
40	00.669 BOLT; FLYWHEEL	8-93288-625-0	06	1	1010-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0306-0609			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) M13X36	8-97065-984-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0610-	●
48	00.662 KEY; WOODRUFF,CR/SHF	8-11010-612-0	01	1	0306-		●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	0610-	●
63	00.629 PISTON	8-93292-774-0	04	1	0306-1009		●
63	00.629 PISTON	8-92061-386-0	04	1	1010-		●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0306-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0306-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97305-585-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	0610-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97305-586-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-98028-031-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-93282-455-0	04	1	0306-1009		●
64	00.629 PISTON; O/S=0.50	8-92061-702-0	04	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1201-	●
68	00.643 RING SET; PISTON,STANDARD	8-98077-915-0	04	1	0610-0704	●
68	00.643 RING SET; PISTON,STANDARD	8-98082-538-0	04	1	0705-0710	●
68	00.643 RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	0711-	●
68	00.643 RING SET; PISTON,STANDARD	8-92066-631-0	01	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD	8-92029-793-0	01	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	0306-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0306-0609				●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	1008-1009		●
69	00.643 RING SET; PISTON,O/S=0.50	8-92029-795-0	01	1	1010-		●
69	00.643 RING SET; PISTON,O/S=0.50 FOR TRUCK-BUS USERS	8-98173-006-0	04	1	1201-	●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0306-1009		●
69	00.643 RING SET; PISTON,O/S=0.50	8-98082-493-0	04	1	0610-0710	●
69	00.643 RING SET; PISTON,O/S=0.50 STANDARD SPEC	8-98096-562-1	04	1	0711-	●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0306-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0306-0502				●
84	00.603 ROD ASM; CONN	8-98012-602-1	04	1	0503-0609				●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	0610-	●
84	00.603 ROD ASM; CONN	8-94333-119-3	04	1	0306-0503			●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	0504-			●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0306-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	0306-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0306-0609				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0702	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0703-	●
94	00.659 BOLT; DAMPER 02.183	8-11094-881-0	04	1	0306-		●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.25	8-92066-634-0	01	1	0306-1009		●
148	00.094 METAL SET; CRANKSHAFT,U/S	8-93295-033-0	01	1	1010-		●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.50	8-92066-635-0	01	1	0306-1009		●
161	00.616 METAL KIT; CONN ROD,STANDARD 00.094	8-92028-817-0	01	1	0306-		●
162	00.616 METAL KIT; CONN ROD,U/S=0.25 00.094	8-92028-818-0	01	1	0306-		●
163	00.616 METAL KIT; CONN ROD,U/S=0.50 00.094	8-92028-819-0	01	1	0306-		●

68 161 162 163 64 40 84 86 86 35 36 12 37 1 48 28 10 148 20 94 63 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1404-	●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0306-		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0306-0609				●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	0610-	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0306-0905			●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	0906-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0306-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97388-502-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97388-503-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97388-504-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97388-505-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD RED	8-97388-506-0	05	1	0610-	●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0306-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	0306-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-2	01	1	0306-0609				●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-97920-004-1	01	1	0610-0703	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	0704-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP)	8-97249-214-1	01	1	0306-0609				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97912-517-1	01	1	0610-	●
20	00.659 DAMPER; CR/SHF	8-92063-589-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
35	00.673 GEAR; RING Z=108	8-97912-516-1	01	1	0610-	●
35	00.673 GEAR; RING Z=135	8-90136-995-0	01	1	0306-1009		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0306-0410			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0411-0412			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0501-0609			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-			●
36	00.862 PIN; FLYWHEEL	8-92061-816-0	03	1	0306-1009		●
36	00.862 PIN; FLYWHEEL	8-90322-716-0	03	1	1010-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0306-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0306-0609			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP) 00.649 NSK	9-00090-679-0	01	1	0306-0609				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0610-			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97941-069-0	08	1	0610-	●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0306-1009		●
40	00.669 BOLT; FLYWHEEL	8-93288-625-0	06	1	1010-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0306-0609			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) M13X36	8-97065-984-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0610-	●
48	00.662 KEY; WOODRUFF,CR/SHF	8-11010-612-0	01	1	0306-		●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	0610-	●
63	00.629 PISTON	8-93292-774-0	04	1	0306-1009		●
63	00.629 PISTON	8-92061-386-0	04	1	1010-		●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0306-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0306-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97305-585-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	0610-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97305-586-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-98028-031-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-93282-455-0	04	1	0306-1009		●
64	00.629 PISTON; O/S=0.50	8-92061-702-0	04	1	1010-		●
67	00.629 PISTON; O/S=0.25	8-98028-030-0	04	1	0610-	●
67	00.629 PISTON; O/S=0.25	8-93282-453-0	04	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1201-	●
68	00.643 RING SET; PISTON,STANDARD	8-98077-915-0	04	1	0610-0704	●
68	00.643 RING SET; PISTON,STANDARD	8-98082-538-0	04	1	0705-0710	●
68	00.643 RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	0711-	●
68	00.643 RING SET; PISTON,STANDARD	8-92066-631-0	01	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD	8-92029-793-0	01	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	0306-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0306-0609				●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0306-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0306-0502				●
84	00.603 ROD ASM; CONN	8-98012-602-1	04	1	0503-0609				●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	0610-	●
84	00.603 ROD ASM; CONN	8-94333-119-3	04	1	0306-0503			●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	0504-			●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0306-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	0306-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0306-0609				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0702	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0703-	●
94	00.659 BOLT; DAMPER 02.183	8-11094-881-0	04	1	0306-		●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.25	8-92066-634-0	01	1	0306-1009		●
148	00.094 METAL SET; CRANKSHAFT,U/S	8-93295-033-0	01	1	1010-		●
148	00.094 METAL SET; CRANKSHAFT,U/S UNSI=0.50	8-92066-635-0	01	1	0306-1009		●
161	00.616 METAL KIT; CONN ROD,STANDARD 00.094	8-92028-817-0	01	1	0306-		●
162	00.616 METAL KIT; CONN ROD,U/S=0.25 00.094	8-92028-818-0	01	1	0306-		●
163	00.616 METAL KIT; CONN ROD,U/S=0.50 00.094	8-92028-819-0	01	1	0306-		●

38 40 100 35 12 216 73 84 126 68 63 83 126 85 87 86 10 10 42 42 10 10 10 31 1 216 35 12 37 38 40 61 62 28 56 14 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1404-	●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0306-		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0306-0609				●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	0610-	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0306-0905			●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	0906-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0306-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97388-502-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97388-503-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97388-504-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97388-505-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD RED	8-97388-506-0	05	1	0610-	●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0306-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	0306-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-2	01	1	0306-0609				●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-97920-004-1	01	1	0610-0703	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	0704-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP)	8-97249-214-1	01	1	0306-0609				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97912-517-1	01	1	0610-	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0306-0609			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0610-	●		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	0610-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0306-0609			●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0610-1403			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1404-	●		●
35	00.673 GEAR; RING Z=108	8-97912-516-1	01	1	0610-	●
35	00.673 GEAR; RING Z=135	8-90136-995-0	01	1	0306-1009		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0306-0410			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0411-0412			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0501-0609			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT	8-90105-743-0	01	1	0306-		●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0306-0609			●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT M/T MUA 5 SPEED 5G(RSP) 00.649 NSK	9-00090-679-0	01	1	0306-0609				●
37	00.096 BEARING; PILOT,TOP GEAR SHAFT 00.649 NSK	9-00090-679-0	01	1	0610-			●
38	00.862 WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-1	01	1	0610-	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0306-0609			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) 00.669	8-94133-970-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0610-1005			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	0610-1005	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	1006-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97941-069-0	08	1	0610-	●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0306-1009		●
40	00.669 BOLT; FLYWHEEL	8-93288-625-0	06	1	1010-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0306-0609			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) M13X36	8-97065-984-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0610-	●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0306-1009		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	0306-0411			●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	0412-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0306-0411				●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-0609				●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-98138-817-0	01	1	1004-1004			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0306-0609			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0610-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	0306-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97350-548-1	01	1	0306-0609				●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0610-	●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0306-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	0306-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0306-0609				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0610-	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0306-0609			●	●
62	01.060 NUT; FAN PULLEY 07.829 M6 FLANGE	5-09440-004-0	04	1	0610-			●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	0610-	●
63	00.629 PISTON	8-93292-774-0	04	1	0306-1009		●
63	00.629 PISTON	8-92061-386-0	04	1	1010-		●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0306-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0306-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97305-585-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	0610-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97305-586-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	0610-	●
68	00.643 RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1201-	●
68	00.643 RING SET; PISTON,STANDARD	8-98077-915-0	04	1	0610-0704	●
68	00.643 RING SET; PISTON,STANDARD	8-98082-538-0	04	1	0705-0710	●
68	00.643 RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	0711-	●
68	00.643 RING SET; PISTON,STANDARD	8-92066-631-0	01	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD	8-92029-793-0	01	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	0306-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0306-0609				●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	0610-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0306-0609			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0610-			●
83	00.636 PIN; PISTON	8-97311-928-2	04	1	0610-0910	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	0911-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0306-0609			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0610-			●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0306-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0306-0502				●
84	00.603 ROD ASM; CONN	8-98012-602-1	04	1	0503-0609				●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	0610-	●
84	00.603 ROD ASM; CONN	8-94333-119-3	04	1	0306-0503			●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	0504-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97288-551-0	04	1	0306-0706			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0707-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0306-0609				●
85	00.613 BUSHING; CONNROD	8-97311-438-0	04	1	0610-0712	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0801-	●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0306-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	0306-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0306-0609				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0702	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0703-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0306-0609				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0610-	●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97118-308-0	01	1	0306-0609				●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97118-308-0	01	1	0610-	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0610-	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0306-0609			●	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0610-			●
216	00.293 DOWEL	8-97378-354-0	01	1	0501-0609				●
216	00.293 DOWEL	8-97259-856-0	01	1	0403-0410				●

217 71 69 68 63 64 67 215 83 126 126 84 85 42 42 10 10 10 10 10 31 1 204 49 86 87 12 73 38 40 35 203 172 61 14 43 56 28 35 12 100 38 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.646 CRANKSHAFT JAPAN	8-97388-828-4	01	1	1404-	●
1	00.646 CRANKSHAFT	8-93281-999-0	01	1	0306-		●
1	00.646 CRANKSHAFT	8-97254-611-1	01	1	0306-0609				●
1	00.646 CRANKSHAFT THAILAND	8-97311-632-1	01	1	0610-	●
1	00.646 CRANKSHAFT	8-97249-041-0	01	1	0306-0905			●
1	00.646 CRANKSHAFT	8-97190-927-1	01	1	0906-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD	8-92066-633-0	01	1	0306-		●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97287-437-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-970-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97287-438-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-971-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97287-439-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-972-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BROWN	8-97287-440-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-973-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97287-441-1	05	1	0306-0411			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	01	1	0412-0501			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-974-0	05	1	0502-			●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GREEN	8-97388-502-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLACK	8-97388-503-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD BLUE	8-97388-504-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD YELLOW	8-97388-505-0	05	1	0610-	●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	01	1	0306-0411				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	01	1	0412-0609				●
10	00.094 METAL SET; CRANKSHAFT,STANDARD RED	8-97388-506-0	05	1	0610-	●
12	00.666 FLYWHEEL	8-90466-547-0	01	1	0306-		●
12	00.666 FLYWHEEL	8-94172-529-1	01	1	0306-			●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97260-663-2	01	1	0306-0609				●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-97920-004-1	01	1	0610-0703	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5H(MWQ)	8-98077-180-0	01	1	0704-	●
12	00.666 FLYWHEEL M/T MUA 5 SPEED 5G(RSP)	8-97249-214-1	01	1	0306-0609				●
12	00.666 FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97912-517-1	01	1	0610-	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0306-0609			●	●
14	00.662 WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0610-	●		●
28	00.728 GEAR; CR/SHF Z=44	8-97312-199-1	01	1	0610-	●
28	00.728 GEAR; CR/SHF	8-90411-766-0	01	1	0306-		●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0306-0609			●	●
28	00.728 GEAR; CR/SHF Z=30	8-97240-011-2	01	1	0610-			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 THAILAND	9-08030-743-0	01	1	0610-	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0306-0609			●	●
31	00.662 KEY; FEATHER,CR/SHF 00.729	8-94201-641-0	01	1	0610-1403			●
31	00.662 KEY; FEATHER,CR/SHF 00.729 JAPAN	8-94201-641-0	01	1	1404-	●		●
35	00.673 GEAR; RING Z=108	8-97912-516-1	01	1	0610-	●
35	00.673 GEAR; RING Z=135	8-90136-995-0	01	1	0306-1009		●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0306-0410			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0411-0412			●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0501-0609			●	●
35	00.673 GEAR; RING Z=108	8-94419-602-1	01	1	0610-			●
38	00.862 WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-			●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL A/T 4 SPEED-JATCO(RMK)	8-97038-939-1	01	1	0610-	●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-0	01	1	0306-0609			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) 00.669	8-94133-970-0	01	1	0306-0609				●
38	00.862 WASHER; FLYWHEEL 00.669	8-94133-970-1	01	1	0610-1005			●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	0610-1005	●
38	00.862 WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) 00.669	8-94133-970-1	01	1	1006-	●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97941-069-0	08	1	0610-	●
40	00.669 BOLT; FLYWHEEL	8-90285-303-0	06	1	0306-1009		●
40	00.669 BOLT; FLYWHEEL	8-93288-625-0	06	1	1010-		●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0306-0609			●
40	00.669 BOLT; FLYWHEEL M/T MUA 5 SPEED 5G(RSP) M13X36	8-97065-984-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0610-			●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0306-0609				●
40	00.669 BOLT; FLYWHEEL A/T 4 SPEED-JATCO(RMK) M13X78	8-97080-561-1	08	1	0610-	●
42	00.095 WASHER; THRUST,CR/SHF	8-90156-055-0	01	1	0306-1009		●
42	00.095 WASHER; THRUST,CR/SHF	8-94454-605-0	02	1	0306-0411			●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	0412-			●
42	00.095 WASHER; THRUST,CR/SHF	8-94453-520-0	02	1	0306-0411				●
42	00.095 WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-0609				●
42	00.095 WASHER; THRUST,CR/SHF	8-97354-055-1	02	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-98138-817-0	01	1	1004-1004			●
43	00.662 BOLT; CR/SHF PULLEY M16X43	8-97373-852-1	01	1	0610-	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0306-0609			●	●
43	00.662 BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0610-			●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ) 00.096 NSK	8-97920-344-2	01	1	0610-	●
49	00.669 BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ) NACHI	8-97922-552-1	01	1	0610-	●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	0306-			●
56	00.659 PULLEY; CR/SHF DAMPER 3-GROOVE	8-97350-548-1	01	1	0306-0609				●
56	00.659 PULLEY; CR/SHF DAMPER 2-GROOVE	8-97361-562-1	01	1	0610-	●
61	00.659 PULLEY; FAN DRIVE 01.062	8-92064-197-0	01	1	0306-		●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	0306-			●
61	00.659 PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0306-0609				●
61	00.659 PULLEY; FAN DRIVE 2-GROOVE	8-97362-215-2	01	1	0610-	●
63	00.629 PISTON GRADE=B	8-98028-117-0	04	1	0610-	●
63	00.629 PISTON	8-93292-774-0	04	1	0306-1009		●
63	00.629 PISTON	8-92061-386-0	04	1	1010-		●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97942-985-0	04	1	0306-			●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97942-986-0	04	1	0306-			●
63	00.629 PISTON GRADE=AX ALSO INCLUDED IN LINER SET.	8-97305-585-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=C	8-98028-118-0	04	1	0610-	●
63	00.629 PISTON GRADE=CX ALSO INCLUDED IN LINER SET.	8-97305-586-3	04	1	0306-0609				●
63	00.629 PISTON GRADE=A	8-98028-116-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-98028-031-0	04	1	0610-	●
64	00.629 PISTON; O/S=0.50	8-93282-455-0	04	1	0306-1009		●
64	00.629 PISTON; O/S=0.50	8-92061-702-0	04	1	1010-		●
67	00.629 PISTON; O/S=0.25	8-98028-030-0	04	1	0610-	●
67	00.629 PISTON; O/S=0.25	8-93282-453-0	04	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD FOR TRUCK-BUS USERS	8-98173-004-0	04	1	1201-	●
68	00.643 RING SET; PISTON,STANDARD	8-98077-915-0	04	1	0610-0704	●
68	00.643 RING SET; PISTON,STANDARD	8-98082-538-0	04	1	0705-0710	●
68	00.643 RING SET; PISTON,STANDARD STANDARD SPEC	8-98096-676-1	04	1	0711-	●
68	00.643 RING SET; PISTON,STANDARD	8-92066-631-0	01	1	0306-1009		●
68	00.643 RING SET; PISTON,STANDARD	8-92029-793-0	01	1	1010-		●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	0306-			●
68	00.643 RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97259-941-0	04	1	0306-0609				●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	1008-1009		●
69	00.643 RING SET; PISTON,O/S=0.50	8-92029-795-0	01	1	1010-		●
69	00.643 RING SET; PISTON,O/S=0.50 FOR TRUCK-BUS USERS	8-98173-006-0	04	1	1201-	●
69	00.643 RING SET; PISTON,O/S=0.50	8-92066-632-0	01	1	0306-1009		●
69	00.643 RING SET; PISTON,O/S=0.50	8-98082-493-0	04	1	0610-0710	●
69	00.643 RING SET; PISTON,O/S=0.50 STANDARD SPEC	8-98096-562-1	04	1	0711-	●
71	00.643 RING SET; PISTON,O/S=0.25 FOR TRUCK-BUS USERS	8-98173-005-0	04	1	1201-	●
71	00.643 RING SET; PISTON,O/S=0.25	8-97389-283-0	04	1	0610-0704	●
71	00.643 RING SET; PISTON,O/S=0.25	8-98082-492-0	04	1	0705-0710	●
71	00.643 RING SET; PISTON,O/S=0.25 STANDARD SPEC	8-98096-561-1	04	1	0711-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	0610-	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0306-0609			●	●
73	00.616 METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0610-			●
83	00.636 PIN; PISTON	8-97311-928-2	04	1	0610-0910	●
83	00.636 PIN; PISTON	8-98150-333-0	04	1	0911-	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0306-0609			●	●
83	00.636 PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	0610-			●
84	00.603 ROD ASM; CONN	8-90530-169-0	04	1	0306-		●
84	00.603 ROD ASM; CONN	8-97352-890-1	04	1	0306-0502				●
84	00.603 ROD ASM; CONN	8-98012-602-1	04	1	0503-0609				●
84	00.603 ROD ASM; CONN	8-97357-716-3	04	1	0610-	●
84	00.603 ROD ASM; CONN	8-94333-119-3	04	1	0306-0503			●
84	00.603 ROD ASM; CONN	8-98012-611-2	04	1	0504-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97288-551-0	04	1	0306-0706			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0707-			●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING. ALSO INCLUDED IN LINER SET.	8-97352-889-0	04	1	0306-0609				●
85	00.613 BUSHING; CONNROD	8-97311-438-0	04	1	0610-0712	●
85	00.613 BUSHING; CONNROD AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	0801-	●
86	00.623 BOLT; CONNROD	8-90281-736-0	08	1	0306-		●
86	00.623 BOLT; CONNROD M11X59	5-12235-009-0	08	1	0306-			●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0306-0609				●
86	00.623 BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0610-0702	●
86	00.623 BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0703-	●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0306-0609				●
87	00.613 PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0610-	●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97118-308-0	01	1	0306-0609				●
100	00.666 PLATE; FLEX A/T 4 SPEED-JATCO(RMK)	8-97118-308-0	01	1	0610-	●
126	00.639 RING; SNAP,PISTON PIN OD=37.5	8-94460-687-0	08	1	0610-	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0306-0609			●	●
126	00.639 RING; SNAP,PISTON PIN ID=33.9 ALSO INCLUDED IN LINER SET.	8-94133-969-0	08	1	0610-			●
172	02.383 ROTOR; CRANK SENSOR	8-97312-337-0	01	1	0610-	●
203	01.150 PIN; ROTOR 00.613 OD=5 L=8	9-08160-508-0	01	1	0610-	●
204	01.150 BOLT; ROTOR	8-97944-142-1	03	1	0610-	●
215	00.629 PISTON; O/S=0.75	8-98028-032-0	04	1	0610-	●
217	00.643 RING SET; PISTON,O/S=0.75 FOR TRUCK-BUS USERS	8-98173-007-0	04	1	1201-	●
217	00.643 RING SET; PISTON,O/S=0.75	8-97389-285-0	04	1	0610-0704	●
217	00.643 RING SET; PISTON,O/S=0.75	8-98082-494-0	04	1	0705-0710	●
217	00.643 RING SET; PISTON,O/S=0.75 STANDARD SPEC	8-98096-563-1	04	1	0711-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
