Sayfa 0-12 - Isuzu EPC

0-12 — CYLINDER BLOCK (#77472) — 235 parça

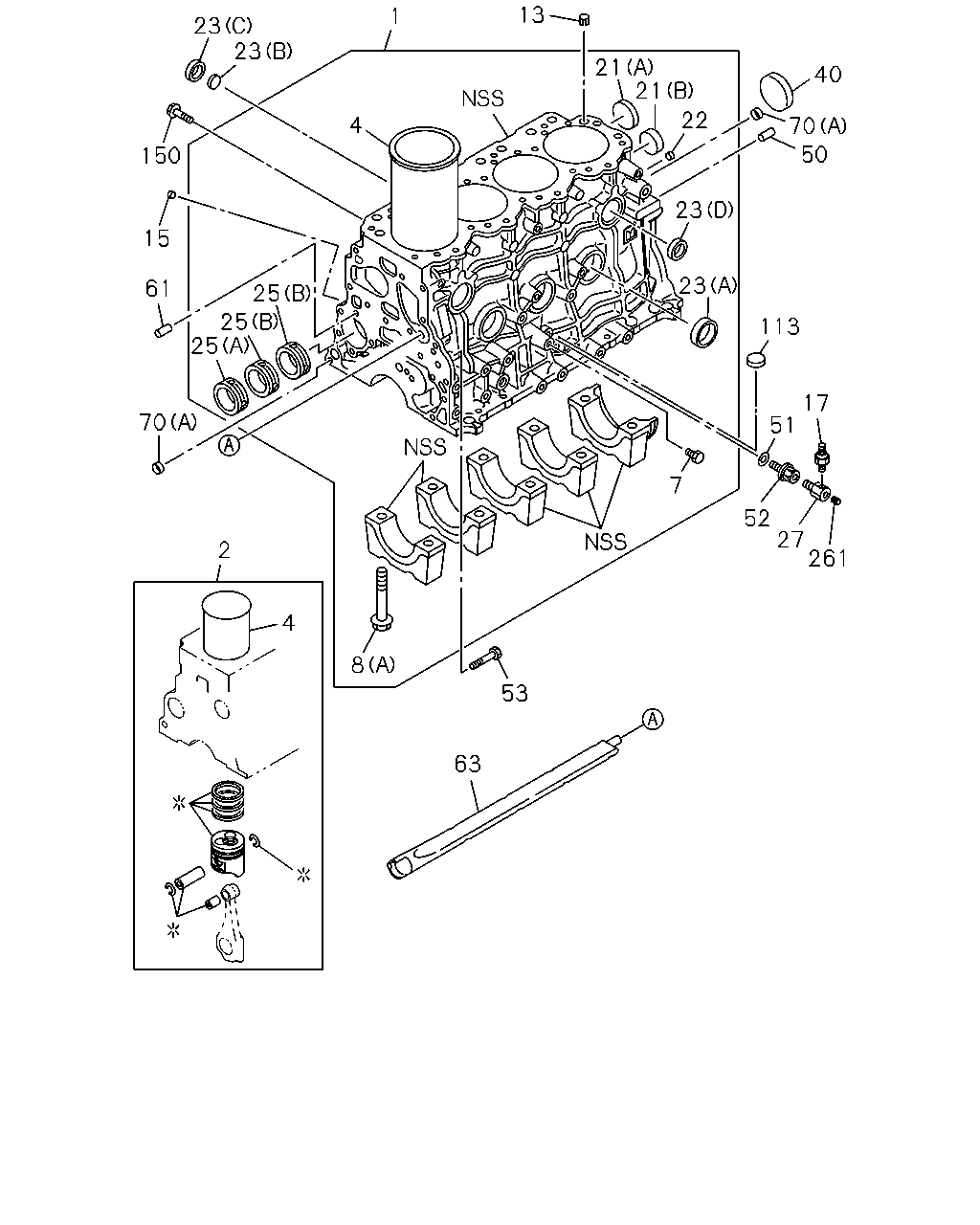

63 53 8 4 2 70 25 25 25 61 15 150 23 23 4 1 13 21 21 22 23 23 113 17 51 52 27 261 7 50 70 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0306-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0306-0310			●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0311-			●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-401-2	04	1	0306-			●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-402-2	04	1	0306-			●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-403-2	04	1	0306-			●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-404-2	04	1	0306-			●
2	00.030 LINER SET; ENG CYL GRADE=1	5-87814-090-2	04	1	0306-0609	●
2	00.030 LINER SET; ENG CYL GRADE=2	5-87814-091-2	04	1	0306-0609	●
2	00.030 LINER SET; ENG CYL GRADE=3	5-87814-092-2	04	1	0306-0609	●
2	00.030 LINER SET; ENG CYL GRADE=4	5-87814-093-2	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-691-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-692-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-693-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-694-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-695-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-696-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-697-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-698-0	04	1	0306-			●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-699-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-700-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-701-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-702-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-703-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-704-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-705-0	04	1	0306-0609	●
4	00.030 LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-706-0	04	1	0306-0609	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0306-0609	●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-1405		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-		●
8	00.056 BOLT; BRG CAP (B)	8-90502-412-0	10	1	0306-				●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0306-0609	●		●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-		●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0306-				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0306-0609	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-		●	●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0610-			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0306-0609	●		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-2	01	1	0306-0609	●		●
17	01.800 SWITCH; OIL PRESSURE	9-82720-209-3	01	1	0610-			●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0306-0609	●		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-1405		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0306-0609	●		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-1405		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0306-0609	●		●
22	00.034 CUP; SEALING,DUCT HOLE 00.253 OD=12.3	5-09600-013-0	01	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0610-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0306-0609	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0610-		●
25	00.539 METAL; CM/SHF (B)	8-94427-201-2	02	1	0306-0411	●		●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	0412-0609	●		●
25	00.539 METAL; CM/SHF (B)	8-97378-147-0	02	1	0610-			●
25	00.539 METAL; CM/SHF (A)	8-94427-206-2	01	1	0306-0411	●		●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	0412-0609	●		●
25	00.539 METAL; CM/SHF (A)	8-97378-148-0	01	1	0610-			●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0306-0502	●		●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0503-0609	●		●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-		●	●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0306-0609	●		●
40	00.034 CUP; SEALING,C/BL RR 00.253 OD=56	8-94250-514-1	01	1	0610-			●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0306-0609	●		●
50	00.685 PIN; STRAIGHT,RR PLATE 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-			●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0610-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0306-0609	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0610-			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0703		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0306-0609	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0610-			●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0306-0609	●		●
53	00.862 BOLT; REAMER 00.683 M10X52	9-09806-020-0	01	1	0610-			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0306-0609	●		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0610-			●
63	01.153 DUCT; WATER,C/BL	8-94419-436-2	01	1	0306-			●
63	01.153 DUCT; WATER,C/BL	8-94456-794-3	01	1	0306-0609	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-			●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0306-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0306-1009				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0306-0609	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-		●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0306-0310	●		●
113	00.034 CUP; SEALING OD=15.6	5-11129-003-0	01	1	0311-0609	●
150	02.313 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	04	1	0306-0512	●
150	02.313 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0601-0609	●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0306-0609	●		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-		●	●

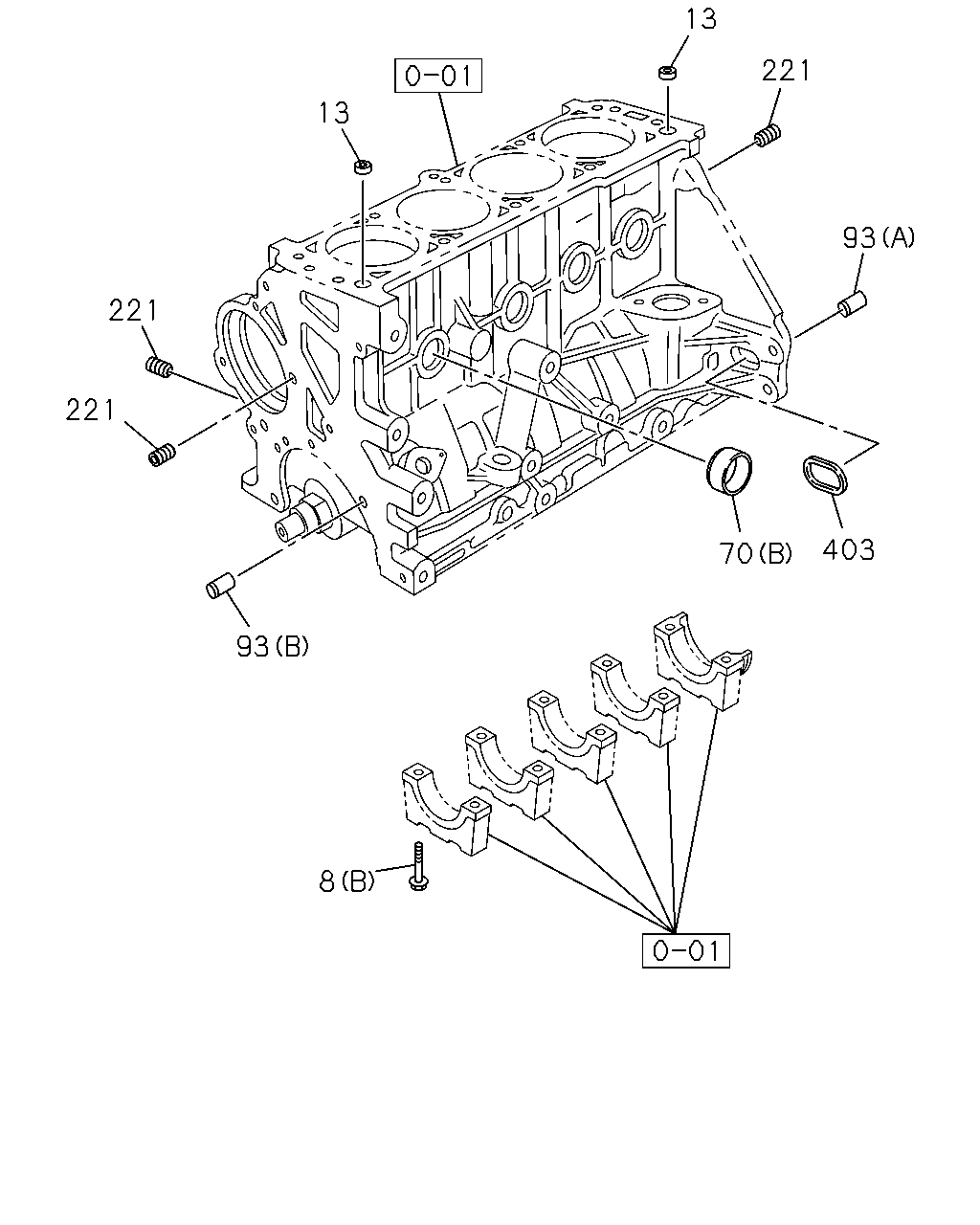

13 221 13 93 221 221 403 70 93 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	00.056 BOLT; BRG CAP (B)	8-90502-412-0	10	1	0306-				●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0306-0609	●		●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-		●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0306-				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0306-0609	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-		●	●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-			●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0306-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0306-1009				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0306-0609	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-		●
93	00.206 DOWEL; RET TO C/BL (A)	8-90108-591-0	02	1	0306-1009				●
93	00.206 DOWEL; RET TO C/BL (A)	8-90351-708-0	02	1	1010-				●
93	00.206 DOWEL; RET TO C/BL 01.609 (B)	8-90351-709-0	02	1	0306-1009				●
93	00.206 DOWEL; RET TO C/BL (B)	8-90096-047-0	02	1	1010-				●
221	01.531 PLUG; OIL GALLERY	8-11056-321-0	04	1	0306-				●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●
403	01.519 GUIDE; GALLERY	8-90501-712-0	01	1	0306-				●

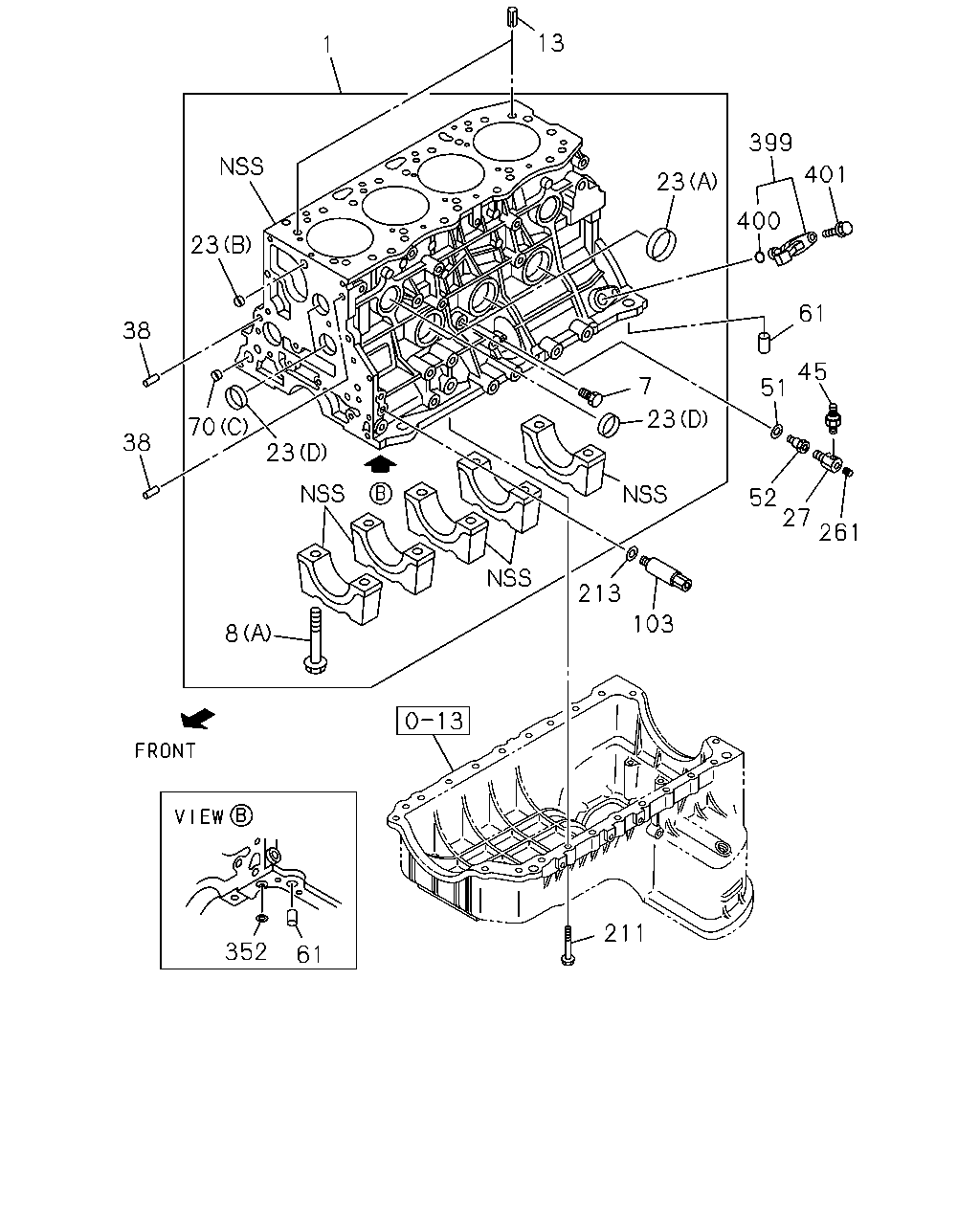

13 1 399 401 23 400 23 61 38 45 7 51 23 70 38 23 52 27 261 213 103 8 211 352 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0306-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0306-0310			●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0311-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-			●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0306-0609	●		●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0610-1405		●	●
7	00.034 PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	1406-		●
8	00.056 BOLT; BRG CAP (B)	8-90502-412-0	10	1	0306-				●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0306-0609	●		●
8	00.056 BOLT; BRG CAP (A) M14X89 FLANGE	8-94432-642-0	10	1	0610-		●	●
13	00.293 DOWEL; C/BL TO HD	8-90353-654-0	02	1	0306-				●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0306-0609	●		●
13	00.293 DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0610-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0610-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0306-0609	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0610-		●
27	01.531 NIPPLE; OIL GALLERY	8-97231-967-3	01	1	0306-0502	●		●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-0	01	1	0503-0609	●		●
27	01.531 NIPPLE; OIL GALLERY	8-98005-299-1	01	1	0610-		●	●
38	00.206 PIN; TIMING GEAR CASE 00.669 OD=10 L=20	9-08151-020-0	02	1	0610-		●
45	01.800 SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0610-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-97912-498-0	01	1	0610-		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0306-0609	●		●
51	01.803 GASKET; OIL PRESS WARNING SW,C/B ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0610-			●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-97943-174-0	01	1	0610-0703		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-98084-434-0	01	1	0704-		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0306-0609	●		●
52	01.803 NIPPLE; OIL PRESS WARNING SW,C/B	8-94167-750-2	01	1	0610-			●
61	00.206 PIN; STRAIGHT 01.453 L=31	8-97920-964-1	02	1	0610-		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0306-0609	●		●
61	00.206 PIN; STRAIGHT 04.510 OD=10 L=20	8-97135-423-0	01	1	0610-			●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-			●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0306-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0306-1009				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0306-0609	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-		●
103	01.531 NIPPLE; OIL FEED	8-97316-983-4	01	1	0610-		●
211	01.428 BOLT; CRANKCASE 00.206 M8X30 FLANGE	0-28050-830-0	05	1	0610-		●
211	01.428 BOLT; CRANKCASE 06.216 M8X25 FLANGE	0-28650-825-0	14	1	0610-		●
211	01.428 BOLT; CRANKCASE 00.685 M8X40 FLANGE	0-28650-840-0	01	1	0610-		●
213	01.531 GASKET; NIPPLE,OIL FEED 08.955 ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-		●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0306-0609	●		●
261	00.034 PLUG; OIL PRESS UNIT 01.531 PT1/8	1-09605-050-0	01	1	0610-		●	●
352	01.429 GASKET; C/BL TO CRANKCASE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09566-116-0	01	1	0610-		●
399	00.724 SENSOR; CRANKSHAFT POSITION 02.361	8-97312-108-1	01	1	0610-		●
400	00.724 GASKET; CRANKSHAFT POSITION SENS ID=14.2 OD=18.8	8-97369-404-0	01	1	0610-		●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0610-		●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0306-				●

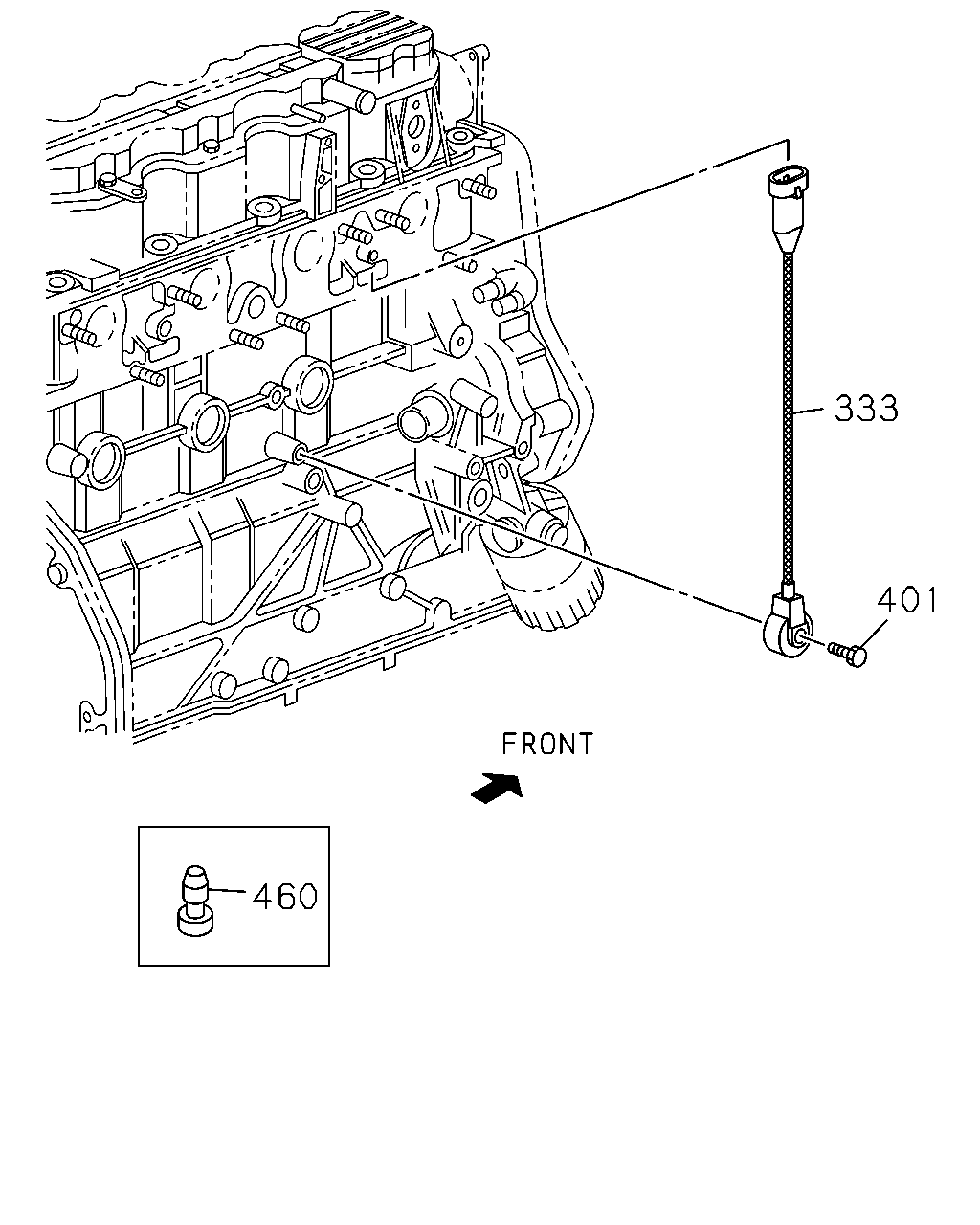

333 401 460

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	D
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-	●
333	03.682 SENSOR; KNOCK	8-10456-669-0	01	1	0306-		●
401	00.724 BOLT; SENSOR 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0610-	●
401	00.724 BOLT; SENSOR	8-92063-265-0	01	1	0306-		●
460	00.034 SEAL; CYL BLOCK	8-97163-071-0	01	1	0306-		●

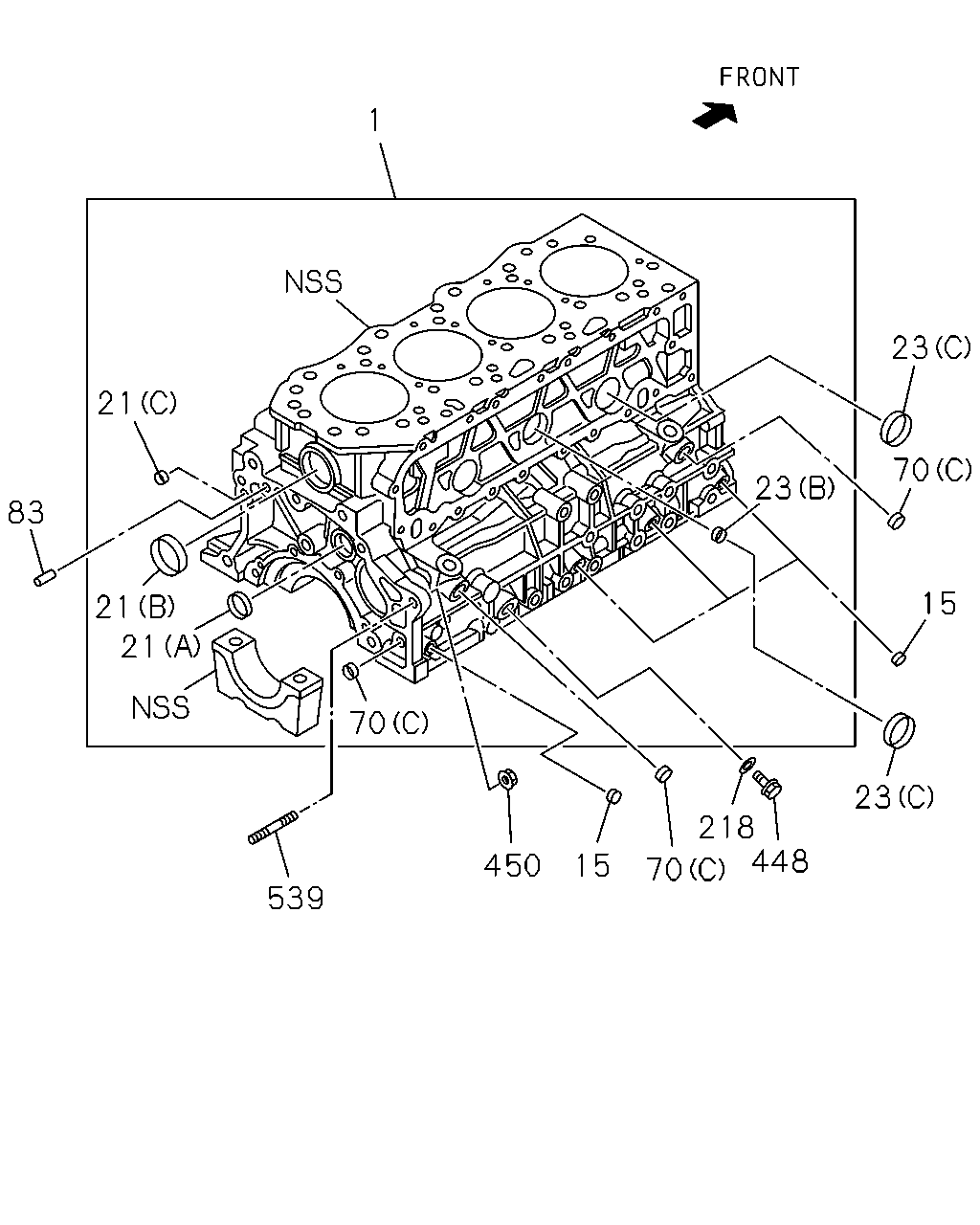

1 23 21 23 70 83 15 21 21 70 23 218 448 450 15 70 539

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.033 BLOCK ASM; CYL	8-97257-264-3	01	1	0306-0609	●
1	00.033 BLOCK ASM; CYL	8-98013-824-2	01	1	0610-1209		●
1	00.033 BLOCK ASM; CYL	8-98231-833-0	01	1	1210-1302		●
1	00.033 BLOCK ASM; CYL	8-98223-994-0	01	1	1303-		●
1	00.033 BLOCK ASM; CYL	8-97249-021-1	01	1	0306-0310			●
1	00.033 BLOCK ASM; CYL	8-97374-139-1	01	1	0311-			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0610-			●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0306-0609	●		●
15	01.531 PLUG; OIL GALLERY PT1/8	1-09605-050-0	04	1	0610-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-			●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-			●
21	00.034 CUP; SEALING,RR 00.253 (C) OD=12.3	5-09600-013-0	01	1	0610-		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0306-0609	●		●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0610-1405		●	●
21	00.034 CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	1406-		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0306-0609	●		●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0610-1405		●	●
21	00.034 CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	1406-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406			●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0610-			●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR 00.253 (B) OD=18	5-11219-008-0	02	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	0610-1405		●	●
23	00.034 CUP; SEALING,C/BL FRT & RR (A) OD=45	8-97036-550-1	03	1	1406-1406		●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0306-0609	●
23	00.034 CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	04	1	0610-		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	03	1	0306-0609	●		●
23	00.034 CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0610-		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0610-			●
70	00.034 CUP; SEALING,FRT & RR (B) OD=34	8-11056-093-0	07	1	0306-				●
70	00.034 CUP; SEALING,FRT & RR (B) OD=36	8-11070-803-0	07	1	0306-1009				●
70	00.034 CUP; SEALING,FRT & RR 00.253 (A) OD=16	5-11129-006-0	02	1	0306-0609	●		●
70	00.034 CUP; SEALING,FRT & RR 00.253 (C) OD=16	5-11129-006-0	06	1	0610-		●
83	00.685 PIN; FLYWHEEL HSG 08.939 OD=10 L=32	9-08161-032-0	01	1	0610-		●
218	01.531 GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●
239	02.100 NUT; STUD,C/BL 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●
448	00.034 PLUG; C/BL	8-97379-656-1	01	1	0610-		●
450	01.535 NUT; REAMER BOLT 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-1007		●
539	01.428 STUD; REAMER 00.862 M10X40 L=75.5	8-97371-842-1	01	1	0610-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
