9-01 — TOOLS (#77467) — 129 parça

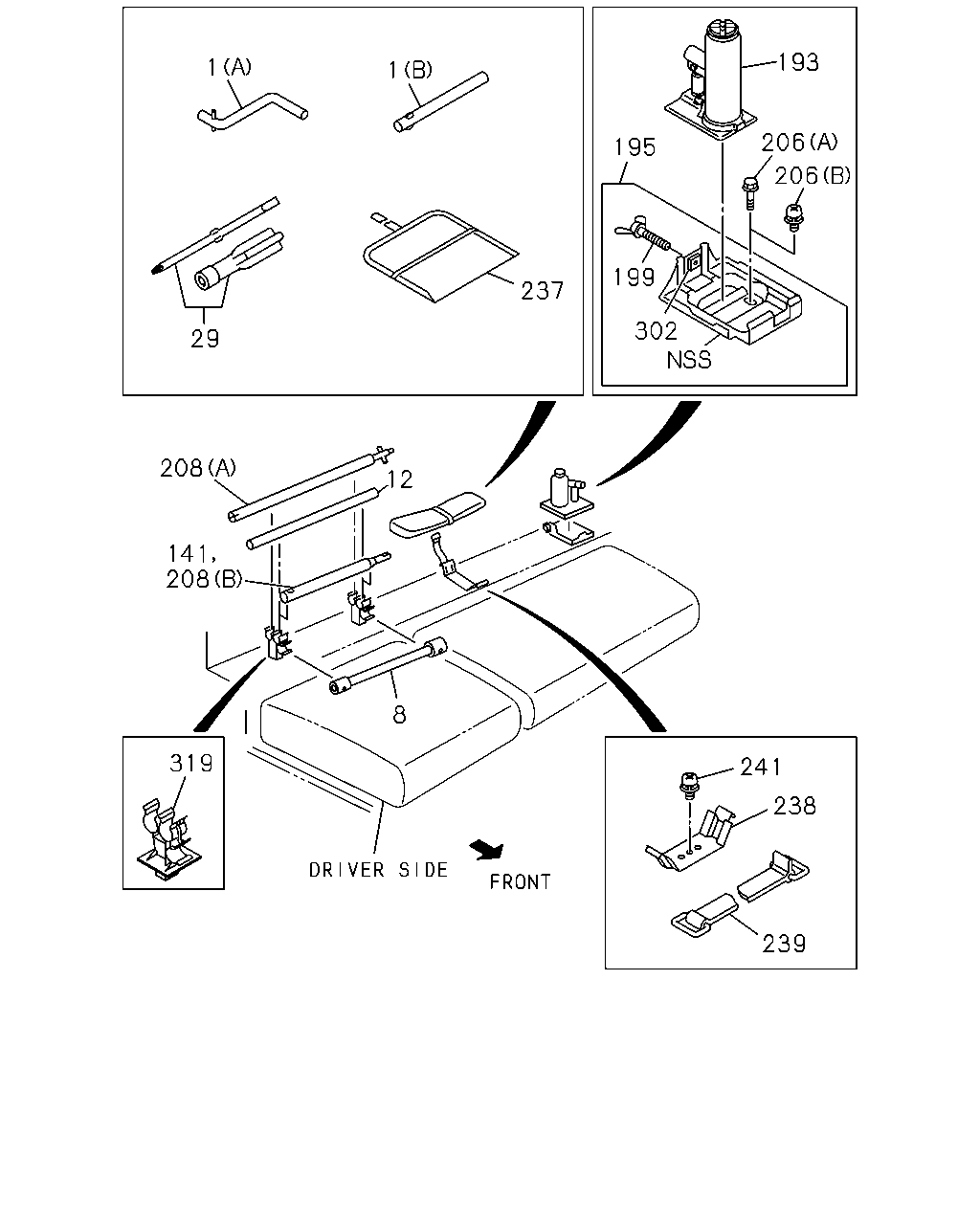

çizim 14470
1 1 29 237 195 193 206 206 199 302 241 238 239 8 319 208 208 141 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) (A) 		8-97218-985-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1009-1011 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) (A) 		8-97218-985-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1012-1101 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) (A) 		8-97218-985-0 01 1 1102- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1102- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97218-985-0 01 1 1102- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1102- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1102- ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 1009-1011 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 1009-1011 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1101 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280 		1-85515-007-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 1012-1101 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) 08.821 (B) L=280 		1-85515-007-0 01 1 1102-1108 ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 1102-1108 ●
1 07.629 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109- ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) B=41X19 L=330 		8-94386-490-1 01 1 1009-1601 ● ● ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) B=41X19 L=330 		8-98316-702-0 01 1 1602- ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) B=41X21 L=440 		1-85113-015-1 01 1 1009-1308 ● ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) B=41X21 L=440 		1-85113-015-1 01 1 1309-1504 ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1309-1504 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) B=41X21 L=440 		1-85113-015-1 01 1 1505-1601 ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 1505-1601 ● ● ●
8 08.821 WRENCH; WHEEL
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) B=41X21 L=445 		8-98316-703-0 01 1 1602- ●
8 08.821 WRENCH; WHEEL
B=41X21 L=445 		8-98316-703-0 01 1 1602- ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1011 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1011 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1011 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1009-1011 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1101 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1101 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1101 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1101 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1012-1101 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1102-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1102-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480 		1-85116-011-0 01 1 1102-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) 08.820 OD=25 L=480 		1-85116-011-0 01 1 1102-1407 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1102-1407 ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4400MM(44W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1009- ● ● ● ● ● ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		1-85515-005-1 01 1 1009-1108 ●
141 08.821 HANDLE; WRENCH
08.820 L=580 		8-98181-249-0 01 1 1109- ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 1009- ● ● ● ●
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 1009- ● ●
195 08.820 BRACKET; JACK 8-98034-917-0 01 1 1009- ● ● ●
195 08.820 BRACKET; JACK 8-94273-769-5 01 1 1009- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1009- ● ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 1009- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
06.216 (A) BOLT M8X25 FLANGE 		0-28650-825-0 01 1 1009- ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 (B) M6X16 		0-38050-616-0 01 1 1009- ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-97217-800-0 01 1 1009-1011 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-97217-800-0 01 1 1009-1011 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 1009-1011 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1009-1011 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-97217-800-0 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1012-1101 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-97217-800-0 01 1 1102-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 1102-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-97217-800-0 01 1 1102-1108 ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-97217-800-0 01 1 1102-1108 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1102-1108 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1109- ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 1009-1011 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1009-1011 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1009-1011 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 1012-1101 ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> EXC. SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		1-85515-005-1 01 1 1012-1101 ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 1102-1108 ● ● ●
208 08.820 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109- ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1009- ● ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1009- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1009- ● ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 1009- ● ● ●
302 08.820 NUT; JACK BRKT 8-98021-556-0 01 1 1009- ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 1009- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 1009- ● ● ● ● ● ●

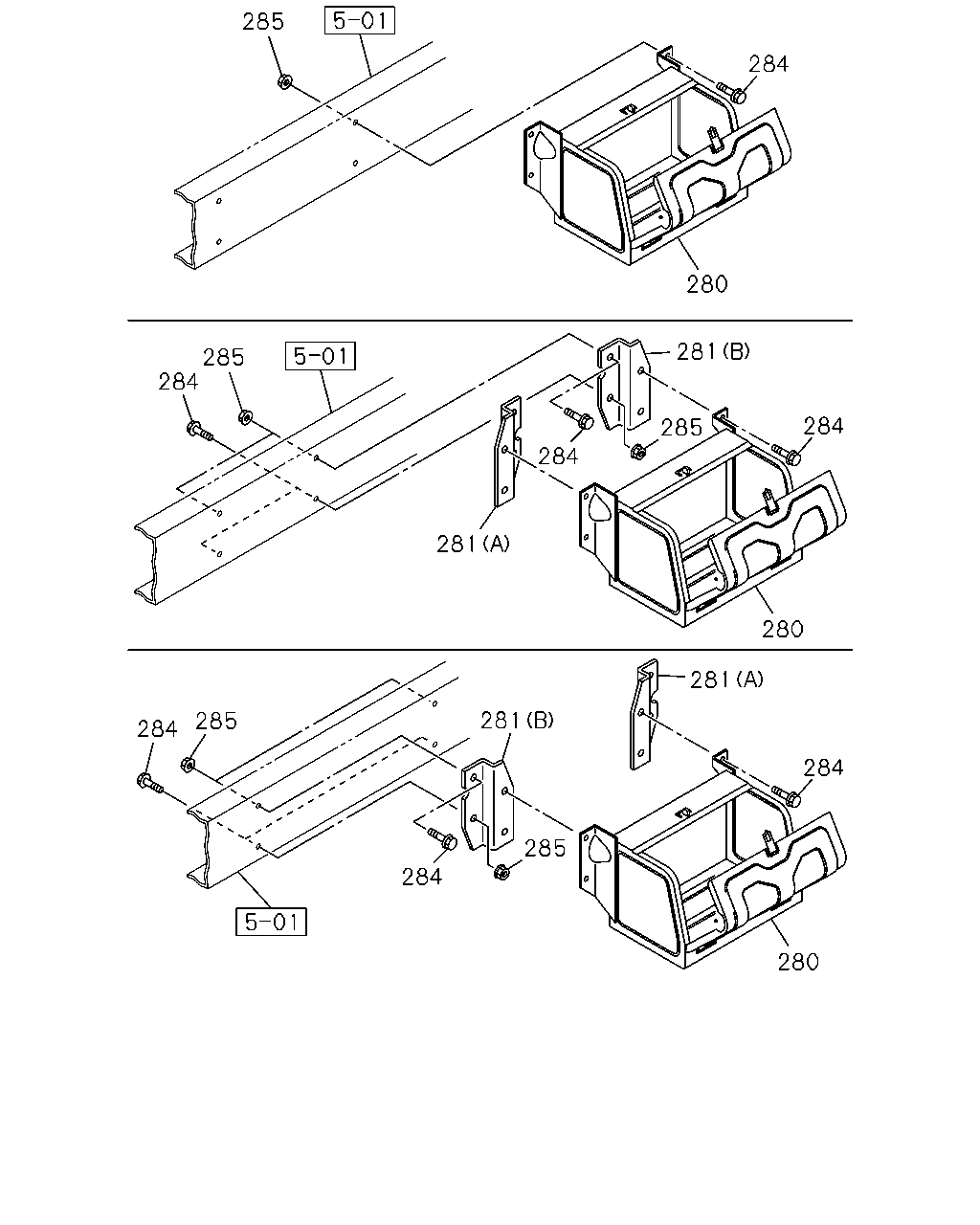

çizim 187306
285 284 280 281 284 285 284 281 285 284 280 281 284 281 284 285 280 285 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1009- ● ● ● ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1009-1011 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1009-1011 ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1012- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 1012- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1012- ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1009-1011 ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1009-1011 ● ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1012- ●
281 08.821 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98130-709-0 01 1 1012- ●
281 08.821 BRACKET; TOOL BOX
TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1012- ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1009-1011 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1009-1011 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1009-1011 ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
284 08.821 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE 		0-28651-030-0 04 1 1012- ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-1011 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-1011 ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-1011 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1009-1011 ● ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ●
285 08.821 NUT; TOOL BOX
WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE 		0-91180-110-0 04 1 1012- ● ●
çizim 187311
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009- ● ● ●
450 16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1009- ● ● ●
450 16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
