◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#77462) — 11 parça

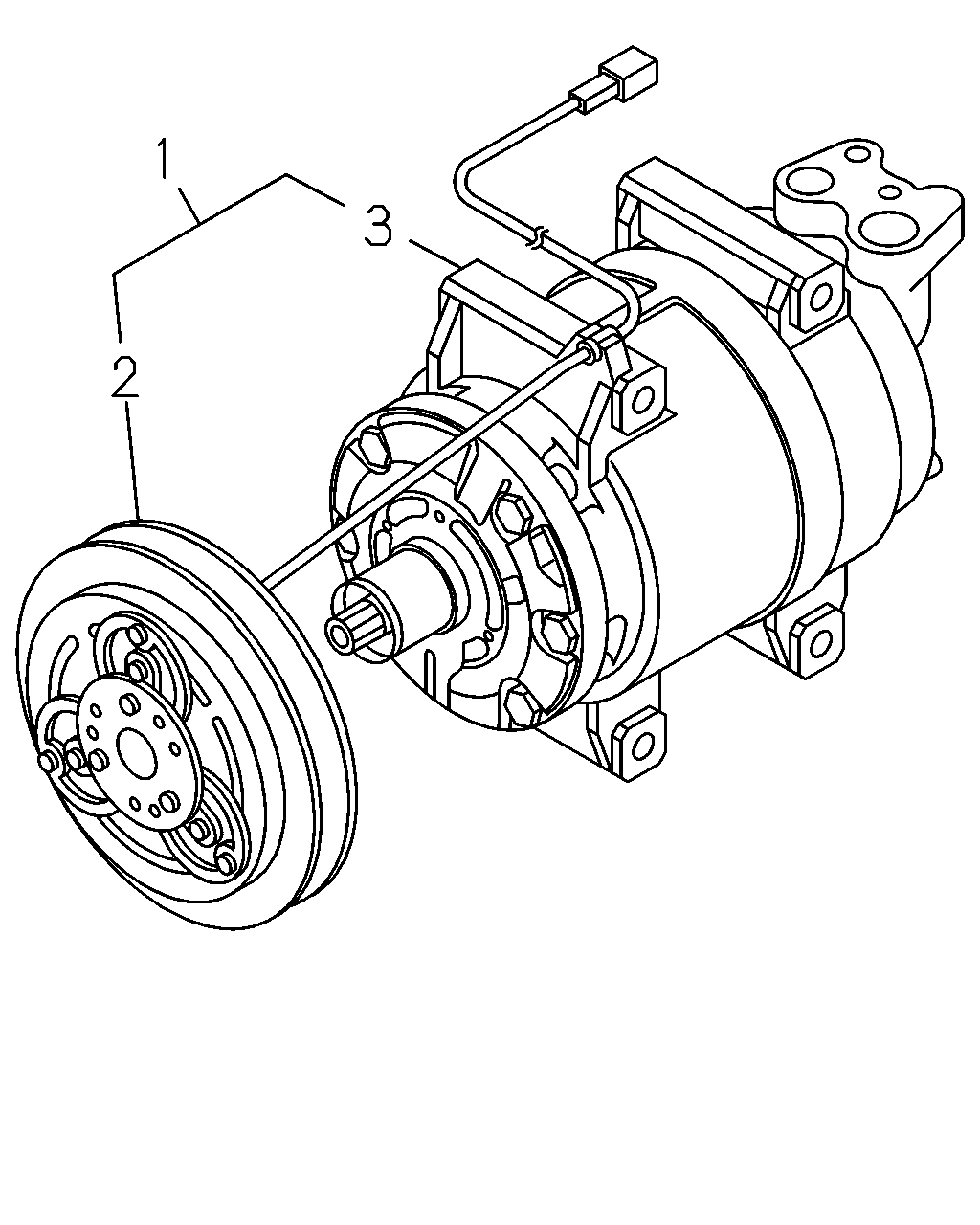

çizim 141406
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98000-988-2 01 1 1009-1011 ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98000-988-2 01 1 1012-1211 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98214-324-0 01 1 1212-1410 ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98286-199-0 01 1 1411- ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98037-146-2 01 1 1009-1211 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98214-321-0 01 1 1212-1410 ● ● ● ●
1 09.170 COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) VALEO 		8-98286-197-0 01 1 1411- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98208-773-1 01 1 1009- ● ● ● ●
2 09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98208-772-0 01 1 1009-1011 ● ●
2 09.188 CLUTCH; MAGNET,A/C
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98208-772-1 01 1 1012- ● ● ●
3 09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 		8-98042-531-1 01 1 1009- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
