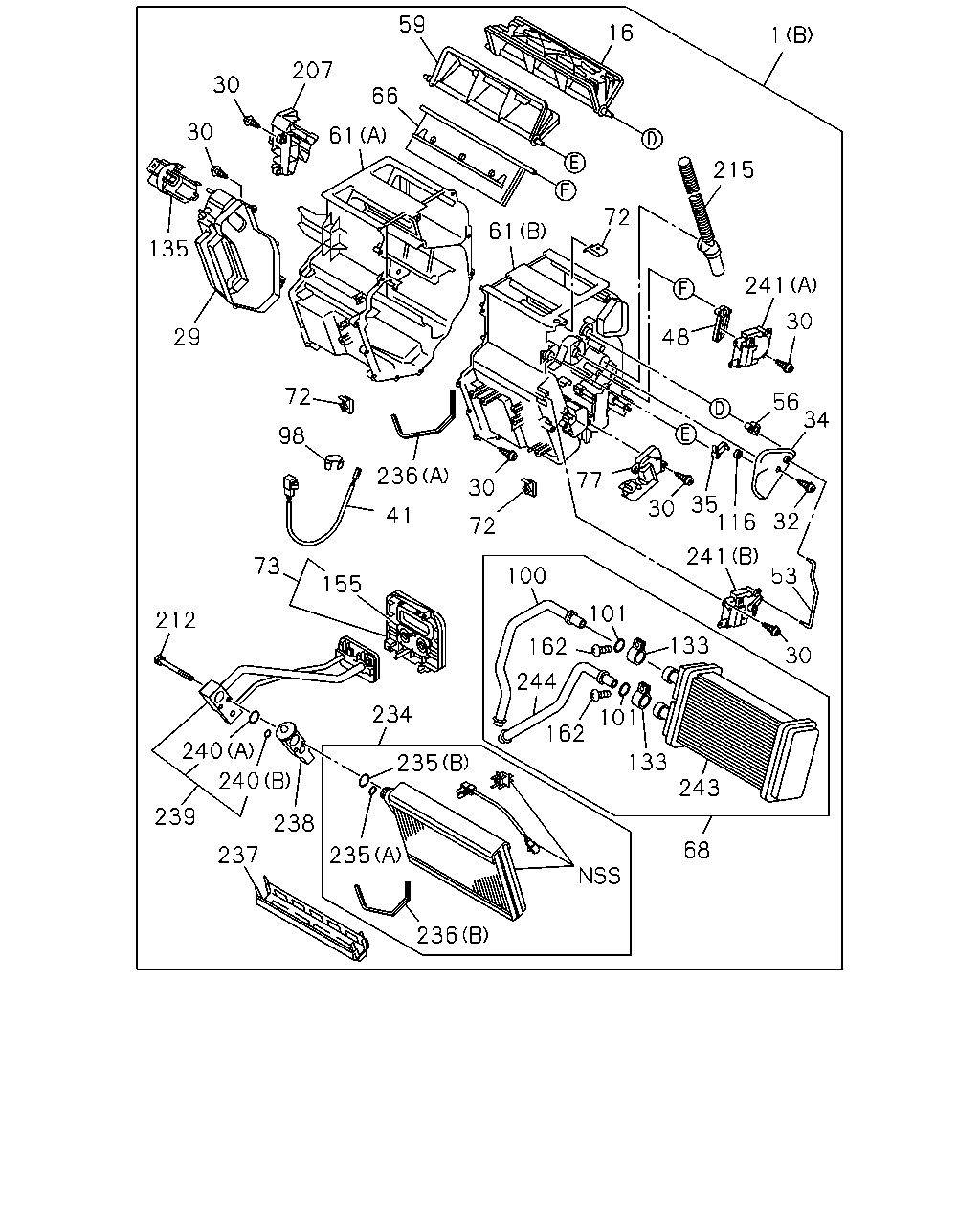

8-60 — HEATER UNIT; FRONT (#77460) — 97 parça

207 59 66 16 1 30 30 135 29 72 98 73 212 240 240 239 237 238 235 236 68 133 243 162 244 235 101 162 100 41 155 72 236 30 77 30 35 116 241 133 101 30 53 48 241 56 32 30 61 72 61 215 34 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1009-	●	●	●	●	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1009-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1009-	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1009-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1009-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1009-	●	●	●	●	●	●
32	08.852 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1009-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1009-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	1009-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1009-	●	●	●	●	●	●
41	08.852 THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1009-	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1009-	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	1009-	●	●	●	●	●	●
53	08.866 ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1009-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1009-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1009-	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1009-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1009-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1009-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	1009-	●	●	●	●	●	●
77	08.857 COVER; HTR CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1009-	●	●	●	●	●	●
98	08.854 CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1009-	●	●	●	●	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1009-	●	●	●	●	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1009-	●	●	●	●	●	●
116	08.854 BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1009-	●	●	●	●	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1009-	●	●	●	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1009-	●	●	●	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1009-	●	●	●	●	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1009-	●	●	●	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1009-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1009-	●	●	●	●	●	●
215	08.854 DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1009-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1009-	●	●	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1009-	●	●	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1009-	●	●	●	●	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1009-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1009-	●	●	●	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1009-	●	●	●	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1009-	●	●	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1009-	●	●	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1009-	●	●	●	●	●	●
241	08.855 MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1009-	●	●	●	●	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	1009-	●	●	●	●	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1009-	●	●	●	●	●	●

59 16 207 30 30 135 29 72 73 155 212 240 240 239 238 237 235 236 68 235 234 244 162 133 243 162 100 72 30 236 77 93 101 101 30 133 48 52 2 219 30 35 66 61 61 72 67 67 45 44 2 56 34 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1009-	●	●	●	●	●	●
1	08.845 HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98021-973-4	01	1	1009-	●	●	●	●	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1009-	●	●	●	●	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1009-	●	●	●	●	●	●
29	08.857 COVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1009-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1009-	●	●	●	●	●	●
30	08.845 SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) 08.852 M4X16 TAPPING	8-97957-708-0	31	1	1009-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1009-	●	●	●	●	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-467-0	01	1	1009-	●	●	●	●	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1009-	●	●	●	●	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1009-	●	●	●	●	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1009-	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1009-	●	●	●	●	●	●
48	09.786 LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-468-0	01	1	1009-	●	●	●	●	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1009-	●	●	●	●	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1009-	●	●	●	●	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1009-	●	●	●	●	●	●
61	08.854 CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-465-0	01	1	1009-	●	●	●	●	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1009-	●	●	●	●	●	●
67	08.854 CLIP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1009-	●	●	●	●	●	●
68	08.854 CORE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1009-	●	●	●	●	●	●
72	08.845 NUT; CASE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1009-	●	●	●	●	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-118-0	01	1	1009-	●	●	●	●	●	●
77	08.857 COVER; HTR CASE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1009-	●	●	●	●	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1009-	●	●	●	●	●	●
100	08.854 PIPE; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1009-	●	●	●	●	●	●
101	08.845 GASKET; CORE,HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1009-	●	●	●	●	●	●
133	08.845 CLIP; PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1009-	●	●	●	●	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1009-	●	●	●	●	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1009-	●	●	●	●	●	●
162	08.845 SCREW; CLIP FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1009-	●	●	●	●	●	●
207	08.845 CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1009-	●	●	●	●	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1009-	●	●	●	●	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1009-	●	●	●	●	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1009-	●	●	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1009-	●	●	●	●	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1009-	●	●	●	●	●	●
236	08.855 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1009-	●	●	●	●	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1009-	●	●	●	●	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1009-	●	●	●	●	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1009-	●	●	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1009-	●	●	●	●	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
243	08.854 CORE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.656	8-98048-508-0	01	1	1009-	●	●	●	●	●	●
244	08.854 PIPE; INLET AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1009-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
