Sayfa 8-52 - Isuzu EPC

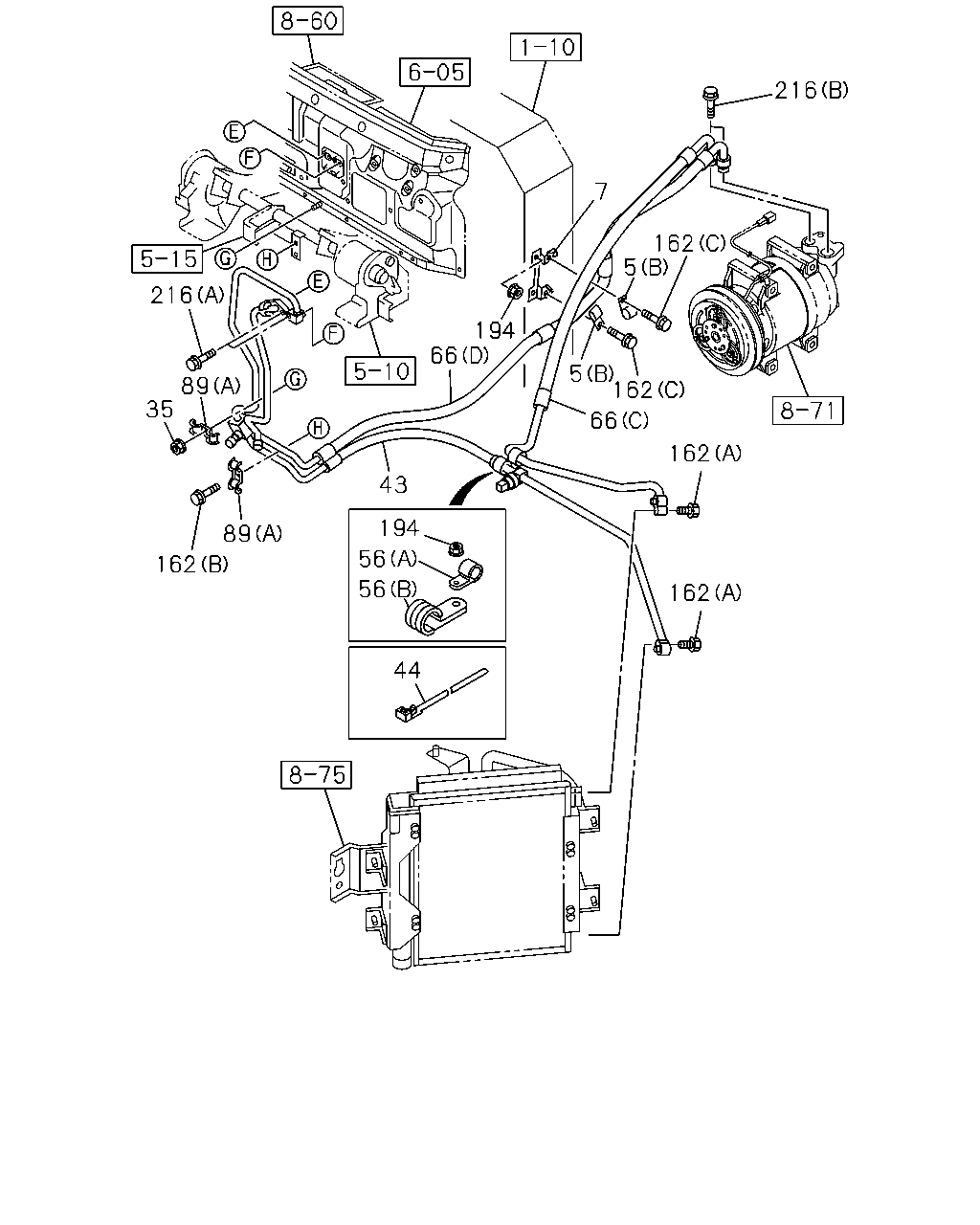

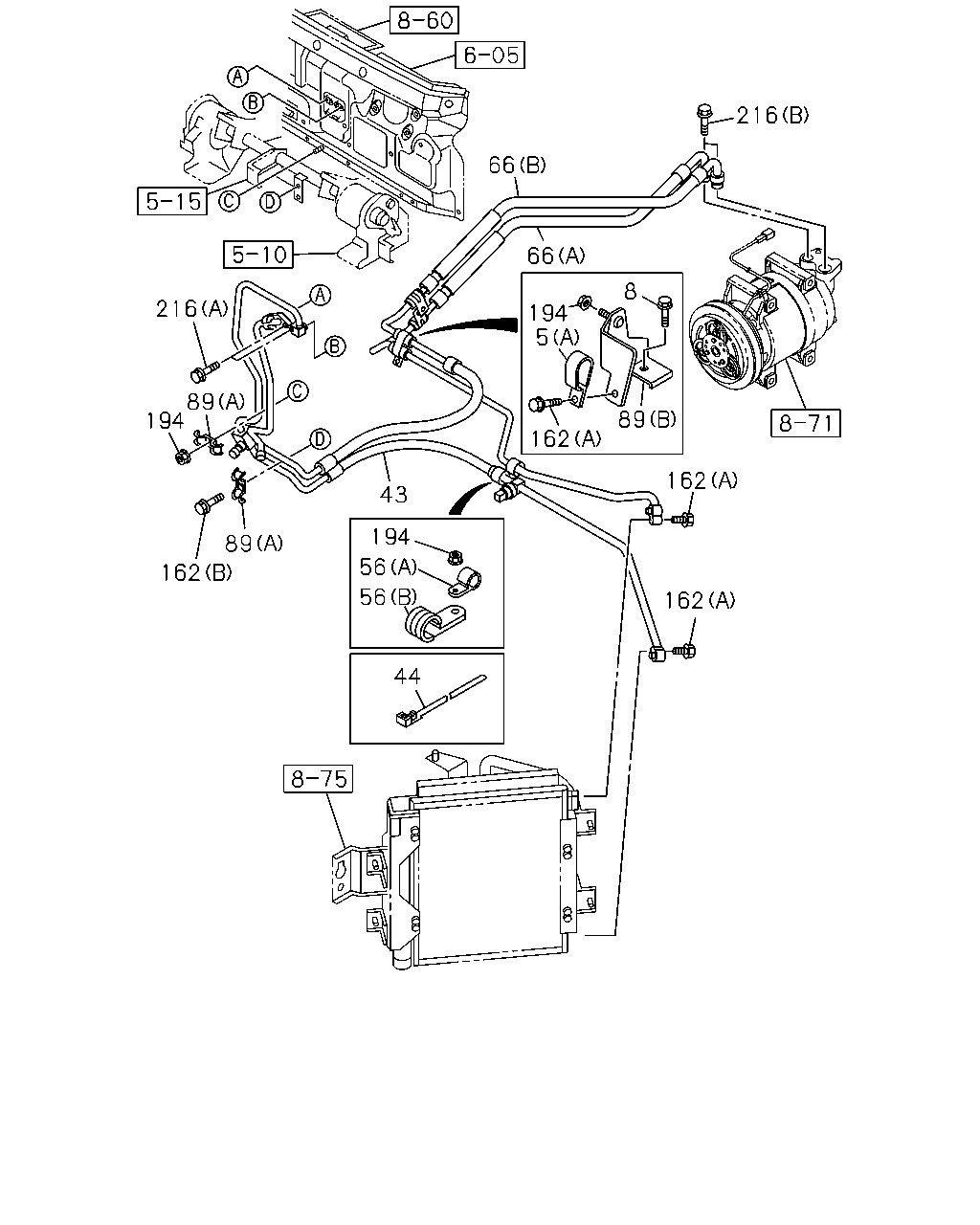

8-52 — PIPING; AIR CONDITIONING (#77459) — 109 parça

148 50 147 202 50 67 67 43 66 66 148 147 67 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-97386-813-4	01	1	1009-1009	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-98179-006-0	01	1	1010-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) ID=7.5	1-83539-316-0	02	1	1009-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1009-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98088-595-0	01	1	1009-1009	●			●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1010-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98098-288-0	01	1	1009-1009		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE	8-98098-289-0	01	1	1009-		●	●		●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	02	1	1009-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) ID=17.6	8-98036-895-0	01	1	1009-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97095-911-0	01	1	1009-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	1-83539-331-0	01	1	1009-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98031-629-0	01	1	1009-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-97095-909-0	01	1	1009-	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	1-83564-392-1	01	1	1009-	●	●	●	●	●	●

216 194 89 35 162 66 5 7 216 162 5 162 66 162 43 194 56 56 89 44 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) ID=16 L=32	0-95235-562-0	02	1	1009-1011	●			●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) ID=16 L=32	0-95235-562-0	02	1	1012-	●	●		●
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98052-857-0	01	1	1009-		●	●		●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98049-348-0	01	1	1009-1011	●			●
7	09.242 BRACKET; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98049-348-0	01	1	1012-	●	●		●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-1011	●			●
35	09.242 NUT; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-97386-813-4	01	1	1009-1009	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-98179-006-0	01	1	1010-	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=250	5-09707-030-1	01	1	1009-		●	●		●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 L=140	5-09707-031-1	01	1	1009-1011	●			●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 L=140	5-09707-031-1	01	1	1012-	●	●		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=170.3	1-09987-182-0	01	1	1009-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 L=350	8-94152-256-1	01	1	1009-		●	●		●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-641-0	01	1	1009-	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1009-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1009-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98088-595-0	01	1	1009-1009	●			●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1010-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98098-288-0	01	1	1009-1009		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE	8-98098-289-0	01	1	1009-		●	●		●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98029-613-0	02	1	1009-1009	●	●	●	●	●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98151-264-0	02	1	1010-	●	●	●	●	●	●
89	09.242 BRACKET; A/C PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98002-365-2	01	1	1009-		●	●		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1009-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1009-1011	●			●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●		●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-		●	●		●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-1011	●			●
194	09.242 NUT; HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●		●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	03	1	1009-		●	●		●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1009-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●	●	●	●

66 216 216 66 89 194 162 89 43 194 56 56 44 162 162 162 5 194 89 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) ID=16 L=32	0-95235-562-0	02	1	1009-1011	●			●
5	09.242 CLIP; FLEX HOSE,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) ID=16 L=32	0-95235-562-0	02	1	1012-	●	●		●
5	09.242 CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98052-857-0	01	1	1009-		●	●		●	●
8	09.242 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1009-		●	●		●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-97386-813-4	01	1	1009-1009	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-98179-006-0	01	1	1010-	●	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=250	5-09707-030-1	01	1	1009-		●	●		●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 L=140	5-09707-031-1	01	1	1009-1011	●			●
44	09.242 CLIP; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 L=140	5-09707-031-1	01	1	1012-	●	●		●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 02.559 L=170.3	1-09987-182-0	01	1	1009-		●	●		●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 08.852 L=350	8-94152-256-1	01	1	1009-		●	●		●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-641-0	01	1	1009-	●	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 04.930 (A) ID=13 L=20	0-95235-232-0	01	1	1009-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1009-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98088-595-0	01	1	1009-1009	●			●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1010-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98098-288-0	01	1	1009-1009		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE	8-98098-289-0	01	1	1009-		●	●		●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98029-613-0	02	1	1009-1009	●	●	●	●	●	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-98151-264-0	02	1	1010-	●	●	●	●	●	●
89	09.242 BRACKET; A/C PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98002-365-2	01	1	1009-		●	●		●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1009-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1009-1011	●			●
162	09.173 BOLT; FLEX HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.162 (C) M6X12 FLANGE	0-28050-612-0	02	1	1012-	●	●		●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-		●	●		●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1009-1011	●			●
194	09.242 NUT; HOSE 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●		●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.062 M6 FLANGE	0-91180-106-0	03	1	1009-		●	●		●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 03.680 (A) M6X30 FLANGE	0-28650-630-0	02	1	1009-	●	●	●	●	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●	●	●	●	●	●

148 147 43 66 66 50 202 67 67 67 148 147 67 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-97386-813-4	01	1	1009-1009	●	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) HIGH PRESSURE	8-98179-006-0	01	1	1010-	●	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) ID=7.5	1-83539-316-0	02	1	1009-	●	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1009-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) HIGH PRESSURE	8-97386-811-3	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98088-595-0	01	1	1009-1009	●			●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1010-1011	●			●
66	09.225 HOSE; FLEX,A/C 4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (D) LOW PRESSURE	8-98159-634-1	01	1	1012-	●	●		●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98098-288-0	01	1	1009-1009		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) LOW PRESSURE	8-98159-629-1	01	1	1010-		●	●		●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) HIGH PRESSURE	8-98098-289-0	01	1	1009-		●	●		●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	02	1	1009-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-	●	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (C) ID=17.6	8-98036-895-0	01	1	1009-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) CAP MARK H	8-97095-911-0	01	1	1009-	●	●	●	●	●	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) CAP MARK L	1-83539-331-0	01	1	1009-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98031-629-0	01	1	1009-	●	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A)	8-97095-909-0	01	1	1009-	●	●	●	●	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	1-83564-392-1	01	1	1009-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
