◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#77451) — 55 parça

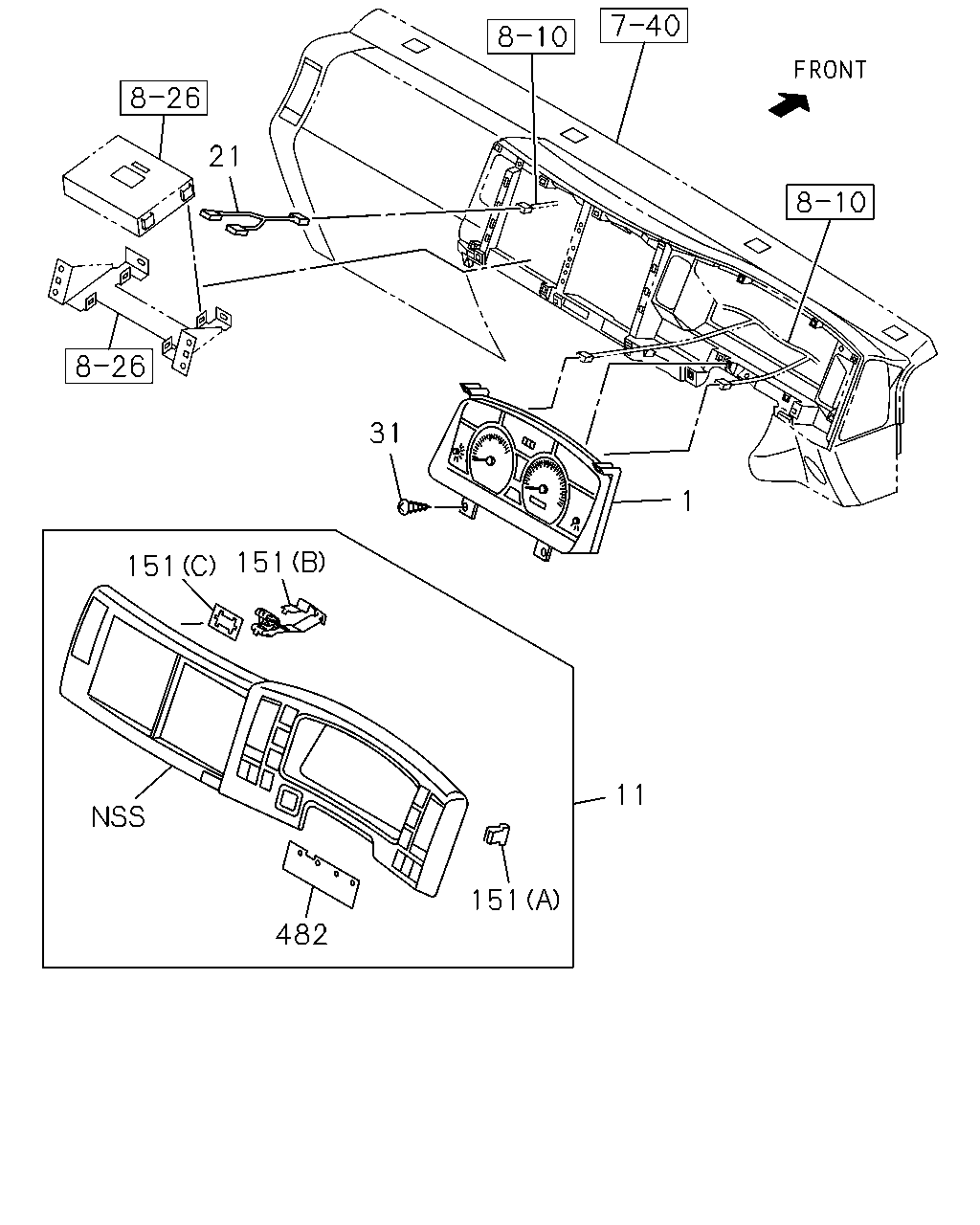

çizim 137709
21 31 1 11 151 151 482 151
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-328-0 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-327-0 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-329-0 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 1009-1504 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98021-249-4 01 1 1009-1504 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTR OL ELECTRIC(7GR) 		8-98021-249-4 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI INFORMATION DISPLAY<7NY> 		8-98096-899-3 01 1 1009-1504 ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98096-899-3 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98096-900-4 01 1 1009-1504 ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013(VZD),MULTI INFORMATION DISPLAY<7NY> 		8-98096-900-4 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98032-065-4 01 1 1009-1504 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98032-065-4 01 1 1505- ● ● ● ●
11 09.743 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1009- ● ● ● ● ● ●
21 09.743 HARNESS; TACHOGRAPH
CAN INTERFACE FMS STD(8PG) 		8-98204-881-1 01 1 1112- ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1101 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1009- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1009- ● ● ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1009- ● ● ● ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-842-0 01 1 1009- ● ● ● ● ● ●
çizim 187296
110 1 2 81 480 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-328-0 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-327-0 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
VIN MODEL YEAR 2013(VZD) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-329-0 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 1009-1504 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98021-249-4 01 1 1009-1504 ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTR OL ELECTRIC(7GR) 		8-98021-249-4 01 1 1505- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI INFORMATION DISPLAY<7NY> 		8-98096-899-3 01 1 1009-1504 ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98096-899-3 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98096-900-4 01 1 1009-1504 ● ● ●
1 09.735 METER COMPL; CLUSTER
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013(VZD),MULTI INFORMATION DISPLAY<7NY> 		8-98096-900-4 01 1 1505- ● ● ●
1 09.735 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98032-065-4 01 1 1009-1504 ● ● ● ●
1 09.735 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98032-065-4 01 1 1505- ● ● ● ●
2 09.735 PANEL; CLUSTER
VIN MODEL YEAR 2013(VZD) 		8-98054-638-0 01 1 1505- ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1009-1504 ● ● ● ● ● ●
2 09.735 PANEL; CLUSTER
EXC. VIN MODEL YEAR 2013(VZD) 		8-98054-432-0 01 1 1505- ● ● ● ● ● ●
81 09.735 METER SUB ASM
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98231-342-0 01 1 1505- ● ● ● ● ● ●
81 09.735 METER SUB ASM
VIN MODEL YEAR 2013(VZD) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-341-0 01 1 1505- ● ● ● ● ● ●
81 09.735 METER SUB ASM
VIN MODEL YEAR 2013(VZD) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98231-343-0 01 1 1505- ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98073-680-0 01 1 1009-1504 ● ● ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98073-680-0 01 1 1505- ● ● ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI IN FORMATION DISPLAY<7NY> 		8-98073-677-0 01 1 1009-1504 ● ● ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CONTROL LEVER<RC4>,VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTR OL ELECTRIC(7GR) 		8-98073-677-0 01 1 1505- ● ● ● ● ● ●
81 09.735 METER SUB ASM
AUSTRALIA EQUIPMENT(B13) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI INFORMATION DISPLAY<7NY> 		8-98096-964-0 01 1 1009-1504 ● ● ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR),MULTI I NFORMATION DISPLAY<7NY> 		8-98096-964-0 01 1 1505- ● ● ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98096-965-0 01 1 1009-1504 ● ● ●
81 09.735 METER SUB ASM
DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. VIN MODEL YEAR 2013(VZD),MULTI INFORMATION DISPLAY<7NY> 		8-98096-965-0 01 1 1505- ● ● ●
81 09.735 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98073-684-0 01 1 1009-1504 ● ● ● ●
81 09.735 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. VIN MODEL YEAR 2013(VZD),POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98073-684-0 01 1 1505- ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 1009- ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 1009- ● ● ● ●
480 09.748 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1009- ● ● ● ●
480 09.748 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 1009- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
