Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#77450) — 594 parça

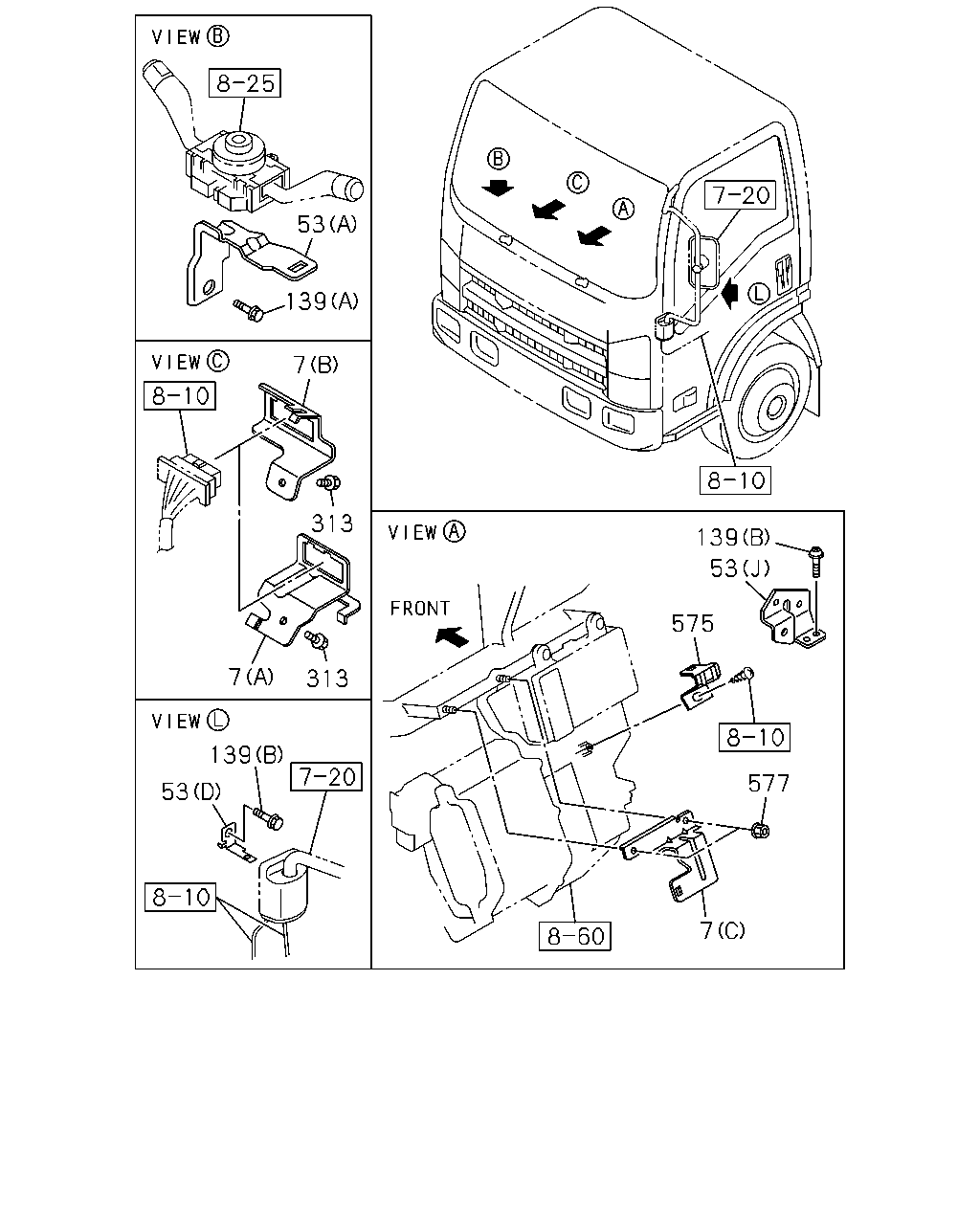

53 139 7 313 313 7 139 53 139 53 575 577 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98114-514-0	01	1	1009-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98043-070-1	01	1	1009-	●	●	●	●	●	●
7	02.559 BRACKET; CONNECTOR (C)	8-98029-762-4	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F)	8-98052-804-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E)	8-98055-636-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1012-			●		●	●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●	●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1009-	●	●	●	●	●	●
575	02.559 BRACKET; FUSE BOX	8-98042-656-2	01	1	1009-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-1204	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●	●	●	●	●

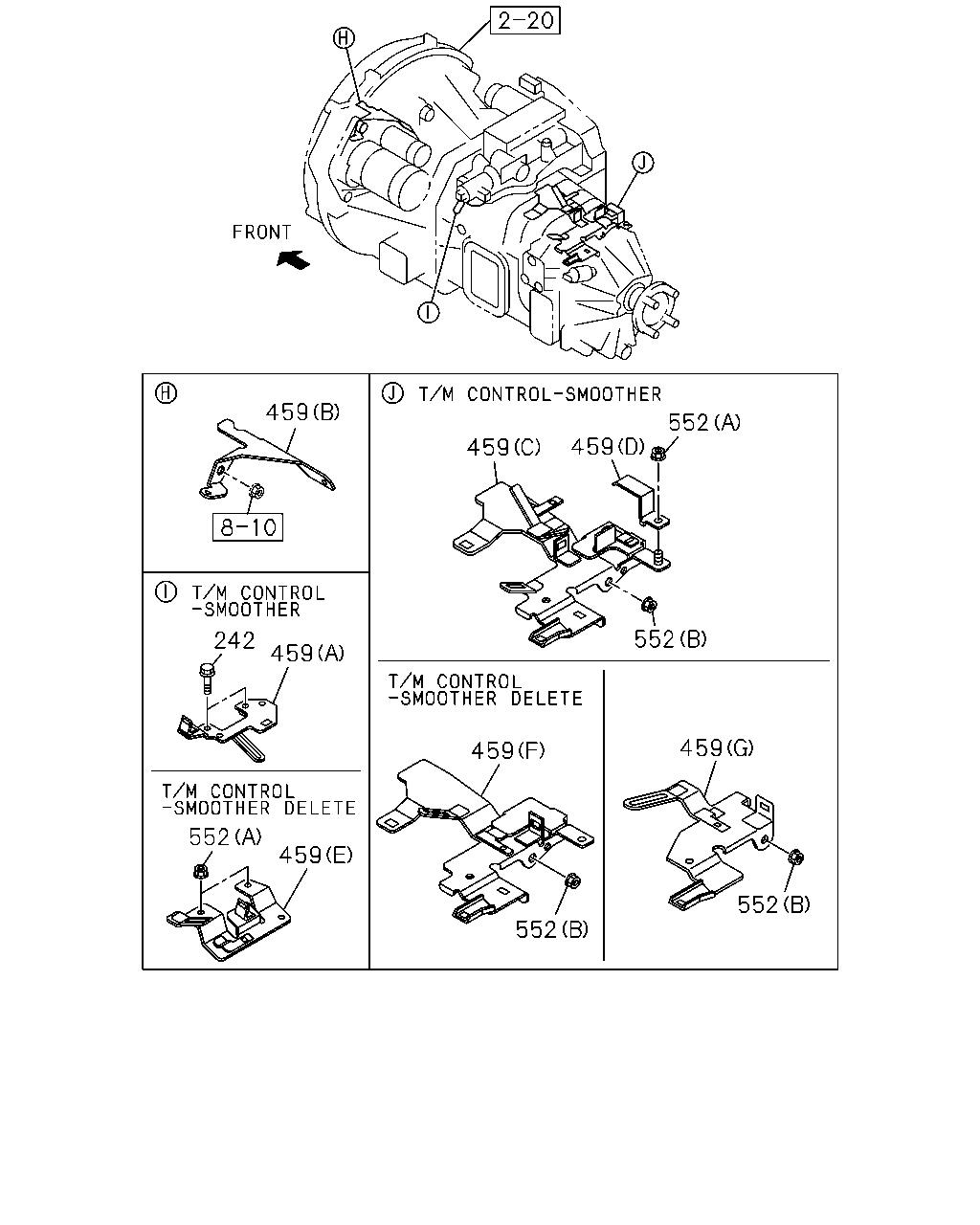

459 242 459 552 459 459 552 459 552 552 459 552 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	1009-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98030-988-2	01	1	1009-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98030-991-2	01	1	1009-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1009-1011	●			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98044-758-2	01	1	1012-	●			●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98044-758-2	01	1	1012-		●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-98020-227-3	01	1	1009-	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (F)	8-98030-990-2	01	1	1009-1109	●	●	●	●	●	●
459	02.483 BRACKET; SUPPORT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G)	8-98196-974-0	01	1	1110-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-1011	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●

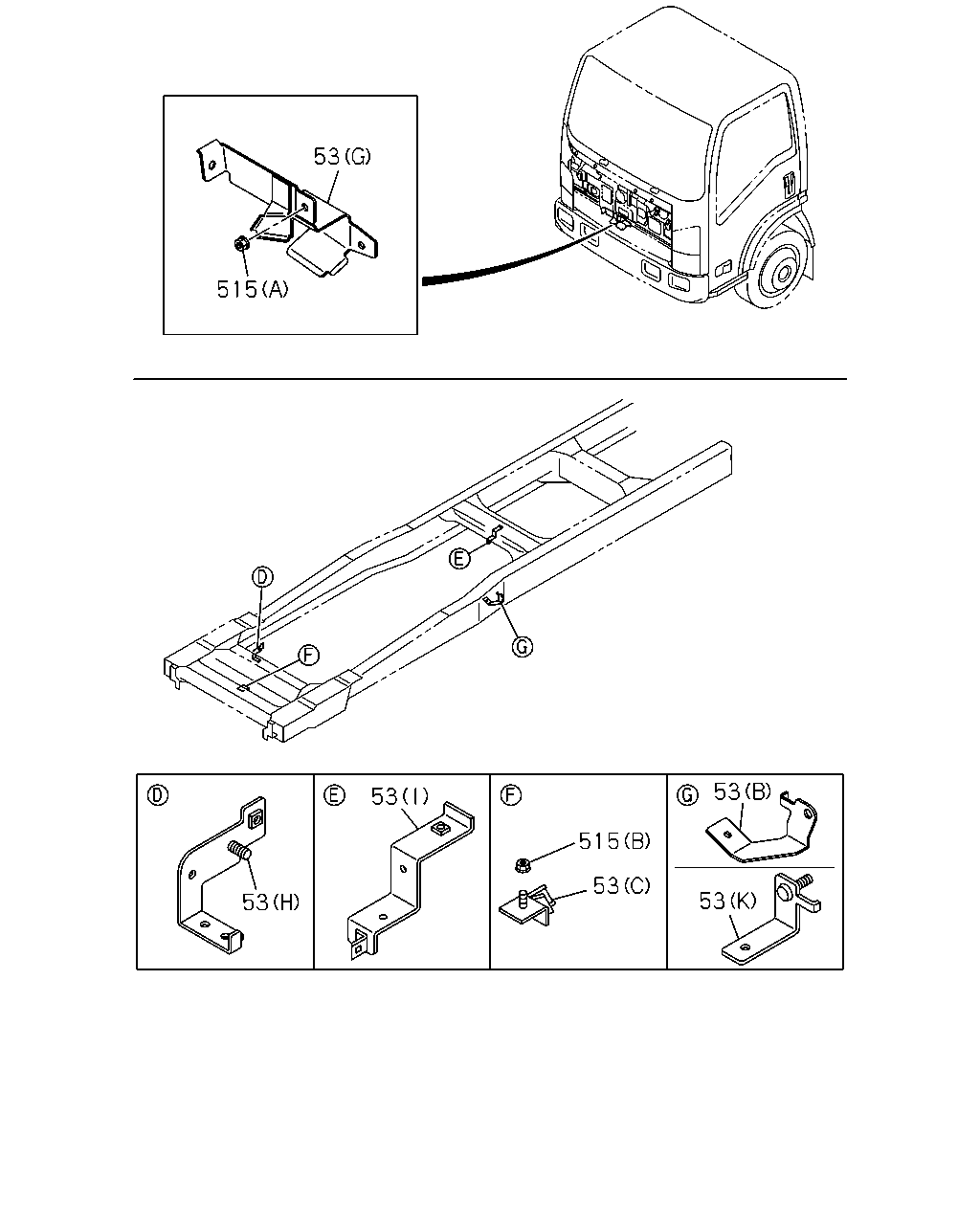

53 515 53 53 515 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F)	8-98052-804-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E)	8-98055-636-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1012-			●		●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011					●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-					●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1009-	●	●	●	●	●	●

313 481 38 139 516 150 139 480 480 304 242 529 377 377 386 386 139 24 515 552 219 294 515 524 552 24 515 577

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-1409	●	●	●	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●	●	●	●
24	02.559 NUT; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-		●	●		●	●
38	02.559 BOLT; CLIP,HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-1009	●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1010-1011	●			●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1010-1011		●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-1504	●	●		●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-1504	●	●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-1505	●	●		●
38	02.559 BOLT; CLIP,HARNESS M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1505-1505	●	●			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●		●
38	02.559 BOLT; CLIP,HARNESS M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1506-	●	●			●
139	02.559 BOLT; BRKT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1009-	●	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1009-	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1009-1101	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●	●	●
139	02.559 BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●	●	●
150	02.343 BOLT; CLIP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) M8X12 FLANGE	0-28050-812-0	01	1	1009-		●	●		●	●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-1011		●	●		●	●
219	02.559 NUT FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1402		●
219	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1402			●		●	●
242	02.483 BOLT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 M8X35 FLANGE	0-28650-835-0	02	1	1009-	●	●	●	●	●	●
294	02.559 NUT 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-	●	●	●	●	●	●
304	02.483 BOLT; ENG HARNESS CLIP GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	1009-		●	●		●	●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1009-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1009-	●	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1009-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1009-	●	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1009-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1009-	●	●	●	●	●	●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1011		●	●		●	●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-			●		●	●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1009-1011	●			●
481	13.090 BOLT; CABLE HARNESS 04.665 M8X10 W/LK WASHER	8-98029-928-0	02	1	1012-	●	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1009-1011					●	●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●	●	●	●	●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-		●
515	02.559 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-					●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1009-	●	●	●	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1009-	●	●	●	●	●	●
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1009-1011	●			●
516	02.559 BOLT; HARNESS 4JJ1-TCS ENG(LFB) 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●		●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1009-1011	●			●
524	02.559 NUT; HARNESS 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●	●	●	●	●	●
529	02.559 BOLT; RELAY BOX 08.155 M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1009-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1009-1011	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-	●			●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-		●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
552	02.483 NUT; BRKT,HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1009-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	04	1	1009-1204	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●	●	●	●	●
577	02.559 NUT; FUSE BOX 01.062 M6 FLANGE	0-91180-106-0	02	1	1205-	●	●	●	●	●	●

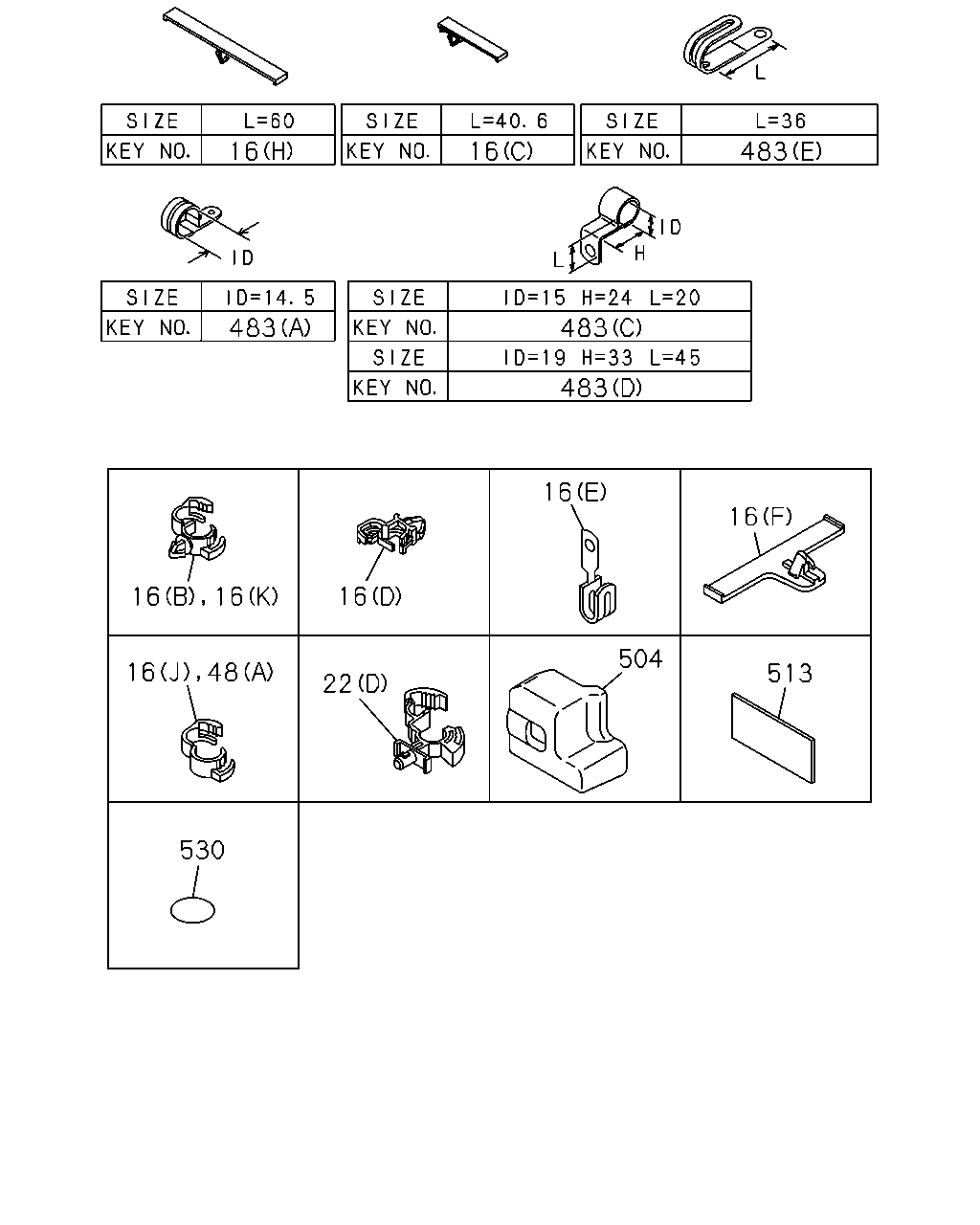

48 22 22 48 570 483 570 48 16 48 22 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-			●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1505-				●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1009-1504	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1012-1505	●			●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-1505		●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1009-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1009-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1009-				●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311					●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-					●
22	02.559 CLIP; ENG HARNESS 02.343 (H) L=119.5	1-09707-197-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5	1-09707-197-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.594 (I) L=100	5-09707-036-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (I) L=100	5-09707-036-1	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1009-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS (D) ID=14-20	8-97061-603-0	02	1	1506-1506		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1009-1011	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1101	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1012-1101	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1101		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1102-	●			●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1102-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1102-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-			●
48	02.559 CLIP; FRAME HARNESS EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-					●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-			●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1009-				●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.152 (E) L=36	8-94224-891-1	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12	8-97329-630-0	01	1	1009-		●	●		●	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1010-1211		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1212-1504		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1505-1507	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1510	●		●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1510		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1511-	●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) L=140	5-09707-031-1	02	1	1511-		●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1010-1211		●			●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1212-1504		●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1212-1504					●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1505-1507	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1505-1507					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1510	●		●	●	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1510		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-	●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-					●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1010-1011		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1504		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1505-1505	●	●			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1506-	●	●			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1010-1211					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1212-1507					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1508-1510				●	●	●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1511-				●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) L=140	5-09707-031-1	03	1	1511-					●

16 16 483 483 183 483 16 16 16 48 16 22 16 504 16 513 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
16	02.559 CLIP; HARNESS VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-			●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1505-				●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1009-1504	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1012-1505	●			●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-1505		●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1009-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1009-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1009-				●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311					●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-					●
22	02.559 CLIP; ENG HARNESS 02.343 (H) L=119.5	1-09707-197-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5	1-09707-197-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.594 (I) L=100	5-09707-036-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (I) L=100	5-09707-036-1	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1009-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS (D) ID=14-20	8-97061-603-0	02	1	1506-1506		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1009-1011	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1101	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1012-1101	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1101		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1102-	●			●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1102-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1102-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-			●
48	02.559 CLIP; FRAME HARNESS EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-					●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-			●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1009-				●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 06.602 (C) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 04.785 (A) ID=14.5 L=40	1-09701-014-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (D) ID=19 H=33 L=45	1-09701-045-0	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 01.152 (E) L=36	8-94224-891-1	01	1	1009-		●	●		●	●
483	02.559 CLIP; ENG HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) (B) ID=12	8-97329-630-0	01	1	1009-		●	●		●	●
504	02.559 PROTECTOR; HARNESS 4JJ1-TCS ENG(LFB)	8-98208-886-0	01	1	1201-	●	●		●
513	02.559 TAPE; SOFT,HARNESS 70X45	8-97304-372-0	01	1	1009-1309	●	●	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 130X80	8-97304-373-0	01	1	1009-	●	●	●	●	●	●
513	02.559 TAPE; SOFT,HARNESS MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 130X80	8-97304-373-0	01	1	1009-		●	●		●	●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1009-	●	●	●	●	●	●

14 22 48 22 22 22 102 570 617 22 488 16 22 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	02.559 CLIP; BAND,HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 09.242 L=150	8-97355-273-0	03	1	1009-		●	●		●	●
16	02.559 CLIP; HARNESS VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-	●	●
16	02.559 CLIP; HARNESS MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (K) ID=7-10	8-94472-578-0	01	1	1505-			●
16	02.559 CLIP; HARNESS O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1505-				●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS 4JJ1-TCS ENG(LFB) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●	●		●
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1009-1504	●	●	●	●	●	●
16	02.559 CLIP; HARNESS CORNERING LAMP<T87> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (C) L=40.6	8-97229-357-0	01	1	1505-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1009-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1009-1011	●			●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1012-1505	●			●
16	02.559 CLIP; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (J) ID=20	8-94241-972-0	01	1	1012-1505		●
16	02.559 CLIP; HARNESS (J) ID=20	8-94241-972-0	01	1	1506-	●	●	●	●	●	●
16	02.559 CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.483 (E)	8-97101-436-0	01	1	1009-		●	●		●	●
16	02.559 CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	1009-				●	●	●
16	02.559 CLIP; HARNESS (H) L=60	8-97063-335-0	02	1	1009-				●	●	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1009-1011		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311					●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-		●
22	02.559 CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-			●			●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) L=140	5-09707-031-1	01	1	1312-					●
22	02.559 CLIP; ENG HARNESS 02.343 (H) L=119.5	1-09707-197-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 02.343 (H) L=119.5	1-09707-197-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.594 (I) L=100	5-09707-036-1	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.594 (I) L=100	5-09707-036-1	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1009-1011	●			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●		●
22	02.559 CLIP; ENG HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1009-1011	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=170.3	1-09987-182-0	01	1	1012-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) L=250	5-09707-030-1	01	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 (C) L=350	8-94152-256-1	02	1	1009-		●	●		●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) ID=14-20	8-97061-603-0	02	1	1009-1505		●	●		●	●
22	02.559 CLIP; ENG HARNESS (D) ID=14-20	8-97061-603-0	02	1	1506-1506		●	●		●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1511-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (F) T=5.5	8-97371-951-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1009-1011	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1101	●	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1012-1101	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1101		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1102-	●			●	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) (A) ID=20	8-94241-972-0	01	1	1102-	●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1102-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (A) ID=20	8-94241-972-0	01	1	1102-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●			●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 9	8-97371-947-0	01	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	11	1	1012-1510				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-		●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1511-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1009-1011	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1009-1011				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) (A) ID=20	8-94241-972-0	02	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	02	1	1012-				●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1203					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-			●
48	02.559 CLIP; FRAME HARNESS EXC. DUMP CONTROL LEVER<RC4> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-					●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1204-						●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4400MM(44W) 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS MULTI INFORMATION DISPLAY<7NY> 03.483 (C) L=450	1-09707-142-1	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1009-1011		●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-		●
48	02.559 CLIP; FRAME HARNESS 03.430 (E) ID=10 & 16.5	8-94424-440-0	01	1	1012-			●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011		●	●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1009-1011					●	●
48	02.559 CLIP; FRAME HARNESS FRAME STRAIGHT TYPE<7KJ> (F) T=5.5	8-97371-951-0	02	1	1012-		●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-			●		●	●
48	02.559 CLIP; FRAME HARNESS (F) T=5.5	8-97371-951-0	02	1	1012-					●	●
48	02.559 CLIP; FRAME HARNESS 08.852 (G) L=350	8-94152-256-1	01	1	1009-				●
102	02.559 CLIP; BAND GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 L=140	5-09707-031-1	07	1	1009-1009		●	●		●	●
102	02.559 CLIP; BAND GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.162 L=140	5-09707-031-1	08	1	1010-		●	●		●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	1009-	●	●	●	●	●	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1010-1211		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1212-1504		●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1505-1507	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1510	●		●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1508-1510		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	02	1	1511-	●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) L=140	5-09707-031-1	02	1	1511-		●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) T=4.5 & 9	8-97371-947-0	01	1	1010-1211		●			●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1212-1504		●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1212-1504					●
570	02.559 CLIP; HARNESS,PTO WHEEL BASE 3300MM(33W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1505-1507	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1505-1507					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1510	●		●	●	●	●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1508-1510		●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-	●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-		●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) (C) T=4.5 & 9	8-97371-947-0	01	1	1511-					●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1010-1011		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1504		●			●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1505-1505	●	●			●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.671 (B) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1506-	●	●			●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	03	1	1010-1211					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1212-1507					●
570	02.559 CLIP; HARNESS,PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1508-1510				●	●	●
570	02.559 CLIP; HARNESS,PTO M/T MYY5T(RSM),M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 (A) L=140	5-09707-031-1	03	1	1511-				●
570	02.559 CLIP; HARNESS,PTO M/T MYY6S(RST),M/T MYY6E(Y5X) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. HYDRO BRAKE BOOSTER(7QQ) 03.162 (A) L=140	5-09707-031-1	03	1	1511-					●
617	02.559 STRAP; BAND TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1012-1106	●	●	●	●	●	●
617	02.559 STRAP; BAND M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 L=140	5-09707-031-1	01	1	1107-1108			●			●

53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
53	02.483 BRACKET; HARNESS O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (D)	8-98039-277-2	02	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS (K)	8-98083-225-1	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (J)	8-98084-590-0	01	1	1009-	●	●	●	●	●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (F)	8-98052-804-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 02.559 (E)	8-98055-636-0	01	1	1009-		●	●		●	●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (I)	8-98077-504-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (I)	8-98077-504-0	01	1	1012-			●		●	●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1009-1011		●	●		●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (B)	8-98130-669-1	01	1	1012-		●
53	02.483 BRACKET; HARNESS (B)	8-98130-669-1	01	1	1012-			●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
