6-80 — BACK PANEL (#7745) — 12 parça

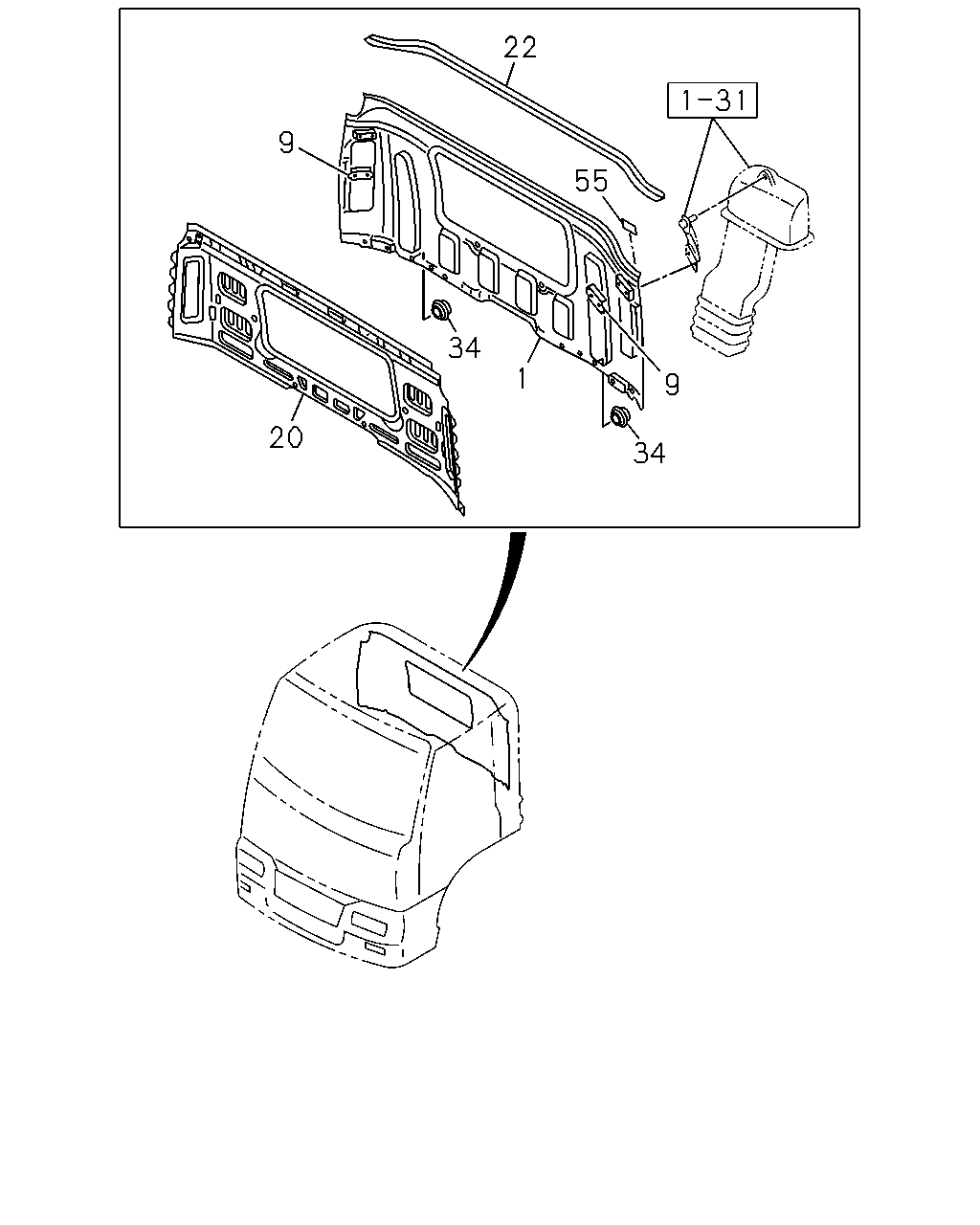

çizim 44428
22 9 55 34 1 9 20 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER 1-61572-062-5 01 1 9902-0003 ●
1 PANEL; BACK OUTER 1-61572-062-5 01 1 0004- ● ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 9902-0003 ●
9 PATCH; BACK PANEL 1-61572-065-0 02 1 0004- ● ●
20 PANEL; BACK INNER,CENTER 1-61572-064-5 01 1 9902-0003 ●
20 PANEL; BACK INNER,CENTER 1-61572-064-6 01 1 0004- ● ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 9902-0003 ●
22 MOLDING; DRIP,BACK PANEL 1-61572-063-1 01 1 0004- ● ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 9902-0003 ●
34 PLUG; HOLE,BACK PANEL
OD=28.5 		8-94279-711-0 02 1 0004- ● ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 9902-0003 ●
55 FINISHER; BACK CORNER 1-71517-002-0 02 1 0004- ● ●
