◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#77448) — 14 parça

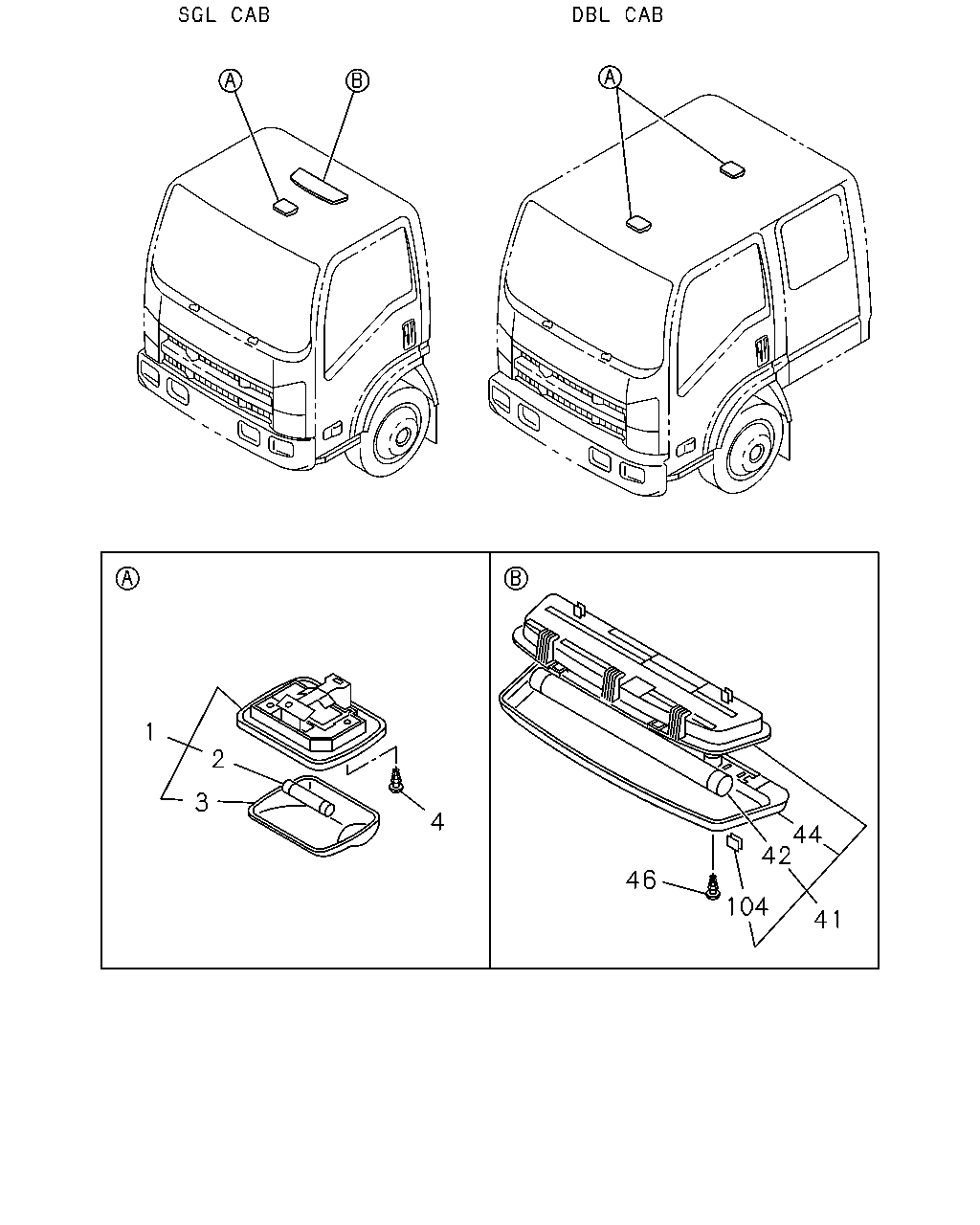

çizim 136565
1 2 3 4 46 44 42 104 41
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.494 LAMP ASM; ROOM 8-98013-421-3 01 1 1009- ● ● ● ● ● ●
1 16.494 LAMP ASM; ROOM 8-98013-421-3 01 1 1009- ● ● ●
2 08.991 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 1009- ● ● ● ● ● ●
2 08.991 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 1009- ● ● ●
3 16.495 LENS; ROOM LAMP 8-98047-272-0 01 1 1009- ● ● ● ● ● ●
3 16.495 LENS; ROOM LAMP 8-98047-272-0 01 1 1009- ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X14 W/WASHER 		8-98075-766-0 02 1 1009- ● ● ● ● ● ●
4 16.495 SCREW; ROOM LAMP
M5X14 W/WASHER 		8-98075-766-0 02 1 1009- ● ● ●
41 02.776 LAMP ASM; FLUORESCENT 8-97387-587-1 01 1 1009- ● ● ●
42 02.776 LAMP; FLUORESCENT
FL20SD 		8-98056-311-0 01 1 1009- ● ● ●
44 02.776 LENS; FLUORESCENT LAMP 8-98056-315-0 01 1 1009- ● ● ●
46 02.776 SCREW; FLUORESCENT LAMP
03.342 M6X12 FLANGE 		0-28060-612-0 02 1 1009-1204 ● ● ●
46 02.776 SCREW; FLUORESCENT LAMP
03.162 M6X12 FLANGE 		0-28050-612-0 02 1 1205- ● ● ●
104 16.495 CLIP; LAMP 8-98056-322-0 02 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
