7-50 — FRONT SEAT (#77443) — 888 parça

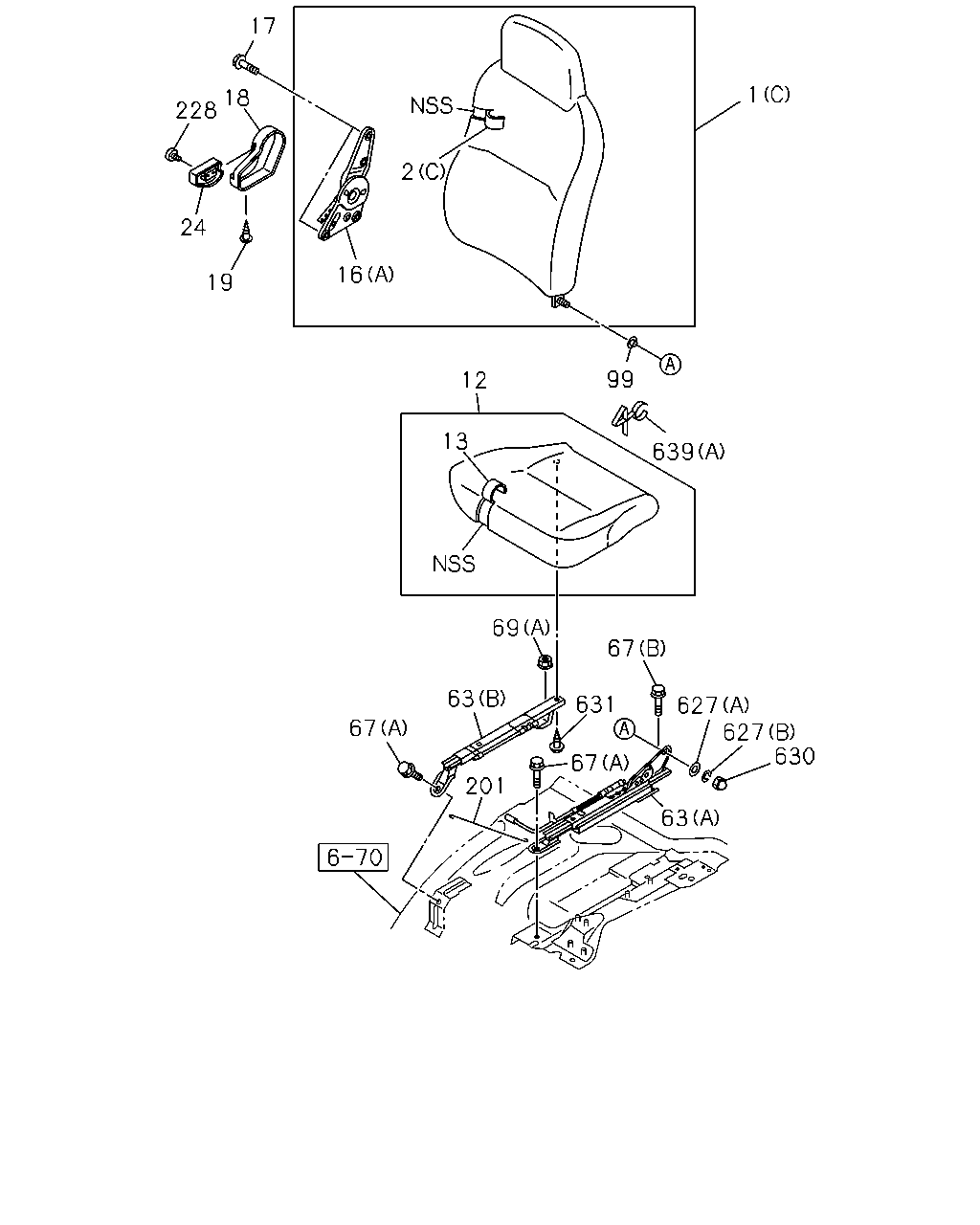

çizim 134105
1 2 17 18 228 24 19 16 12 99 639 13 630 63 627 627 67 631 67 69 63 201 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-596-1 01 1 1504- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-596-1 01 1 1504- ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-245-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-007-1 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> DARK GRAY 		8-97465-007-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-241-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> ,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97414-150-1 01 1 1009-1009 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97421-248-1 01 1 1010-1408 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-010-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-010-1 01 1 1409- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 1009-1009 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-1 01 1 1010-1408 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-264-2 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-013-1 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> DARK GRAY 		8-97465-013-1 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 1009-1009 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1010-1408 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-260-2 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> ,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97414-151-1 01 1 1009-1009 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97421-268-1 01 1 1010-1408 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-268-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-268-2 01 1 1409- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-016-1 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-016-1 01 1 1409- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1009-1408 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1409-1503 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1504- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1009-1408 ● ● ● ● ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1409-1503 ● ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1504- ● ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> GRAY 		8-97465-598-0 01 1 1504- ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97465-598-0 01 1 1504- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1009-1408 ● ● ● ● ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1409- ● ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-974-0 01 1 1504- ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-974-0 01 1 1504- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1009-1408 ● ● ● ● ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1409- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1009-1408 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1409-1503 ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1504- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) 		8-98306-527-0 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98306-527-0 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (D) 		8-98114-417-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (C) 		8-98114-419-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-97382-800-2 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-97382-801-1 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1504- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-97382-801-1 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97382-801-1 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1504- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1009- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98286-362-0 06 1 1504- ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98286-362-0 06 1 1504- ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10 FLANGE 		8-98055-961-0 02 1 1009- ● ● ●
69 16.682 NUT; FRT SEAT
(A) M10 FLANGE 		8-98055-961-0 01 1 1009- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1009-1408 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1409-1503 ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1504- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1009-1408 ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> 		8-98114-421-0 01 1 1409- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1409- ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98003-086-1 01 1 1009-1408 ● ● ● ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1504- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98003-086-1 01 1 1504- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1504- ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1504- ● ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1009-1408 ● ● ● ● ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1409-1503 ● ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1504- ● ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1409- ● ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1409- ● ● ● ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1009-1408 ● ● ● ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1409-1503 ● ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1504- ● ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X18 		8-94279-109-1 03 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 03 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ● ●
639 16.679 CLIP; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98315-960-0 02 1 1504- ● ●
639 16.679 CLIP; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98315-960-0 02 1 1504- ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98097-693-0 01 1 1009-1408 ● ● ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98097-693-0 01 1 1409- ●
639 16.679 CLIP; SEAT
(A) 		8-98097-693-0 01 1 1409- ● ● ●

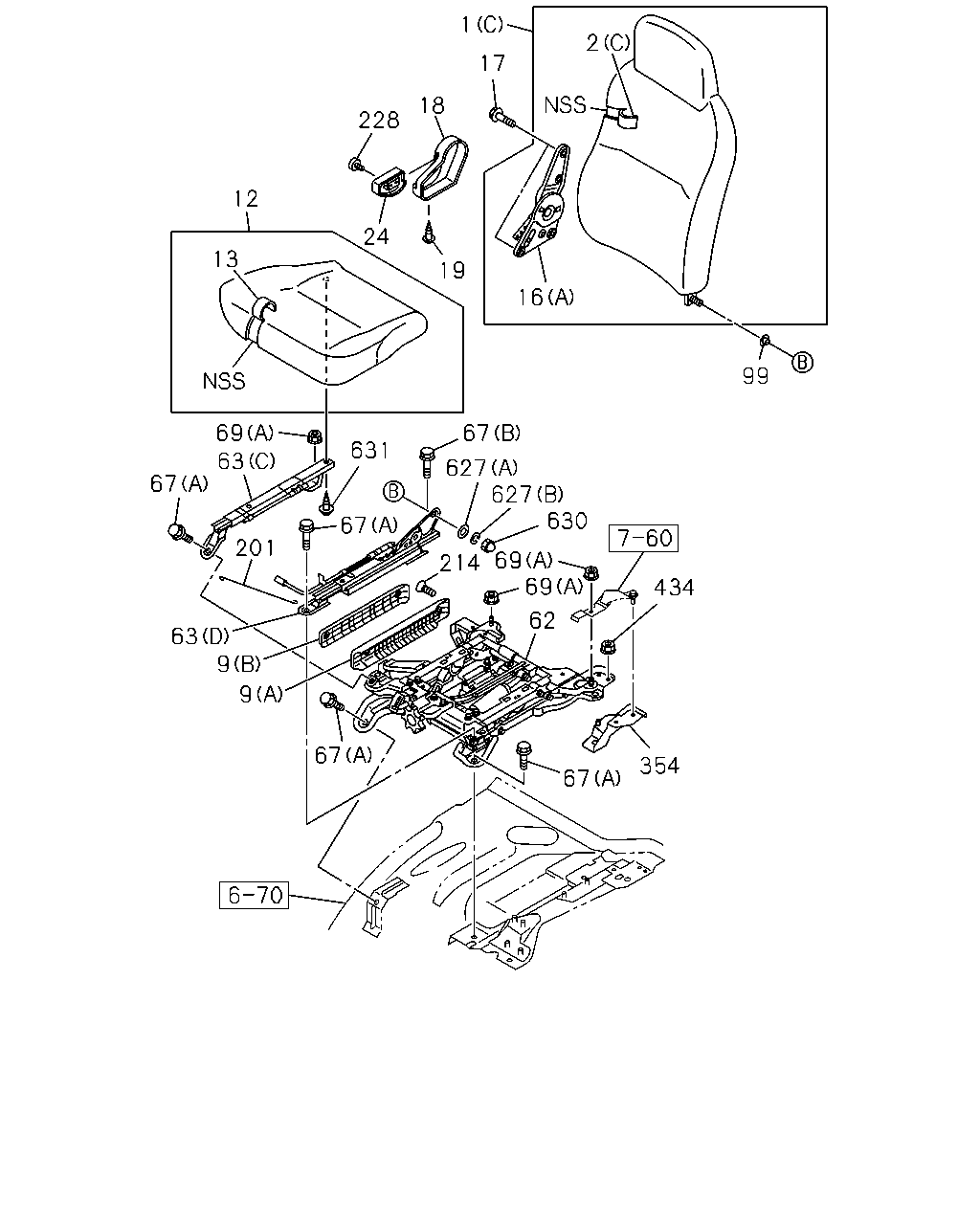

çizim 135089
2 99 16 17 1 18 19 24 228 12 13 69 63 67 201 631 67 67 627 627 630 69 214 69 62 434 354 67 63 9 9 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
9 16.682 COVER; SIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (C) GRAY 		8-97465-600-0 01 1 1504- ● ●
9 16.682 COVER; SIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (C) GRAY 		8-97465-600-0 01 1 1504- ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-722-0 01 1 1009- ● ● ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97415-723-0 01 1 1009- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-596-1 01 1 1504- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-596-1 01 1 1504- ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-245-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-007-1 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> DARK GRAY 		8-97465-007-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-241-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> ,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97414-150-1 01 1 1009-1009 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97421-248-1 01 1 1010-1408 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-010-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-010-1 01 1 1409- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-264-0 01 1 1009-1009 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-1 01 1 1010-1408 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-264-2 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-264-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-013-1 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> DARK GRAY 		8-97465-013-1 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-260-0 01 1 1009-1009 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-1 01 1 1010-1408 ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-260-2 01 1 1409- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> ,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-260-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97414-151-1 01 1 1009-1009 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97421-268-1 01 1 1010-1408 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-268-2 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-268-2 01 1 1409- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-016-1 01 1 1409- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-016-1 01 1 1409- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1009-1408 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1409-1503 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1504- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ●

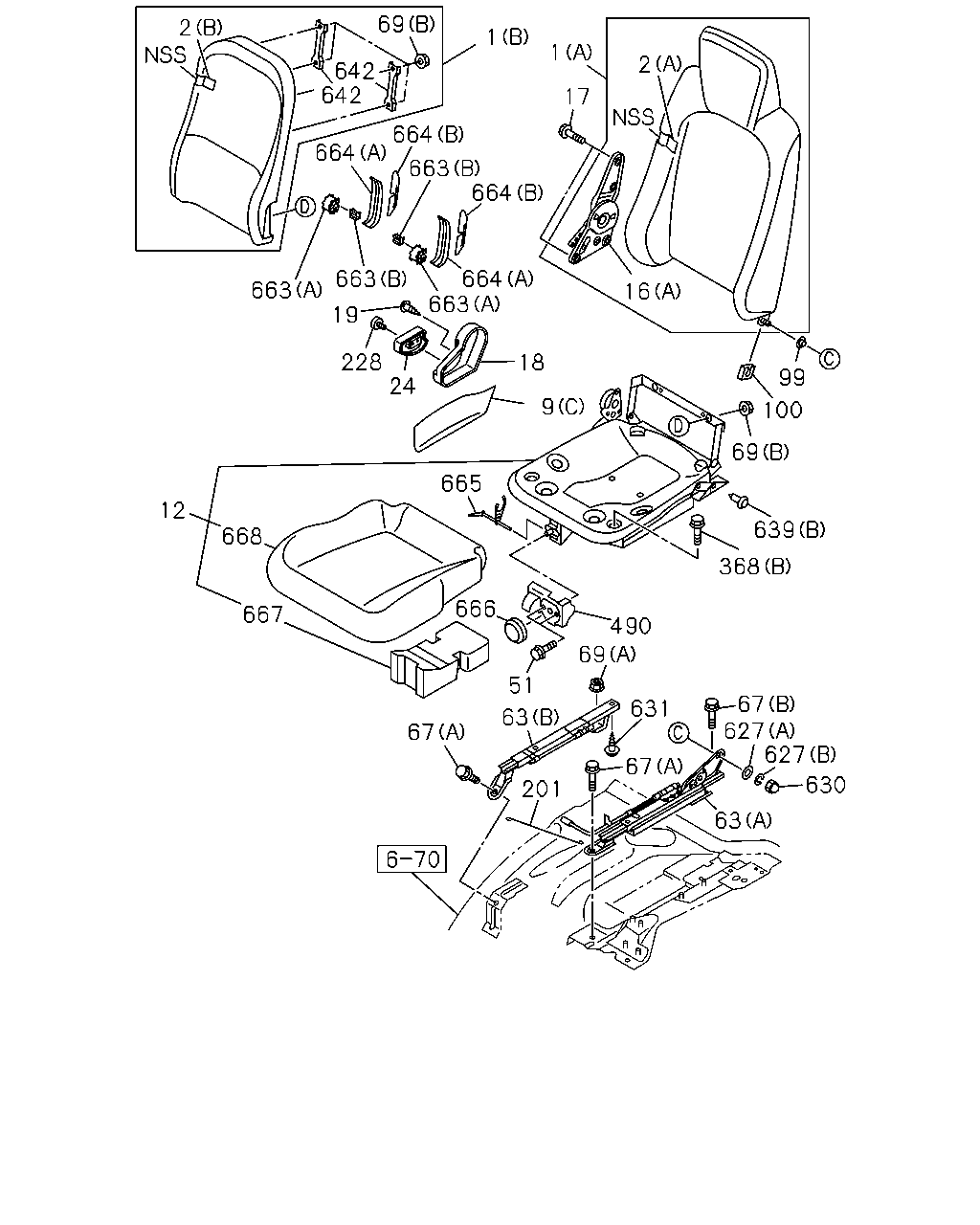

17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1009-1408 ● ● ● ● ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1409-1503 ● ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1504- ● ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> GRAY 		8-97465-598-0 01 1 1504- ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97465-598-0 01 1 1504- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1009-1408 ● ● ● ● ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1409- ● ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-974-0 01 1 1504- ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-974-0 01 1 1504- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1009-1408 ● ● ● ● ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1409- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1009-1408 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1409-1503 ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1504- ● ● ●
62 16.686 DAMPER ASM; SEAT SUSP
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97415-702-3 01 1 1009- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) 		8-98306-527-0 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98306-527-0 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (D) 		8-98114-417-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (C) 		8-98114-419-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-97382-800-2 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-97382-801-1 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1504- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-97382-801-1 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97382-801-1 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1504- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1009- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98286-362-0 06 1 1504- ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98286-362-0 06 1 1504- ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10 FLANGE 		8-98055-961-0 02 1 1009- ● ● ●
69 16.682 NUT; FRT SEAT
(A) M10 FLANGE 		8-98055-961-0 01 1 1009- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1009-1408 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1409-1503 ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1504- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1009-1408 ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> 		8-98114-421-0 01 1 1409- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1409- ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98003-086-1 01 1 1009-1408 ● ● ● ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1504- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98003-086-1 01 1 1504- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1504- ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1504- ● ● ●
214 16.682 SCREW; SIDE COVER
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98130-276-0 04 1 1009- ● ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1009-1408 ● ● ● ● ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1409-1503 ● ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1504- ● ● ●
354 16.686 BRACKET; SUSPENSION DEVICE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714 		8-98090-867-1 01 1 1009- ● ● ●
434 16.716 NUT; BRKT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE 		8-98055-961-0 01 1 1009- ● ● ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1409- ● ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1409- ● ● ● ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1009-1408 ● ● ● ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1409-1503 ● ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1504- ● ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X18 		8-94279-109-1 03 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 03 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ● ●
çizim 135114
2 69 642 642 664 664 663 663 663 19 228 24 663 664 664 18 9 1 1 17 2 16 99 100 69 639 368 665 668 12 667 67 666 51 63 201 67 631 69 490 67 627 627 630 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97465-593-0 01 1 1504- ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ● ●
1 16.720 BACK ASM; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97465-595-1 01 1 1504- ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-145-5 01 1 1009-1009 ●
1 16.720 BACK ASM; SEAT
(C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1010-1408 ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ●
1 16.720 BACK ASM; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ●
1 16.720 BACK ASM; SEAT
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-235-1 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
1 16.720 BACK ASM; SEAT
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-003-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97466-505-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY 		8-97466-506-0 01 1 1504- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97414-146-1 01 1 1009-1009 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
(C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1010-1408 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97421-254-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SPECIAL PACKAGE<7BB> (C) DARK GRAY 		8-97465-005-0 01 1 1409- ● ● ●
9 16.682 COVER; SIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (C) GRAY 		8-97465-600-0 01 1 1504- ● ●
9 16.682 COVER; SIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (C) GRAY 		8-97465-600-0 01 1 1504- ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-722-0 01 1 1009- ● ● ●
9 16.682 COVER; SIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97415-723-0 01 1 1009- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-596-1 01 1 1504- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97465-596-1 01 1 1504- ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-256-0 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-245-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-245-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-007-1 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> DARK GRAY 		8-97465-007-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-252-1 01 1 1009-1009 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-1 01 1 1010-1408 ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-241-2 01 1 1409- ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> ,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-241-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97414-150-1 01 1 1009-1009 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97421-248-1 01 1 1010-1408 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-248-2 01 1 1409- ● ● ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> DARK GRAY 		8-97465-010-1 01 1 1409- ●
12 16.670 CUSHION; SEAT,FRT
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97465-010-1 01 1 1409- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1009-1408 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1409-1503 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1504- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1009-1408 ● ● ● ● ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1009-1408 ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1409-1503 ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1409-1503 ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1409-1503 ● ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M10X20 		8-98062-661-0 04 1 1504- ● ●
17 16.682 BOLT; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1504- ●
17 16.682 BOLT; RECLINING
M10X20 		8-98062-661-0 04 1 1504- ● ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> GRAY 		8-97465-598-0 01 1 1504- ● ●
18 16.682 COVER; RECLINING
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97465-598-0 01 1 1504- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1009-1408 ● ● ● ● ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1009-1408 ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-332-0 01 1 1409- ● ●
18 16.682 COVER; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-332-0 01 1 1409- ●
18 16.682 COVER; RECLINING
GRAY 		8-97409-332-0 01 1 1409- ● ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-974-0 01 1 1504- ● ●
19 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-974-0 01 1 1504- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1009-1408 ● ● ● ● ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1009-1408 ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M5 		8-98062-663-0 01 1 1409- ● ●
19 16.686 SCREW; COVER
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M5 		8-98062-663-0 01 1 1409- ●
19 16.686 SCREW; COVER
M5 		8-98062-663-0 01 1 1409- ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1009-1408 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1009-1408 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1409-1503 ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1409-1503 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1409-1503 ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> GRAY 		8-97409-333-0 01 1 1504- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-333-0 01 1 1504- ●
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-333-0 01 1 1504- ● ● ●
51 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-974-0 02 1 1504- ● ●
51 16.686 SCREW; COVER
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-974-0 02 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) 		8-98306-527-0 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98306-527-0 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (D) 		8-98114-417-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (D) 		8-98114-417-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-0 01 1 1009-1408 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> (C) 		8-98114-419-1 01 1 1409- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> (C) 		8-98114-419-1 01 1 1409- ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-97382-800-2 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(A) 		8-97382-800-2 01 1 1409- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-97382-801-1 01 1 1009-1408 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1409-1503 ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (B) 		8-97382-801-1 01 1 1504- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-97382-801-1 01 1 1504- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-97382-801-1 01 1 1504- ●
63 16.682 ADJUSTER; SEAT SLIDE
(B) 		8-97382-801-1 01 1 1504- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10X20 FLANGE 		8-98055-941-0 02 1 1009- ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1009- ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98286-362-0 06 1 1504- ● ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98286-362-0 06 1 1504- ●
69 16.682 NUT; FRT SEAT
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> (A) M10 FLANGE 		8-98055-961-0 02 1 1009- ● ● ●
69 16.682 NUT; FRT SEAT
(A) M10 FLANGE 		8-98055-961-0 01 1 1009- ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1009-1408 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1009-1408 ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1409-1503 ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1409-1503 ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1409-1503 ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98112-751-0 01 1 1504- ● ●
99 16.716 BUSHING; SEAT BACK
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1504- ●
99 16.716 BUSHING; SEAT BACK 8-98112-751-0 01 1 1504- ● ● ●
100 16.686 COVER; HINGE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-969-0 01 1 1504- ● ●
100 16.686 COVER; HINGE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-969-0 01 1 1504- ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1009-1408 ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB> 		8-98114-421-0 01 1 1409- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> 		8-98114-421-0 01 1 1409- ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> 		8-98003-086-1 01 1 1009-1408 ● ● ● ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1409-1503 ● ● ●
201 16.682 CABLE; ADJ
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> 		8-98003-086-1 01 1 1504- ● ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98003-086-1 01 1 1504- ● ●
201 16.682 CABLE; ADJ
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1504- ●
201 16.682 CABLE; ADJ 8-98003-086-1 01 1 1504- ● ● ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1009-1408 ● ● ● ● ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1009-1408 ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1409-1503 ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1409-1503 ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1409-1503 ● ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M4 		8-98062-662-0 01 1 1504- ● ●
228 16.714 SCREW; KNOB
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1504- ●
228 16.714 SCREW; KNOB
M4 		8-98062-662-0 01 1 1504- ● ● ●
368 16.682 BOLT; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98315-986-0 06 1 1504- ● ●
368 16.682 BOLT; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98315-986-0 06 1 1504- ●
368 16.682 BOLT; SEAT
16.320 (A) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1009- ● ● ● ● ●
368 16.682 BOLT; SEAT
EXC. SEAT PASSENGER DELETE<APL> 16.320 (A) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1009- ●
490 16.682 COVER; FRONT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> GRAY 		8-97465-602-0 01 1 1504- ● ●
490 16.682 COVER; FRONT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97465-602-0 01 1 1504- ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 1409- ● ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1009-1408 ● ● ● ● ●
627 16.682 WASHER; FRT SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1009-1408 ●
627 16.682 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 1409- ● ● ● ● ● ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1009-1408 ● ● ● ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1009-1408 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1409 ●
630 16.682 NUT; CAP
EXC. SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1409 ● ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1409-1503 ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1409-1503 ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1409-1503 ● ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8 		8-98063-225-0 01 1 1504- ● ●
630 16.682 NUT; CAP
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1504- ●
630 16.682 NUT; CAP
M8 		8-98063-225-0 01 1 1504- ● ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X18 		8-94279-109-1 03 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 03 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ● ●
631 16.682 BOLT; ADJ,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 01 1 1504- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X25 W/LK WASHER 		8-98062-658-0 02 1 1409- ● ● ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ● ● ● ● ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1009-1408 ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ●
631 16.682 BOLT; ADJ,SEAT
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ●
631 16.682 BOLT; ADJ,SEAT
M8X32 W/LK WASHER 		8-98062-659-0 02 1 1409- ● ● ●
639 16.679 CLIP; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98315-960-0 02 1 1504- ● ●
639 16.679 CLIP; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98315-960-0 02 1 1504- ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98097-693-0 01 1 1009-1408 ● ● ● ●
639 16.679 CLIP; SEAT
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98097-693-0 01 1 1409- ●
639 16.679 CLIP; SEAT
(A) 		8-98097-693-0 01 1 1409- ● ● ●
642 16.716 SLIDER; CUSHION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-971-0 02 1 1504- ● ●
642 16.716 SLIDER; CUSHION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-971-0 02 1 1504- ●
663 16.724 GEAR; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) 		8-98286-369-0 02 1 1504- ● ●
663 16.724 GEAR; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98286-369-0 02 1 1504- ●
663 16.724 GEAR; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98286-370-0 02 1 1504- ● ●
663 16.724 GEAR; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98286-370-0 02 1 1504- ●
664 16.724 COVER; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (A) 		8-98286-363-0 02 1 1504- ● ●
664 16.724 COVER; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98286-363-0 02 1 1504- ●
664 16.724 COVER; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98286-364-0 02 1 1504- ● ●
664 16.724 COVER; SLIDE, SEATBACK
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98286-364-0 02 1 1504- ●
665 16.716 GAGE; WEIGHT,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98286-371-0 01 1 1504- ● ●
665 16.716 GAGE; WEIGHT,SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98286-371-0 01 1 1504- ●
666 16.716 DIAL; WEIGHT GAGE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98286-375-0 01 1 1504- ● ●
666 16.716 DIAL; WEIGHT GAGE
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98286-375-0 01 1 1504- ●
667 16.716 PAD; SEAT SUSPENSION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-98315-951-0 01 1 1504- ● ●
667 16.716 PAD; SEAT SUSPENSION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-98315-951-0 01 1 1504- ●
668 16.716 TRIM COVER & PAD; SEAT CUSHION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> 		8-97466-589-0 01 1 1504- ● ●
668 16.716 TRIM COVER & PAD; SEAT CUSHION
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> 		8-97466-589-0 01 1 1504- ●
çizim 187210
460 368 361 16 141 160 161 126 139 115 116 480 139 126 368 361 16 114 460 139 478 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1009-1408 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1009-1408 ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1409-1503 ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>,INSPECTION ENGINE CO VER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1409-1503 ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1409-1503 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> (A) 		8-98003-087-1 01 1 1504- ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>,SPECIAL PACKAGE<7BB>, INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
INSPECTION ENGINE COVER<8GA> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
SPECIAL PACKAGE<7BB> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) 		8-98003-087-1 01 1 1504- ●
16 16.682 ADJUSTER ASM; RECLINING
(A) 		8-98003-087-1 01 1 1504- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
(B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1009- ●
16 16.682 ADJUSTER ASM; RECLINING
(C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. SEAT PASSENGER DELETE<APL> (C) BLACK W/KNOB 		8-97859-274-3 01 1 1009- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-887-0 01 1 1409- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97427-887-0 01 1 1409- ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97409-277-1 01 1 1009-1009 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97409-277-1 01 1 1009-1009 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-291-0 01 1 1010-1408 ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97421-291-0 01 1 1010-1408 ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-291-0 01 1 1409- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-291-0 01 1 1409- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-273-0 01 1 1009-1009 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-273-0 01 1 1009-1009 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-319-2 01 1 1010-1505 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-319-2 01 1 1010-1505 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-319-3 01 1 1506- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-319-3 01 1 1506- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97416-274-0 01 1 1009-1009 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-274-0 01 1 1009-1009 ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97421-321-1 01 1 1010-1408 ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-321-1 01 1 1010-1408 ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-321-3 01 1 1409- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-321-3 01 1 1409- ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-899-1 01 1 1409- ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97427-899-1 01 1 1409- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97427-900-1 01 1 1409- ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-900-1 01 1 1409- ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-288-0 01 1 1009-1009 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97416-288-0 01 1 1009-1009 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97421-339-1 01 1 1010-1505 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-339-1 01 1 1010-1505 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-339-2 01 1 1506- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-339-2 01 1 1506- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97416-289-0 01 1 1009-1009 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97416-289-0 01 1 1009-1009 ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97421-341-0 01 1 1010-1408 ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97421-341-0 01 1 1010-1408 ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-341-2 01 1 1409- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-341-2 01 1 1409- ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-908-1 01 1 1409- ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL>, INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97427-908-1 01 1 1409- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SPECIAL PACKAGE<7BB> INSPECTION ENGINE COVER<8GA> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97427-909-1 01 1 1409- ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-909-1 01 1 1409- ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 1009- ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. SEAT PASSENGER DELETE<APL> 		8-98069-558-0 02 1 1009- ●
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1009- ● ● ● ● ●
139 16.679 BOLT; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL> M8X20 W/PL WASHER 		8-98031-841-0 04 1 1009- ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97409-334-1 01 1 1009-1009 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97409-334-1 01 1 1009-1009 ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97421-305-1 01 1 1010-1408 ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97421-305-1 01 1 1010-1408 ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-305-1 01 1 1409- ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> DARK GRAY 		8-97421-305-1 01 1 1409- ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SPECIAL PACKAGE<7BB> DARK GRAY 		8-97427-891-0 01 1 1409- ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL> DARK GRAY 		8-97427-891-0 01 1 1409- ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97405-361-1 01 1 1009- ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
EXC. SEAT PASSENGER DELETE<APL> GRAY 		8-97405-361-1 01 1 1009- ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 1009- ● ● ● ● ●
161 16.650 SCREW; CONSOLE
EXC. SEAT PASSENGER DELETE<APL> M4X12 		8-94279-351-0 04 1 1009- ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 1009- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. SEAT PASSENGER DELETE<APL> M8X18 		8-94279-109-1 04 1 1009- ●
368 16.682 BOLT; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> (B) 		8-98315-986-0 06 1 1504- ● ●
368 16.682 BOLT; SEAT
SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5> SPECIAL PACKAGE<7BB> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98315-986-0 06 1 1504- ●
368 16.682 BOLT; SEAT
16.320 (A) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1009- ● ● ● ● ●
368 16.682 BOLT; SEAT
EXC. SEAT PASSENGER DELETE<APL> 16.320 (A) M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 1009- ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97405-335-4 01 1 1009-1009 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL> (B) DARK GRAY 		8-97405-335-4 01 1 1009-1009 ●
460 16.670 BACK ASM; PASSENGER SEAT
(B) DARK GRAY 		8-97421-278-0 01 1 1010-1408 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL> (B) DARK GRAY 		8-97421-278-0 01 1 1010-1408 ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97421-278-0 01 1 1409- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97421-278-0 01 1 1409- ●
460 16.670 BACK ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> (B) DARK GRAY 		8-97427-883-0 01 1 1409- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL> (B) DARK GRAY 		8-97427-883-0 01 1 1409- ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97405-338-3 01 1 1009-1009 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL> (A) DARK GRAY 		8-97405-338-3 01 1 1009-1009 ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97421-299-1 01 1 1010-1408 ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL> (A) DARK GRAY 		8-97421-299-1 01 1 1010-1408 ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97421-299-1 01 1 1409- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT PASSENGER DELETE<APL>, SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97421-299-1 01 1 1409- ●
460 16.670 BACK ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> (A) DARK GRAY 		8-97427-889-0 01 1 1409- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SPECIAL PACKAGE<7BB> EXC. SEAT PASSENGER DELETE<APL> (A) DARK GRAY 		8-97427-889-0 01 1 1409- ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-98002-092-0 01 1 1009- ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
EXC. SEAT PASSENGER DELETE<APL> 		8-98002-092-0 01 1 1009- ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 1009- ● ● ● ● ●
480 16.716 CLIP; CUSHION
EXC. SEAT PASSENGER DELETE<APL> 		8-94279-977-0 05 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
