◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#77441) — 80 parça

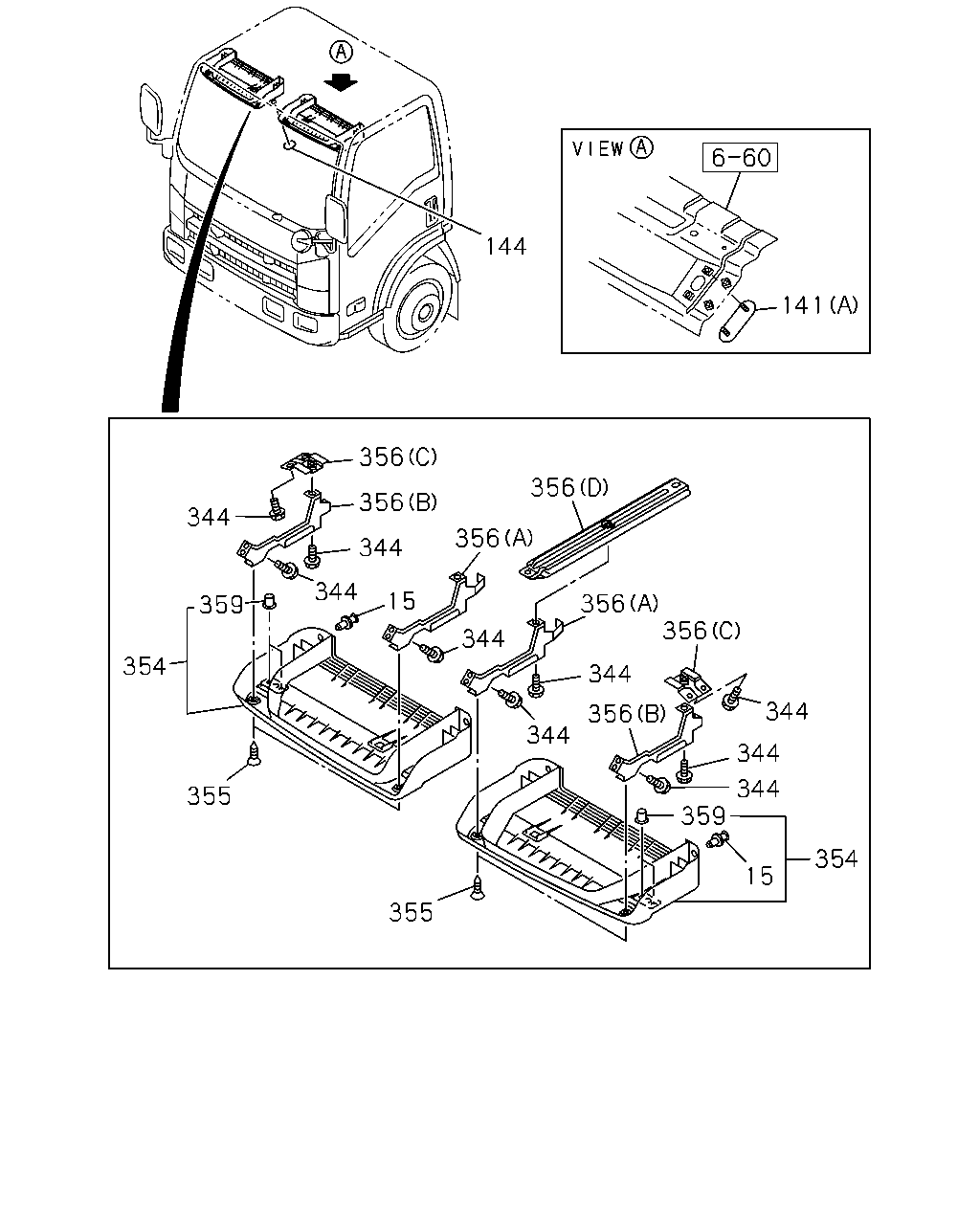

çizim 133245
354 15 359 344 344 344 356 356 344 356 344 344 355 355 354 359 15 344 356 344 356 356 356 344 144 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1009- ● ● ● ● ● ●
15 16.742 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-299-0 02 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1504- ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009-1203 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1204-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> ,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1009-1503 ● ● ● ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ● ●
144 16.070 SEAL; LOCATION HOLE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>, HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 01 1 1504- ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1009- ● ● ● ● ● ●
344 16.450 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE 		8-97108-669-0 08 1 1009- ● ● ● ● ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-060-2 01 1 1009- ● ● ●
354 16.120 TRAY; HEADER ROOF
INTERIOR TRIM-FULL TRIMMING<WM3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-061-2 01 1 1009- ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-064-2 01 1 1009- ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-064-2 01 1 1009- ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-065-2 01 1 1009- ● ● ●
354 16.120 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97408-065-2 01 1 1009- ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1009- ● ● ● ● ● ●
355 16.742 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-022-4 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) 		8-98036-023-4 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (C) 		8-97386-874-1 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (B) 		8-97585-576-4 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1009- ● ● ● ● ● ●
356 16.742 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (D) 		8-97585-577-1 01 1 1009- ● ● ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1009- ● ● ● ● ● ●
359 16.070 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> 		8-98041-754-0 02 1 1009- ● ● ● ● ● ●

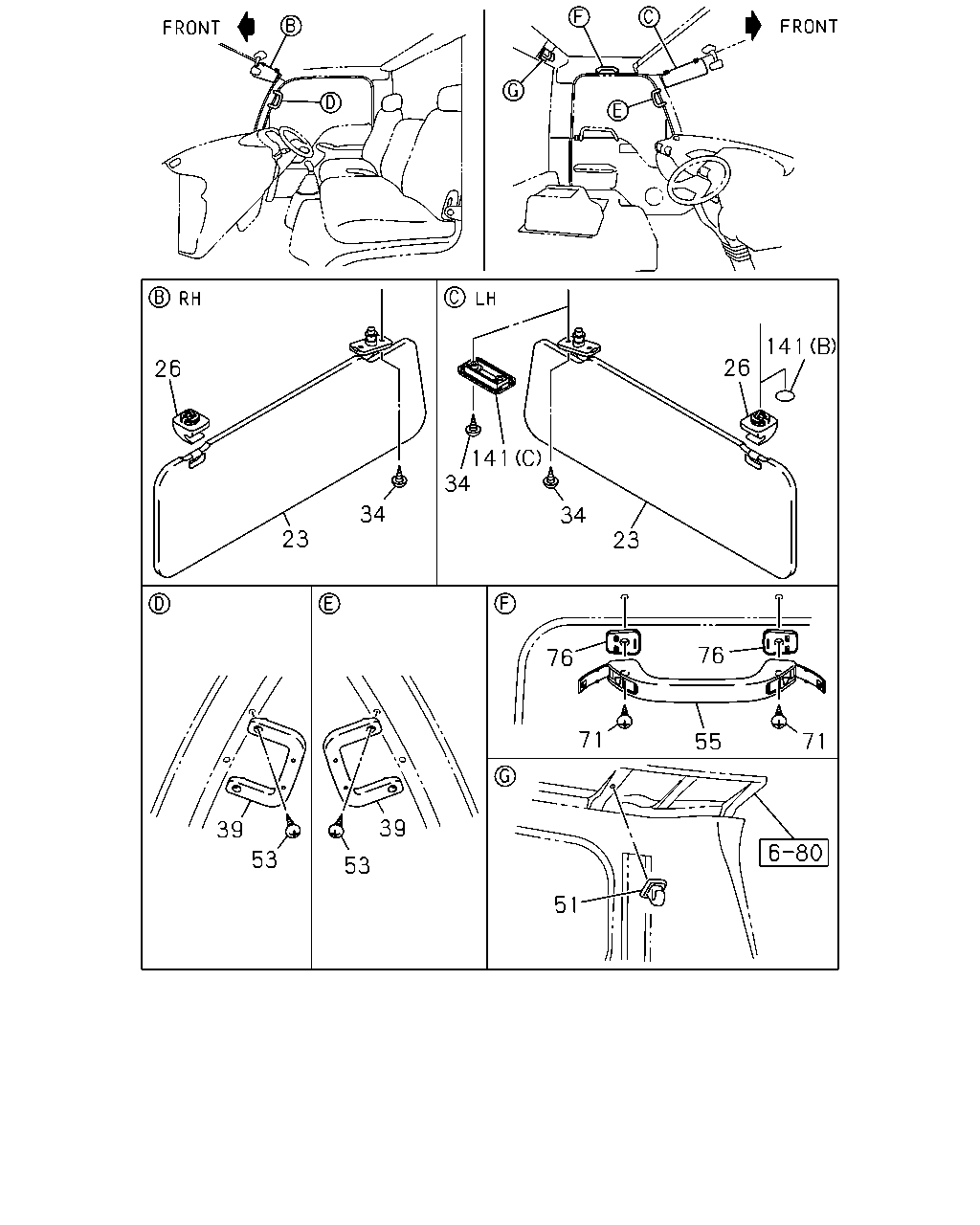

çizim 134189
71 55 76 71 76 51 39 53 53 39 23 34 26 34 141 34 23 26 141
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-170-3 01 1 1009- ● ● ● ● ● ●
23 16.070 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1009- ● ● ● ● ● ●
23 16.070 SUN VISOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97415-668-0 01 1 1009- ● ● ●
23 16.070 SUN VISOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97415-666-0 01 1 1009- ● ● ●
23 16.070 SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3> DARK GRAY 		8-97413-097-1 01 1 1009- ● ● ● ● ● ●
23 16.070 SUN VISOR
EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97413-095-1 01 1 1009- ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1009- ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-171-0 01 1 1009- ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1009- ● ● ● ● ● ●
26 16.070 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-200-0 01 1 1009- ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1009- ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 		8-98033-674-0 02 1 1009- ● ● ● ● ● ●
34 16.070 SCREW; SUN VISOR
M6X26 		8-98033-674-0 02 1 1009- ● ● ● ● ● ●
39 16.450 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97405-249-2 02 1 1009- ● ● ● ● ● ●
51 16.570 HOOK; COAT HANGER
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-302-1 01 1 1009- ● ● ●
51 16.570 HOOK; COAT HANGER
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.070 DARK GRAY 		8-97406-200-0 01 1 1009- ● ● ●
53 16.450 SCREW; ASSIST HANDLE
M6X28 		8-98004-344-0 04 1 1009- ● ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1009- ● ● ● ● ●
55 16.450 GRIP; ASSIST,CAB SIDE UPR
ASSIST GRIP PASSENGER<EG5> DARK GRAY 		8-97405-285-2 01 1 1009- ●
71 16.450 SCREW
M6X28 		8-98004-344-0 02 1 1009- ● ● ● ● ●
71 16.450 SCREW
ASSIST GRIP PASSENGER<EG5> M6X28 		8-98004-344-0 02 1 1009- ●
76 16.742 SPACER; ASSIST GRIP
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 1009- ● ●
76 16.742 SPACER; ASSIST GRIP
ASSIST GRIP PASSENGER<EG5> INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97405-286-0 02 1 1009- ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (C) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●
141 16.070 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>, INTERIOR TRIM-FULL TRIMMING<WM3>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY 		8-97405-173-0 01 1 1009- ● ● ● ● ● ●

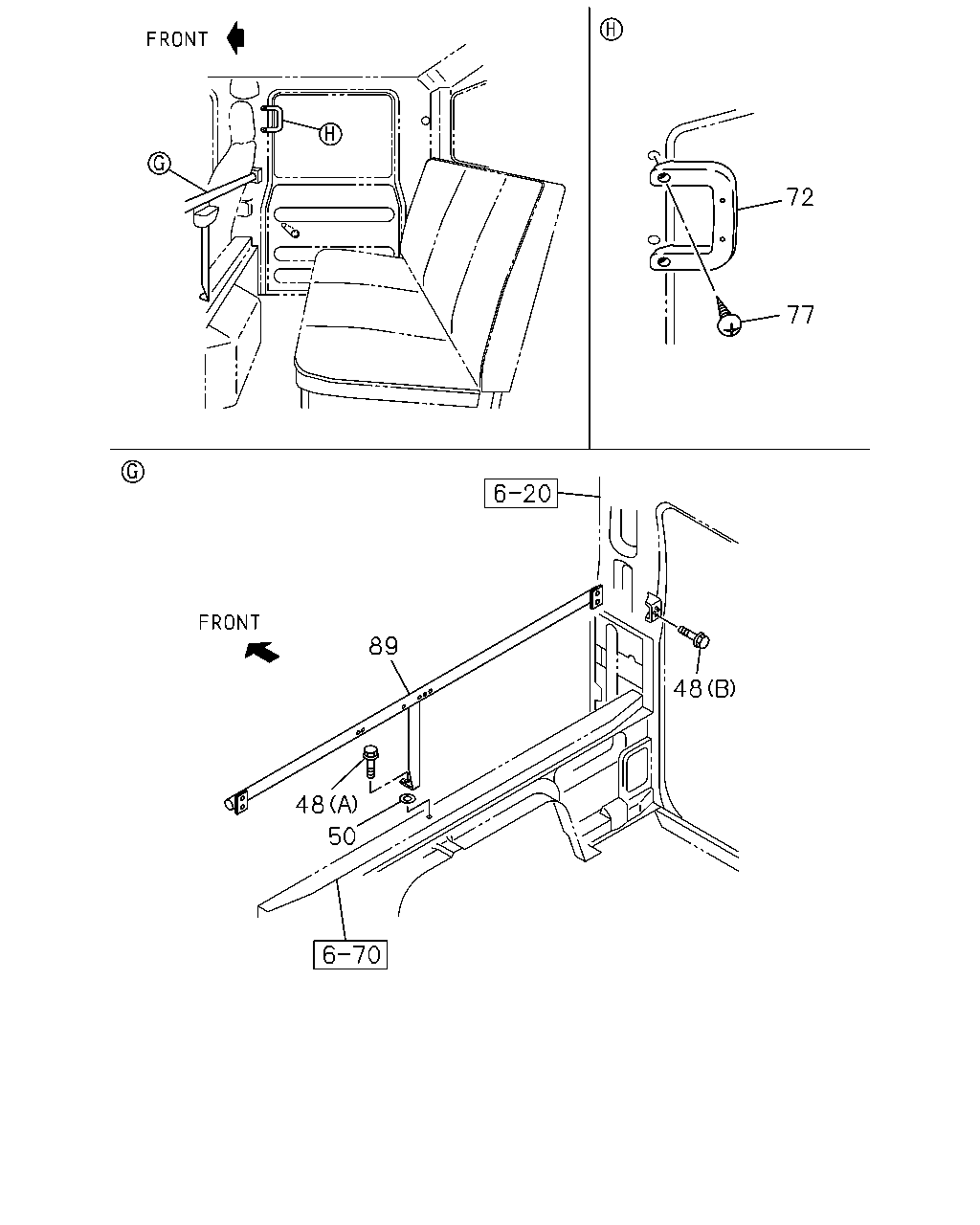

çizim 187209
72 77 48 89 48 50
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
48 16.450 BOLT; ASSIST GRIP
03.671 (B) M6X10 FLANGE 		0-28050-610-0 04 1 1009- ● ● ●
48 16.450 BOLT; ASSIST GRIP
03.162 (A) M6X20 FLANGE 		0-28650-620-0 01 1 1009- ● ● ●
50 16.450 WASHER; PL,ASSIST GRIP
03.417 ID=8.4 OD=16 		0-91610-508-0 01 1 1009- ● ● ●
72 16.450 GRIP; ASSIST,CAB ENTRY,BACK
DARK GRAY 		8-97405-249-2 02 1 1009- ● ● ●
77 16.450 SCREW; ASSIST GRIP
M6X28 		8-98004-344-0 04 1 1009- ● ● ●
89 16.560 HANDLE; ASSIST 8-97583-743-3 01 1 1009- ● ● ●
