◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#7744) — 18 parça

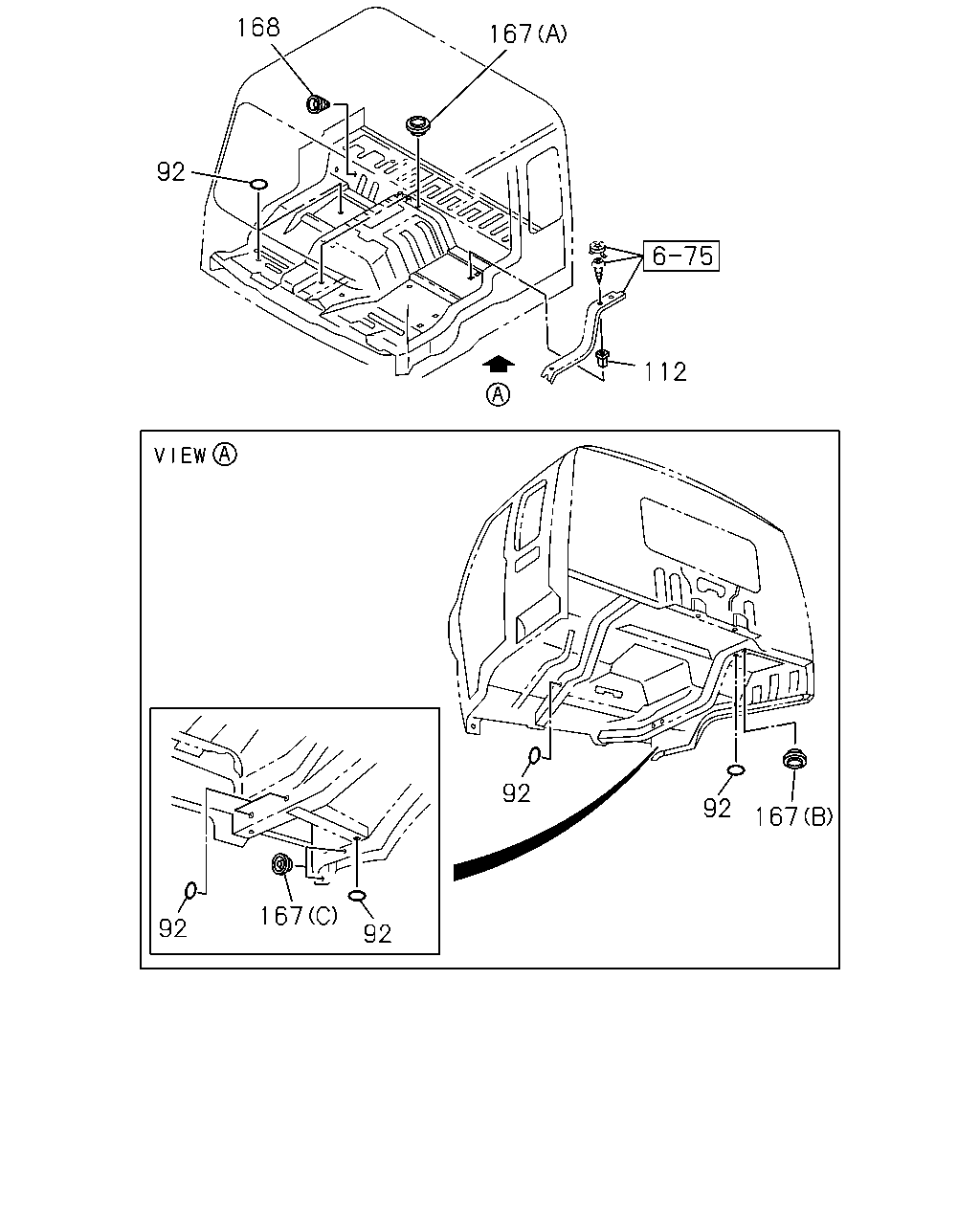

çizim 44458
168 167 92 112 92 92 167 167 92 92
BalonParca AdiParca NoAdetTipApplied Date A B
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 09 1 9902- ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 9902-0003 ●
92 SEAL; LOCATION HOLE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0004- ● ●
92 SEAL; LOCATION HOLE
BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 04 1 9902- ●
92 SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK 		1-76798-019-0 05 1 9902- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 03 1 0004- ●
92 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 07 1 0004- ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 9902-0003 ●
112 GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 08 1 0004- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 05 1 9902- ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 9902-0003 ●
167 GROMMET; LOCATION HOLE
(B) OD=35 		8-94122-971-0 06 1 0004- ● ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 9902-0003 ●
167 GROMMET; LOCATION HOLE
(C) OD=15.0 		8-94279-040-0 02 1 0004- ● ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 02 1 0004- ●
167 GROMMET; LOCATION HOLE
(A) OD=23.5 		1-09983-101-0 04 1 0004- ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 9902-0003 ●
168 COVER; HOLE,ANNTENA CABLE 1-79998-891-1 01 1 0004- ● ●
