7-40 — INSTRUMENT PANEL AND BOX (#77439) — 181 parça

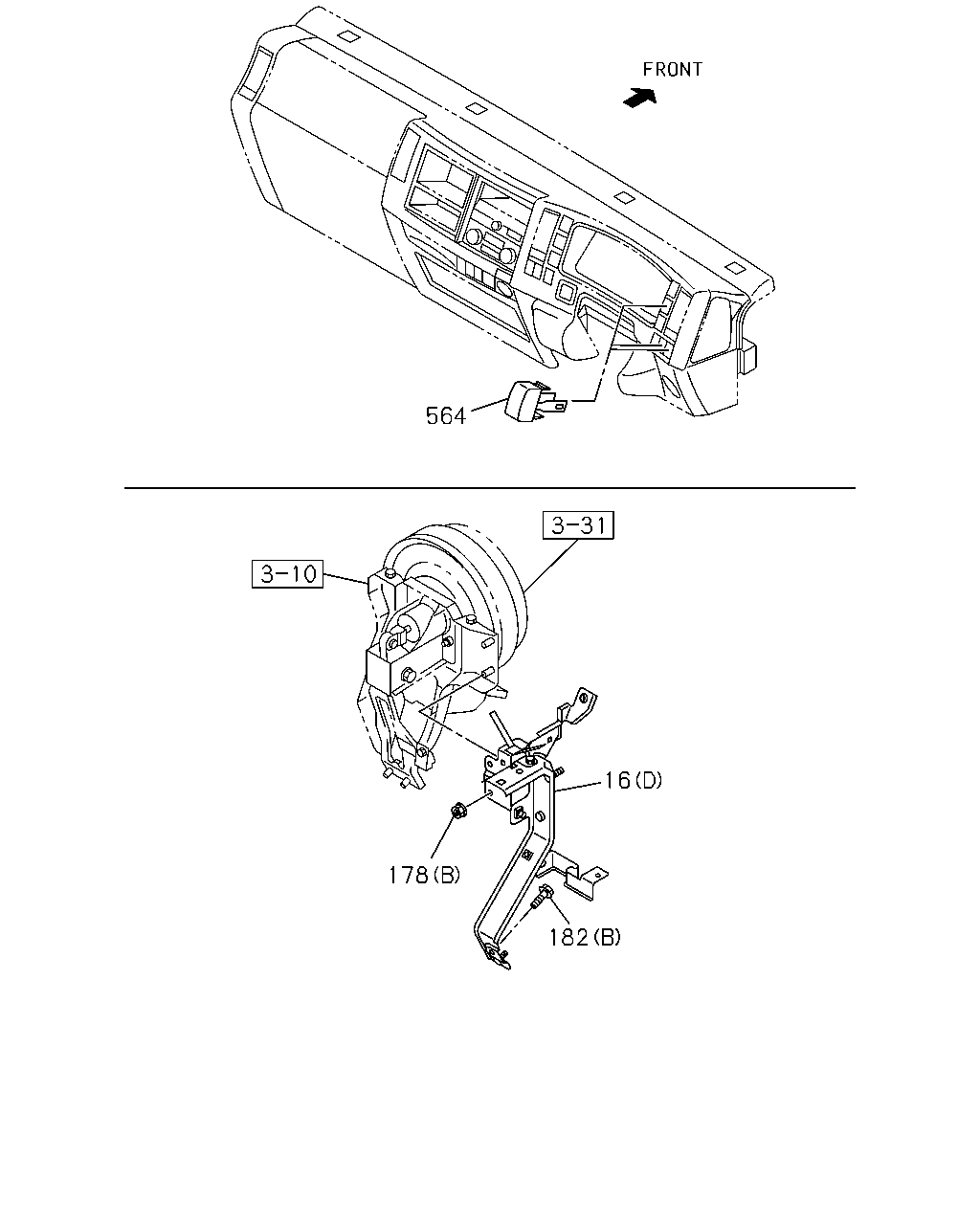

çizim 133224
16 182 178 564
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1009- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1009- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1009- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1009-1101 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1009- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009-1101 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1009- ● ● ● ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 1009- ● ● ● ● ● ●

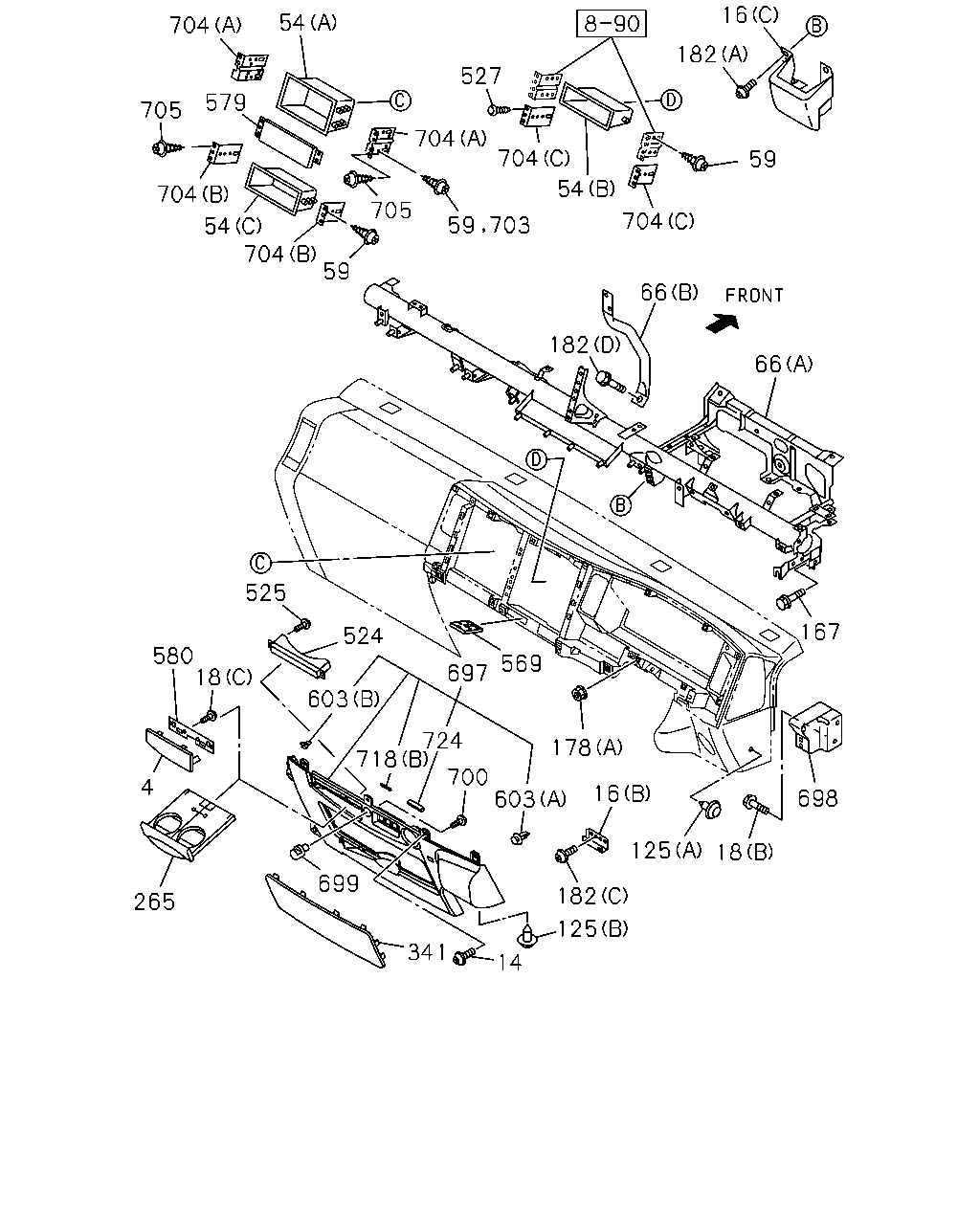

çizim 187212
580 525 524 603 18 4 265 699 718 697 724 700 569 178 16 125 182 125 14 341 603 18 698 167 66 66 182 704 59 182 16 54 704 703 59 704 527 54 704 579 704 704 54 59 705 705
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1009- ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1009-1101 ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1009- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1009-1101 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1009- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1009- ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1009- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1009- ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1009-1111 ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1009-1111 ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. CAN INTERFACE FMS STD(8PG) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1112- ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1111 ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1111 ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1009-1111 ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1112- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98124-678-2 01 1 1009-1204 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-359-1 01 1 1205- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1009- ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98106-831-3 01 1 1009-1204 ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1205- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1009- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1009- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1009- ● ● ● ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1009- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 1009- ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 1009- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1009-1101 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1009- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1009-1101 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 16.090 (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1009- ● ● ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1009- ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 1009-1205 ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ● ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1009- ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1101 ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 16.742 DARK GRAY 		8-97098-326-0 01 1 1009- ● ● ● ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1009- ● ● ● ● ● ●
579 16.080 COVER; INST PNL
CAN INTERFACE FMS STD(8PG) BLACK 		8-97408-909-0 01 1 1112-1208 ● ● ● ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1009- ● ● ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 1009-1205 ● ● ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ● ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1009- ● ● ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1009- ● ● ● ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1009- ● ● ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1101 ● ● ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1009- ● ● ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1009-1111 ● ● ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) (B) 		8-97585-616-2 02 1 1112- ● ● ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1009- ● ● ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 1009- ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1009-1101 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1009-1101 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1009-1101 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1111 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1112-1212 ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. CAN INTERFACE FMS STD(8PG) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1009- ● ● ● ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ● ● ● ●

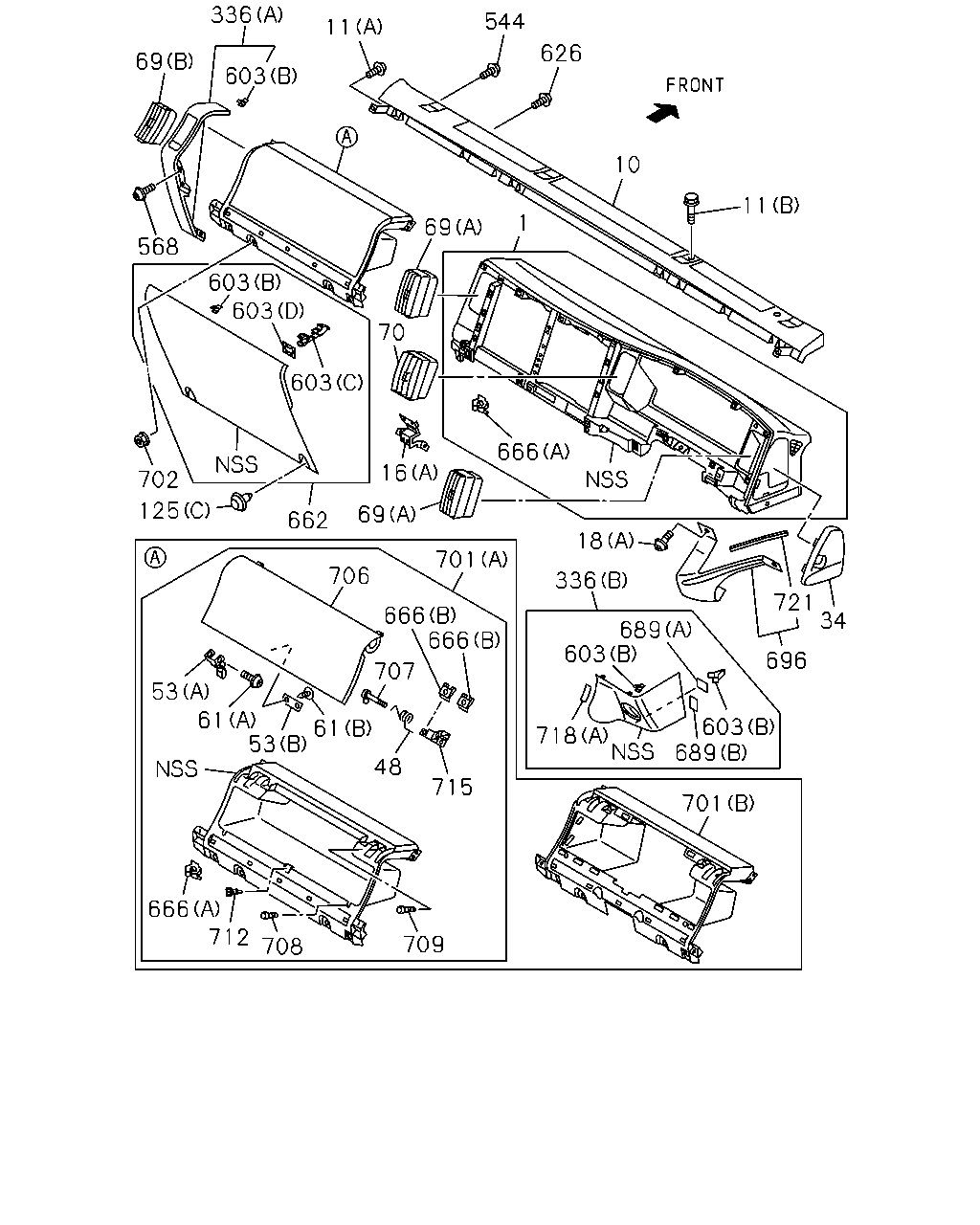

çizim 187214
34 696 721 603 689 701 718 603 336 689 18 666 11 10 626 544 11 336 603 69 568 603 603 603 702 125 662 53 61 53 48 61 715 666 666 707 706 701 708 712 666 1 69 70 16 69 709
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1009- ● ● ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1009- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1009-1101 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-532-0 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98034-799-6 01 1 1009- ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1009- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1009-1101 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1009- ● ● ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1009- ● ● ● ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1009-1505 ● ● ● ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1506- ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1009-1311 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1009-1311 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1009-1405 ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1009-1405 ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1009- ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1009- ● ● ● ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1009- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1009- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1009- ● ● ● ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1009- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1009- ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1009- ● ● ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-1101 ● ● ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1009-1101 ● ● ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-030-0 02 1 1009- ● ● ● ● ● ●
603 16.090 CLIP; COVER
(D) 		8-98152-031-0 02 1 1009- ● ● ● ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1009- ● ● ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1009- ● ● ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1009- ● ● ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1009- ● ● ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1009-1311 ● ● ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ● ● ● ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1009- ● ● ● ● ● ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1009- ● ● ● ● ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1009-1211 ● ● ● ● ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ● ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-2 01 1 1009- ● ● ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1009-1405 ● ● ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ● ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1009- ● ● ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1009-1405 ● ● ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1009-1311 ● ● ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ● ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1009- ● ● ● ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1009- ● ● ● ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1009- ● ● ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1009-1311 ● ● ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1009-1311 ● ● ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1009- ● ● ● ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1009- ● ● ● ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1009-1211 ● ● ● ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
