Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#77437) — 171 parça

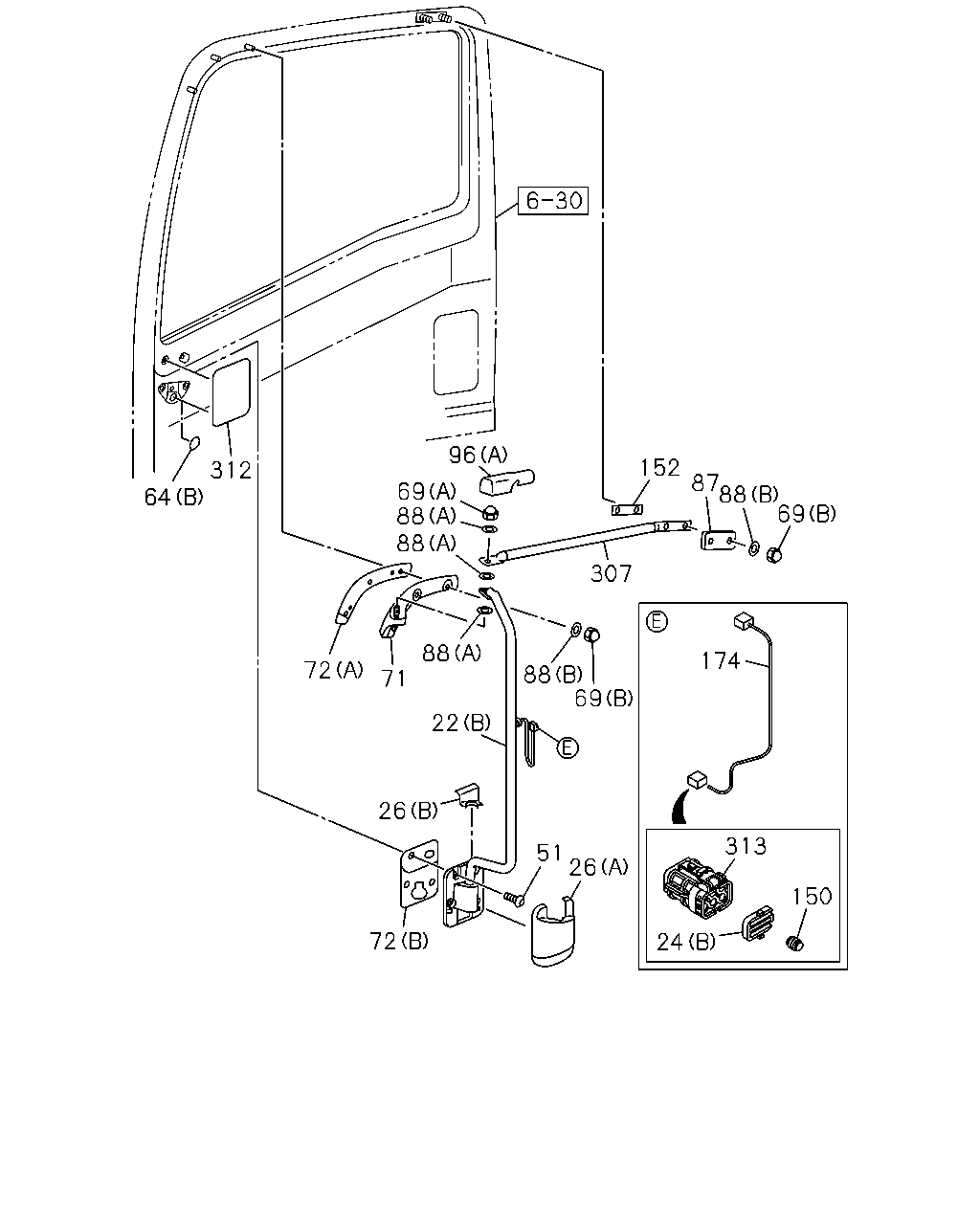

312 64 96 69 88 88 152 69 88 87 307 174 69 88 88 71 72 22 26 72 51 26 313 150 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98038-224-1	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98027-519-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-509-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-048-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-184-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-049-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-185-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-046-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-182-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-047-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-183-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-034-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-035-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-041-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-042-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-032-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-846-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-033-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-847-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-039-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-848-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-040-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-849-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1111-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-94447-536-0	02	1	1009-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6	8-94262-546-1	01	1	1009-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6	8-94262-546-1	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1009-	●	●	●	●	●	●
51	16.069 SCREW; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.323 M8X23	8-97310-216-1	08	1	1009-	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1111-	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1009-1202	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1203-	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1009-	●	●	●	●	●	●
69	16.069 NUT; CAP O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT	8-98059-913-0	02	1	1009-1404	●	●	●	●	●	●
69	16.069 NUT; CAP O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT	1-09984-134-0	02	1	1405-	●	●	●	●	●	●
69	16.069 NUT; CAP O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) M8 CAP NUT	8-98059-914-0	10	1	1009-	●	●	●	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98031-793-2	01	1	1009-	●	●	●	●	●	●
71	16.069 BRACKET; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98031-794-2	01	1	1009-	●	●	●	●	●	●
72	16.069 SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-796-0	01	1	1009-	●	●	●	●	●	●
72	16.069 SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-797-0	01	1	1009-	●	●	●	●	●	●
72	16.069 SHEET O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98080-418-0	02	1	1009-	●	●	●	●	●	●
87	16.069 SPACER O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98063-789-0	02	1	1009-	●	●	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1009-	●	●	●	●	●	●
88	16.069 WASHER; PL,SUPPORT STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1111-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1009-	●	●	●	●	●	●
150	08.155 PLUG; MIRROR HOLE O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	1-82691-026-0	02	1	1009-	●	●	●	●	●	●
152	16.069 SHEET; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98063-786-0	02	1	1009-	●	●	●	●	●	●
174	16.068 HARNESS; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-98137-208-0	02	1	1009-	●	●	●	●	●	●
307	16.069 STAY; MIRROR SUPPORT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98063-784-2	01	1	1009-	●	●	●	●	●	●
307	16.069 STAY; MIRROR SUPPORT O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98063-785-2	01	1	1009-	●	●	●	●	●	●
312	16.081 TAPE O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML>	8-98164-812-0	02	1	1009-	●	●	●	●	●	●
313	02.195 CONNECTOR; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV>	8-94447-532-0	02	1	1009-	●	●	●	●	●	●

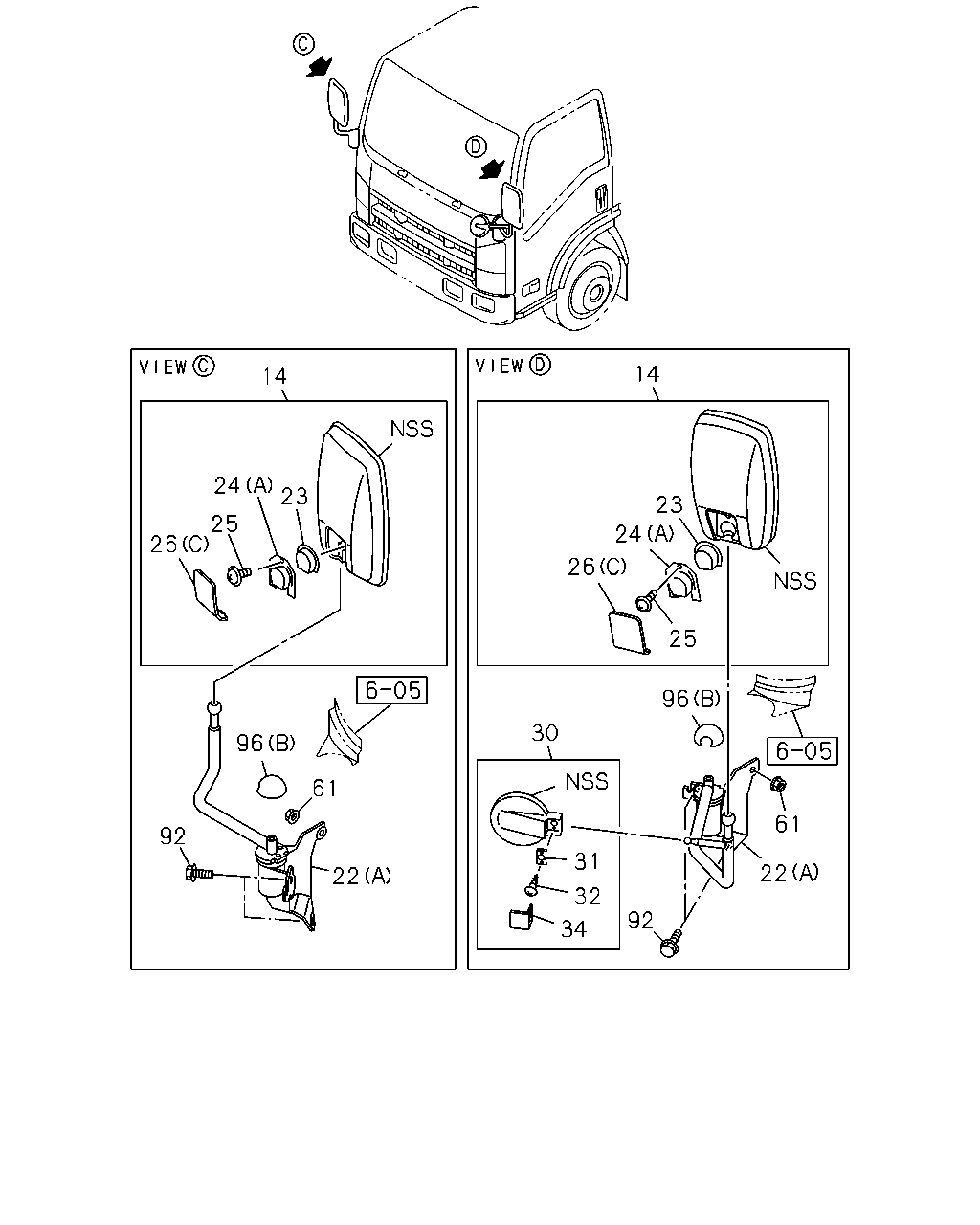

14 14 23 24 26 25 23 24 26 25 96 61 22 92 31 30 32 34 22 61 96 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1009-	●	●	●	●	●	●
14	16.068 MIRROR ASM; OUTSIDE O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-542-3	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98038-224-1	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98027-519-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-509-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-048-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-184-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-049-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-185-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-046-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-182-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-047-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-183-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-034-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-035-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-041-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-042-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-032-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-846-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-033-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-847-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-039-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-848-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-040-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-849-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1111-	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1009-	●	●	●	●	●	●
23	16.069 WASHER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0	8-94262-545-0	01	1	1009-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-94447-536-0	02	1	1009-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6	8-94262-546-1	01	1	1009-	●	●	●	●	●	●
24	16.069 HOLDER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A) T=1.6	8-94262-546-1	01	1	1009-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1009-	●	●	●	●	●	●
25	16.069 SCREW; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30	8-94279-365-0	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-802-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98031-803-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98031-805-0	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B)	8-98031-806-0	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1009-	●	●	●	●	●	●
26	16.069 COVER; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (C) T=2.3	8-94262-547-2	01	1	1009-	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-625-2	01	1	1009-1110	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-625-2	01	1	1111-	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-631-0	01	1	1009-1110	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-631-0	01	1	1111-	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18	8-94279-372-0	02	1	1009-1110	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M5X18	8-94279-372-0	02	1	1111-	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-629-0	01	1	1009-1110	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-629-0	01	1	1111-	●	●	●	●	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●	●	●	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1111-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1009-	●	●	●	●	●	●

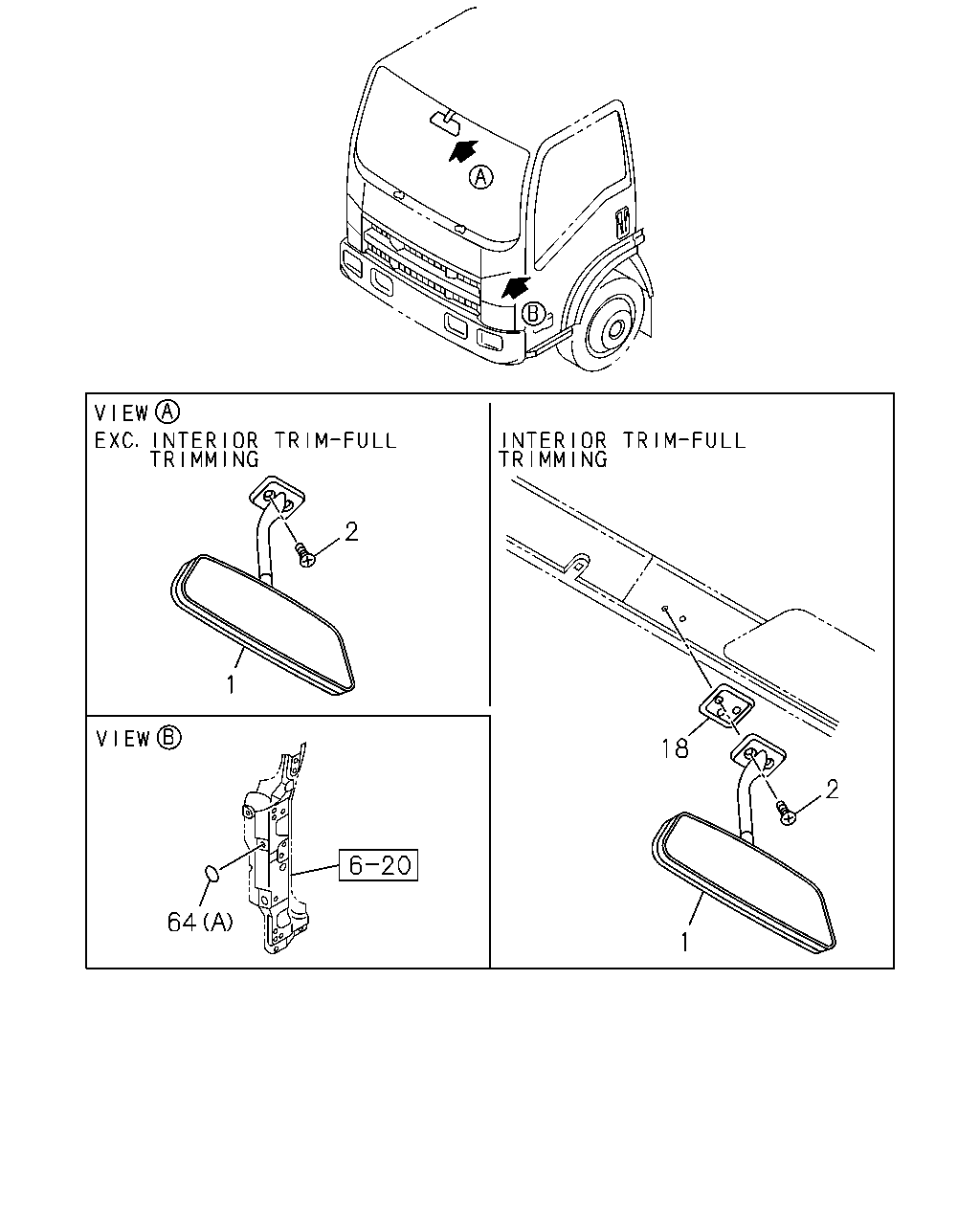

1 2 64 18 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.068 MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1009-	●	●	●	●	●	●
2	16.069 SCREW; MIRROR TO BODY 16.070 M6X26	8-98033-674-0	02	1	1009-	●	●	●	●	●	●
18	16.069 CLIP; MIRROR INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY	8-97408-241-0	01	1	1009-	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	1111-	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1009-1202	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. UNDER MIRROR<RR9> 16.165 (A) OD=25 BLACK	1-76798-019-0	02	1	1203-	●	●	●	●	●	●
64	16.069 SEAL; MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (B) OD=52 BLACK	1-76798-041-0	02	1	1009-	●	●	●	●	●	●

30 96 61 22 92 32 34 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98038-224-1	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (A)	8-98027-519-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> (A)	8-98070-509-0	01	1	1009-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-048-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-184-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98075-049-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (B)	8-98166-185-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-046-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-182-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-047-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98166-183-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-034-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-176-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98075-035-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (B)	8-98166-177-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-041-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-178-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98075-042-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (B)	8-98166-179-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-032-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-846-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-033-0	01	1	1009-1204	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-847-0	01	1	1205-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-039-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-848-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98075-040-0	01	1	1009-1202	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (B)	8-98158-849-0	01	1	1203-	●	●	●	●	●	●
22	16.069 STAY; OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (C)	8-98081-403-0	01	1	1111-	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-625-2	01	1	1009-1110	●	●	●	●	●	●
30	16.068 MIRROR; UNDER UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-625-2	01	1	1111-	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-631-0	01	1	1009-1110	●	●	●	●	●	●
31	16.069 PLATE; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-631-0	01	1	1111-	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M5X18	8-94279-372-0	02	1	1009-1110	●	●	●	●	●	●
32	16.069 SCREW; UNDER MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> M5X18	8-94279-372-0	02	1	1111-	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>	8-94262-629-0	01	1	1009-1110	●	●	●	●	●	●
34	16.069 CAP; MIRROR UNDER MIRROR<RR9> O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF>,DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-94262-629-0	01	1	1111-	●	●	●	●	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 01.062 M8 FLANGE	0-91180-108-0	01	1	1111-	●	●	●	●	●	●
61	16.069 NUT; STAY,OUTSIDE MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1111-	●	●	●	●	●	●
92	16.069 BOLT; STAY BRKT,MIRROR O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> UNDER MIRROR<RR9> (B)	8-98027-552-2	01	1	1111-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A)	8-98080-173-0	02	1	1009-	●	●	●	●	●	●
96	16.069 CAP; MIRROR STAY O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> (B)	8-98027-552-2	02	1	1009-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
