◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#77433) — 14 parça

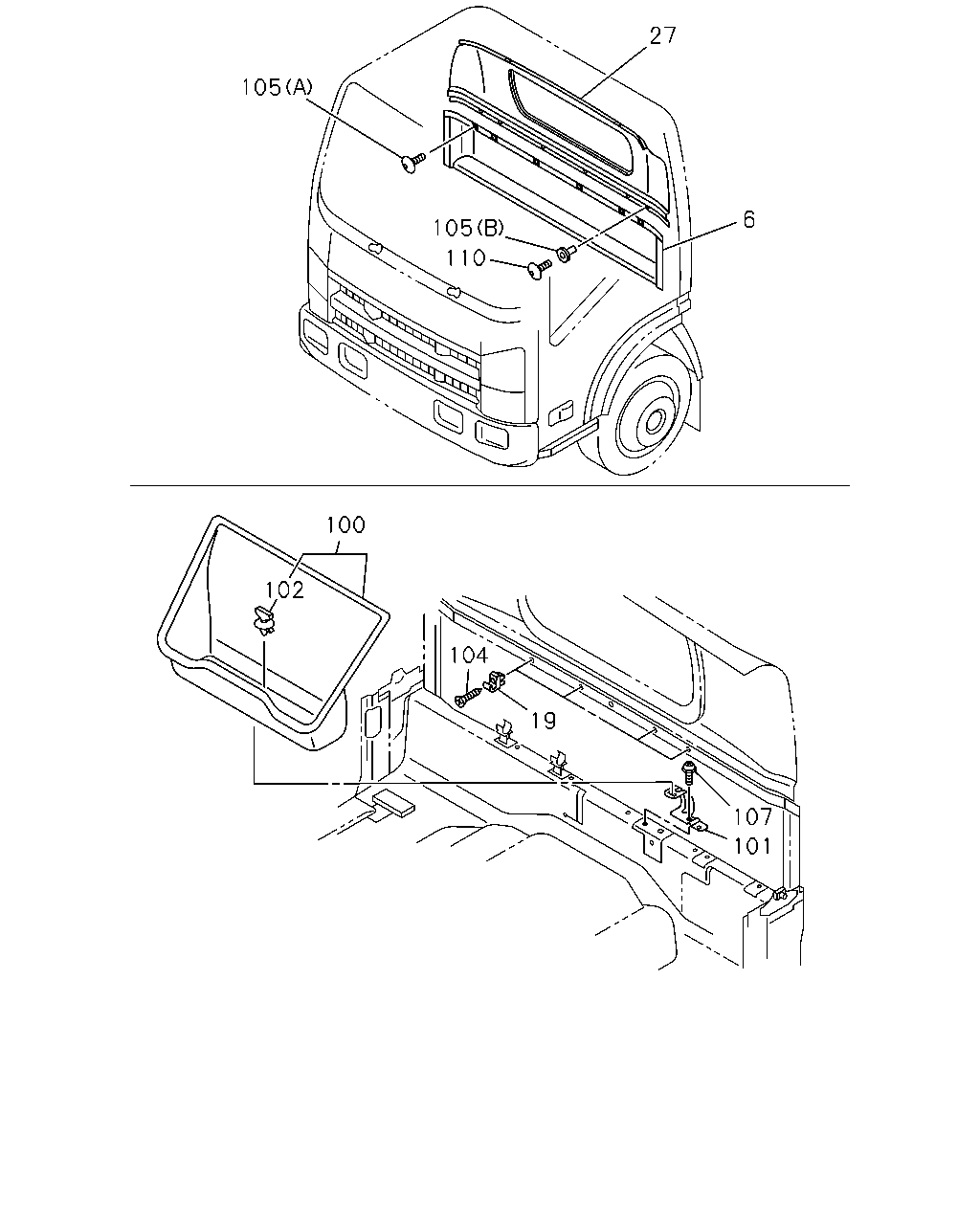

çizim 132389
105 105 110 6 27 102 100 104 19 107 101
BalonParca AdiParca NoAdetTipApplied Date A B C
6 16.592 MAT; SILENCER,CAB BACK
GRAY 		8-97405-289-3 01 1 1009- ● ●
6 16.592 MAT; SILENCER,CAB BACK
EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-289-3 01 1 1009- ●
6 16.592 MAT; SILENCER,CAB BACK
INSPECTION ENGINE COVER<8GA> GRAY 		8-97405-290-3 01 1 1009- ●
19 16.165 HOOK; RET
GRAY 		8-97406-042-0 04 1 1009- ● ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97417-129-1 01 1 1009- ● ● ●
100 16.587 TRAY; BACK PANEL
GRAY 		8-97405-174-1 01 1 1009- ● ● ●
101 17.225 BRACKET; TRAY,BACK PANEL 8-98029-438-1 01 1 1009- ● ● ●
102 16.584 CLIP; TRAY,BACK PANEL
GRAY 		8-97406-996-0 01 1 1009- ● ● ●
104 17.225 SCREW; BACK TRIM
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 04 1 1009- ● ● ●
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-FULL TRIMMING<WM3> 16.587 (B) 		8-98033-680-0 02 1 1009- ● ● ●
105 16.166 CLIP; BACK TRIM
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) GRAY 		8-97405-295-0 02 1 1009-1108 ● ● ●
105 16.166 CLIP; BACK TRIM
INTERIOR TRIM-SEMI TRIMMING<SEV> (A) GRAY 		8-97405-295-0 02 1 1109- ● ● ●
107 16.588 SCREW; BRKT
16.570 M6X16 		0-38050-616-0 01 1 1009- ● ● ●
110 16.587 CLIP; TRIM COVER
INTERIOR TRIM-FULL TRIMMING<WM3> 16.166 GRAY 		8-97406-433-0 02 1 1009- ● ● ●
