Isuzu WW
▶
TRUCKS
▶
NNR
▶
51276 - NNR/NPR/NQR AUST/NZ EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#77430) — 25 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5SS
D - NPR5WE
E - NPR5WN
F - NPR5WS
◀

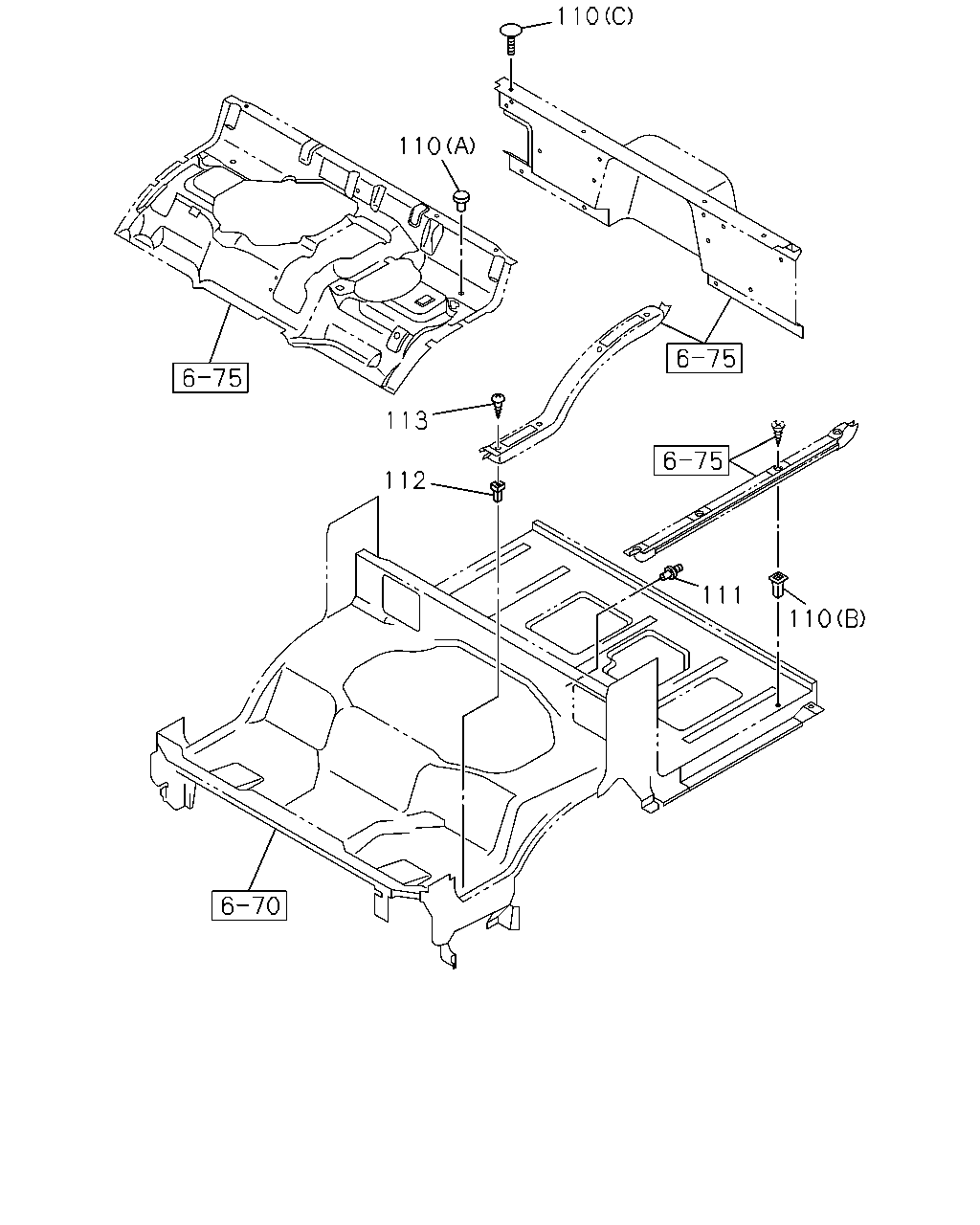

[678A] DBL CAB (14 parça)

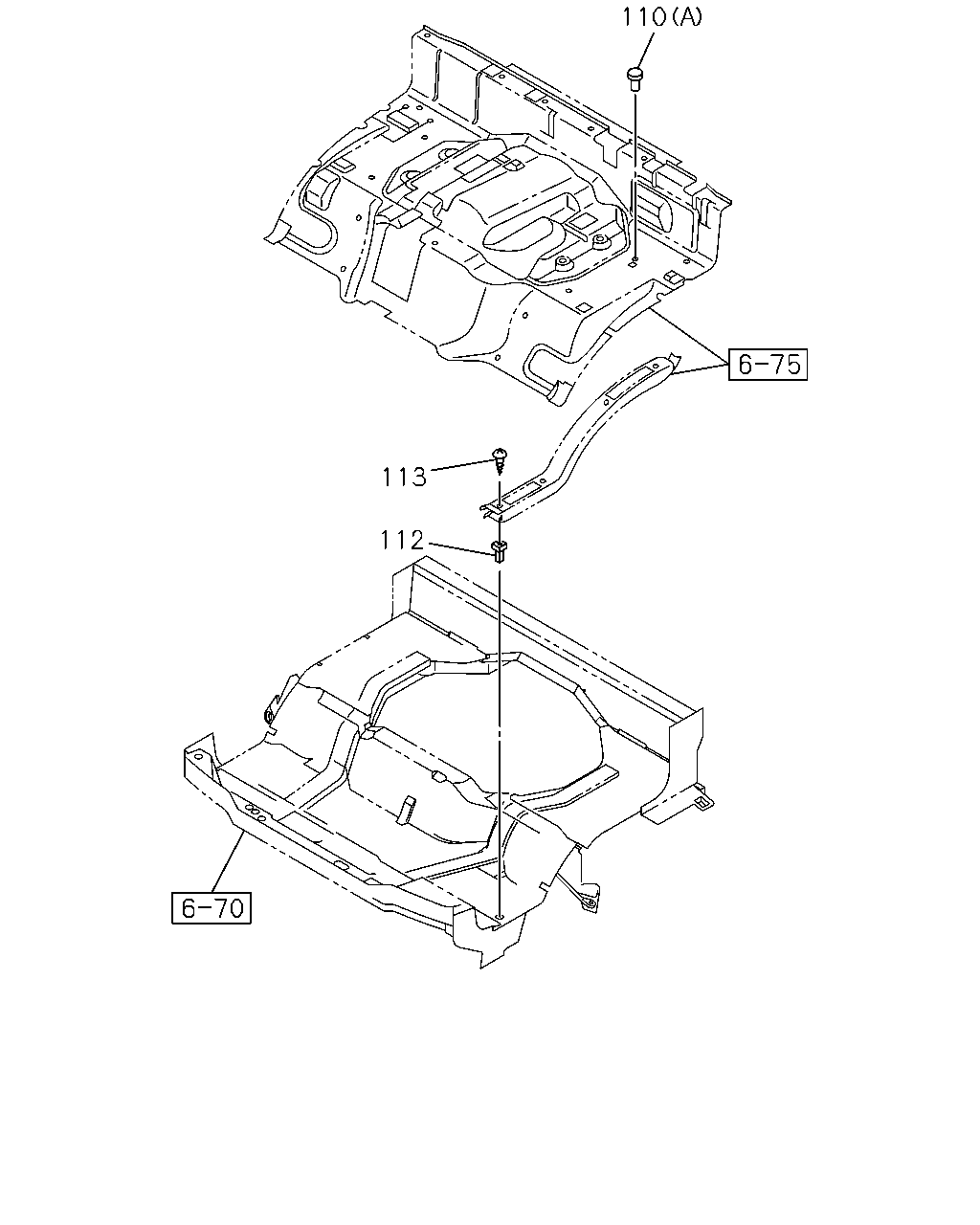

[678A] SGL CAB (11 parça)
▶
110
110
113
112
111
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
11
1
1009-
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
11
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
10
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK
8-94279-089-0
04
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK
8-94279-089-0
02
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
02
1
1009-
●
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
09
1
1009-
●
●
●
110
16.802 FASTENER; FLOOR MAT
04.931 (B) H=15
8-94463-268-1
08
1
1009-
●
●
●
110
16.802 FASTENER; FLOOR MAT
16.742 (C) DARK GRAY
8-97098-326-0
04
1
1009-
●
●
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK
8-94279-089-0
08
1
1009-
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HK1-TCN ENG(RDQ) 16.802 BLACK
8-94279-089-0
11
1
1009-
●
111
16.800 FASTENER; FLOOR MAT,CAB RR MTG
4HK1-TCS ENG(RJS) 16.802 BLACK
8-94279-089-0
11
1
1009-
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
08
1
1009-
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1009-
●
●
●
●
●
●
110
113
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
11
1
1009-
●
●
110
16.802 FASTENER; FLOOR MAT
EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
11
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
INSPECTION ENGINE COVER<8GA> (A) BLACK
8-94279-089-0
10
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK
8-94279-089-0
04
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK
8-94279-089-0
02
1
1009-
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
02
1
1009-
●
●
110
16.802 FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
09
1
1009-
●
●
●
110
16.802 FASTENER; FLOOR MAT
04.931 (B) H=15
8-94463-268-1
08
1
1009-
●
●
●
110
16.802 FASTENER; FLOOR MAT
16.742 (C) DARK GRAY
8-97098-326-0
04
1
1009-
●
●
●
112
16.800 GROMMET; SCREW,TRIM COVER
04.931 H=15
8-94463-268-1
08
1
1009-
●
●
●
●
●
●
113
16.800 SCREW; TRIM COVER
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1009-
●
●
●
●
●
●
