6-76 — FLOOR EQUIPMENT AND SEALING (#77429) — 210 parça

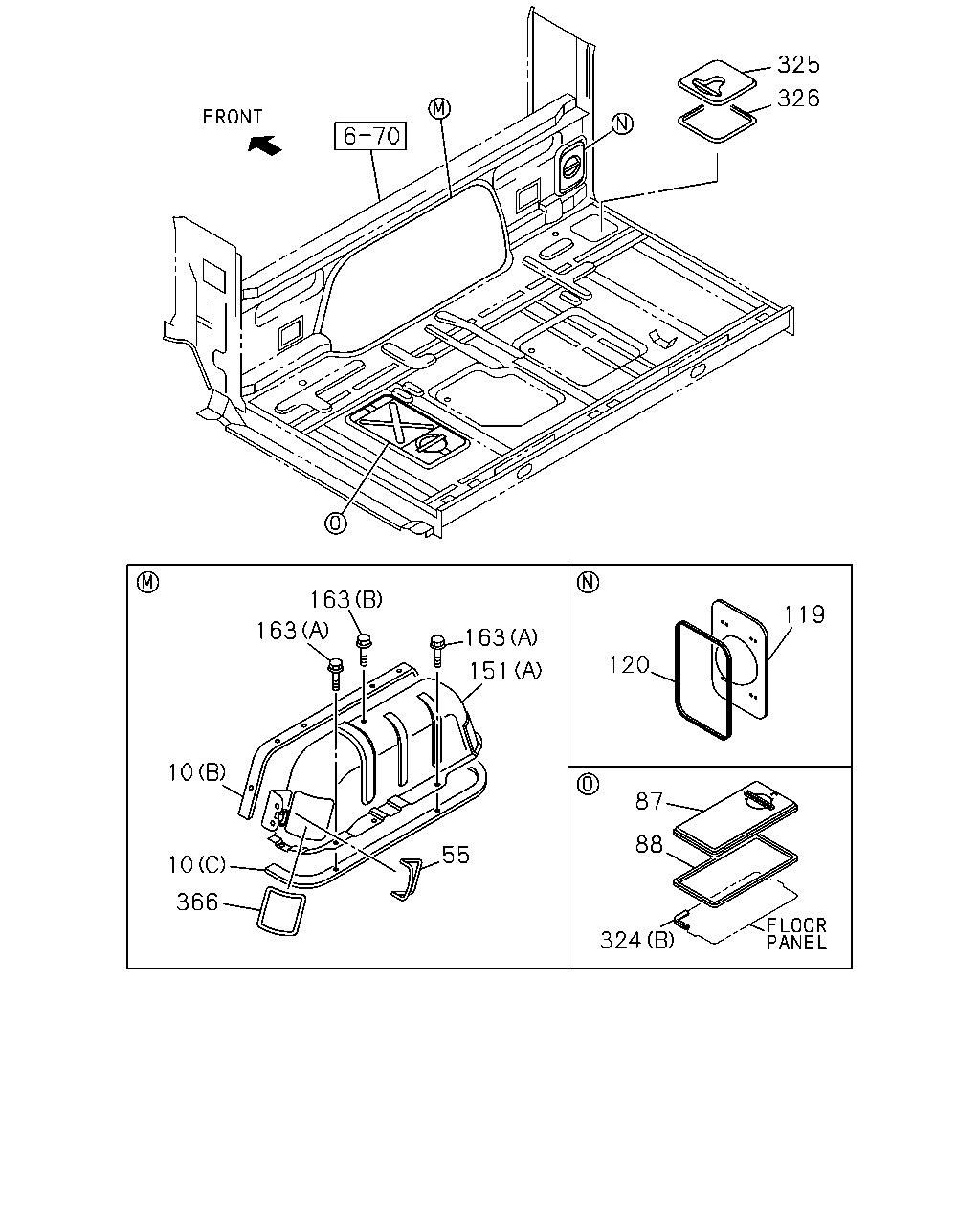

çizim 132183
325 326 163 163 163 151 55 10 10 366 120 119 87 88 324
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1009- ● ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (D) 		8-97853-660-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (E) 		8-97853-661-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (C) 		8-98006-852-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (C) 		8-98006-852-0 01 1 1009- ●
55 16.549 SEAL; SUPPORT COVER
4HK1-TCN ENG(RDQ) 		8-97583-500-1 01 1 1009- ●
55 16.549 SEAL; SUPPORT COVER
4HK1-TCS ENG(RJS) 		8-97583-500-1 01 1 1009- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 1009- ● ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 1009- ● ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 1009- ● ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 1009- ● ● ●
151 16.549 COVER ASM; ENG
4JJ1-TCS ENG(LFB) (B) 		8-97850-241-3 01 1 1009- ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ) (A) 		8-98043-008-4 01 1 1009- ●
151 16.549 COVER ASM; ENG
4HK1-TCS ENG(RJS) (A) 		8-98043-008-4 01 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JJ1-TCS ENG(LFB) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 08 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 1009- ● ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 11 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 11 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 03 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 03 1 1009- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1009- ● ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 1009- ● ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 1009- ● ● ●
366 16.545 FINISHER; COVER
4HK1-TCN ENG(RDQ) 		8-97583-501-0 01 1 1009- ●
366 16.545 FINISHER; COVER
4HK1-TCS ENG(RJS) 		8-97583-501-0 01 1 1009- ●

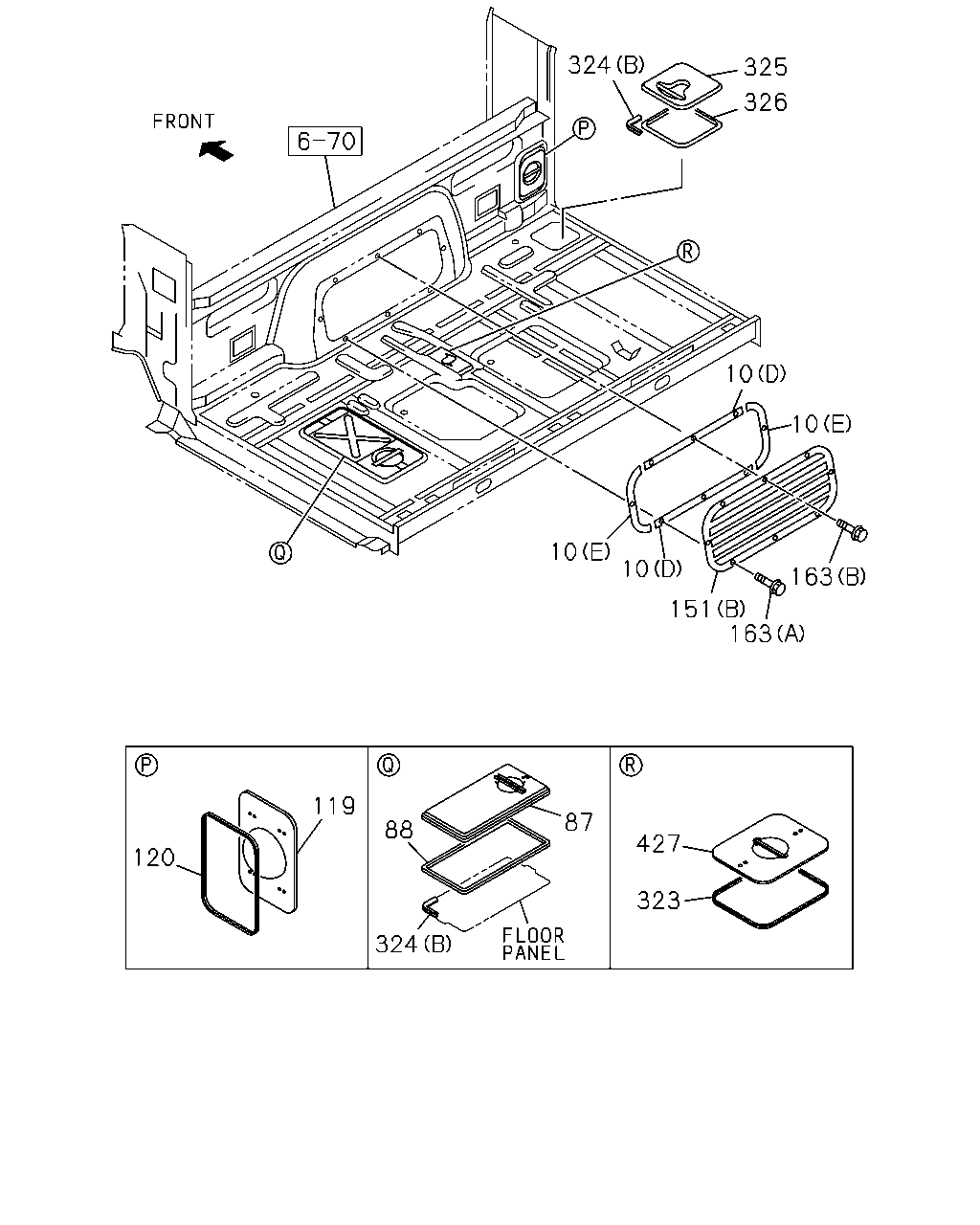

çizim 132231
324 325 326 10 10 163 10 10 151 163 120 119 88 87 324 427 323
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1009- ● ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (D) 		8-97853-660-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (E) 		8-97853-661-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (C) 		8-98006-852-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (C) 		8-98006-852-0 01 1 1009- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 1009- ● ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 1009- ● ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 1009- ● ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 1009- ● ● ●
151 16.549 COVER ASM; ENG
4JJ1-TCS ENG(LFB) (B) 		8-97850-241-3 01 1 1009- ●
151 16.549 COVER ASM; ENG
4HK1-TCN ENG(RDQ) (A) 		8-98043-008-4 01 1 1009- ●
151 16.549 COVER ASM; ENG
4HK1-TCS ENG(RJS) (A) 		8-98043-008-4 01 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JJ1-TCS ENG(LFB) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 08 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
03.162 (B) M6X20 FLANGE 		0-28650-620-0 01 1 1009- ● ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCN ENG(RDQ) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 11 1 1009- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCS ENG(RJS) 02.343 (A) M6X16 FLANGE 		0-28650-616-0 11 1 1009- ●
323 16.549 SEAL; COVER,A/T OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-443-2 01 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 03 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 03 1 1009- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1009- ● ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 1009- ● ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 1009- ● ● ●
427 16.549 COVER; SMOOTHER OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-442-2 01 1 1009- ●

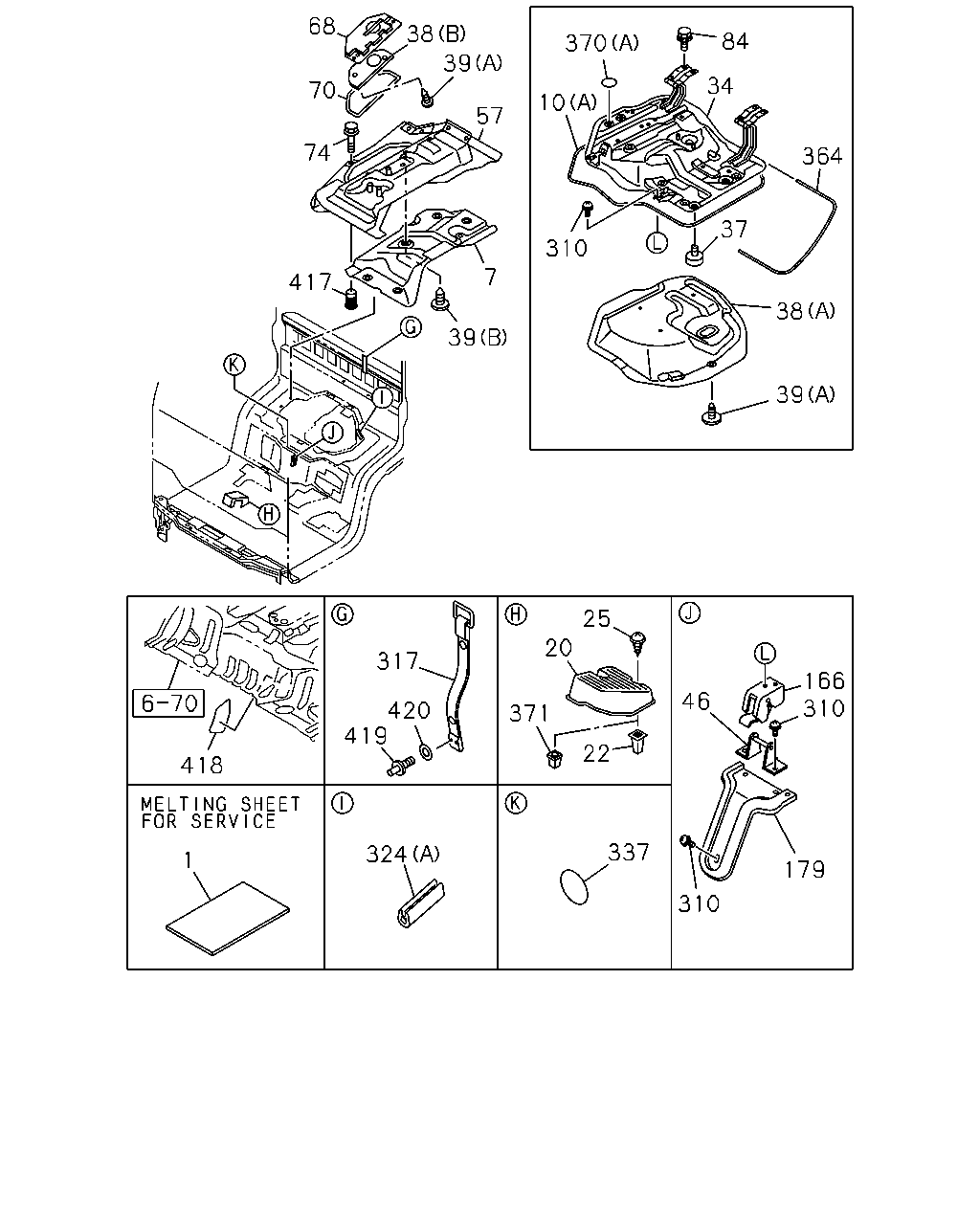

çizim 187199
68 70 74 57 39 38 7 39 417 310 37 370 10 84 34 364 38 39 418 1 324 419 317 420 371 20 25 22 337 46 179 310 310 166
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 1009- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-175-1 01 1 1009-1401 ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-175-1 01 1 1009-1401 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98242-228-0 01 1 1402- ●
7 16.545 INSULATOR; SUPPORT COVER 8-98242-228-0 01 1 1402- ● ● ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1009- ● ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (D) 		8-97853-660-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (E) 		8-97853-661-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (C) 		8-98006-852-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (C) 		8-98006-852-0 01 1 1009- ●
20 16.547 REST; FOOT
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 		8-98032-754-0 01 1 1009- ● ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 04.931 H=15 		8-94463-268-1 02 1 1009- ● ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1009- ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97587-395-3 01 1 1009- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97587-395-3 01 1 1009- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 1009- ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 1009- ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 1009-1401 ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 1009-1401 ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98242-234-0 01 1 1402- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-98242-234-0 01 1 1402- ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-182-2 01 1 1009-1401 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-182-2 01 1 1009-1401 ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-226-0 01 1 1402- ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-98242-226-0 01 1 1402- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1009- ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 1009- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1009- ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1009- ● ● ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1009- ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1009- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97587-400-3 01 1 1009- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97587-400-3 01 1 1009- ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1009- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1009- ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1009- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1009- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1009- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1009- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1009- ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1009- ● ● ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1009- ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 1009- ● ● ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1009- ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 1009- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1009- ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 1009- ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 1009- ● ● ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1009- ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 1009- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 03 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 03 1 1009- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1009- ● ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 1009- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 1009- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1009- ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=25 BLACK 		1-76798-019-0 23 1 1009- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1009- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1009- ● ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1009- ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 1009- ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ● ●
371 16.549 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 1009- ● ● ● ● ● ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 1009- ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 1009- ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1009- ● ● ● ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1009- ● ● ● ● ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1009- ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 1009- ● ● ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1009- ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1009- ● ● ●

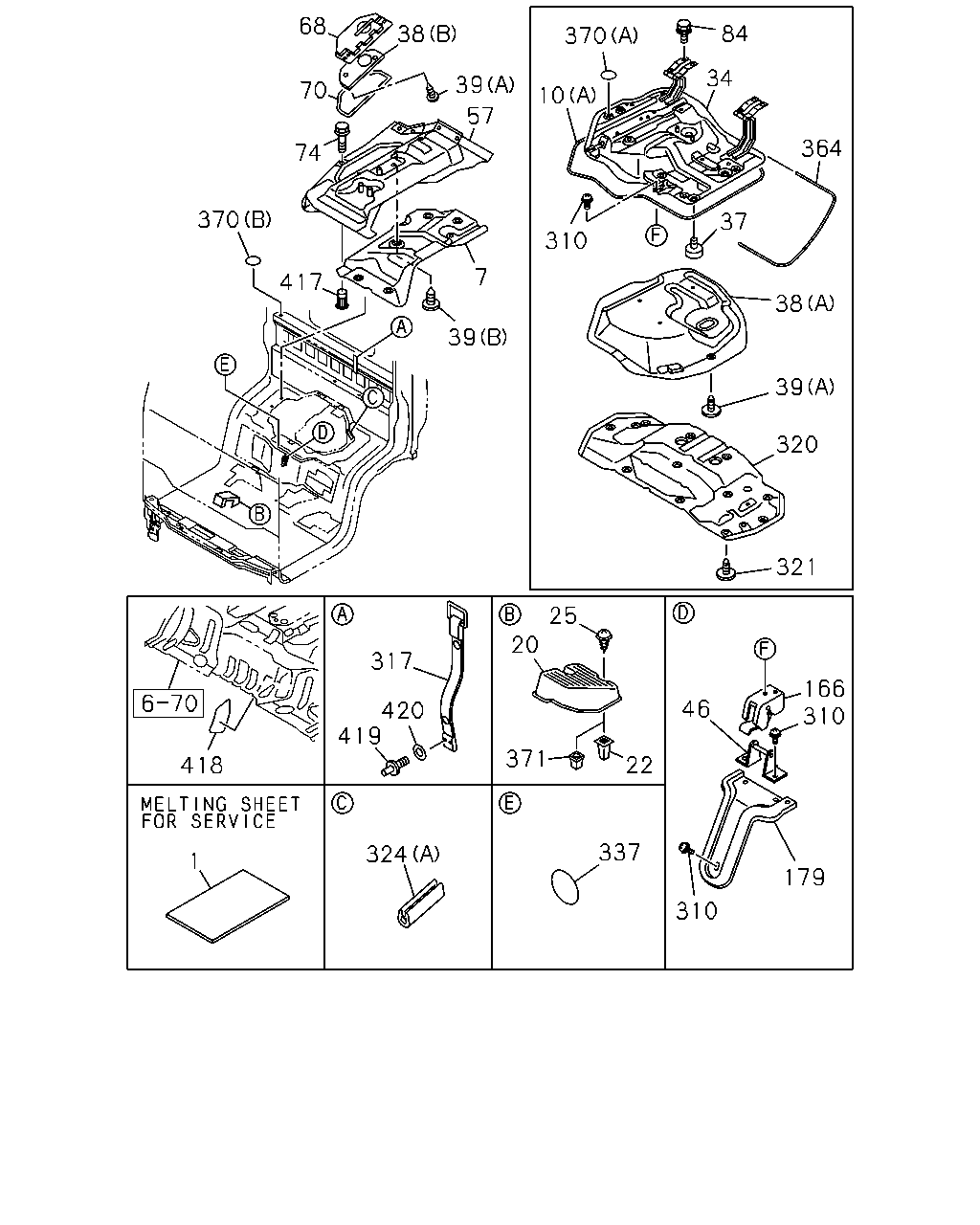

çizim 187206
68 38 39 57 70 74 370 417 7 39 317 420 419 418 1 324 337 22 25 20 371 46 166 310 179 310 321 320 39 38 37 310 10 370 84 34 364
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ON LY 		8-94262-093-0 AR 1 1009- ● ● ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-175-1 01 1 1009-1401 ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-175-1 01 1 1009-1401 ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-98242-228-0 01 1 1402- ●
7 16.545 INSULATOR; SUPPORT COVER 8-98242-228-0 01 1 1402- ● ● ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 1009- ● ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (D) 		8-97853-660-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (E) 		8-97853-661-0 02 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (B) 		8-98006-847-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCN ENG(RDQ) (C) 		8-98006-852-0 01 1 1009- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (C) 		8-98006-852-0 01 1 1009- ●
20 16.547 REST; FOOT
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 		8-98032-754-0 01 1 1009- ● ● ● ● ● ●
22 16.547 GROMMET; SCREW,FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 04.931 H=15 		8-94463-268-1 02 1 1009- ● ● ● ● ● ●
25 16.549 SCREW; FOOT REST
EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 02 1 1009- ● ● ● ● ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97587-395-3 01 1 1009- ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97587-395-3 01 1 1009- ● ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 1009- ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 1009- ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 1009-1401 ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 1009-1401 ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98242-234-0 01 1 1402- ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-98242-234-0 01 1 1402- ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-182-2 01 1 1009-1401 ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-182-2 01 1 1009-1401 ● ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-98242-226-0 01 1 1402- ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-98242-226-0 01 1 1402- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 1009- ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 1009- ● ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1009- ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 1009- ● ● ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 1009- ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 1009- ● ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97587-400-3 01 1 1009- ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97587-400-3 01 1 1009- ● ● ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 1009- ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 1009- ● ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 1009- ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 1009- ● ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1009- ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 1009- ● ● ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1009- ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 1009- ● ● ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 1009- ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 1009- ● ● ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 1009- ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 1009- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1009- ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 1009- ● ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 1009- ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 1009- ● ● ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 1009- ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 1009- ● ● ●
320 16.549 INSULATOR; FLOOR,FRT 8-97586-164-7 01 1 1009-1312 ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-164-7 01 1 1009-1312 ●
320 16.549 INSULATOR; FLOOR,FRT 8-98242-225-0 01 1 1401- ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-98242-225-0 01 1 1401- ●
321 16.549 CLIP; INSULATOR,FLOOR
08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 1009- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 03 1 1009- ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 03 1 1009- ● ● ●
324 16.545 FINISHER; FLOOR PANEL
16.742 (B) L=120 		1-73948-004-0 02 1 1009- ● ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 04 1 1009- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 1009- ● ● ● ● ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 1009- ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=25 BLACK 		1-76798-019-0 23 1 1009- ● ● ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 1009- ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 1009- ● ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1009- ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 1009- ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 1009- ● ● ●
371 16.549 GROMMET; LOCATION HOLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK 		8-94279-714-0 02 1 1009- ● ● ● ● ● ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 1009- ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 1009- ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 1009- ● ● ● ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 1009- ● ● ● ● ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 1009- ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 1009- ● ● ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1009- ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
