◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#77428) — 55 parça

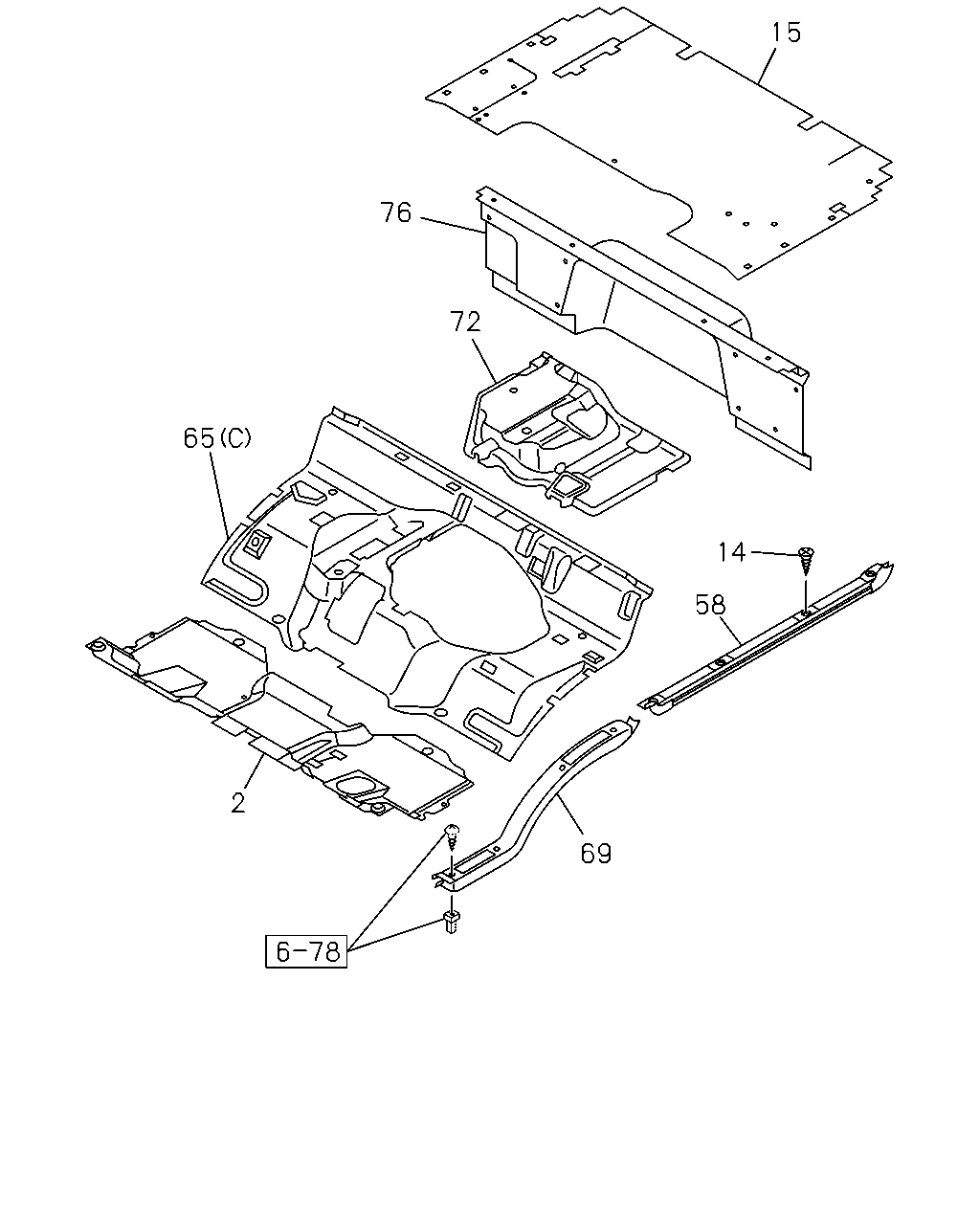

çizim 132559
15 76 72 65 14 58 69 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1009- ● ● ● ● ●
2 16.800 MAT; FLOOR
STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1009- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1009- ● ● ● ● ●
2 16.800 MAT; FLOOR
STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1009- ●
14 16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1009- ● ● ●
15 16.800 MAT; FLOOR REAR
4HK1-TCN ENG(RDQ) GRAY 		8-97412-602-1 01 1 1009- ●
15 16.800 MAT; FLOOR REAR
4HK1-TCS ENG(RJS) GRAY 		8-97412-602-1 01 1 1009- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97412-603-2 01 1 1009- ●
15 16.800 MAT; FLOOR REAR
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97412-601-2 01 1 1009- ●
58 08.153 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1009- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-681-1 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97415-683-2 01 1 1009-1101 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE 		8-97423-067-0 01 1 1102- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
CUSTOM PACKAGE<YM8> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97407-275-4 01 1 1009-1101 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
CUSTOM PACKAGE<YM8> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK BLUE 		8-97423-066-0 01 1 1102- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1009- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1009- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1009- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1009- ● ● ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4JJ1-TCS ENG(LFB) GRAY 		8-97405-204-4 01 1 1009- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97412-600-1 01 1 1009-1511 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY 		8-97412-600-1 01 1 1009-1511 ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCN ENG(RDQ) GRAY 		8-97467-183-0 01 1 1512- ●
76 16.800 MAT; FLOOR,REINF,CAB RR MTG
4HK1-TCS ENG(RJS) GRAY 		8-97467-183-0 01 1 1512- ●

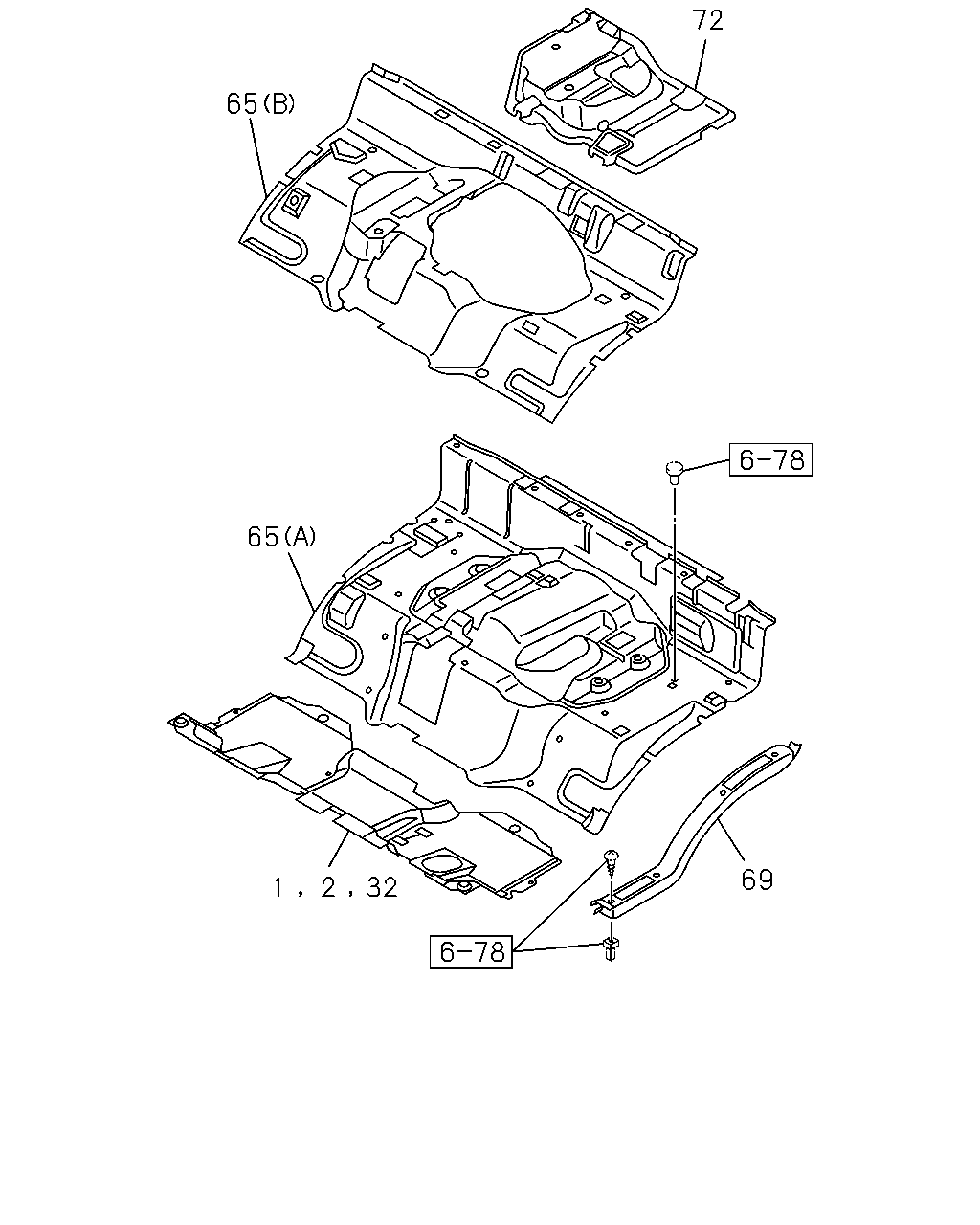

çizim 187205
65 72 65 1 2 32 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.850 CARPET; FLOOR,FRT
CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97407-274-2 01 1 1009-1101 ●
1 16.850 CARPET; FLOOR,FRT
CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK GRAY 		8-97407-273-2 01 1 1009-1101 ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1009- ● ● ● ● ●
2 16.800 MAT; FLOOR
STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY 		8-97405-148-6 01 1 1009- ●
2 16.800 MAT; FLOOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1009- ● ● ● ● ●
2 16.800 MAT; FLOOR
STANDARD CAB<SAY> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY 		8-97405-147-6 01 1 1009- ●
32 16.800 CARPET; FLOOR
CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER(8GF) DARK BLUE 		8-97423-061-0 01 1 1102- ●
32 16.800 CARPET; FLOOR
CUSTOM PACKAGE<YM8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DARK BLUE 		8-97423-060-0 01 1 1102- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97415-681-1 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-122-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97405-198-6 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1304- ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97405-200-6 01 1 1009-1303 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1304- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97415-683-2 01 1 1009-1101 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3> CUSTOM PACKAGE<YM8> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK BLUE 		8-97423-067-0 01 1 1102- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
CUSTOM PACKAGE<YM8> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK GRAY 		8-97407-275-4 01 1 1009-1101 ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
CUSTOM PACKAGE<YM8> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,INSPECTION ENGINE COVER<8GA> (A) DARK BLUE 		8-97423-066-0 01 1 1102- ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97405-201-5 01 1 1009-1303 ● ● ●
65 16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1304- ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1009- ● ● ● ● ● ●
69 16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1009- ● ● ● ● ● ●
72 16.800 MAT; SILENCER,ENG COVER
STANDARD CAB<SAY> INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1009- ●
72 16.800 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1009- ● ● ●
