51276 - NNR/NPR/NQR AUST/NZ EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-52 - REAR DOOR LOCK AND HANDLE
▶
6-52 — REAR DOOR LOCK AND HANDLE
(#77423) — 32 parça
Tümü
A - NPR5WE
B - NPR5WN
C - NPR5WS
◀

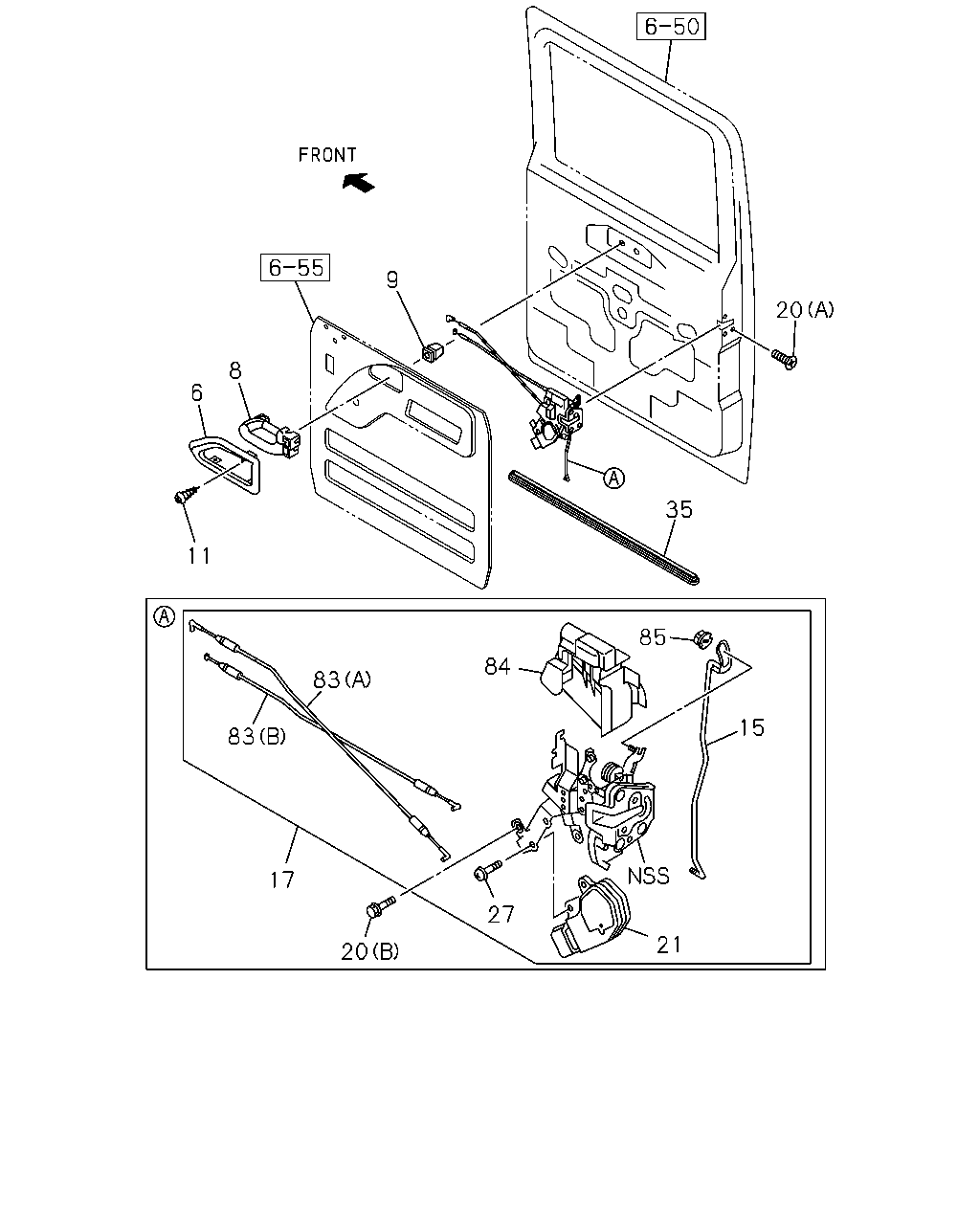

[652A] NO.1 (25 parça)
[652A] NO.2 (7 parça)
▶
20
9
8
6
11
83
84
85
35
15
21
27
20
17
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97405-311-0
01
1
1009-
●
●
●
6
16.345 BEZEL; INSIDE HANDLE,DOOR LOCK
DARK GRAY
8-97405-312-0
01
1
1009-
●
●
●
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97409-816-0
01
1
1009-
●
●
●
8
16.345 HANDLE; INSIDE,RR DOOR
DARK GRAY
8-97409-817-0
01
1
1009-
●
●
●
9
16.345 GROMMET; SCREW,INSIDE HANDLE
01.269 D=8.6X7.7 L=7.5
8-94279-078-0
02
1
1009-
●
●
●
11
16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
02
1
1009-
●
●
●
15
16.341 LINK; RR DOOR LK
8-98058-335-0
01
1
1009-
●
●
●
15
16.341 LINK; RR DOOR LK
8-98058-336-0
01
1
1009-
●
●
●
17
16.330 LOCK; DOOR,RR DOOR
8-97587-658-3
01
1
1009-1203
●
●
●
17
16.330 LOCK; DOOR,RR DOOR
8-98202-461-0
01
1
1204-
●
●
●
17
16.330 LOCK; DOOR,RR DOOR
8-97587-659-3
01
1
1009-1203
●
●
●
17
16.330 LOCK; DOOR,RR DOOR
8-98202-462-0
01
1
1204-
●
●
●
20
16.330 SCREW; DOOR LK
03.671 (B) M6X10 FLANGE
0-28050-610-0
02
1
1009-
●
●
●
20
16.330 SCREW; DOOR LK
(A) M6X14.5
8-98004-342-0
06
1
1009-
●
●
●
21
16.345 ACTUATOR; RR DOOR LOCK
8-98058-231-0
01
1
1009-
●
●
●
21
16.345 ACTUATOR; RR DOOR LOCK
16.263
8-98089-562-0
01
1
1009-
●
●
●
27
16.330 SCREW; RR DOOR LOCK
8-97310-549-0
04
1
1009-
●
●
●
35
16.155 PLUG; RR DOOR LWR HOLE
8-98009-201-4
02
1
1009-
●
●
●
83
16.341 CABLE ASM; LOCK CONTROL
(A)
8-98058-342-0
01
1
1009-
●
●
●
83
16.341 CABLE ASM; LOCK CONTROL
(A)
8-98058-344-0
01
1
1009-
●
●
●
83
16.341 CABLE ASM; LOCK CONTROL
(B)
8-98058-345-0
02
1
1009-
●
●
●
84
16.270 COVER; DOOR LOCK
8-98058-238-0
01
1
1009-
●
●
●
84
16.270 COVER; DOOR LOCK
8-98058-239-0
01
1
1009-
●
●
●
85
16.155 SNAP; RR DOOR LOCK
16.335 NATURAL
8-98058-226-0
01
1
1009-
●
●
●
85
16.155 SNAP; RR DOOR LOCK
16.335 BLUE
8-98058-227-0
01
1
1009-
●
●
●
3
14
1
30
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.360 HANDLE; OUTSIDE,RR DOOR
8-98040-991-2
01
1
1009-
●
●
●
1
16.360 HANDLE; OUTSIDE,RR DOOR
8-98040-992-2
01
1
1009-
●
●
●
3
16.350 BOLT; DOOR OUTSIDE HANDLE
03.671 M6X10 FLANGE
0-28050-610-0
04
1
1009-
●
●
●
14
16.330 HOLDER; DOOR LK ROD
WHITE
8-97333-303-0
01
1
1009-
●
●
●
14
16.330 HOLDER; DOOR LK ROD
16.350 BLACK
8-98095-813-0
01
1
1009-
●
●
●
30
16.335 STRIKER; RR DOOR
8-98029-173-2
02
1
1009-
●
●
●
32
16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD
8-98004-343-2
04
1
1009-
●
●
●
