◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#7742) — 60 parça

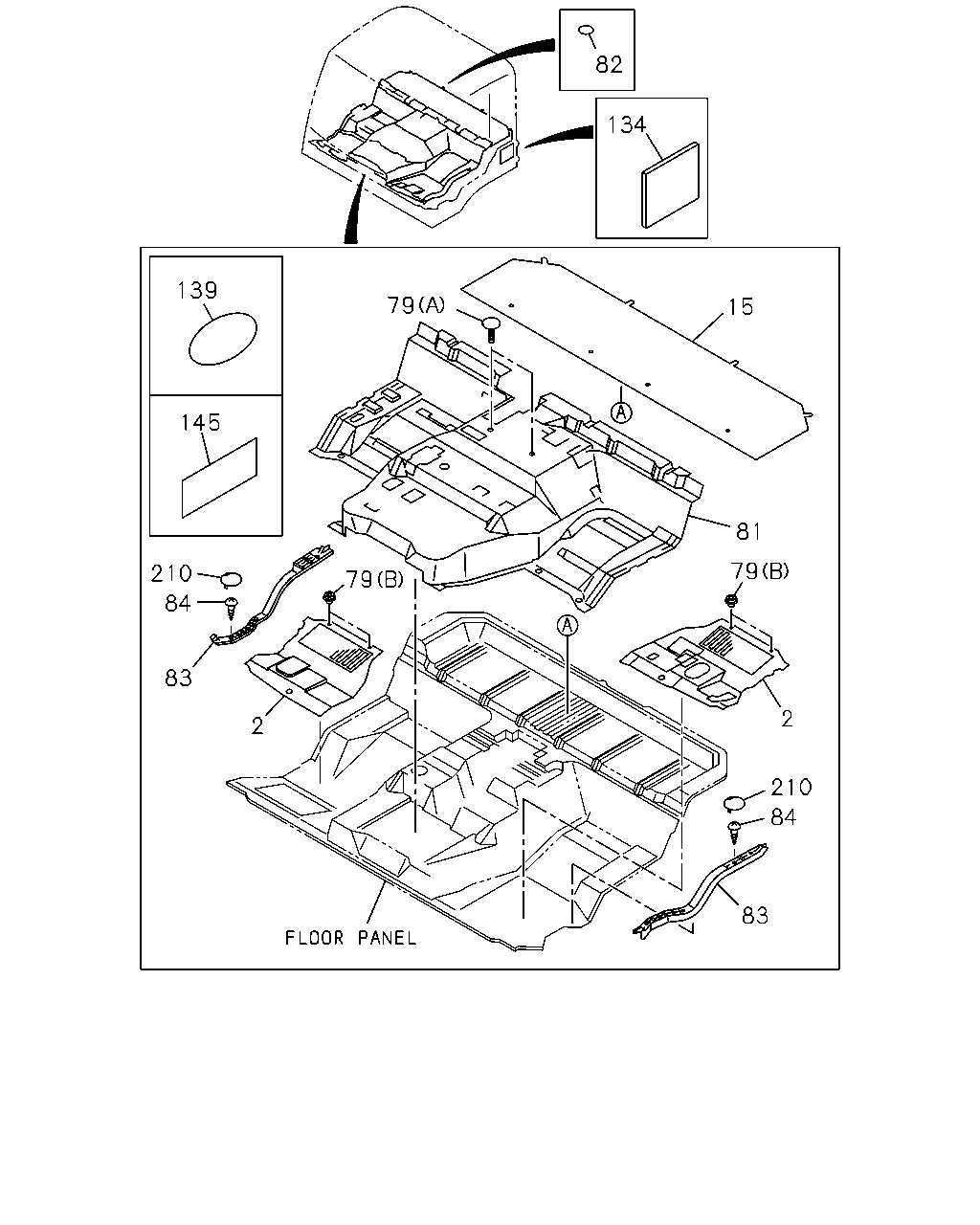

çizim 44460
82 134 139 79 15 145 81 79 79 210 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-513-2 01 1 9902- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-512-1 01 1 9902- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-536-3 01 1 0004- ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-535-2 01 1 0004-0006 ●
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-675-0 01 1 0007- ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-517-2 01 1 9902-9904 ●
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40>, BRAZIL EQUIPMENT(TKK) 		1-73237-517-2 01 1 9905- ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9902-0003 ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0004- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9902-0003 ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0004- ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-621-3 01 1 9902- ●
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2> 		1-73237-606-6 01 1 9902- ●
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-563-7 01 1 0004- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-508-7 01 1 0004- ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9902- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9902-0003 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 0004- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9902-0003 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 0004- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9902-0003 ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0004- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9902- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9902- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0004- ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9902-9903 ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-0003 ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0004- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9902-0003 ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 0004- ● ●

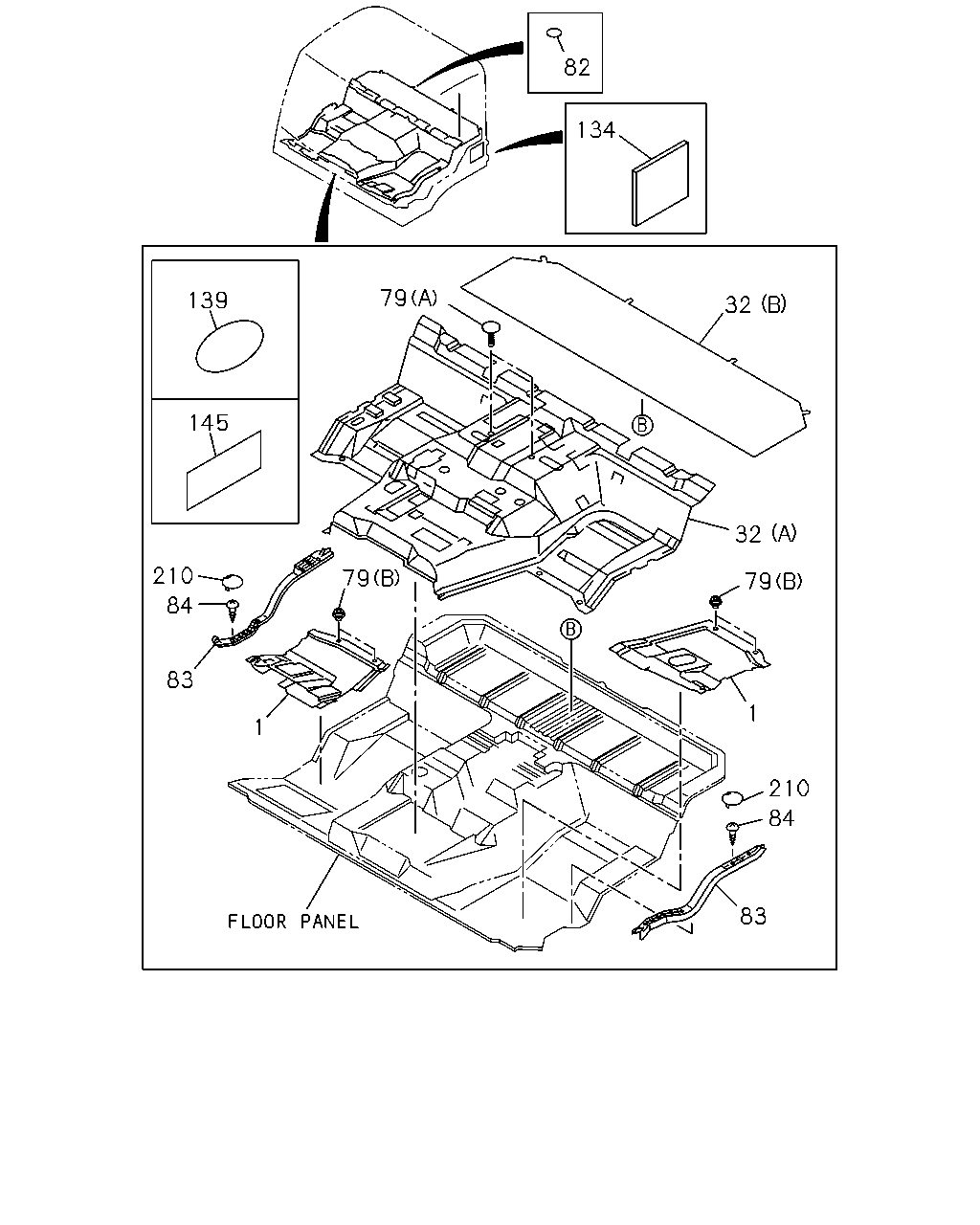

çizim 44463
82 134 79 139 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-516-1 01 1 9902- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-515-0 01 1 9902- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-538-2 01 1 0004- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-537-1 01 1 0004-0006 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-666-0 01 1 0007- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-605-7 01 1 9902- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-519-9 01 1 9902- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-539-0 01 1 9902-9904 ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40>,BRAZIL EQUIPMENT(TKK) (B) 		1-73237-539-0 01 1 9905- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-562-9 01 1 0004- ●
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-507-9 01 1 0004- ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9902-0003 ●
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 0004- ● ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9902-0003 ●
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 0004- ● ●
82 SEAL; BED PAN
OD=25 BLACK 		1-76798-019-0 03 1 9902- ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9902-0003 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 0004- ● ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9902-0003 ●
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 0004- ● ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9902-0003 ●
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 0004- ● ●
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-0 01 1 9902- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 01 1 9902- ●
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 0004- ●
145 SEAL; FLOOR PANEL
100X30 		1-72498-014-1 01 1 9902-9903 ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 9904-0003 ●
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-0 01 1 0004- ● ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9902-0003 ●
210 COVER; KICKING PLATE 1-72538-166-0 09 1 0004- ● ●
