Isuzu WW
▶
TRUCKS
▶
NNR
▶
51276 - NNR/NPR/NQR AUST/NZ EURO5
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶
6-43 — SIDE TRIM
(#77419) — 27 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5SS
D - NPR5WE
E - NPR5WN
F - NPR5WS
◀

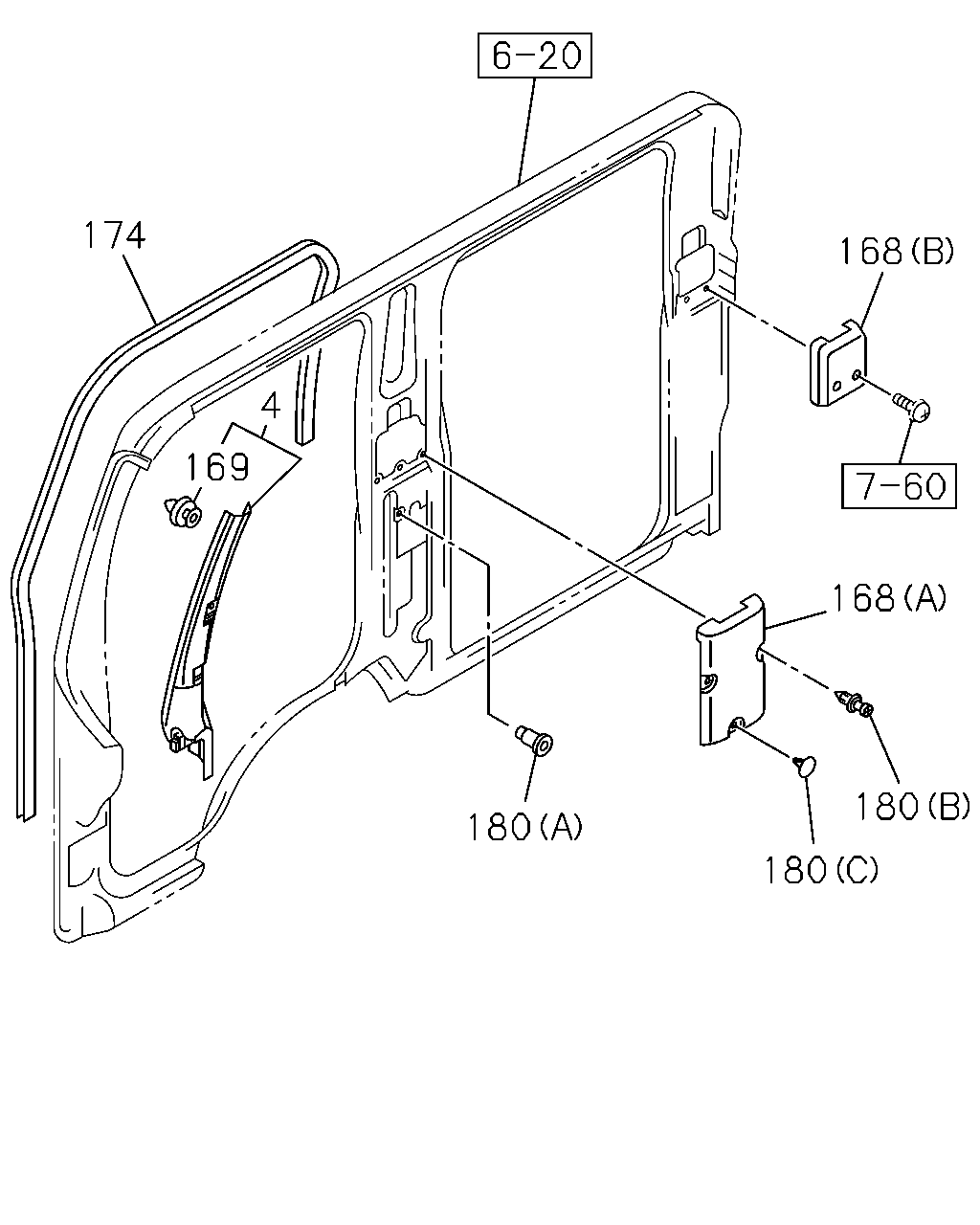

[643A] DBL CAB (12 parça)

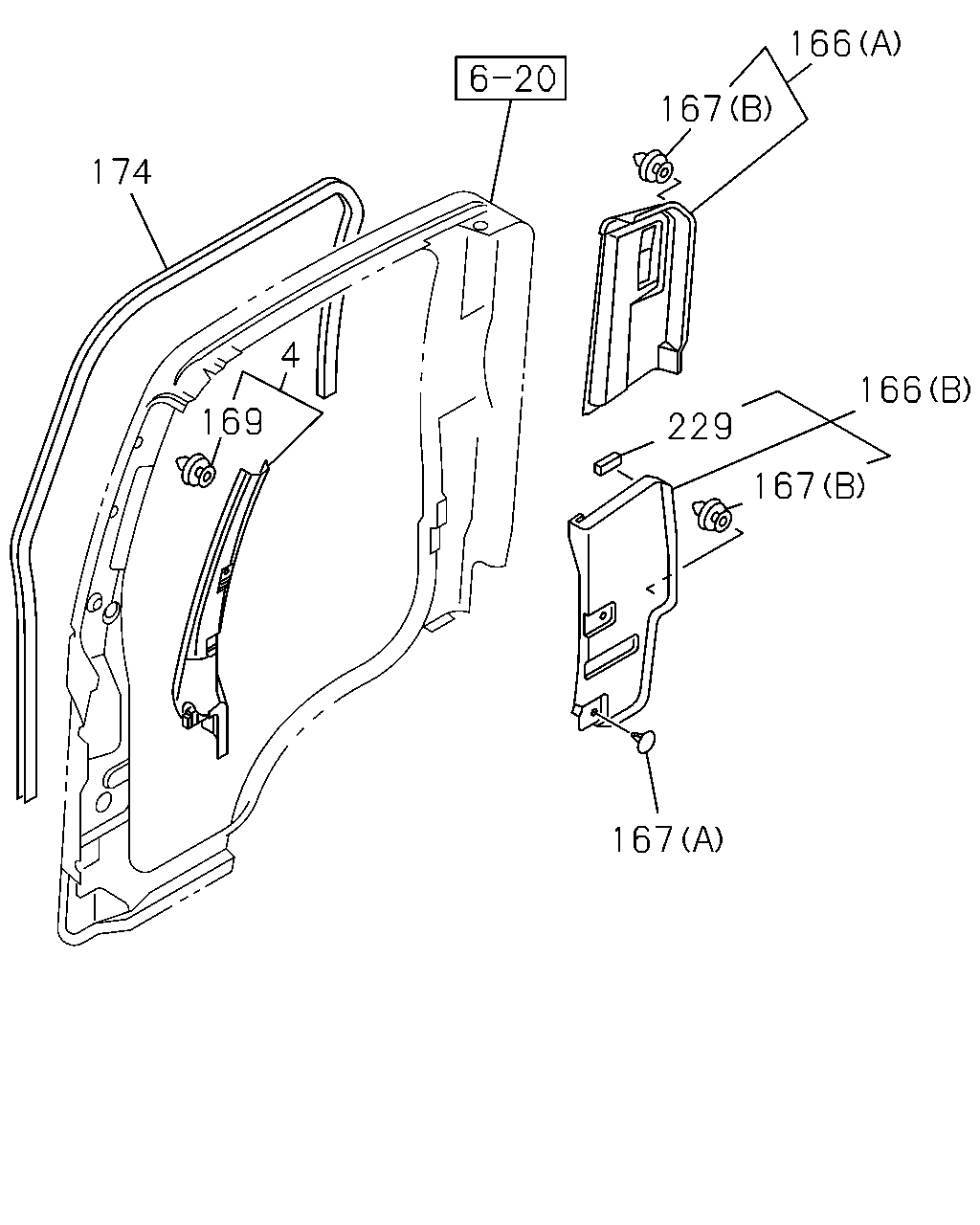

[643A] SGL CAB (15 parça)
▶
174
169
4
180
168
168
180
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-254-2
01
1
1009-
●
●
●
●
●
●
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-255-2
01
1
1009-
●
●
●
●
●
●
168
16.578 COVER; SEAT BELT RETRACTOR
(A) GRAY
8-97405-191-2
02
1
1009-
●
●
●
168
16.578 COVER; SEAT BELT RETRACTOR
(B) GRAY
8-97405-192-3
02
1
1009-
●
●
●
169
16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK
8-94279-974-1
04
1
1009-
●
●
●
●
●
●
174
16.507 FINISHER; BODY SIDE
L=2609
8-98154-665-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=2609
8-98154-666-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=3159
8-98154-667-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=3159
8-98154-668-0
01
1
1009-
●
●
●
180
16.578 FASTENER; COVER
16.125 (A)
8-97319-495-0
02
1
1009-
●
●
●
180
16.578 FASTENER; COVER
(B) GRAY
8-97405-246-0
04
1
1009-
●
●
●
180
16.578 FASTENER; COVER
(C) GRAY
8-97405-247-0
02
1
1009-
●
●
●
174
4
169
167
167
166
229
167
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-254-2
01
1
1009-
●
●
●
●
●
●
4
16.165 COVER; TRIM,FRT SIDE
DARK GRAY
8-97405-255-2
01
1
1009-
●
●
●
●
●
●
166
16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY
8-97406-796-1
01
1
1009-
●
●
●
166
16.578 TRIM; RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (A) DARK GRAY
8-97407-900-0
01
1
1009-
●
●
●
166
16.578 TRIM; RR PILLAR
(B) GRAY
8-97405-297-2
01
1
1009-
●
●
●
166
16.578 TRIM; RR PILLAR
(B) GRAY
8-97412-727-0
01
1
1009-
●
●
●
167
16.578 CLIP; TRIM,RR PILLAR
INTERIOR TRIM-FULL TRIMMING<WM3> (B)
8-98059-610-0
04
1
1009-
●
●
●
167
16.578 CLIP; TRIM,RR PILLAR
(A) GRAY
8-97406-421-0
04
1
1009-
●
●
●
167
16.578 CLIP; TRIM,RR PILLAR
(B)
8-98059-610-0
06
1
1009-
●
●
●
169
16.578 CLIP; TRIM COVER,FRT PILLAR
16.165 OD=7.9 BLACK
8-94279-974-1
04
1
1009-
●
●
●
●
●
●
174
16.507 FINISHER; BODY SIDE
L=2609
8-98154-665-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=2609
8-98154-666-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=3159
8-98154-667-0
01
1
1009-
●
●
●
174
16.507 FINISHER; BODY SIDE
L=3159
8-98154-668-0
01
1
1009-
●
●
●
229
16.585 SEAL
8-98081-818-0
01
1
1009-
●
●
●
