◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#77414) — 154 parça

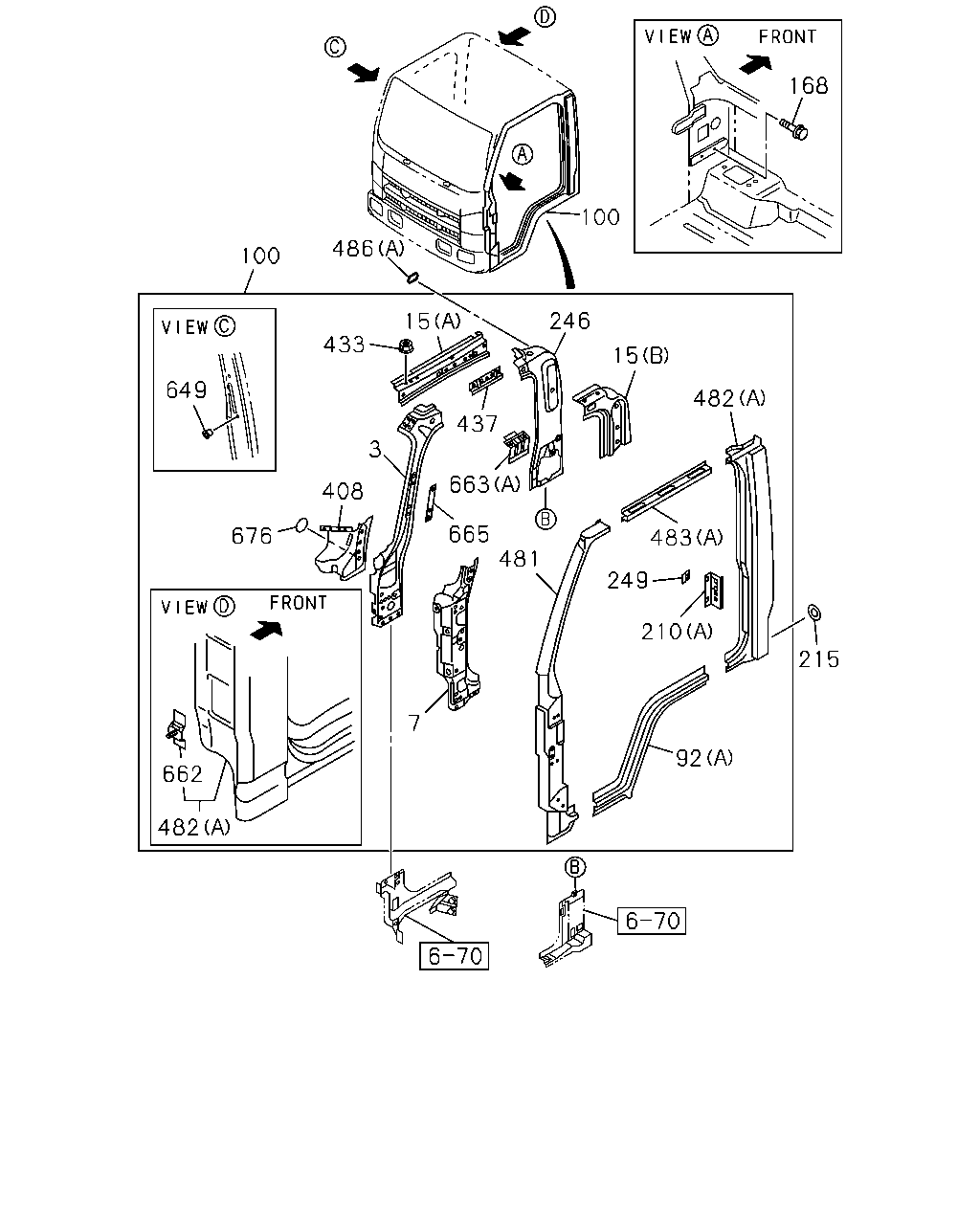

çizim 126356
486 100 100 168 15 433 649 3 408 676 437 663 246 15 482 483 249 210 215 92 482 662 7 665 481
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1009- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1009- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1009- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1009- ● ● ● ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1009- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1009- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1009- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1009- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1009- ● ● ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1009- ● ● ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 1009-1504 ● ● ●
215 16.674 GROMMET; RR PILLAR
EXC. VIN MODEL YEAR 2013(VZD) 15.222 OD=35 		8-94122-971-0 01 1 1505- ● ● ●
215 16.674 GROMMET; RR PILLAR
VIN MODEL YEAR 2013(VZD) EXC. MANUAL TILT CAB<RWZ> 15.222 OD=35 		8-94122-971-0 01 1 1505- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1009- ● ● ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1009- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1009- ● ● ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1009- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1009- ● ● ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1009- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1009- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1009- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 1009- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1009- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1009- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009-1203 ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1204- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1009- ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1009- ● ● ● ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1009- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1009- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1009- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1009- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1009- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1009- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ● ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ● ● ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009- ● ● ● ● ● ●

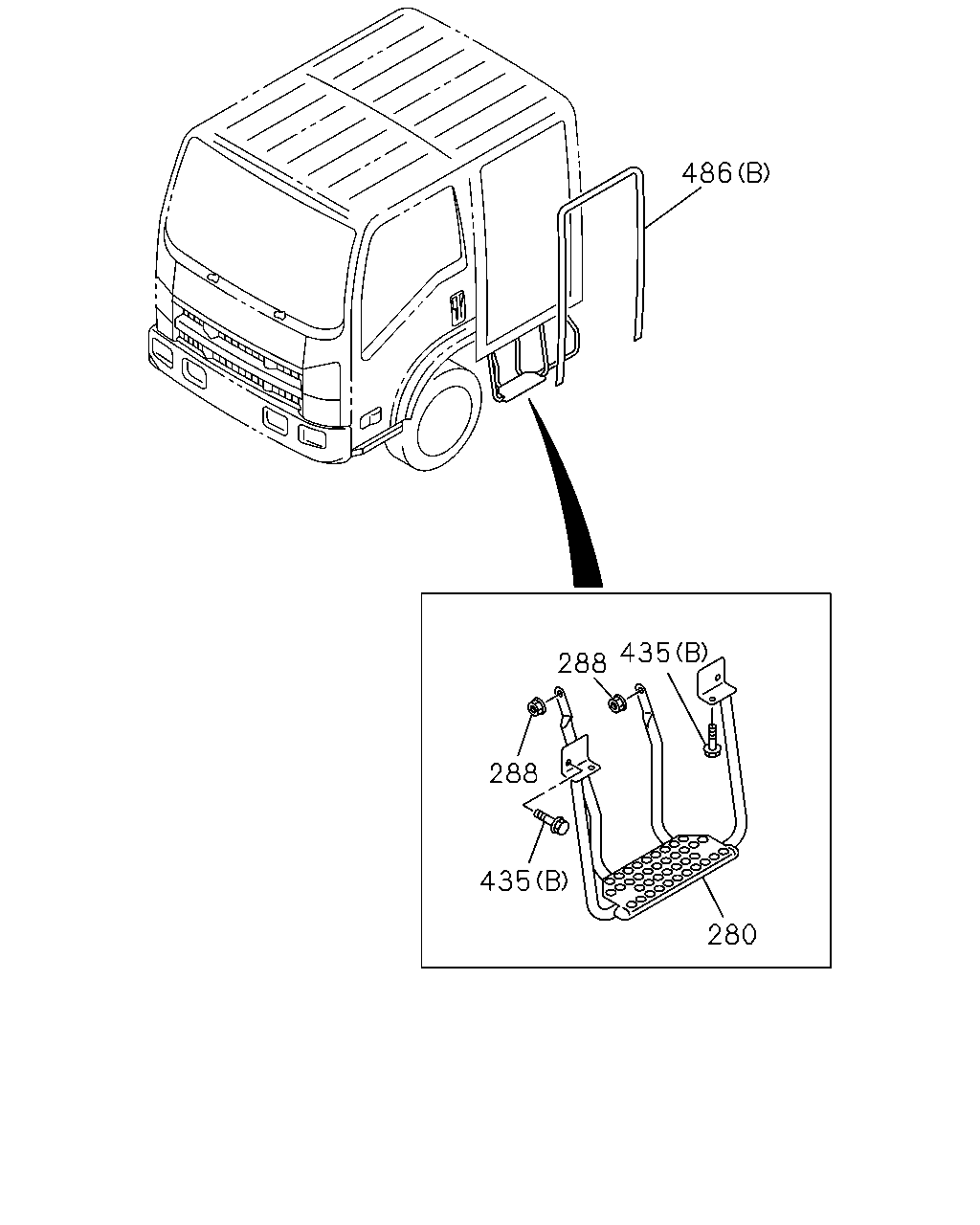

çizim 187192
486 288 435 288 435 280
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
280 08.225 STEP ASM; RR 8-98084-128-1 01 1 1009- ● ● ●
280 08.225 STEP ASM; RR 8-98084-129-1 01 1 1009- ● ● ●
288 08.225 NUT; STEP
01.062 M8 FLANGE 		0-91180-108-0 04 1 1009- ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1009- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1009- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1009-1203 ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1204- ● ● ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1009- ● ● ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1009- ● ● ●

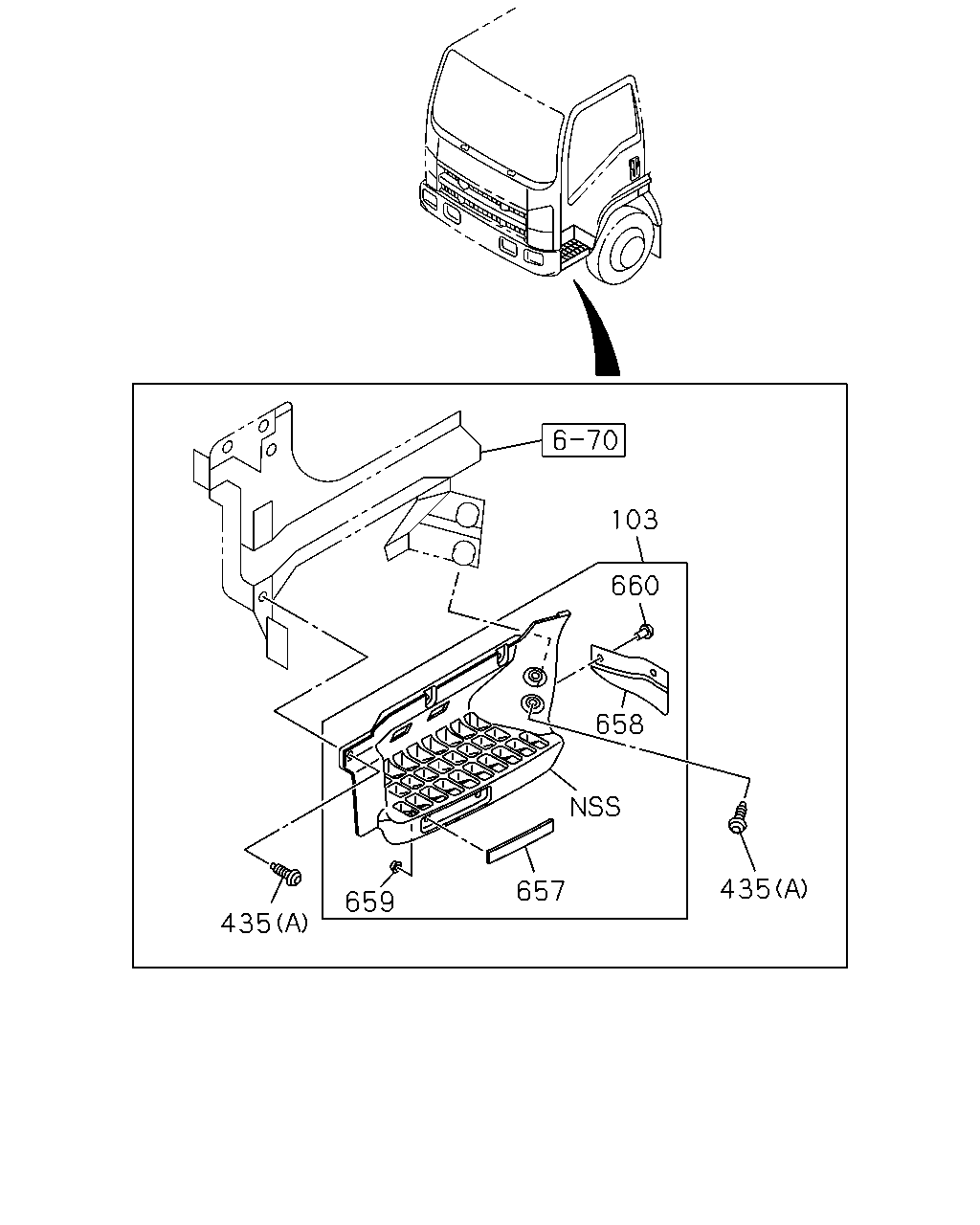

çizim 187195
103 660 658 657 659 435 435
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
103 08.228 PLATE; STEP 8-98022-774-3 01 1 1009- ● ● ● ● ● ●
103 08.228 PLATE; STEP 8-98022-775-3 01 1 1009- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1009- ● ● ● ● ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 1009- ● ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1009- ● ● ● ● ● ●
658 08.228 FLAP; STEP 8-98037-560-1 02 1 1009- ● ● ● ● ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 1009- ● ● ● ● ● ●
660 08.131 CLIP; FLAP 8-98111-558-0 04 1 1009- ● ● ● ● ● ●

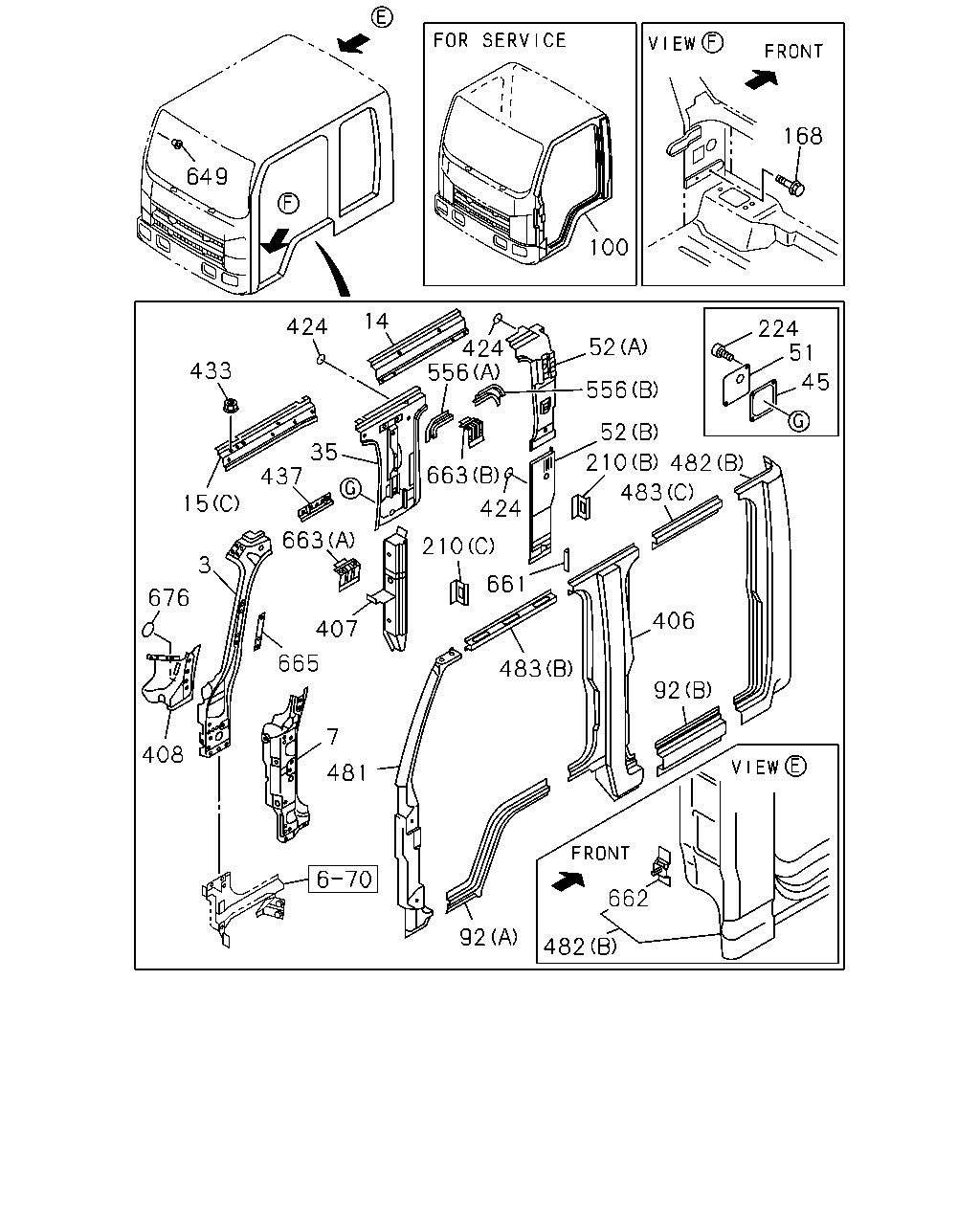

çizim 187197
168 100 649 424 433 14 424 556 52 556 224 51 45 52 210 482 483 406 483 92 210 661 424 663 35 437 15 3 676 663 407 665 408 7 481 92 482 662
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1009- ● ● ● ● ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1009- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1009- ● ● ● ● ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1009- ● ● ● ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1009- ● ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1009- ● ● ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1009- ● ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1009- ● ● ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1009- ● ● ●
45 16.570 SEAL; B-C POST 8-97853-731-2 02 1 1009- ● ● ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1009- ● ● ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1009- ● ● ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1009- ● ● ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1009- ● ● ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1009- ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1009- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1009- ● ● ● ● ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1009- ● ● ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1009- ● ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1009- ● ● ● ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1009- ● ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1009- ● ● ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1009- ● ● ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 1009- ● ● ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 1009- ● ● ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1009- ● ● ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1009- ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 1009- ● ● ● ● ● ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 1009- ● ● ● ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1009-1203 ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR TOLL GREEN(543),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681), BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLANDGREEN(807),BODY COLOR WHEATLAND YELL OW(812),BODY COLOR SAHARA BEIGE(829), BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNB ELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1204- ● ● ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 1009- ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ● ● ● ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 1009- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1009- ● ● ● ● ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1009- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 1009- ● ● ● ● ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 1009- ● ● ● ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1009- ● ● ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1009- ● ● ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 1009- ● ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1009- ● ● ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1009- ● ● ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1009- ● ● ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1009- ● ● ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 1009- ● ● ● ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1009- ● ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1009- ● ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 1009- ● ● ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 1009- ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1009- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1009- ● ● ● ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1009- ● ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 1009- ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ● ● ● ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1009- ● ● ● ● ● ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1009- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
