◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#77413) — 16 parça

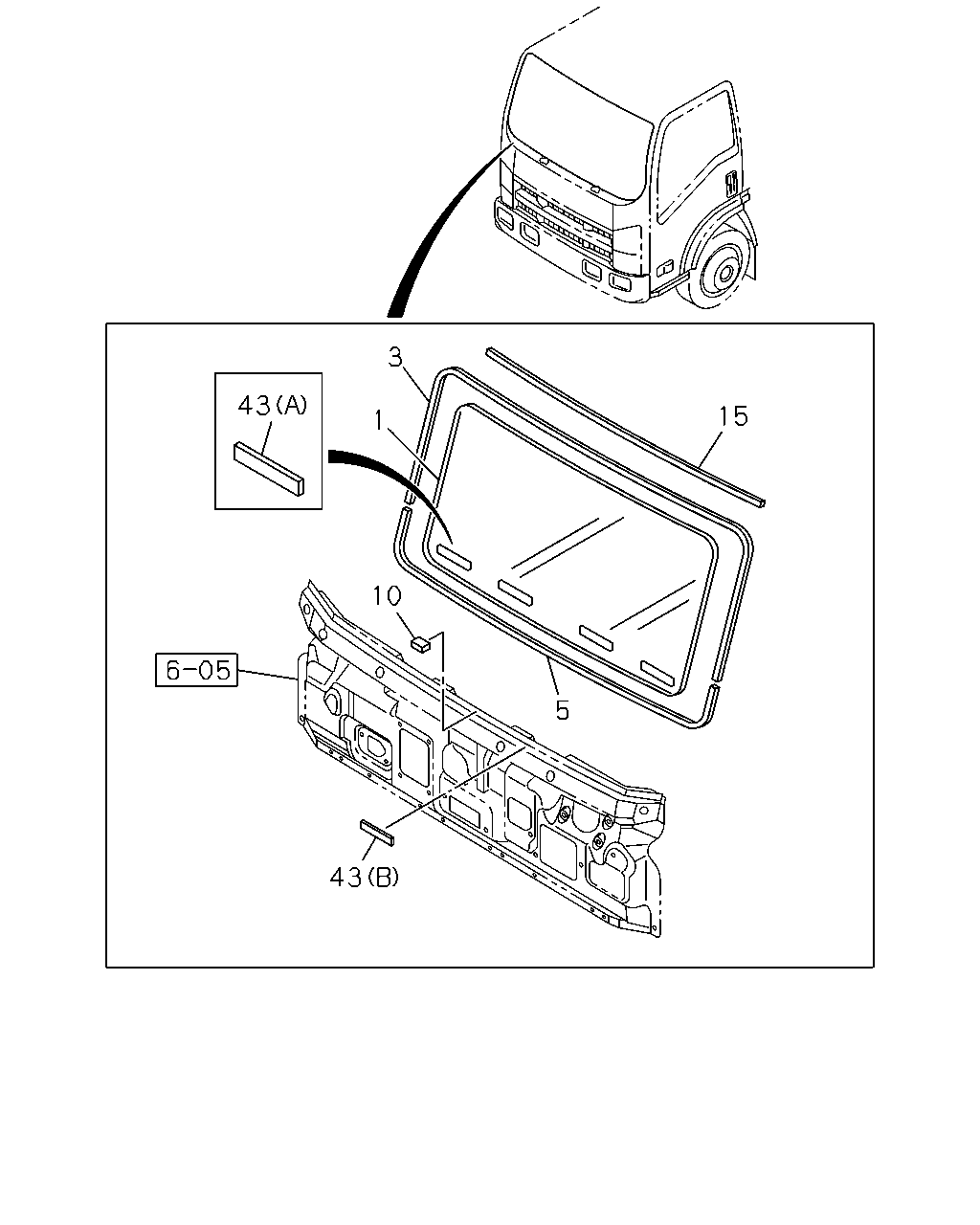

çizim 126456
3 1 15 10 5 43 43
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.005 GLASS; WINDSHIELD
NEW ZEALAND COUNTRY(CX6) 		8-98029-063-1 01 1 1009-1204 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98029-064-1 01 1 1009-1204 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD 8-98029-064-1 01 1 1205-1206 ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
EXC. NEW ZEALAND COUNTRY(CX6) 		8-98029-064-1 01 1 1207- ● ● ● ● ● ●
1 16.005 GLASS; WINDSHIELD
NEW ZEALAND COUNTRY(CX6) 		8-98029-063-1 01 1 1207- ● ● ● ● ● ●
3 16.470 MOLDING; WINDSHIELD 8-98029-079-1 01 1 1009- ● ● ● ● ● ●
5 16.041 MOLDING; WINDSHIELD,LWR 8-98083-542-1 01 1 1009- ● ● ● ● ● ●
10 08.160 SPACER; WINDSHIELD GLASS
L=100 B=1.5 		8-98095-044-0 02 1 1009- ● ● ● ● ● ●
15 16.041 FINISHER; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97412-958-0 01 1 1009- ● ● ●
15 16.041 FINISHER; WINDSHIELD
DARK GRAY 		8-97412-958-0 01 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 09 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 09 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) L=100 B=8 		8-98029-086-1 04 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 04 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (B) L=100 B=10 		8-98083-198-1 04 1 1009- ● ● ●
43 16.041 TAPE; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 04 1 1009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
