6-03 — RADIATOR GRILLE (#77410) — 147 parça

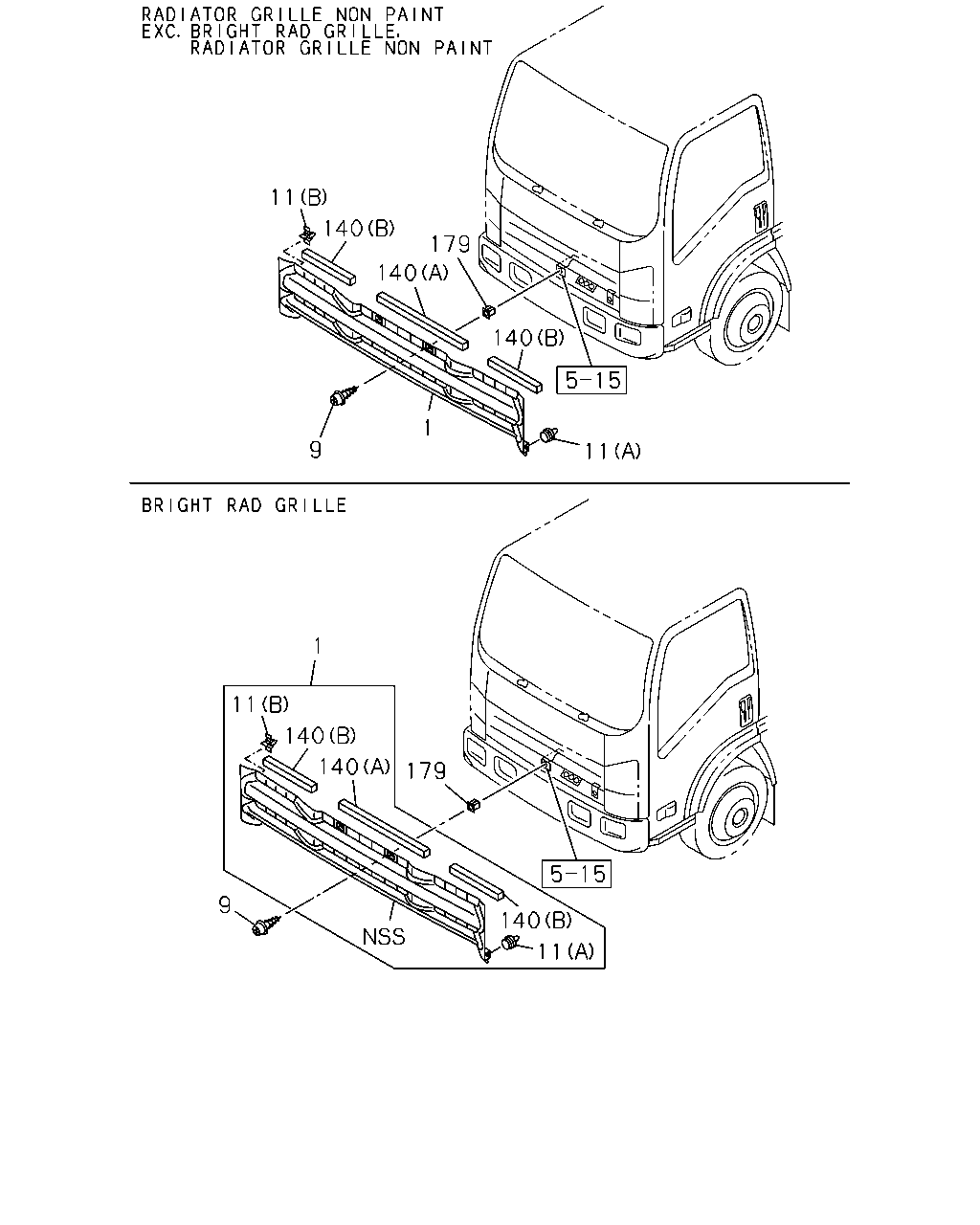

çizim 126781
11 140 140 179 140 1 9 11 1 11 140 140 179 9 140 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-071-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-209-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97465-139-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97428-997-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-996-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97465-868-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97465-865-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97428-985-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97465-866-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-988-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97428-987-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-986-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-977-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97428-995-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97428-990-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97428-993-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97428-992-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-989-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97428-994-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97428-991-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97428-979-1 01 1 1506- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-978-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-742-4 01 1 1204-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-742-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97417-556-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97417-556-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97417-557-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97417-557-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-458-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-458-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-540-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-540-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-468-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1009-1505 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1506- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1506- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1009- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1009- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1009- ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-98054-280-0 01 1 1009-1505 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (A) 		8-98054-280-0 01 1 1506- ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-98054-281-0 02 1 1009-1505 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
EXC. FACE LIFT MODEL<TX7> (B) 		8-98054-281-0 02 1 1506- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1009- ● ● ● ● ● ●

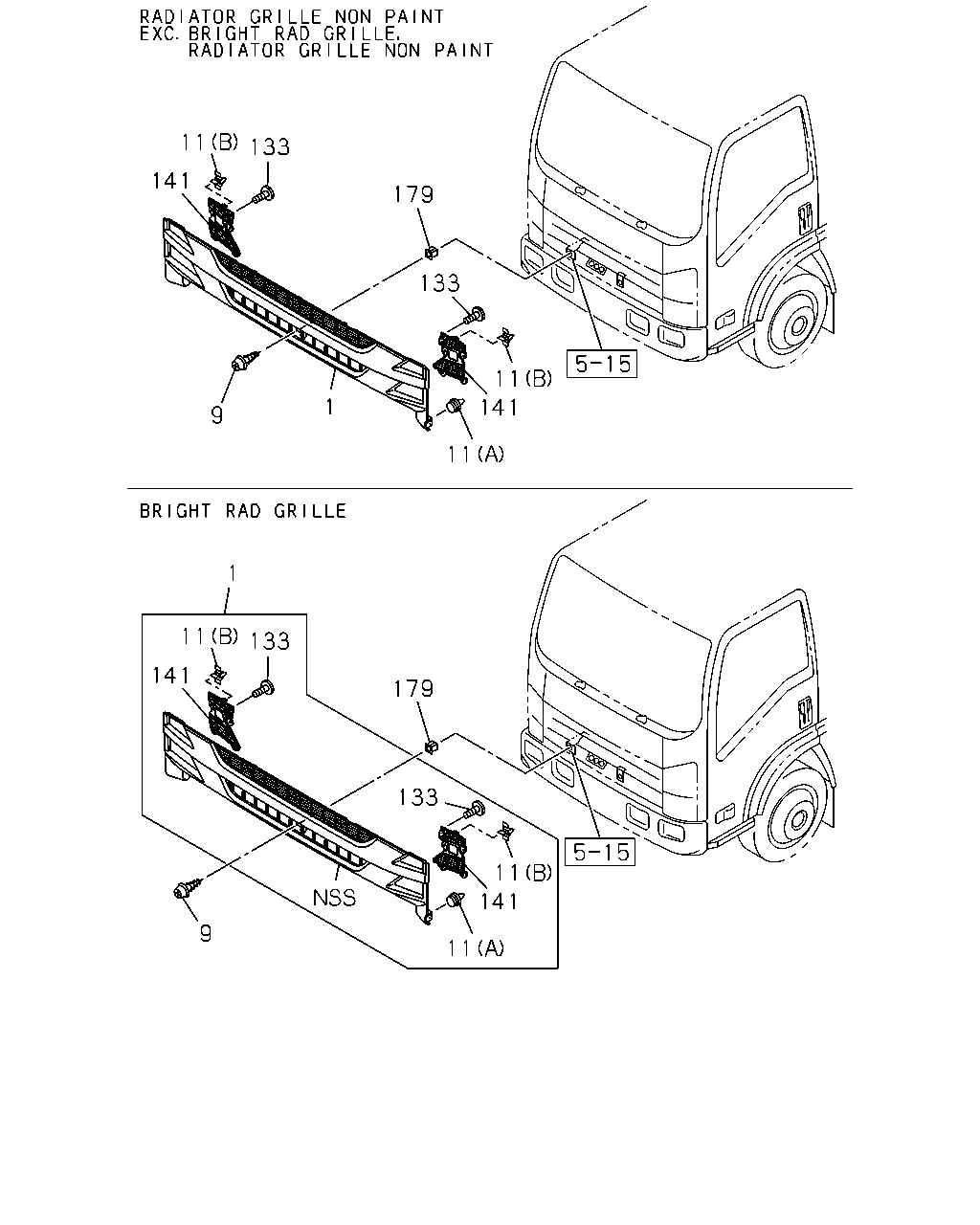

çizim 480769
11 133 141 179 133 11 141 11 1 9 1 133 11 141 133 11 141 11 9 179
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> BRIGHT RAD GRILLE<V22> PLATED 		8-98241-071-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
FACE LIFT MODEL<TX7> RADIATOR GRILLE NON PAINT<7LB> 		8-98244-209-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97465-139-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97428-997-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-996-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97465-868-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97465-865-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97428-985-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97465-866-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-988-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97428-987-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-986-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97428-977-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97428-995-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97428-990-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97428-993-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97428-992-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-989-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97428-994-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97428-991-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97428-979-1 01 1 1506- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) FACE LIFT MODEL<TX7> EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97428-978-1 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-742-4 01 1 1204-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TOLL GREEN(543) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97423-742-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97408-224-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-394-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-400-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97417-556-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97417-556-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97417-557-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TELEMAGENTA(539) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> PINK 		8-97417-557-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-395-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-396-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97408-225-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> RED 		8-97407-344-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97408-226-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97408-227-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-397-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-399-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-401-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> PLATED 		8-98025-458-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. FACE LIFT MODEL<TX7> PLATED 		8-98025-458-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-540-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR FT ORANGE(609) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97411-540-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> EXC. FACE LIFT MODEL<TX7> 		8-98025-468-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-294-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-398-4 01 1 1506- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1009-1505 ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-293-4 01 1 1506- ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1009-1505 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. FACE LIFT MODEL<TX7>,BRIGHT RAD GRILLE<V22>,RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-292-4 01 1 1506- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 1009- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1009- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1009- ● ● ● ● ● ●
133 01.269 SCREW; COVER
FACE LIFT MODEL<TX7> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 10 1 1506- ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-212-0 01 1 1506- ● ● ● ● ● ●
141 01.266 COVER; RAD GRILLE
FACE LIFT MODEL<TX7> 		8-98244-213-0 01 1 1506- ● ● ● ● ● ●
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 1009- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
