◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#7741) — 53 parça

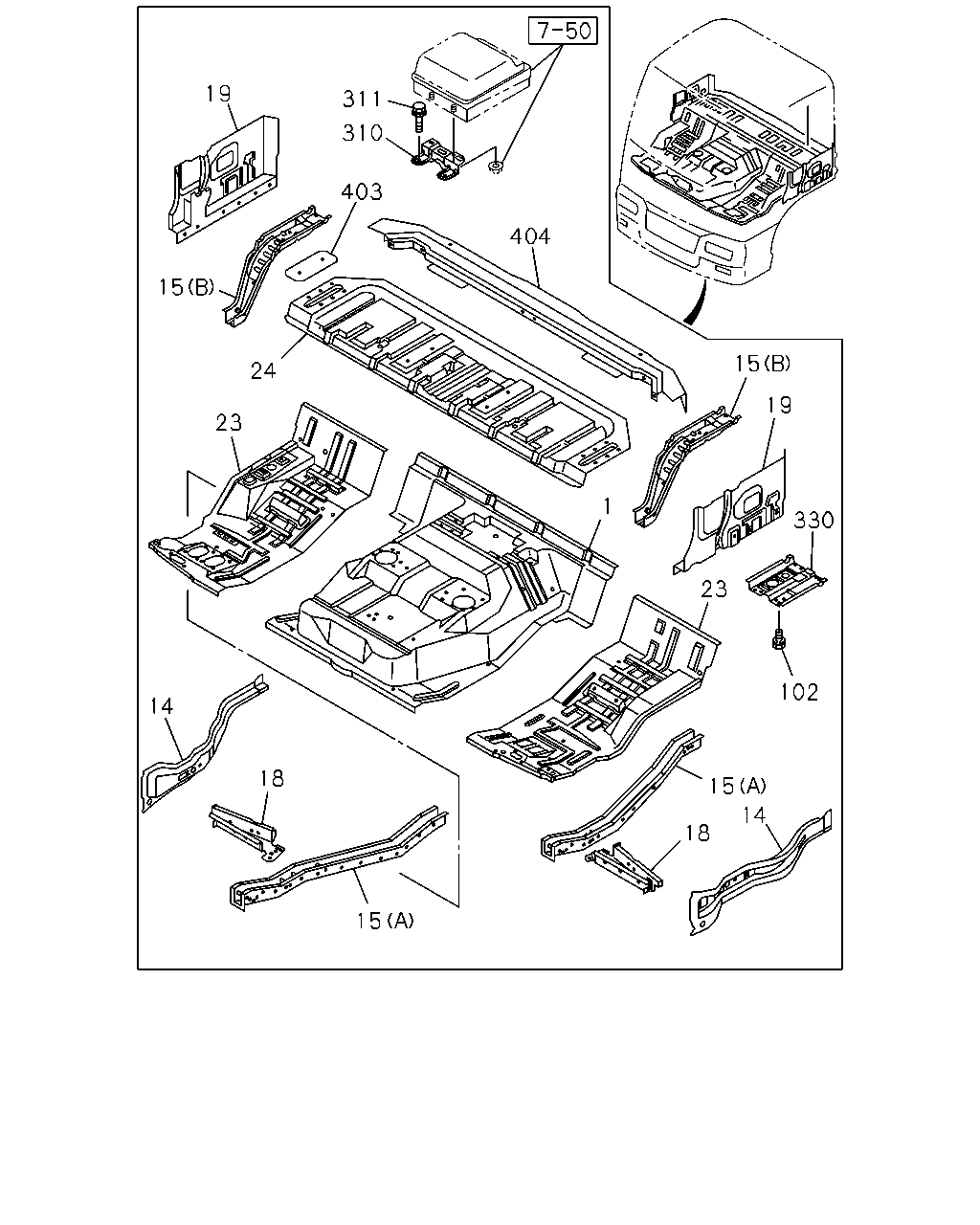

çizim 44453
19 311 310 403 404 15 15 24 19 23 1 330 23 102 14 18 15 14 18 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
MJA7U M/T(X6G),MJD7S M/T(Y2Y),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-62172-614-5 01 1 9902- ●
1 PANEL; FLOOR
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-2 01 1 9902-9909 ●
1 PANEL; FLOOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 		1-62172-627-5 01 1 9910- ●
1 PANEL; FLOOR 1-62172-603-4 01 1 0004- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 9902-0003 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0004- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 9902-0003 ●
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0004- ● ●
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 9902- ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 9902-0003 ●
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0004- ● ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 9902-0003 ●
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0004- ● ●
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 9902- ●
15 FRAME; UNDER
(A) 		1-62472-603-9 01 1 0004- ●
15 FRAME; UNDER
(A) 		1-62472-602-9 01 1 0004- ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 9902- ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 9902- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-997-6 01 1 0004- ●
18 FRAME; FLOOR,CENTER SIDE 1-62483-168-3 01 1 0004- ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 9902-0003 ●
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0004- ● ●
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 9902-0003 ●
19 PANEL; FLOOR SIDE,REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-615-4 01 1 0004- ●
19 PANEL; FLOOR SIDE,REAR 1-62472-615-4 01 1 0004- ●
19 PANEL; FLOOR SIDE,REAR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-62472-660-2 01 1 9902- ●
23 PANEL; FLOOR,SIDE 1-62183-272-4 01 1 9902-9903 ●
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 9904- ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-642-4 01 1 9902-9903 ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 9904- ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,BRAZIL EQUIPMENT(TKK) 		1-62172-615-4 01 1 9902-9903 ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,BRAZIL EQUIPMENT(TKK) 		1-62172-801-0 01 1 9904- ●
23 PANEL; FLOOR,SIDE
TRANSMISSION-ZF 16S151 OD(Y2N) BRAZIL EQUIPMENT(TKK) 		1-62172-805-0 01 1 9905-9909 ●
23 PANEL; FLOOR,SIDE
BRAZIL EQUIPMENT(TKK) 		1-62172-805-0 01 1 9910- ●
23 PANEL; FLOOR,SIDE 1-62172-802-0 01 1 0004- ●
23 PANEL; FLOOR,SIDE 1-62172-798-0 01 1 0004- ●
24 PANEL; BED PAN 1-62172-540-7 01 1 9902-0003 ●
24 PANEL; BED PAN 1-62172-540-9 01 1 0004- ● ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9902- ●
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0004- ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 9902-0003 ●
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0004- ●
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0004- ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-0003 ●
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0004- ●
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0004- ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 9902-0003 ●
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0004- ● ●
403 PATCH; FIRE EXTINGUSHER
TRANSMISSION-ZF 16S151 OD(Y2N) BRAZIL EQUIPMENT(TKK) 		1-62172-759-0 01 1 9905-9909 ●
403 PATCH; FIRE EXTINGUSHER
BRAZIL EQUIPMENT(TKK) 		1-62172-759-0 01 1 9910- ●
403 PATCH; FIRE EXTINGUSHER 1-62172-569-0 01 1 0004- ●
404 RAIL ASM; MTG,RR 1-62472-596-7 01 1 9902-0003 ●
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0004- ● ●
