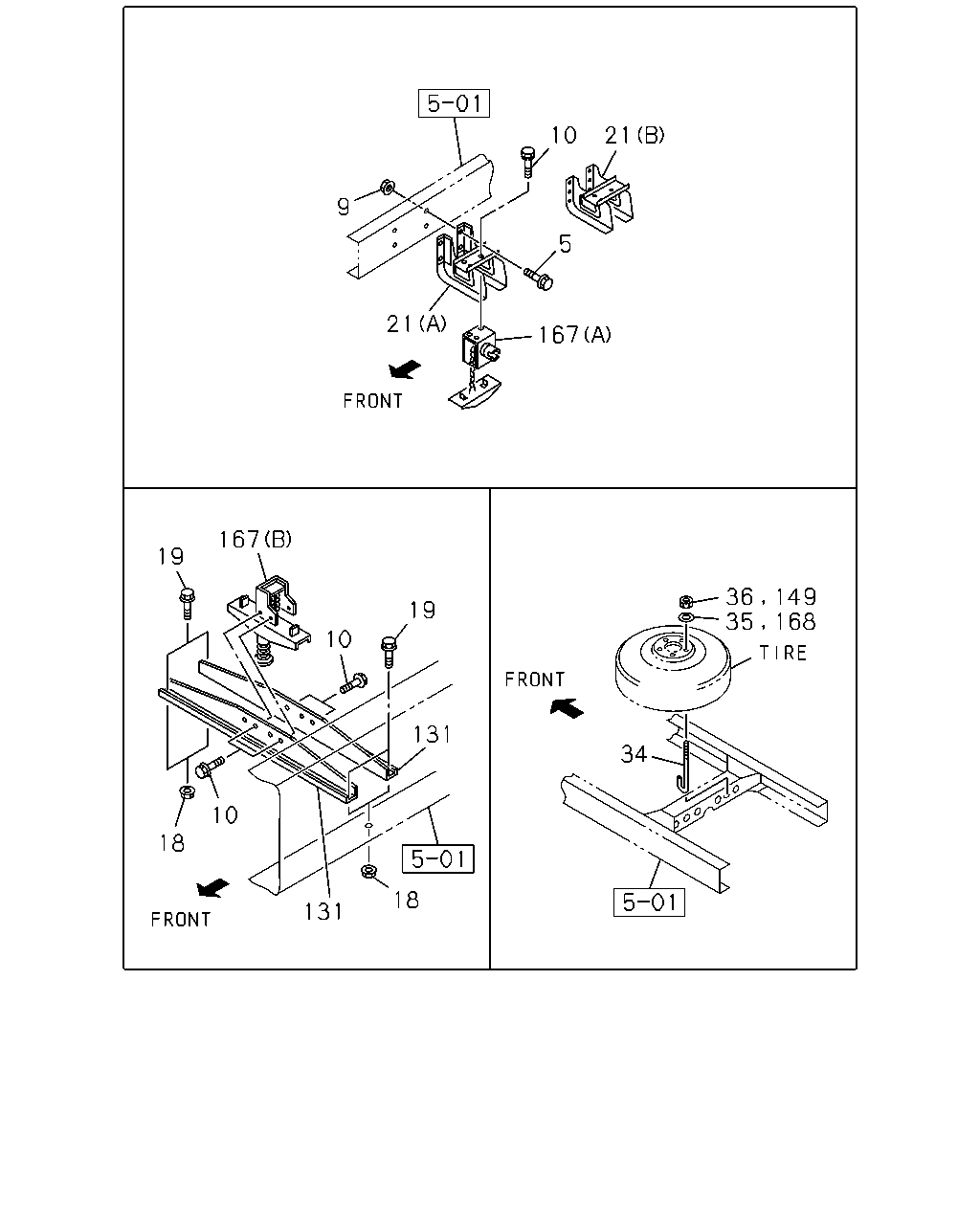

5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
1009-1011 |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
1012-1101 |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
02 |
1 |
1102- |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1009-1011 |
|
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1009-1011 |
|
|
|
● |
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1012-1101 |
|
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1012-1101 |
|
|
|
● |
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
|
● |
|
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
|
|
● |
|
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
09.171
M10X25 FLANGE
|
0-28051-025-0 |
04 |
1 |
1102- |
|
|
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1011 |
|
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1011 |
|
|
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012-1101 |
|
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1012-1101 |
|
|
|
● |
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
● |
|
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
WHEEL BASE 4400MM(44W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
|
● |
|
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1009-1011 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1009-1011 |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1009-1011 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1012-1101 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1102-1510 |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
● |
|
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 4400MM(44W)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
1511- |
|
|
|
● |
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1009-1101 |
● |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1009-1101 |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1102-1510 |
● |
● |
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1102-1510 |
|
|
|
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
● |
|
● |
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W),WHEEL BASE
4100MM(41W)
EXC. FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
● |
|
|
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
06.216
M8X25 FLANGE
|
0-28650-825-0 |
04 |
1 |
1511- |
|
|
|
|
|
● |
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1101 |
● |
|
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1009-1101 |
|
|
|
|
|
● |
| |
18 |
07.633 NUT; MEMBER
WHEEL BASE 3300MM(33W)
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
● |
● |
● |
|
|
|
| |
18 |
07.633 NUT; MEMBER
03.162
M10 FLANGE
|
0-91180-110-0 |
04 |
1 |
1102- |
|
|
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1009-1101 |
● |
|
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1009-1101 |
|
|
|
|
|
● |
| |
19 |
07.632 BOLT; C/MBR
WHEEL BASE 3300MM(33W)
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1102- |
● |
● |
● |
|
|
|
| |
19 |
07.632 BOLT; C/MBR
00.029
M10X30 FLANGE
|
0-28651-030-0 |
04 |
1 |
1102- |
|
|
|
|
|
● |
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
(A)
|
8-98072-378-2 |
01 |
1 |
1009-1011 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
(A)
|
8-98072-378-2 |
01 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(A)
|
8-98072-378-2 |
01 |
1 |
1009-1011 |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
(A)
|
8-98072-378-2 |
01 |
1 |
1012-1101 |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(A)
|
8-98072-378-2 |
01 |
1 |
1012-1101 |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
(A)
|
8-98072-378-2 |
01 |
1 |
1102- |
● |
|
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1102- |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4100MM(41W)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-98072-378-2 |
01 |
1 |
1102- |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(A)
|
8-98072-378-2 |
01 |
1 |
1102- |
|
|
|
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(B)
|
8-98036-085-2 |
01 |
1 |
1009-1101 |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(B)
|
8-98036-085-2 |
01 |
1 |
1009-1101 |
|
|
|
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 2700MM(27W)
FRAME STRAIGHT TYPE<7KJ>
(B)
|
8-98036-085-2 |
01 |
1 |
1102- |
|
● |
|
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
WHEEL BASE 4400MM(44W)
(B)
|
8-98036-085-2 |
01 |
1 |
1102- |
|
|
● |
|
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
(B)
|
8-98036-085-2 |
01 |
1 |
1102- |
|
|
|
|
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
1009-1011 |
|
● |
● |
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X305
|
8-94441-189-0 |
02 |
1 |
1012-1209 |
|
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X305
|
8-94441-189-0 |
02 |
1 |
1012-1209 |
|
|
● |
● |
● |
|
| |
34 |
07.629 BOLT; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
|
● |
|
|
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
M12X330
|
8-98226-501-0 |
02 |
1 |
1210- |
|
|
● |
● |
● |
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.002
M12
|
0-91110-512-0 |
01 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98024-842-2 |
02 |
1 |
1009-1011 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
|
8-98024-842-2 |
02 |
1 |
1009-1011 |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98024-842-2 |
02 |
1 |
1012-1101 |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98024-842-2 |
02 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
|
8-98024-842-2 |
02 |
1 |
1012-1101 |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98024-842-2 |
02 |
1 |
1102- |
● |
|
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
EXC. FRAME STRAIGHT TYPE<7KJ>
|
8-98024-842-2 |
02 |
1 |
1102- |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
|
8-98024-842-2 |
02 |
1 |
1102- |
|
|
|
|
|
● |
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
|
8-98035-827-1 |
02 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98035-827-1 |
02 |
1 |
1009-1011 |
|
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
|
8-98035-827-1 |
02 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98035-827-1 |
02 |
1 |
1012-1101 |
|
|
● |
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
FRAME STRAIGHT TYPE<7KJ>
|
8-98035-827-1 |
02 |
1 |
1102- |
|
● |
|
|
|
|
| |
131 |
07.629 CROSSMEMBER; SPARE TIRE
WHEEL BASE 3300MM(33W)
|
8-98035-827-1 |
02 |
1 |
1102- |
|
|
● |
|
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
1009-1011 |
|
● |
● |
● |
● |
|
| |
149 |
07.629 NUT; CARRIER
FRAME STRAIGHT TYPE<7KJ>
05.002
M12
|
0-91110-512-0 |
02 |
1 |
1012- |
|
● |
|
|
|
|
| |
149 |
07.629 NUT; CARRIER
05.002
M12
|
0-91110-512-0 |
02 |
1 |
1012- |
|
|
● |
● |
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(A)
|
8-94382-875-1 |
01 |
1 |
1009-1011 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(A)
|
8-94382-875-1 |
01 |
1 |
1012-1101 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-94382-875-1 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(A)
|
8-94382-875-1 |
01 |
1 |
1102- |
● |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B)
|
8-98036-384-0 |
01 |
1 |
1009-1101 |
● |
|
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-384-0 |
01 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B)
|
8-98036-384-0 |
01 |
1 |
1009-1101 |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B)
|
8-98036-384-0 |
01 |
1 |
1102- |
● |
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5
-WHL/NUT(CVS),F&R195/85R16(BS
BRAND)16X5.5J-116.5 5-WHL/NUT(CVU)
(B)
|
8-98036-384-0 |
01 |
1 |
1102- |
|
|
|
|
|
● |
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
SPARE WHEEL CARRIER<P10>
(B)
|
8-98036-383-0 |
01 |
1 |
1009-1101 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(B)
|
8-98036-383-0 |
01 |
1 |
1009-1101 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(B)
|
8-98036-383-0 |
01 |
1 |
1102-1308 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(B)
|
8-98036-383-0 |
01 |
1 |
1102-1308 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(B)
|
8-98036-383-0 |
01 |
1 |
1309-1504 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(B)
|
8-98036-383-0 |
01 |
1 |
1309-1504 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW),
F&R195/85R16(MICHELIN)16X5.5J-127 6-W
HL/NUT(CYJ),F&R195/85R16(BS
BRAND)16X5.5J-127 6-WHL/NUT(CYK)
(B)
|
8-98036-383-0 |
01 |
1 |
1505- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 3300MM(33W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(B)
|
8-98036-383-0 |
01 |
1 |
1505- |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
SPARE WHEEL CARRIER<P10>
(A)
|
8-97010-955-1 |
01 |
1 |
1009-1011 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1009-1011 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(A)
|
8-97010-955-1 |
01 |
1 |
1009-1011 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1009-1011 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
SPARE WHEEL CARRIER<P10>
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
SPARE WHEEL CARRIER<P10>
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1101 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1101 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1101 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1012-1101 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1102-1308 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4100MM(41W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1102-1308 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1102-1308 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(A)
|
8-97010-955-1 |
01 |
1 |
1102-1308 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR)
(A)
|
8-97010-955-1 |
01 |
1 |
1102-1308 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1309-1504 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1309-1504 |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(A)
|
8-97010-955-1 |
01 |
1 |
1309-1504 |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(A)
|
8-97010-955-1 |
01 |
1 |
1309-1504 |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(A)
|
8-97010-955-1 |
01 |
1 |
1309-1504 |
|
|
|
|
● |
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W),WHEEL BASE
4100MM(41W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW),
F&R195/85R16(MICHELIN)16X5.5J-127 6-W
HL/NUT(CYJ),F&R195/85R16(BS
BRAND)16X5.5J-127 6-WHL/NUT(CYK)
FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1505- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 2700MM(27W)
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW),
F&R195/85R16(MICHELIN)16X5.5J-127 6-W
HL/NUT(CYJ),F&R195/85R16(BS
BRAND)16X5.5J-127 6-WHL/NUT(CYK)
EXC. FRAME STRAIGHT TYPE<7KJ>
(A)
|
8-97010-955-1 |
01 |
1 |
1505- |
|
● |
|
|
|
|
| |
167 |
07.629 HANGER; TIRE
WHEEL BASE 4400MM(44W)
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(A)
|
8-97010-955-1 |
01 |
1 |
1505- |
|
|
● |
|
|
|
| |
167 |
07.629 HANGER; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV
ER(CQU),F&R
215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE
205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT
&RR TIRE 215-75R17.5 DISC 17.5-6-127S
ILVER(CTV),F&R TIRE 205/75R17.5(BS
BRAND)17.5X6.00-127(CVV),F&R 215/75R17.
5(BS BRAND)17.5X6.00-127 SILVER(CVW)
(A)
|
8-97010-955-1 |
01 |
1 |
1505- |
|
|
|
● |
|
|
| |
167 |
07.629 HANGER; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H
IGHWAY(AVU),FT&RR 225/70R19.5
19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1
9.5 19.5X6.00-127 SILVER DISC(CYL),
F&R 225/70R19.5 19.5X6.00-127 SILVER HI
GHWAY(CYM)
(A)
|
8-97010-955-1 |
01 |
1 |
1505- |
|
|
|
|
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
1009-1011 |
|
● |
● |
● |
● |
|
| |
168 |
07.633 WASHER; SPARE TIRE
FRAME STRAIGHT TYPE<7KJ>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
1012- |
|
● |
|
|
|
|
| |
168 |
07.633 WASHER; SPARE TIRE
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
02 |
1 |
1012- |
|
|
● |
● |
● |
|
