5-20 — BATTERY CARRIER (#77407) — 109 parça

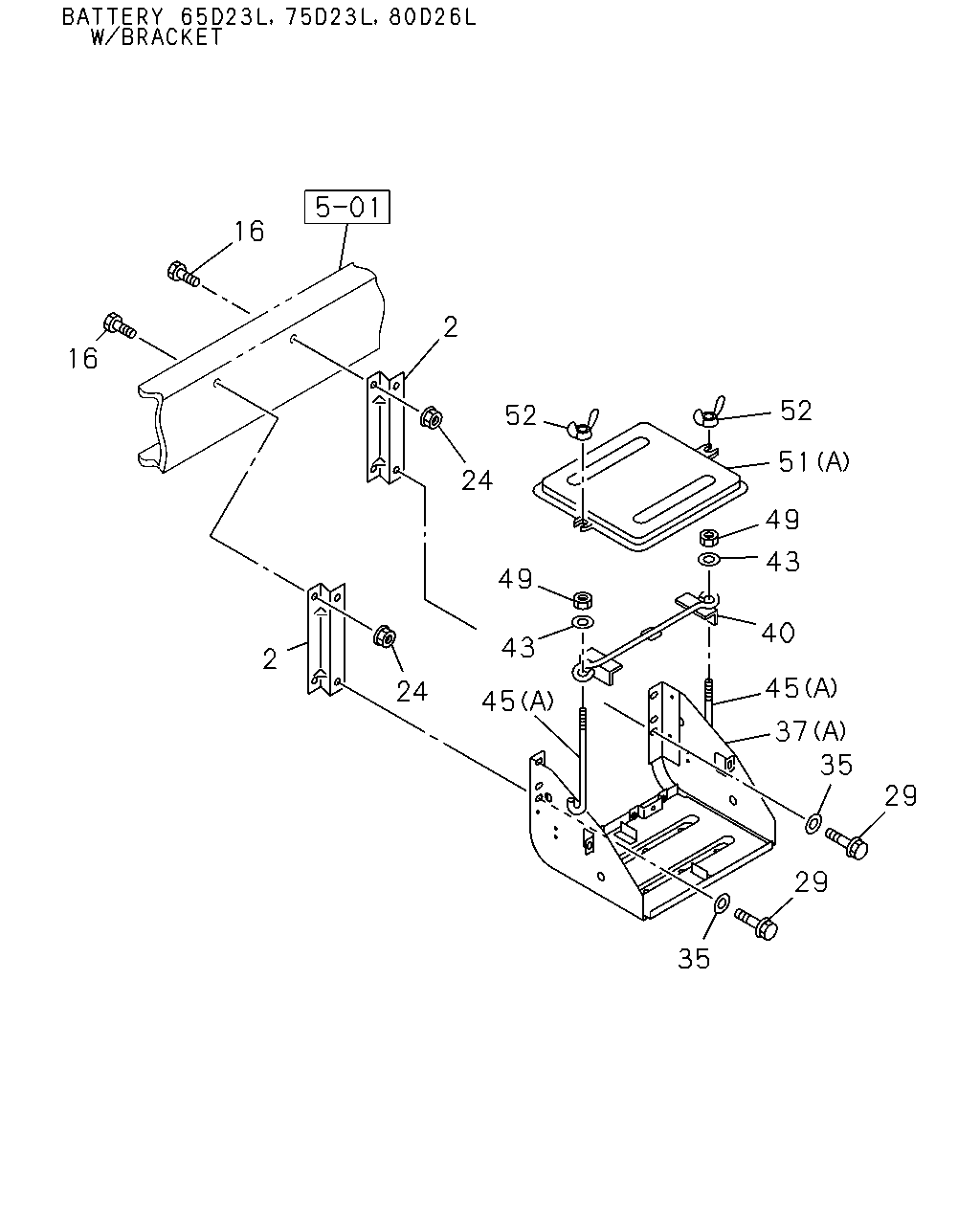

16 16 2 24 24 2 52 52 51 49 43 40 45 37 35 29 29 35 45 43 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	02.333 BRACKET; BATTERY WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98180-835-0	02	1	1102-	●
16	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> 02.277 M10X35 FLANGE	0-28651-035-0	04	1	1102-	●
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE	0-91180-110-0	03	1	1102-	●
24	02.334 NUT; BRKT TO FRAME WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.162 M10 FLANGE	0-91180-110-0	02	1	1102-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1009-1011		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1009-1011	●		●	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204			●	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-			●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-				●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1009-1011		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1009-1011						●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-						●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1009-1011		●				●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1009-1011	●		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-	●	●				●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-			●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1009-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1009-1011		●				●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1012-	●	●				●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1009-	●		●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1009-1011		●				●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1009-1011	●		●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-	●	●				●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1012-			●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1009-1011		●				●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1009-1011	●		●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●	●				●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-			●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1009-1011		●				●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1009-1011	●		●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1012-	●	●				●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1012-			●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1009-	●		●	●	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1009-1011		●				●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1009-1011	●		●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1012-	●	●				●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1012-			●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1009-	●		●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1009-1011		●				●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1009-1011	●		●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-	●	●				●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1012-			●	●	●

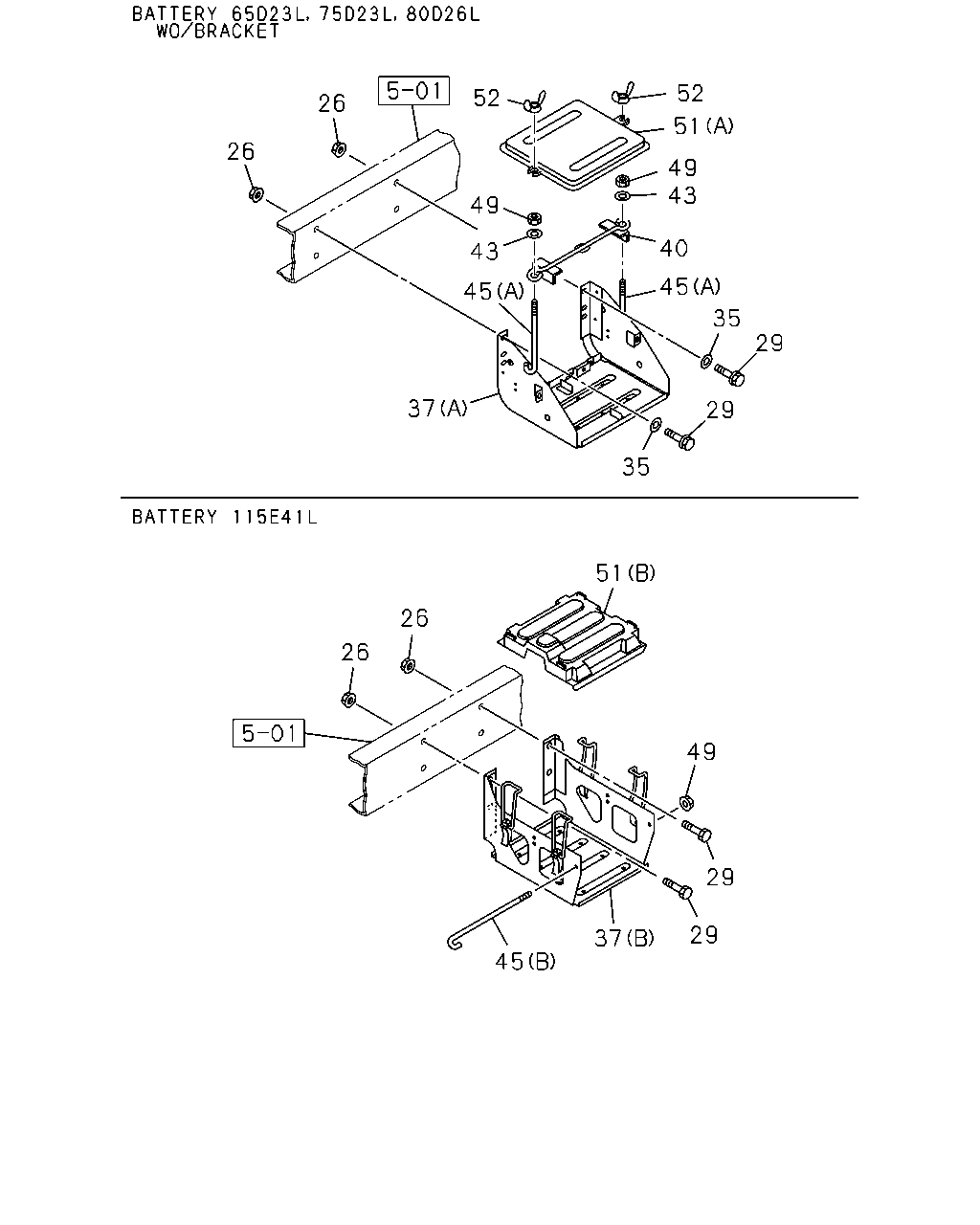

52 51 49 43 40 45 35 29 29 35 37 45 43 49 52 26 26 26 26 51 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1009-1101	●	●	●	●	●	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204				●	●	●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-			●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-				●	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1009-1011		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1009-1011	●		●	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1012-1204			●	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-			●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-				●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1009-1011		●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1009-1011						●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-	●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	02	1	1012-						●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1009-1011		●				●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1009-1011	●		●	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-	●	●				●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	1012-			●	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	1009-	●	●	●	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1009-1011		●				●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	1012-	●	●				●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	1009-	●		●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1009-1011		●				●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1009-1011	●		●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	1012-	●	●				●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	1012-			●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1009-1011		●				●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1009-1011	●		●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-	●	●				●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	1012-			●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1009-1011		●				●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1009-1011	●		●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A) L=120	9-53616-615-0	02	1	1012-	●	●				●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A) L=120	9-53616-615-0	02	1	1012-			●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (B) L=430	8-97134-740-0	02	1	1009-	●		●	●	●
49	02.334 NUT; ROD,BATTERY 01.062 M8 FLANGE	0-91180-108-0	02	1	1009-	●	●	●	●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1009-1011		●				●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1009-1011	●		●	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	1012-	●	●				●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	1012-			●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	1009-	●		●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1009-1011		●				●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1009-1011	●		●	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	1012-	●	●				●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	1012-			●	●	●
