Sayfa 5-15 - Isuzu EPC

5-15 — CAB MOUNTING; CAB SIDE (#77406) — 360 parça

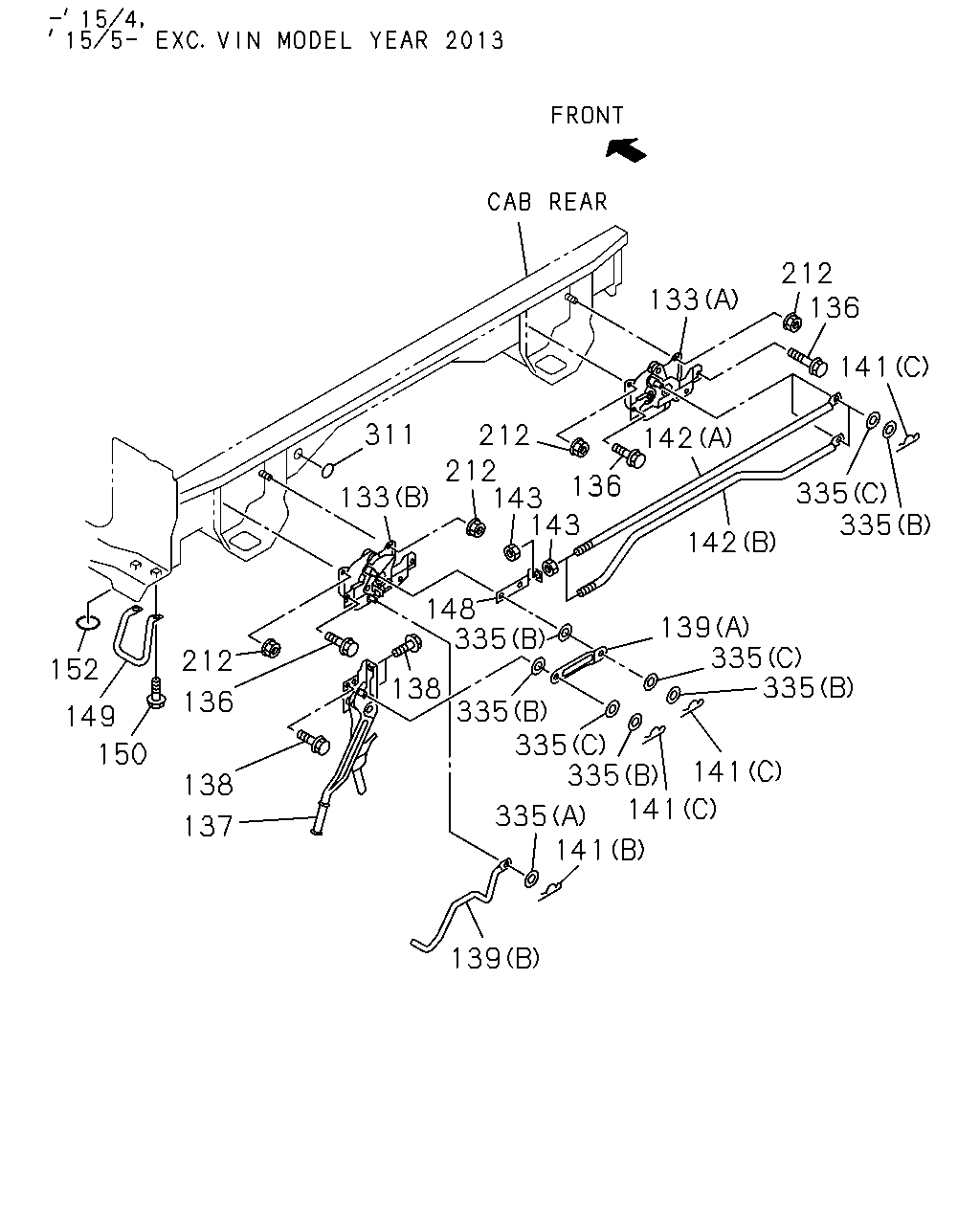

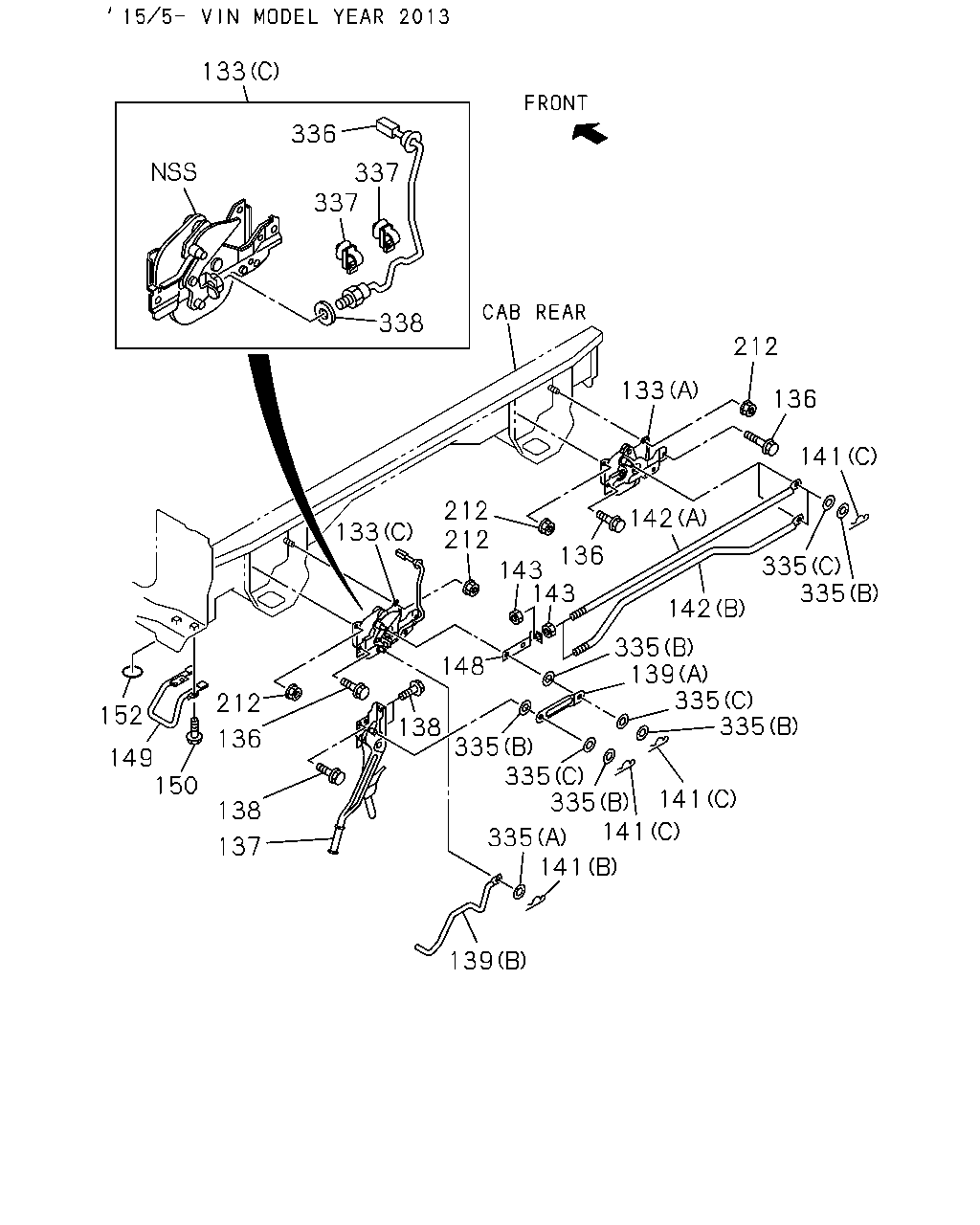

133 336 337 338 337 152 149 150 138 137 212 136 133 138 335 335 335 335 141 139 141 335 335 139 141 335 143 143 142 335 335 142 136 212 212 148 141 136 212 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	09.005 LOCK ASM; CAB VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-			●
133	09.005 LOCK ASM; CAB (B)	8-97410-270-2	01	1	1009-1504	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1009-1504			●
133	09.005 LOCK ASM; CAB EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-			●
133	09.005 LOCK ASM; CAB (A)	8-97584-486-4	01	1	1009-1105	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	1009-1105			●
133	09.005 LOCK ASM; CAB (A)	8-98182-353-0	01	1	1106-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-			●
136	09.005 BOLT; CAB LK 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-			●
137	09.005 CONTROL UNIT; CAB LOCK	8-97584-469-3	01	1	1009-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1009-			●
138	09.005 BOLT; CAB LOCK CONT UNIT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-			●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	1009-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1009-			●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-202-0	01	1	1009-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-			●
142	09.005 ROD; HOOK TO HOOK (A)	8-97587-991-0	01	1	1009-1011	●
142	09.005 ROD; HOOK TO HOOK 4JJ1-TCS ENG(LFB) (A)	8-97587-991-0	01	1	1012-	●	●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ) (B)	8-97410-633-0	01	1	1009-		●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ> (B)	8-97410-633-0	01	1	1009-			●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 00.833 M10	0-91110-510-0	02	1	1009-	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1009-			●
148	09.005 JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1009-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1009-			●
149	16.450 HANDLE; TILT	8-98067-938-0	01	1	1009-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1009-			●
150	16.450 BOLT; TILT HANDLE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103			●
150	16.450 BOLT; TILT HANDLE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-			●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1009-			●
212	09.005 NUT; BRKT,CAB LOCK 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-			●
335	09.005 WASHER; CAB LOCK ROD 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-			●
335	09.005 WASHER; CAB LOCK ROD 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-			●
335	09.005 WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1009-			●
336	03.001 SWITCH; CAB LOCK VIN MODEL YEAR 2013(VZD)	8-98032-665-2	01	1	1505-	●	●
336	03.001 SWITCH; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD)	8-98032-665-2	01	1	1505-			●
337	09.001 CLIP; CAB LOCK VIN MODEL YEAR 2013(VZD) 02.559 L=155	8-97173-307-0	02	1	1505-	●	●
337	09.001 CLIP; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) 02.559 L=155	8-97173-307-0	02	1	1505-			●
338	09.005 WASHER; CAB LOCK VIN MODEL YEAR 2013(VZD) 04.429 ID=17 OD=30	0-91610-516-0	01	1	1505-	●	●
338	09.005 WASHER; CAB LOCK MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) 04.429 ID=17 OD=30	0-91610-516-0	01	1	1505-			●

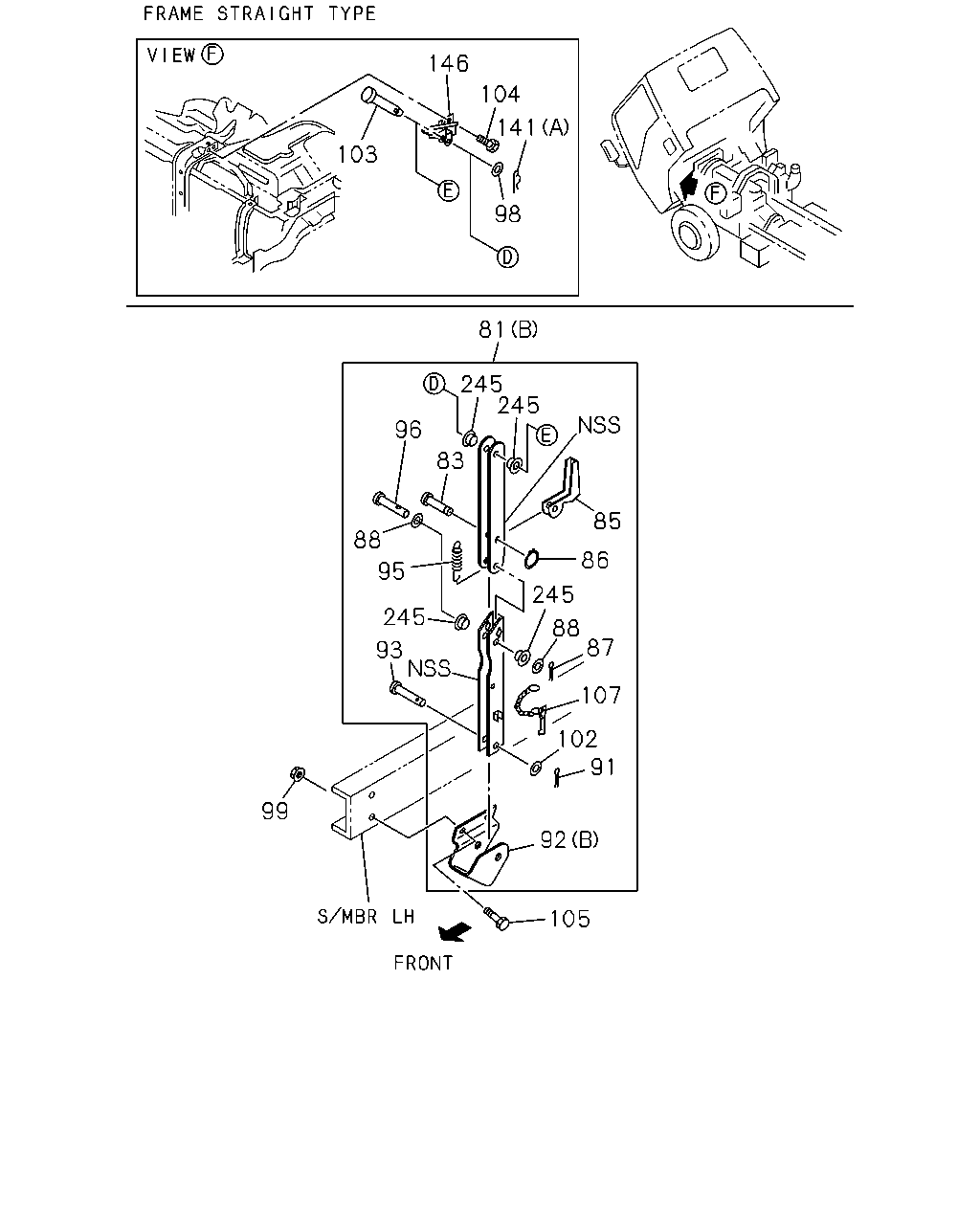

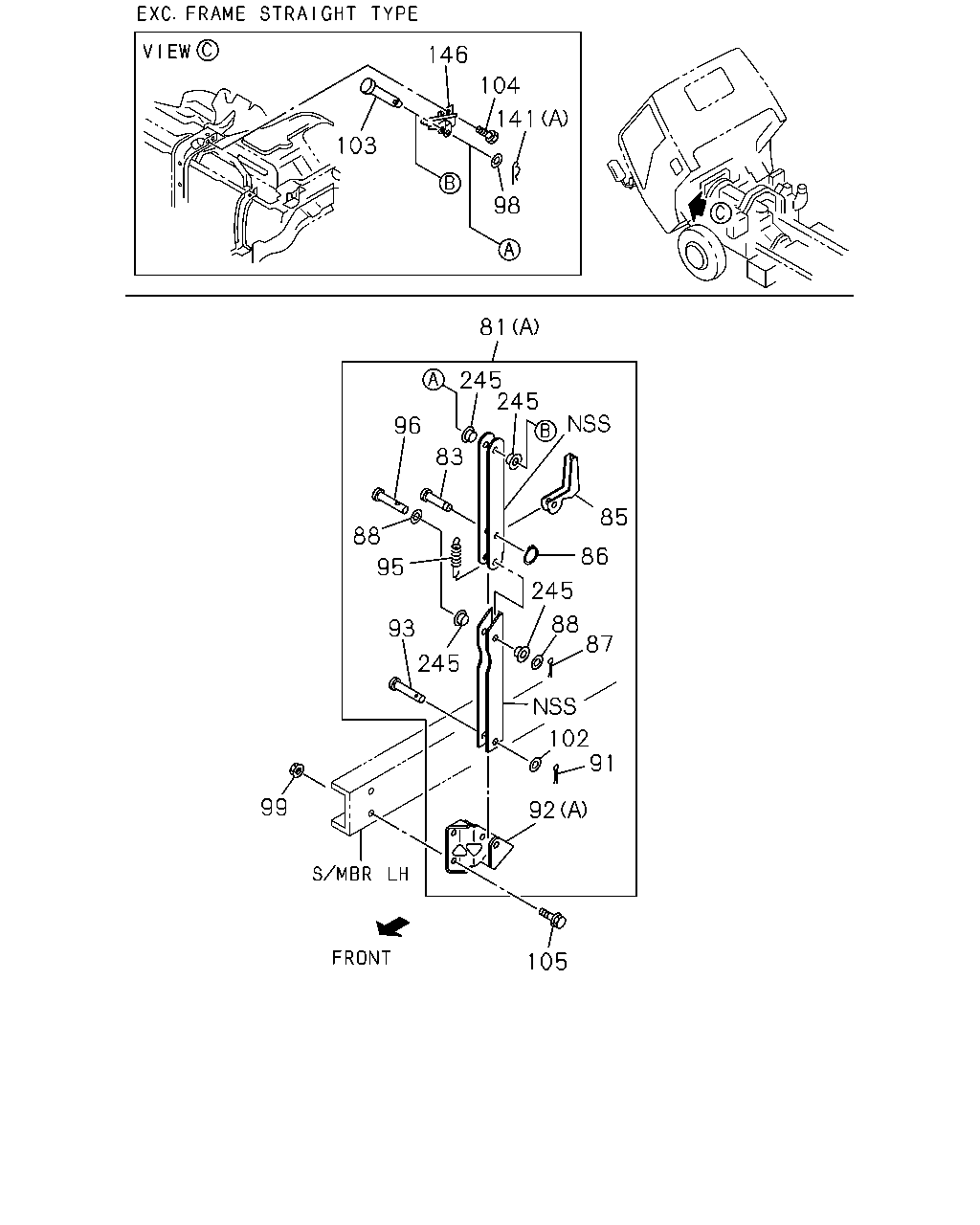

103 146 141 98 104 81 245 96 88 95 93 245 99 92 91 102 87 88 245 85 86 245 105 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	09.003 STAY ASM; CAB TILT (A)	8-98123-307-0	01	1	1009-1011	●
81	09.003 STAY ASM; CAB TILT (A)	8-98123-307-0	01	1	1012-	●
81	09.003 STAY ASM; CAB TILT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98123-307-0	01	1	1012-		●
81	09.003 STAY ASM; CAB TILT (B)	8-98123-310-0	01	1	1009-1011		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1009-1011			●
81	09.003 STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1012-1510		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1012-1510			●
81	09.003 STAY ASM; CAB TILT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1511-		●
81	09.003 STAY ASM; CAB TILT 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1511-			●
83	09.003 PIN; JOINT,CAB STAY	8-98122-493-0	01	1	1009-1510	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1009-1510			●
83	09.003 PIN; JOINT,CAB STAY	8-98122-493-0	01	1	1511-	●
83	09.003 PIN; JOINT,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-			●
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	1009-1510	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1009-1510			●
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	1511-	●
85	09.003 LEVER; LOCK,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-			●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	1009-1510	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1009-1510			●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	1511-	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-			●
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1009-1510	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1009-1510			●
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-	●
87	09.003 PIN; SPLIT,CAB STAY PIN EXC. FRAME STRAIGHT TYPE<7KJ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-			●
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1009-1510	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1009-1510			●
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-	●
88	09.003 WASHER; PL,CAB STAY PIN EXC. FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-			●
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1009-1510	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1009-1510			●
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-	●
91	09.003 PIN; SPLIT,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-			●
92	09.003 BRACKET; CAB STAY TO FRAME (A)	8-98001-020-0	01	1	1009-1011	●
92	09.003 BRACKET; CAB STAY TO FRAME (A)	8-98001-020-0	01	1	1012-	●
92	09.003 BRACKET; CAB STAY TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98001-020-0	01	1	1012-		●
92	09.003 BRACKET; CAB STAY TO FRAME (B)	8-98011-317-0	01	1	1009-1011		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1009-1011			●
92	09.003 BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1012-1510		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1012-1510			●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1511-		●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1511-			●
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	1009-1510	●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1009-1510			●
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	1511-	●
93	09.003 PIN; CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-			●
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	1009-1510	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1009-1510			●
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	1511-	●
95	09.003 SPRING; RETURN,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-			●
96	09.003 PIN; JOINT	8-98123-513-0	01	1	1009-1510	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1009-1510			●
96	09.003 PIN; JOINT	8-98123-513-0	01	1	1511-	●
96	09.003 PIN; JOINT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-			●
98	09.003 WASHER; CAB STAY 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1009-	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1009-			●
99	09.003 NUT; CAB STAY EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
99	09.003 NUT; CAB STAY EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-		●
99	09.003 NUT; CAB STAY 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1510	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1510			●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1009-1510	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1009-1510			●
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-	●
102	09.003 WASHER; PL,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-			●
103	09.003 PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	1009-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1009-			●
104	09.003 BOLT; CAB STAY BRKT 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1009-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1009-			●
105	09.003 BOLT; CAB STAY 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-			●
146	09.003 BRACKET ASM; CAB STAY UPR	8-97387-328-2	01	1	1009-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1009-			●
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	1009-1510	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1009-1510			●
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	1511-	●
245	09.003 BUSHING; CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-			●

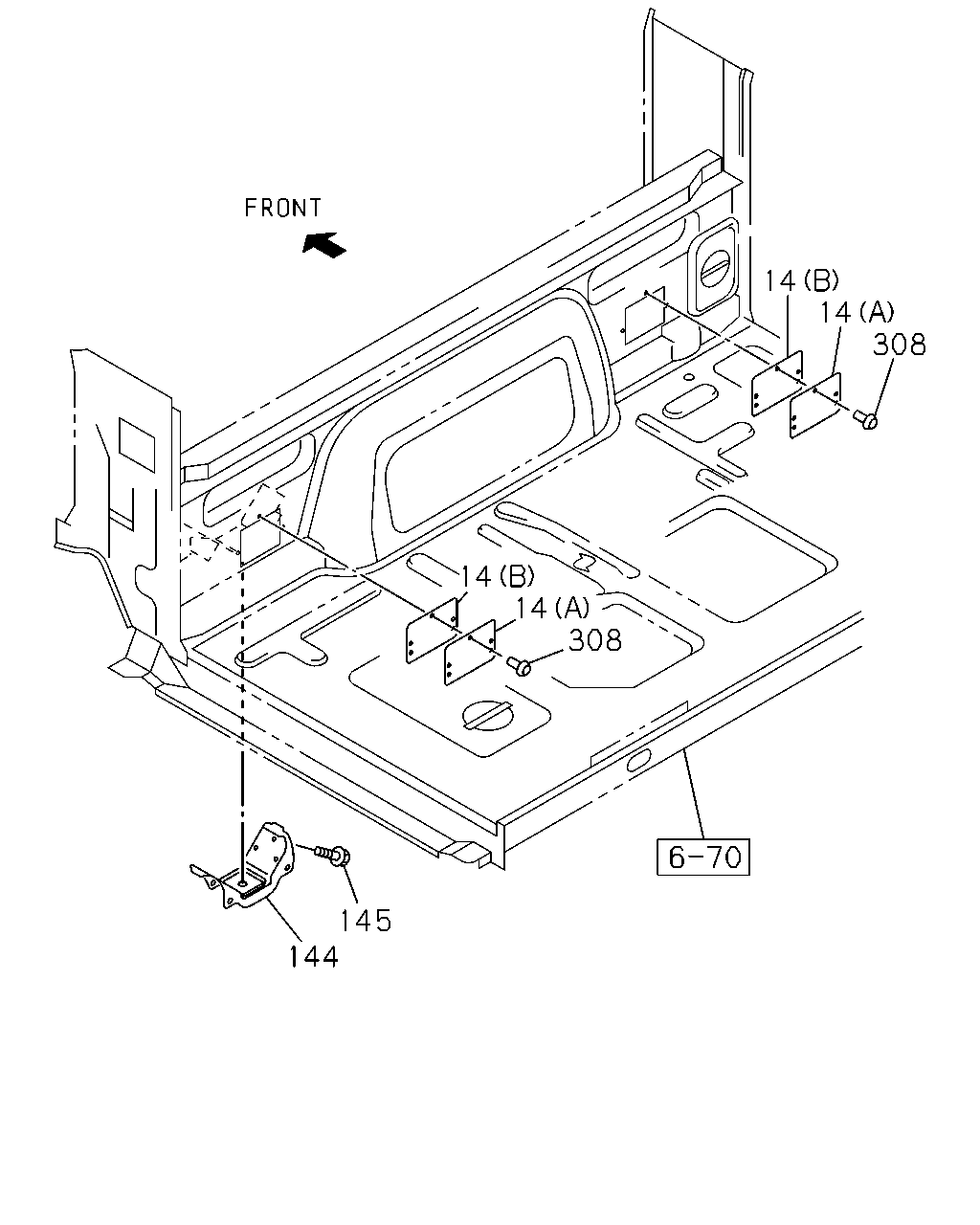

145 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1009-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1009-		●	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-		●	●	●

152 149 150 138 137 212 136 139 141 335 141 335 335 335 138 141 335 148 133 311 212 212 143 143 136 142 139 335 335 335 335 141 136 212 133 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
133	09.005 LOCK ASM; CAB VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> VIN MODEL YEAR 2013(VZD) (C)	8-98182-354-0	01	1	1505-			●
133	09.005 LOCK ASM; CAB (B)	8-97410-270-2	01	1	1009-1504	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	1009-1504			●
133	09.005 LOCK ASM; CAB EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> EXC. VIN MODEL YEAR 2013(VZD) (B)	8-97410-270-2	01	1	1505-			●
133	09.005 LOCK ASM; CAB (A)	8-97584-486-4	01	1	1009-1105	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	1009-1105			●
133	09.005 LOCK ASM; CAB (A)	8-98182-353-0	01	1	1106-	●	●
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-			●
136	09.005 BOLT; CAB LK 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-	●	●
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1009-			●
137	09.005 CONTROL UNIT; CAB LOCK	8-97584-469-3	01	1	1009-	●	●
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97584-469-3	01	1	1009-			●
138	09.005 BOLT; CAB LOCK CONT UNIT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-	●	●
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1009-			●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	1009-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	1009-			●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-202-0	01	1	1009-	●	●
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-202-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-			●
142	09.005 ROD; HOOK TO HOOK (A)	8-97587-991-0	01	1	1009-1011	●
142	09.005 ROD; HOOK TO HOOK 4JJ1-TCS ENG(LFB) (A)	8-97587-991-0	01	1	1012-	●	●
142	09.005 ROD; HOOK TO HOOK 4HK1-TCN ENG(RDQ) (B)	8-97410-633-0	01	1	1009-		●
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ> (B)	8-97410-633-0	01	1	1009-			●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 00.833 M10	0-91110-510-0	02	1	1009-	●	●
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	1009-			●
148	09.005 JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1009-	●	●
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	1009-			●
149	16.450 HANDLE; TILT	8-98067-938-0	01	1	1009-	●	●
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	1009-			●
150	16.450 BOLT; TILT HANDLE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1009-1103			●
150	16.450 BOLT; TILT HANDLE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-	●	●
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-			●
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	1009-			●
212	09.005 NUT; BRKT,CAB LOCK 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-	●	●
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	1009-			●
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	1009-1504	●	●	●
311	09.005 SEAL; CAB LOCK EXC. VIN MODEL YEAR 2013(VZD) 16.545 OD=32 BLACK	8-98031-126-0	01	1	1505-	●	●	●
311	09.005 SEAL; CAB LOCK VIN MODEL YEAR 2013(VZD) EXC. MANUAL TILT CAB<RWZ> 16.545 OD=32 BLACK	8-98031-126-0	01	1	1505-			●
335	09.005 WASHER; CAB LOCK ROD 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	1009-			●
335	09.005 WASHER; CAB LOCK ROD 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	1009-			●
335	09.005 WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	1009-	●	●
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	1009-			●

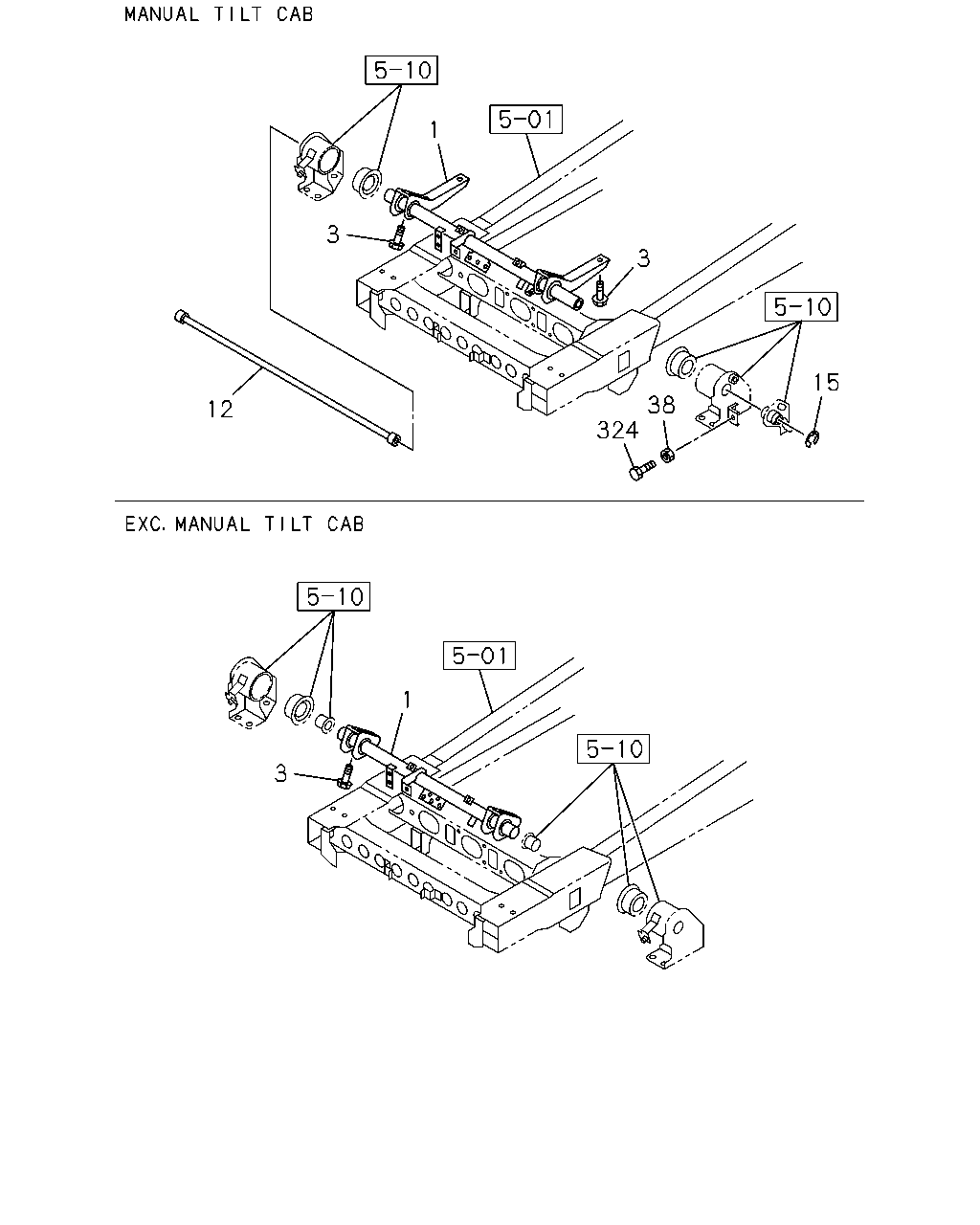

1 3 12 3 324 38 15 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	09.003 LEVER; TORSION BAR	8-98074-174-1	01	1	1009-	●	●
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98074-174-1	01	1	1009-			●
1	09.003 LEVER; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-98077-693-0	01	1	1009-			●
1	09.003 LEVER; TORSION BAR	8-98077-693-0	01	1	1009-				●	●	●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1009-	●	●
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	1009-			●
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1009-			●
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	1009-				●	●	●
12	09.003 BAR; TORSION,UPR SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5>	8-98246-118-0	01	1	1411-1411	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> SUSP SEAT 130KG W/SEAT BELT ANCHORAGE <WN5>	8-98246-118-0	01	1	1411-1411			●
12	09.003 BAR; TORSION,UPR SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98246-118-0	01	1	1412-	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> SUSP SEAT 100KG W/SEAT BELT ANCHORAGE <SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98246-118-0	01	1	1412-			●
12	09.003 BAR; TORSION,UPR	8-98166-027-0	01	1	1009-1410	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98166-027-0	01	1	1009-1410			●
12	09.003 BAR; TORSION,UPR EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>	8-98166-027-0	01	1	1411-1411	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> EXC. SUSP SEAT 130KG W/SEAT BELT ANCH ORAGE<WN5>	8-98166-027-0	01	1	1411-1411			●
12	09.003 BAR; TORSION,UPR EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98166-027-0	01	1	1412-	●	●
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ> EXC. SUSP SEAT 100KG W/SEAT BELT ANCH ORAGE<SA3>,SUSP SEAT 130KG W/SEAT BELT ANCHORAGE<WN5>	8-98166-027-0	01	1	1412-			●
15	09.003 RING; SNAP,TORSION BAR	8-97359-034-0	01	1	1009-	●	●
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	1009-			●
38	09.005 NUT; LK M14	8-98039-988-0	01	1	1009-	●	●
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	1009-			●
324	09.003 BOLT; ADJUST M14X55	8-98004-319-1	01	1	1009-	●	●
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	1009-			●

103 146 141 104 98 81 245 96 88 95 245 93 99 105 92 91 102 107 87 88 245 86 85 245 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
81	09.003 STAY ASM; CAB TILT (A)	8-98123-307-0	01	1	1009-1011	●
81	09.003 STAY ASM; CAB TILT (A)	8-98123-307-0	01	1	1012-	●
81	09.003 STAY ASM; CAB TILT EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98123-307-0	01	1	1012-		●
81	09.003 STAY ASM; CAB TILT (B)	8-98123-310-0	01	1	1009-1011		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1009-1011			●
81	09.003 STAY ASM; CAB TILT FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1012-1510		●
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1012-1510			●
81	09.003 STAY ASM; CAB TILT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98123-310-0	01	1	1511-		●
81	09.003 STAY ASM; CAB TILT 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (B)	8-98123-310-0	01	1	1511-			●
83	09.003 PIN; JOINT,CAB STAY	8-98122-493-0	01	1	1009-1510	●	●
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1009-1510			●
83	09.003 PIN; JOINT,CAB STAY	8-98122-493-0	01	1	1511-	●
83	09.003 PIN; JOINT,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98122-493-0	01	1	1511-		●
83	09.003 PIN; JOINT,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98122-493-0	01	1	1511-			●
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	1009-1510	●	●
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1009-1510			●
85	09.003 LEVER; LOCK,CAB STAY	8-94331-481-0	01	1	1511-	●
85	09.003 LEVER; LOCK,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-94331-481-0	01	1	1511-		●
85	09.003 LEVER; LOCK,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-94331-481-0	01	1	1511-			●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	1009-1510	●	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1009-1510			●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	1511-	●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.585 ID=6	0-91805-506-0	01	1	1511-		●
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	1511-			●
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1009-1510	●	●
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1009-1510			●
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-	●
87	09.003 PIN; SPLIT,CAB STAY PIN EXC. FRAME STRAIGHT TYPE<7KJ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-		●
87	09.003 PIN; SPLIT,CAB STAY PIN 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	1511-			●
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1009-1510	●	●
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1009-1510			●
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-	●
88	09.003 WASHER; PL,CAB STAY PIN EXC. FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-		●
88	09.003 WASHER; PL,CAB STAY PIN 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	1511-			●
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1009-1510	●	●
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1009-1510			●
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-	●
91	09.003 PIN; SPLIT,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-		●
91	09.003 PIN; SPLIT,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	1511-			●
92	09.003 BRACKET; CAB STAY TO FRAME (A)	8-98001-020-0	01	1	1009-1011	●
92	09.003 BRACKET; CAB STAY TO FRAME (A)	8-98001-020-0	01	1	1012-	●
92	09.003 BRACKET; CAB STAY TO FRAME EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98001-020-0	01	1	1012-		●
92	09.003 BRACKET; CAB STAY TO FRAME (B)	8-98011-317-0	01	1	1009-1011		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1009-1011			●
92	09.003 BRACKET; CAB STAY TO FRAME FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1012-1510		●
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1012-1510			●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-98011-317-0	01	1	1511-		●
92	09.003 BRACKET; CAB STAY TO FRAME 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (B)	8-98011-317-0	01	1	1511-			●
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	1009-1510	●	●
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1009-1510			●
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	1511-	●
93	09.003 PIN; CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98122-498-0	01	1	1511-		●
93	09.003 PIN; CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	1511-			●
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	1009-1510	●	●
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1009-1510			●
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	1511-	●
95	09.003 SPRING; RETURN,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-94160-167-2	01	1	1511-		●
95	09.003 SPRING; RETURN,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	1511-			●
96	09.003 PIN; JOINT	8-98123-513-0	01	1	1009-1510	●	●
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1009-1510			●
96	09.003 PIN; JOINT	8-98123-513-0	01	1	1511-	●
96	09.003 PIN; JOINT EXC. FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-98123-513-0	01	1	1511-		●
96	09.003 PIN; JOINT 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	1511-			●
98	09.003 WASHER; CAB STAY 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1009-	●	●
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	1009-			●
99	09.003 NUT; CAB STAY EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-	●
99	09.003 NUT; CAB STAY EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1511-		●
99	09.003 NUT; CAB STAY 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1510	●	●
99	09.003 NUT; CAB STAY MANUAL TILT CAB<RWZ> 03.162 M10 FLANGE	0-91180-110-0	02	1	1009-1510			●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-	●
99	09.003 NUT; CAB STAY AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1009-1510	●	●
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1009-1510			●
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-	●
102	09.003 WASHER; PL,CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-		●
102	09.003 WASHER; PL,CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	1511-			●
103	09.003 PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	1009-	●	●
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	1009-			●
104	09.003 BOLT; CAB STAY BRKT 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1009-	●	●
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	1009-			●
105	09.003 BOLT; CAB STAY 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-	●	●
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1009-			●
107	09.005 PIN; LK LEVER	8-94331-482-0	01	1	1009-1011		●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1009-1011			●
107	09.005 PIN; LK LEVER FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	1012-1510		●
107	09.005 PIN; LK LEVER MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1012-1510			●
107	09.005 PIN; LK LEVER 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-94331-482-0	01	1	1511-		●
107	09.005 PIN; LK LEVER 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	8-94331-482-0	01	1	1511-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	1009-			●
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	1009-	●	●
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	1009-			●
146	09.003 BRACKET ASM; CAB STAY UPR	8-97387-328-2	01	1	1009-	●	●
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-97387-328-2	01	1	1009-			●
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	1009-1510	●	●
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1009-1510			●
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	1511-	●
245	09.003 BUSHING; CAB STAY EXC. FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	1-62500-587-0	04	1	1511-		●
245	09.003 BUSHING; CAB STAY 4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	1511-			●

14 14 308 145 144 14 14 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
14	09.009 COVER; MTG,CAB (A) BLACK L=125	8-94273-738-3	02	1	1009-		●	●	●
14	09.009 COVER; MTG,CAB (B) BLACK L=124	8-98132-457-0	02	1	1009-		●	●	●
144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	1009-	●
144	09.009 BRACKET ASM; CAB RR MTG	8-97853-060-4	02	1	1009-		●	●	●
145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-	●
145	09.008 BOLT; CAB RR MTG BRKT 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	1009-		●	●	●
308	09.003 RIVET; COVER 03.602 D6X12.5	8-94146-425-0	06	1	1009-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
