4-80 — ROAD WHEEL (#77403) — 140 parça

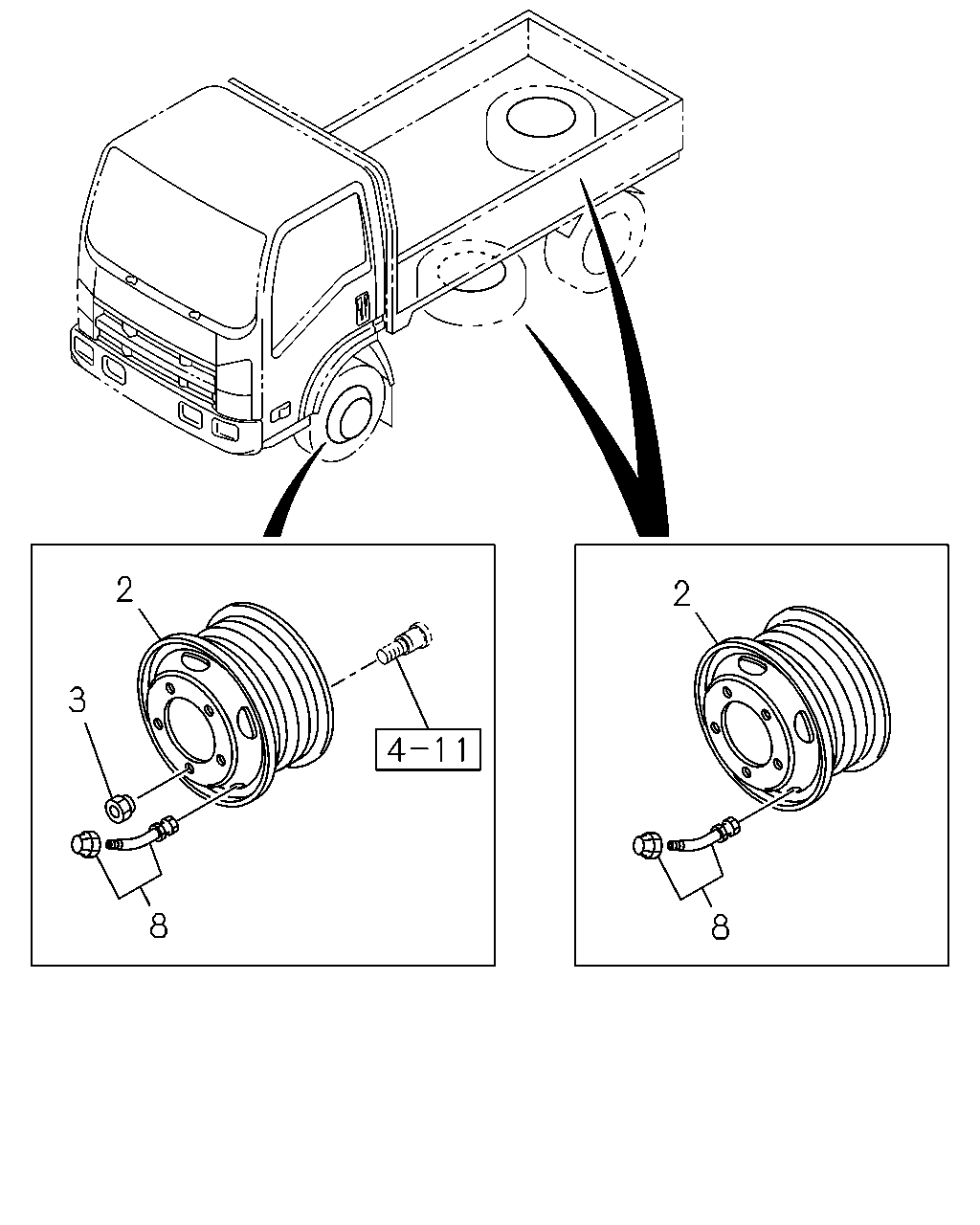

çizim 187181
2 8 2 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1505- ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-813-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-814-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-814-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-981-0 02 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) FRONT 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-981-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 01 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) SPARE 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) REAR 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 04 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) REAR 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ● ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1009- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 1407- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18 RH THREAD 		8-98007-907-0 05 1 1009- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M18 LH THREAD 		8-98007-908-0 05 1 1009- ● ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 RH THREAD 		8-97359-807-0 06 1 1009-1308 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) M20 RH THREAD 		8-97359-807-0 06 1 1009-1308 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 RH THREAD 		8-97359-807-0 06 1 1309-1504 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M20 RH THREAD 		8-97359-807-0 06 1 1309-1504 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) M20 RH THREAD 		8-97359-807-0 06 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M20 RH THREAD 		8-97359-807-0 06 1 1505- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 RH THREAD 		8-97359-807-0 06 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 LH THREAD 		8-97359-808-0 06 1 1009-1308 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) M20 LH THREAD 		8-97359-808-0 06 1 1009-1308 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 LH THREAD 		8-97359-808-0 06 1 1309-1504 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M20 LH THREAD 		8-97359-808-0 06 1 1309-1504 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) M20 LH THREAD 		8-97359-808-0 06 1 1505- ●
3 05.813 NUT; WHEEL,FRT AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M20 LH THREAD 		8-97359-808-0 06 1 1505- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M20 LH THREAD 		8-97359-808-0 06 1 1505- ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) SPARE 		1-42370-010-1 01 1 1309-1406 ● ●
8 05.875 VALVE; TIRE
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R19.5 19.5X6.0 0-127 SILVER DISC(CYL) SPARE 		1-42370-010-1 01 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) FRONT,REAR 		1-42370-010-1 06 1 1309-1406 ● ●
8 05.875 VALVE; TIRE
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R19.5 19.5X6.0 0-127 SILVER DISC(CYL) FRONT,REAR 		1-42370-010-1 06 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT,REAR 		1-42370-010-1 06 1 1009-1308 ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 		1-42370-010-1 01 1 1009-1308 ● ●
8 05.875 VALVE; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE 		8-98221-106-0 01 1 1009- ● ● ●
8 05.875 VALVE; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) FRONT,REAR 		8-98221-106-0 06 1 1009- ● ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 		8-98221-112-0 01 1 1009-1406 ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 		8-98221-112-0 01 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 		8-98221-112-0 01 1 1407- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 		8-98221-112-0 02 1 1009- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 		8-98221-112-0 04 1 1009- ● ●
8 05.875 VALVE; TIRE
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 		8-98221-112-0 06 1 1009-1406 ● ●
8 05.875 VALVE; TIRE
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●

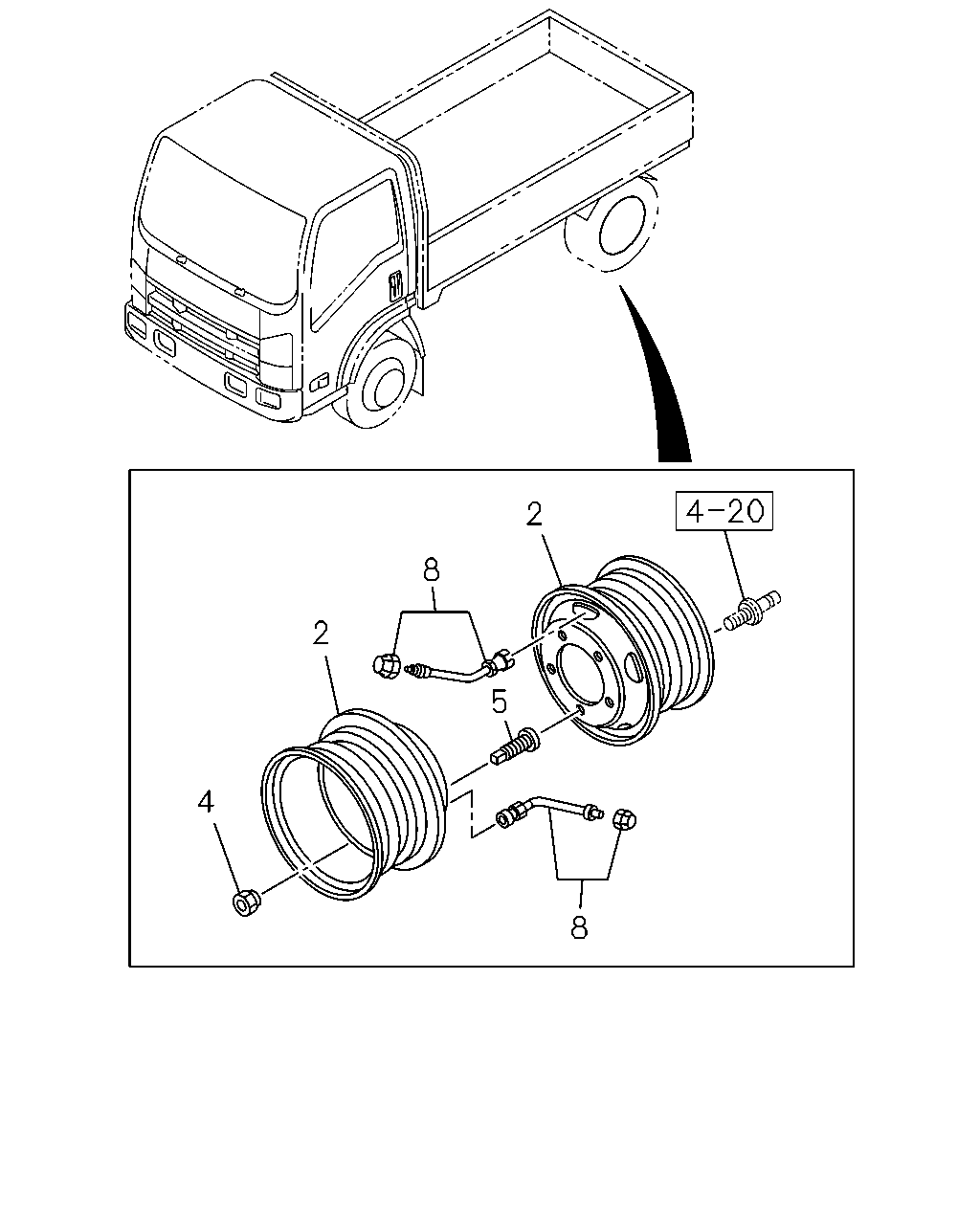

çizim 187184
2 8 2 4 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) SPARE 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 01 1 1505- ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) FRONT,REAR 5.5JX16 OFFSET=127 PLATINUM SILVER 		8-97322-421-0 06 1 1505- ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-809-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-810-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-813-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-814-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98277-814-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-981-0 02 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) FRONT 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-981-0 02 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 01 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) SPARE 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 01 1 1407- ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) REAR 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 04 1 1309-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 SILVE R DISC(CYL) REAR 19.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98251-982-0 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ● ● ●
2 05.803 WHEEL; DISC
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1009- ● ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 06 1 1009-1010 ● ●
2 05.803 WHEEL; DISC
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 06 1 1011- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 01 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) REAR 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-97179-773-4 04 1 1407- ● ●
2 05.803 WHEEL; DISC
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 1009-1406 ● ●
2 05.803 WHEEL; DISC
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT 19.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98080-745-1 02 1 1407- ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M27 RH THREAD 		8-98007-824-0 05 1 1009- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) M27 LH THREAD 		8-98007-825-0 05 1 1009- ● ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 RH THREAD 		8-97359-809-0 06 1 1009-1308 ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) M30 RH THREAD 		8-97359-809-0 06 1 1009-1308 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 RH THREAD 		8-97359-809-0 06 1 1309-1504 ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M30 RH THREAD 		8-97359-809-0 06 1 1309-1504 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) M30 RH THREAD 		8-97359-809-0 06 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M30 RH THREAD 		8-97359-809-0 06 1 1505- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 RH THREAD 		8-97359-809-0 06 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 LH THREAD 		8-97359-810-0 06 1 1009-1308 ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) M30 LH THREAD 		8-97359-810-0 06 1 1009-1308 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 LH THREAD 		8-97359-810-0 06 1 1309-1504 ● ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M30 LH THREAD 		8-97359-810-0 06 1 1309-1504 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) M30 LH THREAD 		8-97359-810-0 06 1 1505- ●
4 05.813 NUT; WHEEL,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) M30 LH THREAD 		8-97359-810-0 06 1 1505- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) M30 LH THREAD 		8-97359-810-0 06 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1009- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1009- ● ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1009-1308 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1009-1308 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1309-1504 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1309-1504 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1505- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1009-1308 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1009-1308 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1309-1504 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1309-1504 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW), F&R195/85R16(MICHELIN)16X5.5J-127 6-W HL/NUT(CYJ),F&R195/85R16(BS BRAND)16X5.5J-127 6-WHL/NUT(CYK) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1505- ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1505- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1505- ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) SPARE 		1-42370-010-1 01 1 1309-1406 ● ●
8 05.875 VALVE; TIRE
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R19.5 19.5X6.0 0-127 SILVER DISC(CYL) SPARE 		1-42370-010-1 01 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R1 9.5 19.5X6.00-127 SILVER DISC(CYL), F&R 225/70R19.5 19.5X6.00-127 SILVER HI GHWAY(CYM) FRONT,REAR 		1-42370-010-1 06 1 1309-1406 ● ●
8 05.875 VALVE; TIRE
FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR),FT&RR 225/70R19.5 19.5X6.0 0-127 SILVER DISC(CYL) FRONT,REAR 		1-42370-010-1 06 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) FRONT,REAR 		1-42370-010-1 06 1 1009-1308 ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),FT&RR 225/70R19.5 19.5X6.00-127 WHITH DISC(CRR) SPARE 		1-42370-010-1 01 1 1009-1308 ● ●
8 05.875 VALVE; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) SPARE 		8-98221-106-0 01 1 1009- ● ● ●
8 05.875 VALVE; TIRE
F&R195/85R16(MICHELIN)16X5.5J-116.5 5 -WHL/NUT(CVS),F&R195/85R16(BS BRAND)16X5.5J-116.5 5-WHL/NUT(CVU) FRONT,REAR 		8-98221-106-0 06 1 1009- ● ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 		8-98221-112-0 01 1 1009-1406 ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT &RR TIRE 215-75R17.5 DISC 17.5-6-127S ILVER(CTV),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV),F&R 215/75R17. 5(BS BRAND)17.5X6.00-127 SILVER(CVW) SPARE 		8-98221-112-0 01 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) SPARE 		8-98221-112-0 01 1 1407- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) FRONT 		8-98221-112-0 02 1 1009- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F &R 215/75R17.5(BS BRAND)17.5X6.00-127 SILVER(CVW) REAR 		8-98221-112-0 04 1 1009- ● ●
8 05.875 VALVE; TIRE
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 		8-98221-112-0 06 1 1009-1406 ● ●
8 05.875 VALVE; TIRE
F&R TIRE 205/75R17.5(MICHELIN)17.5X6. 00-127(CSM),F&R TIRE 205/75R17.5(BS BRAND)17.5X6.00-127(CVV) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●
8 05.875 VALVE; TIRE
F&R 225/70R19.5 19.5X6.00-127 WHITE H IGHWAY(AVU),F&R 225/70R19.5 19.5X6.00-127 SILVER HIGHWAY(CYM) FRONT,REAR 		8-98221-112-0 06 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
