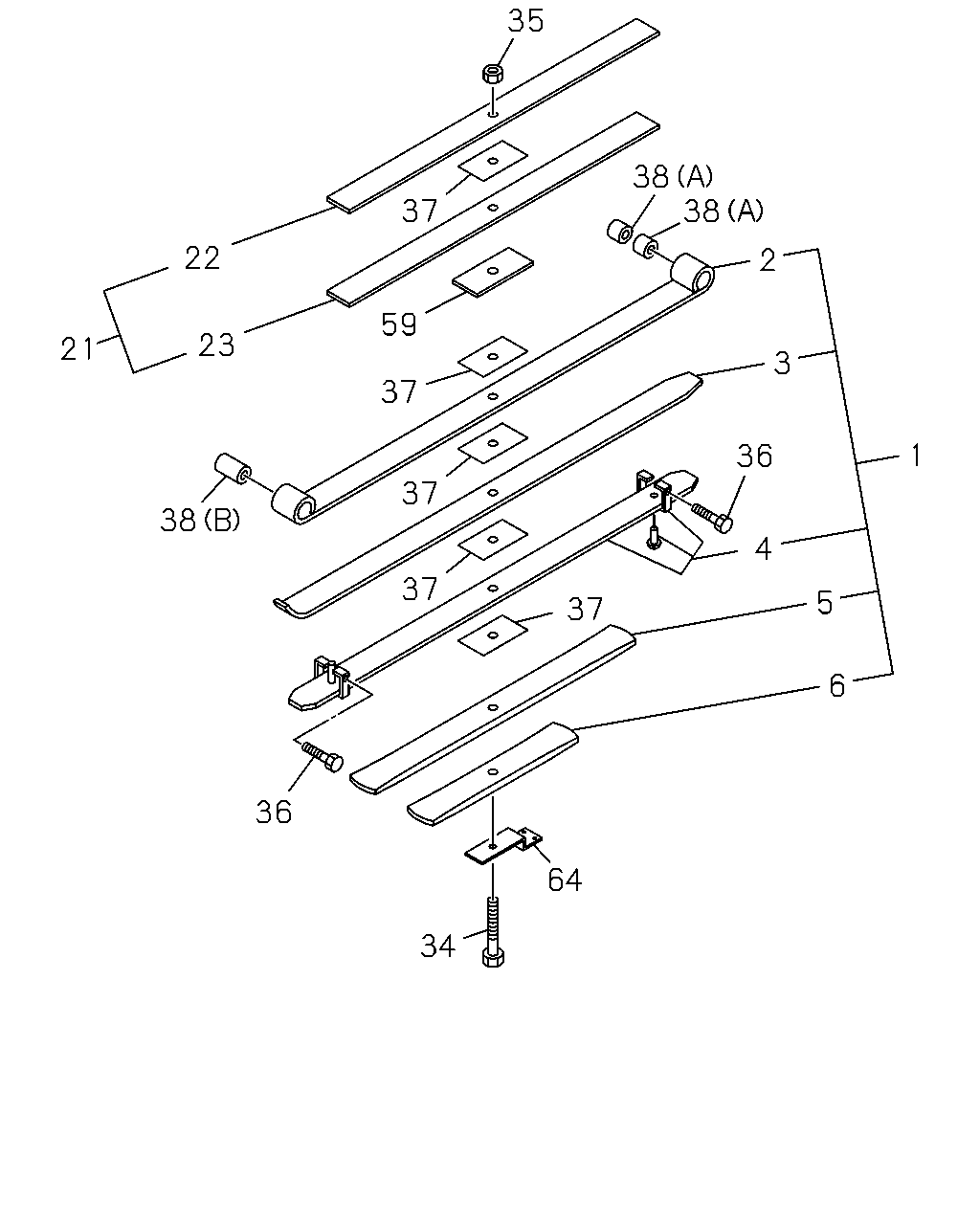

4-65B — REAR LEAF SPRING (#77401) — 18 parça

6 5 4 36 1 3 2 38 38 35 37 59 37 37 37 37 64 34 36 38 23 22 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-668-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-669-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-670-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-671-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-672-0	01	1	-
6	07.505 SPRING; LEAF,NO 5,RR MAIN ASM PART: A = 8-98251-874-0, 98251874	8-98022-673-0	01	1	-
21	07.503 SPRING ASM; LEAF,RR SUB ASM PART: A = 8-98251-874-0, 98251874	8-98022-674-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98251-874-0, 98251874	8-98022-675-0	01	1	-
23	07.505 SPRING; LEAF,NO 2,RR SUB ASM PART: A = 8-98251-874-0, 98251874	8-98022-676-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=125 ASM PART: A = 8-98251-874-0, 98251874	8-98037-584-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98251-874-0, 98251874	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98251-874-0, 98251874	8-98040-333-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98251-874-0, 98251874	8-97084-102-0	05	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98251-874-0, 98251874	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98251-874-0, 98251874	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98251-874-0, 98251874	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB T=6 ASM PART: A = 8-98251-874-0, 98251874	8-98034-524-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98251-874-0, 98251874	8-97225-579-1	01	1	-
