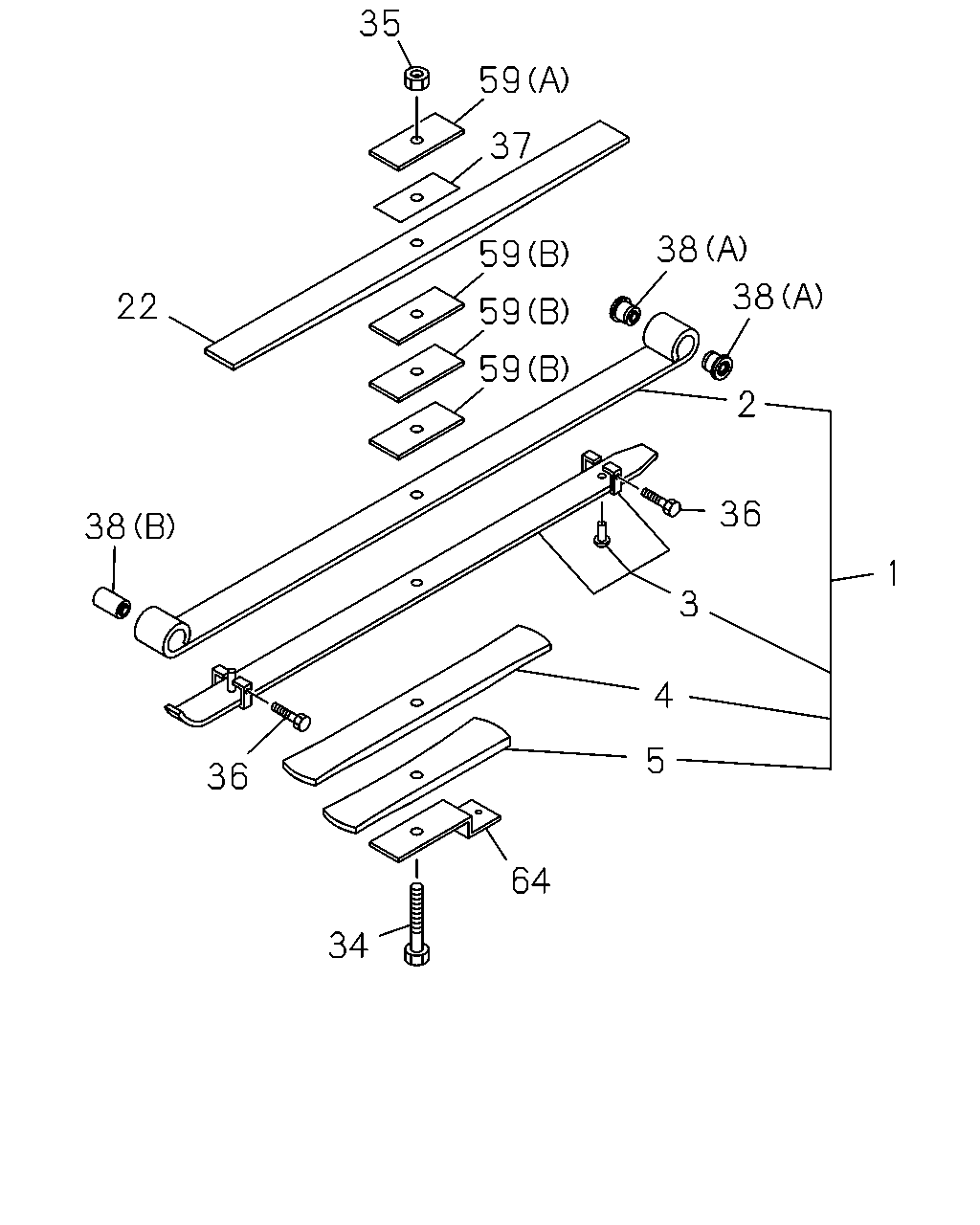

4-65A — REAR LEAF SPRING (#77400) — 16 parça

64 34 36 38 22 59 59 59 37 59 35 38 38 2 36 3 4 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-98072-424-0, 98072424	8-98082-040-0	01	1	-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-98072-424-0, 98072424	8-98081-600-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-98072-424-0, 98072424	8-98081-601-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-98072-424-0, 98072424	8-98081-602-0	01	1	-
5	07.505 SPRING; LEAF,NO 4,RR MAIN ASM PART: A = 8-98072-424-0, 98072424	8-98081-603-0	01	1	-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-98072-424-0, 98072424	8-98081-604-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=130 ASM PART: A = 8-98072-424-0, 98072424	8-98041-355-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 04.634, M12 ASM PART: A = 8-98072-424-0, 98072424	9-99110-512-0	01	1	-
36	07.506 BOLT; CLIP,LEAF SPR,RR M8X90.5 ASM PART: A = 8-98072-424-0, 98072424	8-98040-333-0	02	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-98072-424-0, 98072424	8-97084-102-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), BEST VALUE PARTS ASM PART: A = 8-98072-424-0, 98072424	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (A) ASM PART: A = 8-98072-424-0, 98072424	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (B), OD=42 L=81 ASM PART: A = 8-98072-424-0, 98072424	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB (B), T=11 ASM PART: A = 8-98072-424-0, 98072424	8-98037-599-0	03	1	-
59	07.513 SEAT; RR SPRING,SUB (A), T=8 ASM PART: A = 8-98072-424-0, 98072424	8-98040-779-0	01	1	-
64	07.513 SUPPORT; RR SPR ASM PART: A = 8-98072-424-0, 98072424	8-97225-579-1	01	1	-
