6-66 — HEAD LINING AND TRIM (#7740) — 82 parça

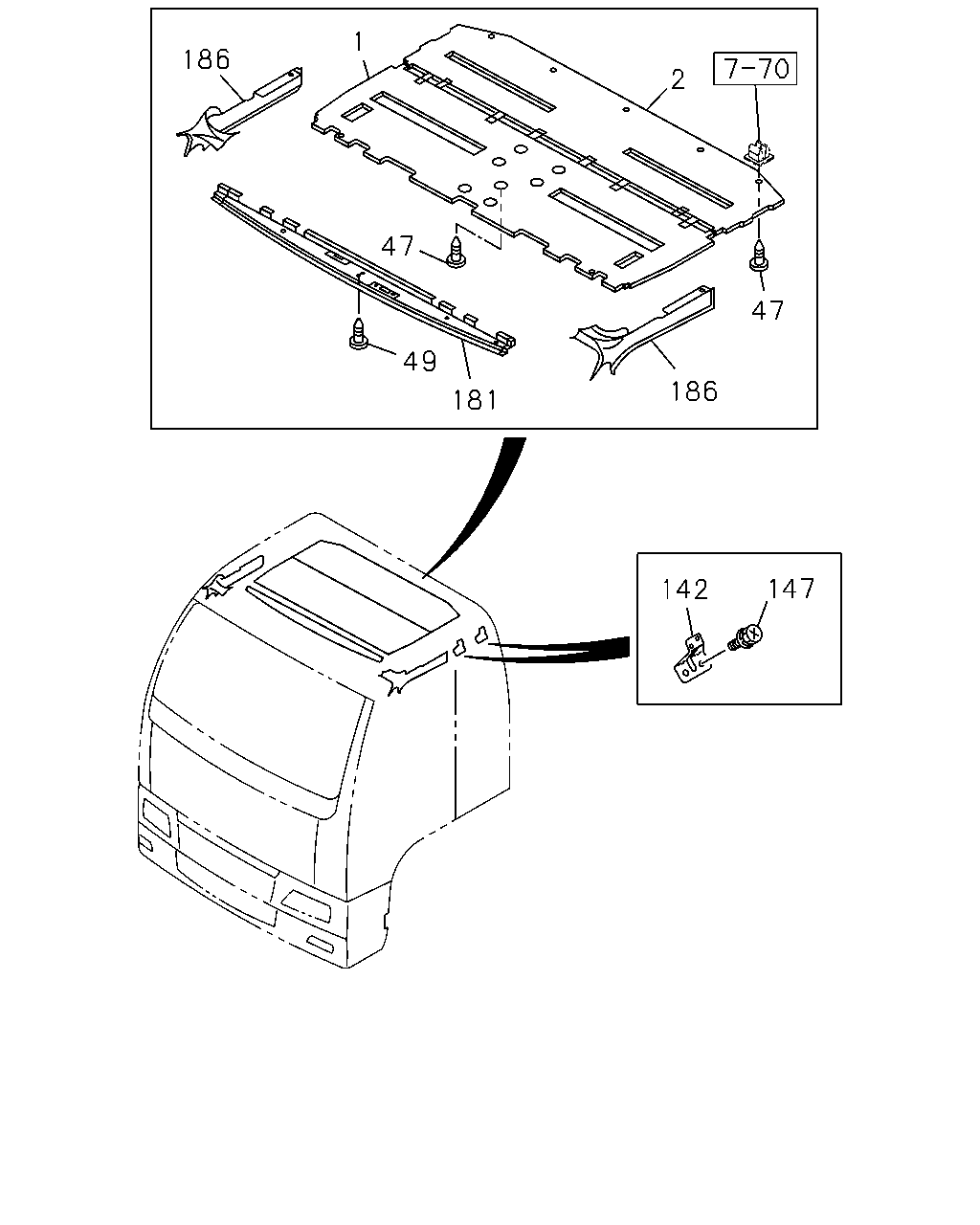

1 186 2 47 47 49 186 181 147 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-73317-426-1	01	1	9902-9909	●
1	LINING; HD HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG>	1-73317-426-1	01	1	9910-	●
1	LINING; HD LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F>	1-73317-376-2	01	1	9902-9909	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>	1-73317-376-2	01	1	9910-0003	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>	1-73317-376-2	01	1	0004-	●
1	LINING; HD HIGH ROOF<S2F>	1-73317-376-2	01	1	0004-		●
1	LINING; HD LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	9902-9909	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	9910-0003	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	0004-	●
1	LINING; HD EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	0004-		●
1	LINING; HD EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F>	1-73317-342-2	01	1	9902-9909	●
1	LINING; HD EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F>	1-73317-342-2	01	1	9910-	●
2	LINING; HD,ROOF RR HIGH ROOF<S2F>	1-73317-373-1	01	1	9902-0003	●
2	LINING; HD,ROOF RR HIGH ROOF<S2F>	1-73317-373-1	01	1	0004-	●	●
2	LINING; HD,ROOF RR EXC. HIGH ROOF<S2F>	1-73317-344-2	01	1	9902-0003	●
2	LINING; HD,ROOF RR EXC. HIGH ROOF<S2F>	1-73317-344-2	01	1	0004-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	13	1	9902-0003	●
47	CLIP; HEADLINING HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	13	1	0004-	●	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	16	1	9902-0003	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	16	1	0004-	●	●
49	CLIP; TRIM COVER D6X23 DARK GRAY	1-09987-238-0	01	1	9902-0003	●
49	CLIP; TRIM COVER D6X23 DARK GRAY	1-09987-238-0	01	1	0004-	●	●
142	BRACKET ASM; ROOF COVER HIGH ROOF<S2F>	1-61170-747-3	04	1	9902-0003	●
142	BRACKET ASM; ROOF COVER HIGH ROOF<S2F>	1-61170-747-3	04	1	0004-	●	●
147	BOLT; SUPPORT BRKT HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER	8-94279-207-0	16	1	9902-0003	●
147	BOLT; SUPPORT BRKT HIGH ROOF<S2F> M8X20.5 W/LK&PL WASHER	8-94279-207-0	16	1	0004-	●	●
181	TRIM; ROOM,HEADER AUTO ROUND CURTAIN<TAR>	1-73907-291-5	01	1	9902-0003	●
181	TRIM; ROOM,HEADER AUTO ROUND CURTAIN<TAR>	1-73907-291-5	01	1	0004-	●	●
181	TRIM; ROOM,HEADER EXC. AUTO ROUND CURTAIN<TAR>	1-73907-422-0	01	1	9902-0003	●
181	TRIM; ROOM,HEADER EXC. AUTO ROUND CURTAIN<TAR>	1-73907-422-0	01	1	0004-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-917-0	01	1	9902-0003	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-917-0	01	1	0004-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-916-0	01	1	9902-0003	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-916-0	01	1	0004-	●	●

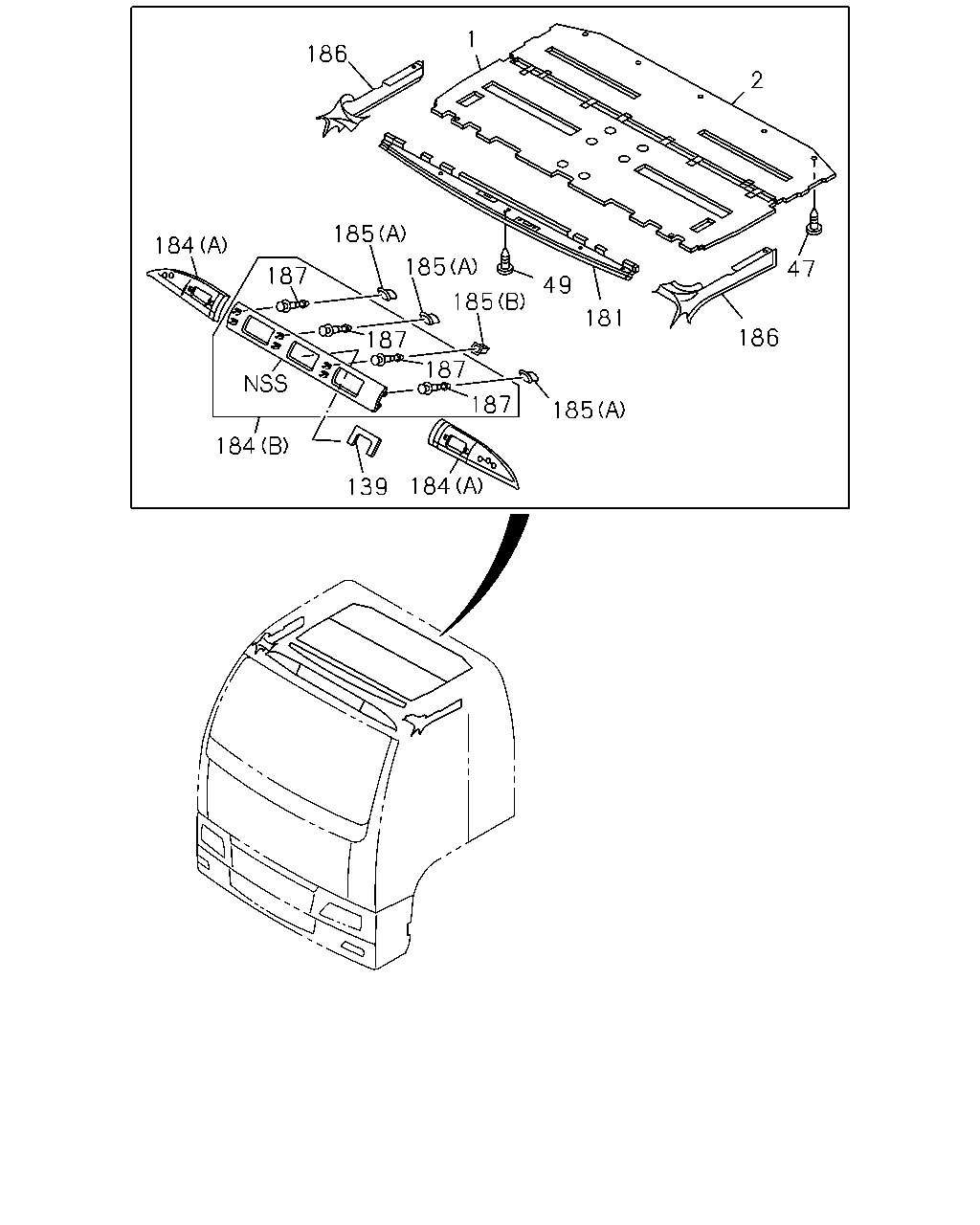

1 186 2 185 184 185 47 187 49 185 181 186 187 187 187 185 184 184 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LINING; HD HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-73317-426-1	01	1	9902-9909	●
1	LINING; HD HIGH ROOF<S2F> EXC. ROOM LAMP FLUORESCENT<NGG>	1-73317-426-1	01	1	9910-	●
1	LINING; HD LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F>	1-73317-376-2	01	1	9902-9909	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>	1-73317-376-2	01	1	9910-0003	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> HIGH ROOF<S2F>	1-73317-376-2	01	1	0004-	●
1	LINING; HD HIGH ROOF<S2F>	1-73317-376-2	01	1	0004-		●
1	LINING; HD LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	9902-9909	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	9910-0003	●
1	LINING; HD ROOM LAMP FLUORESCENT<NGG> EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	0004-	●
1	LINING; HD EXC. HIGH ROOF<S2F>	1-73317-377-2	01	1	0004-		●
1	LINING; HD EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F>	1-73317-342-2	01	1	9902-9909	●
1	LINING; HD EXC. ROOM LAMP FLUORESCENT<NGG>,HIGH ROOF<S2F>	1-73317-342-2	01	1	9910-	●
2	LINING; HD,ROOF RR HIGH ROOF<S2F>	1-73317-373-1	01	1	9902-0003	●
2	LINING; HD,ROOF RR HIGH ROOF<S2F>	1-73317-373-1	01	1	0004-	●	●
2	LINING; HD,ROOF RR EXC. HIGH ROOF<S2F>	1-73317-344-2	01	1	9902-0003	●
2	LINING; HD,ROOF RR EXC. HIGH ROOF<S2F>	1-73317-344-2	01	1	0004-	●	●
47	CLIP; HEADLINING HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	13	1	9902-0003	●
47	CLIP; HEADLINING HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	13	1	0004-	●	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	16	1	9902-0003	●
47	CLIP; HEADLINING EXC. HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	16	1	0004-	●	●
49	CLIP; TRIM COVER D6X23 DARK GRAY	1-09987-238-0	01	1	9902-0003	●
49	CLIP; TRIM COVER D6X23 DARK GRAY	1-09987-238-0	01	1	0004-	●	●
139	SEAL; ROOF MARKER LAMP THREE AMBER<WD9>	1-73318-562-0	03	1	9905-	●
181	TRIM; ROOM,HEADER AUTO ROUND CURTAIN<TAR>	1-73907-291-5	01	1	9902-0003	●
181	TRIM; ROOM,HEADER AUTO ROUND CURTAIN<TAR>	1-73907-291-5	01	1	0004-	●	●
181	TRIM; ROOM,HEADER EXC. AUTO ROUND CURTAIN<TAR>	1-73907-422-0	01	1	9902-0003	●
181	TRIM; ROOM,HEADER EXC. AUTO ROUND CURTAIN<TAR>	1-73907-422-0	01	1	0004-	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (B)	1-73318-626-0	01	1	9902-9904	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (B)	1-73318-626-0	01	1	9905-0003	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F>,MARKER LAMP THREE AMBER<WD9> (B)	1-73318-626-0	01	1	0004-	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (B)	1-73318-626-0	01	1	0004-		●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-388-0	01	1	9902-9907	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-388-0	02	1	9908-0003	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-388-0	02	1	0004-	●	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-387-0	01	1	9902-9907	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-387-0	02	1	9908-0003	●
184	ORNAMENT; ROOF EXC. HIGH ROOF<S2F> (A)	1-73317-387-0	02	1	0004-	●	●
184	ORNAMENT; ROOF MARKER LAMP THREE AMBER<WD9> EXC. HIGH ROOF<S2F> (B)	1-73318-590-0	01	1	9905-	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (A)	1-79198-012-0	06	1	9902-0003	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (A)	1-79198-012-0	06	1	0004-	●	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (B)	1-79198-013-0	02	1	9902-0003	●
185	GROMMET; ORNAMENT EXC. HIGH ROOF<S2F> (B)	1-79198-013-0	02	1	0004-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-917-0	01	1	9902-0003	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-917-0	01	1	0004-	●	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-916-0	01	1	9902-0003	●
186	TRIM; ROOM,CANT RAIL SIDE	1-73348-916-0	01	1	0004-	●	●
187	PIN; ORNAMENT EXC. HIGH ROOF<S2F> D4.2X13	1-09983-161-0	08	1	9902-0003	●
187	PIN; ORNAMENT EXC. HIGH ROOF<S2F> D4.2X13	1-09983-161-0	08	1	0004-	●	●
