◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51276 - NNR/NPR/NQR AUST/NZ EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#77398) — 86 parça

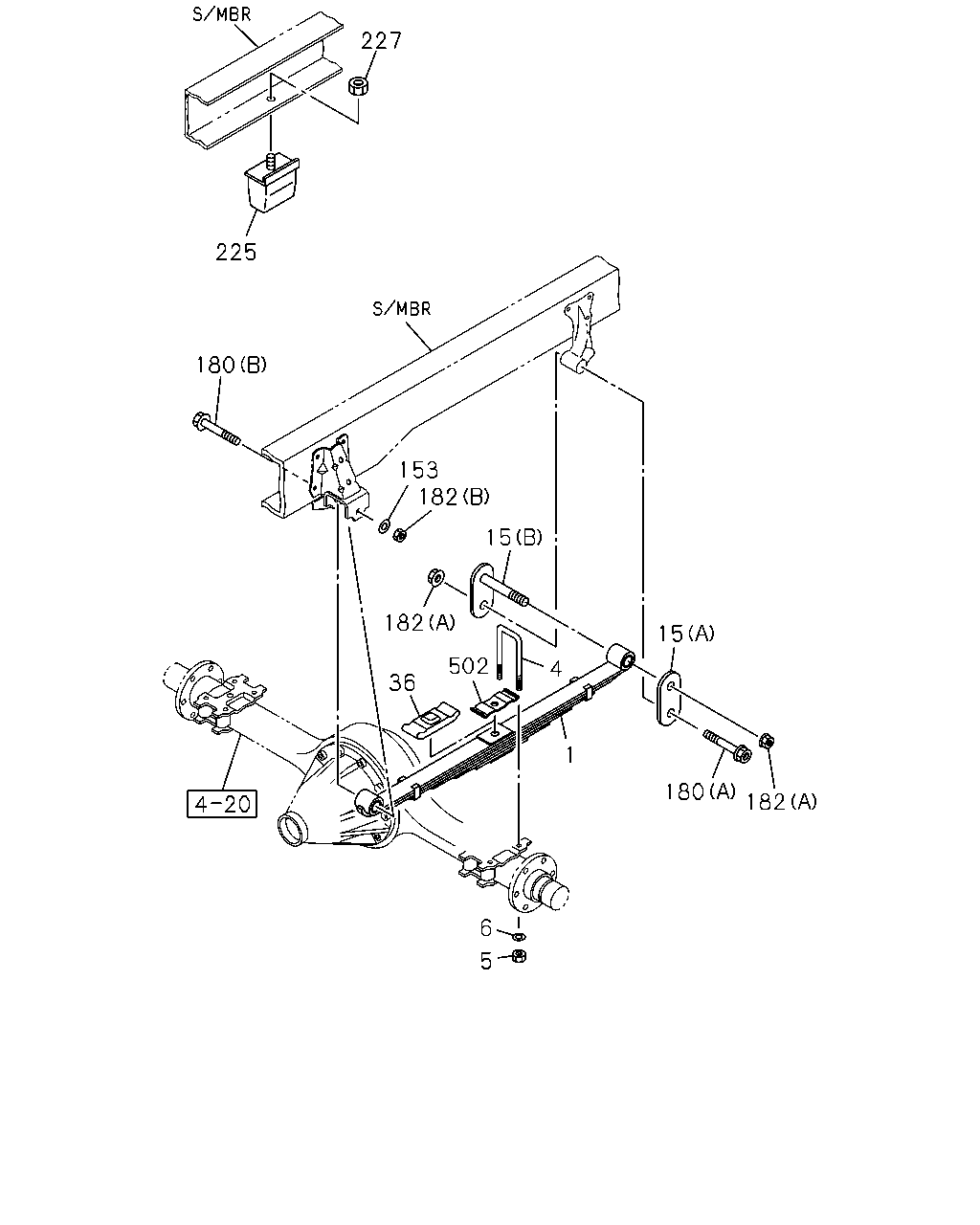

çizim 124766
227 225 180 153 15 182 15 180 182 36 502 182 6 5 4 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 8-LEAF 		8-98202-891-0 02 1 1309-1504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 8-LEAF 		8-98202-891-0 02 1 1505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 8-LEAF 		8-98202-891-0 02 1 1505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> 7-LEAF 		8-98251-874-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98072-424-0 02 1 1009- ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 5.5-6.0TON(RPU) 5-LEAF 		8-98072-424-0 02 1 1009- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 12-LEAF 		8-98079-901-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-98079-901-0 02 1 1009-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-98079-901-0 02 1 1309-1504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 12-LEAF 		8-98079-901-0 02 1 1309-1504 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 12-LEAF 		8-98079-901-0 02 1 1505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.5-7.0TON(RPW) 12-LEAF 		8-98079-901-0 02 1 1505- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) 13-LEAF 		8-98079-903-0 02 1 1009-1011 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-903-0 02 1 1009-1011 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 13-LEAF 		8-98079-903-0 02 1 1012-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-903-0 02 1 1012-1308 ● ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98079-903-0 02 1 1309- ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> L=285 		8-97141-874-0 04 1 1012- ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> L=295 		8-94132-358-3 04 1 1012- ●
4 07.516 U-BOLT; RR SPR
L=275 		8-94127-924-3 04 1 1009- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 5.5-6.0TON(RPU) L=315 		1-51371-194-2 04 1 1009-1011 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 5.5-6.0TON(RPU) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1012-1308 ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW) FRAME STRAIGHT TYPE<7KJ> L=315 		1-51371-194-2 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=345 		1-51371-195-2 02 1 1009-1011 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 02 1 1009-1011 ● ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 02 1 1012-1308 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 02 1 1012-1308 ● ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 1309-1504 ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1309-1504 ● ● ●
4 07.516 U-BOLT; RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> L=345 		1-51371-195-2 04 1 1505- ●
4 07.516 U-BOLT; RR SPR
L=345 		1-51371-195-2 04 1 1505- ● ●
4 07.516 U-BOLT; RR SPR
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) L=345 		1-51371-195-2 04 1 1505- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1009-1011 ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1012- ● ●
5 07.529 NUT; U-BOLT,RR SPR
EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16 		8-97360-121-0 08 1 1012- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1009-1011 ● ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
FRAME STRAIGHT TYPE<7KJ> M18 FLANGE 		1-09440-039-1 08 1 1012- ●
5 07.529 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1012- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1009-1011 ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1012- ● ●
6 07.516 WASHER; PL,U-BOLT
EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4 		8-97360-118-0 08 1 1012- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1009- ● ● ● ● ● ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1009- ● ● ● ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) 07.518 		1-51372-059-0 01 1 1009-1011 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 01 1 1009-1011 ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1012-1112 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1012-1112 ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 5.5-6.0TON(RPU),G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> 07.518 		1-51372-059-0 02 1 1201-1504 ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1201-1504 ● ● ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
REAR AXLE HEAVY DUTY 320MM(6CP) 07.518 		1-51372-059-0 02 1 1505- ●
36 07.529 SEAT; HELPER RUBBER,RR SPR
07.518 		1-51372-059-0 02 1 1505- ● ● ●
153 07.529 WASHER; PL,SPRING PIN
ID=19 		8-97360-119-0 02 1 1009- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1009- ● ● ● ● ● ●
180 07.529 PIN; RR SPR
(B) M18X130 FLANGE 		8-97360-112-0 02 1 1009- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1009- ● ● ● ● ● ●
182 07.529 NUT; PIN,RR SPR
07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 1009- ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94379-470-1 02 1 1009-1103 ● ● ● ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98187-342-0 02 1 1104- ● ● ● ● ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1009- ● ● ● ● ● ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1012-1112 ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.5-7.0TON(RPW) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=140 T=4.5 		8-94118-509-1 02 1 1201- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1009-1011 ● ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1012-1112 ● ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1012-1112 ●
502 07.506 CLAMP; RR LEAF SPR
07.518 L=130 T=4.5 		8-94119-069-2 02 1 1201- ● ●
502 07.506 CLAMP; RR LEAF SPR
REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 5.5-6.0TON(RPU) EXC. FRAME STRAIGHT TYPE<7KJ> 07.518 L=130 T=4.5 		8-94119-069-2 02 1 1201- ●

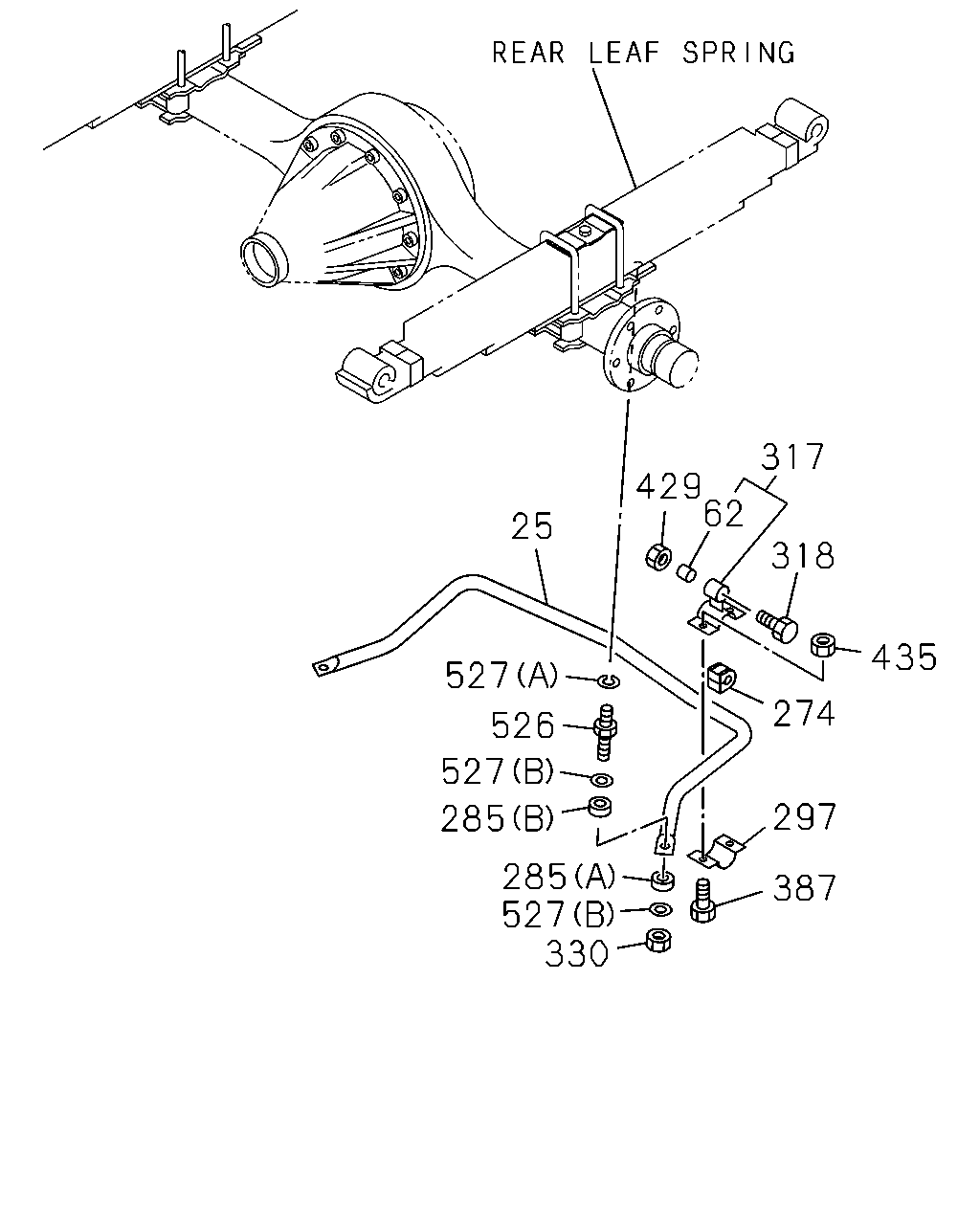

çizim 187185
25 527 526 527 285 285 527 330 387 297 274 435 318 317 62 429
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
25 07.241 BAR ASM; STAB,RR SUSP 8-98025-630-0 01 1 1009-1011 ● ●
25 07.241 BAR ASM; STAB,RR SUSP 8-98025-630-0 01 1 1012- ● ●
25 07.241 BAR ASM; STAB,RR SUSP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98025-630-0 01 1 1012- ●
25 07.241 BAR ASM; STAB,RR SUSP 8-98067-239-0 01 1 1009-1011 ● ● ● ●
25 07.241 BAR ASM; STAB,RR SUSP
FRAME STRAIGHT TYPE<7KJ> 		8-98067-239-0 01 1 1012- ●
25 07.241 BAR ASM; STAB,RR SUSP 8-98067-239-0 01 1 1012- ● ● ●
62 07.243 BUSHING; LINK ROD 8-97239-911-0 02 1 1009- ● ● ● ● ● ●
274 07.243 BUSHING; RR STAB BAR TO LINK 8-94440-793-0 02 1 1009- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
(A) L=18 		8-97089-556-0 02 1 1009- ● ● ● ● ● ●
285 07.243 BUSHING; STAB BAR TO RR AXLE
(B) L=29 		8-97089-557-0 02 1 1009- ● ● ● ● ● ●
297 07.242 CAP; STAB BAR 8-94178-430-2 02 1 1009- ● ● ● ● ● ●
317 07.240 ROD LINK ASM; STABILIZER,RR 8-97239-907-0 02 1 1009- ● ● ● ● ● ●
318 07.242 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 1009- ● ● ● ● ● ●
330 07.242 NUT; STAB
M12 LOCK NUT 		0-91370-012-0 02 1 1009- ● ● ● ● ● ●
387 07.242 BOLT; CAP FIX,STAB BAR
00.029 M10X25 FLANGE 		0-28651-025-0 04 1 1009- ● ● ● ● ● ●
429 07.242 NUT; LINK
06.174 M14 FLANGE 		8-97360-124-0 02 1 1009- ● ● ● ● ● ●
435 07.242 NUT; CAP
03.162 M10 FLANGE 		0-91180-110-0 04 1 1009- ● ● ● ● ● ●
526 07.535 STUD; STABILIZER
07.242 		8-97360-120-0 02 1 1009- ● ● ● ● ● ●
527 07.242 WASHER; STABILIZER
05.605 (A) ID=14.2 		0-91510-514-0 02 1 1009- ● ● ● ● ● ●
527 07.242 WASHER; STABILIZER
(B) ID=12.5 		8-97360-055-0 04 1 1009- ● ● ● ● ● ●
