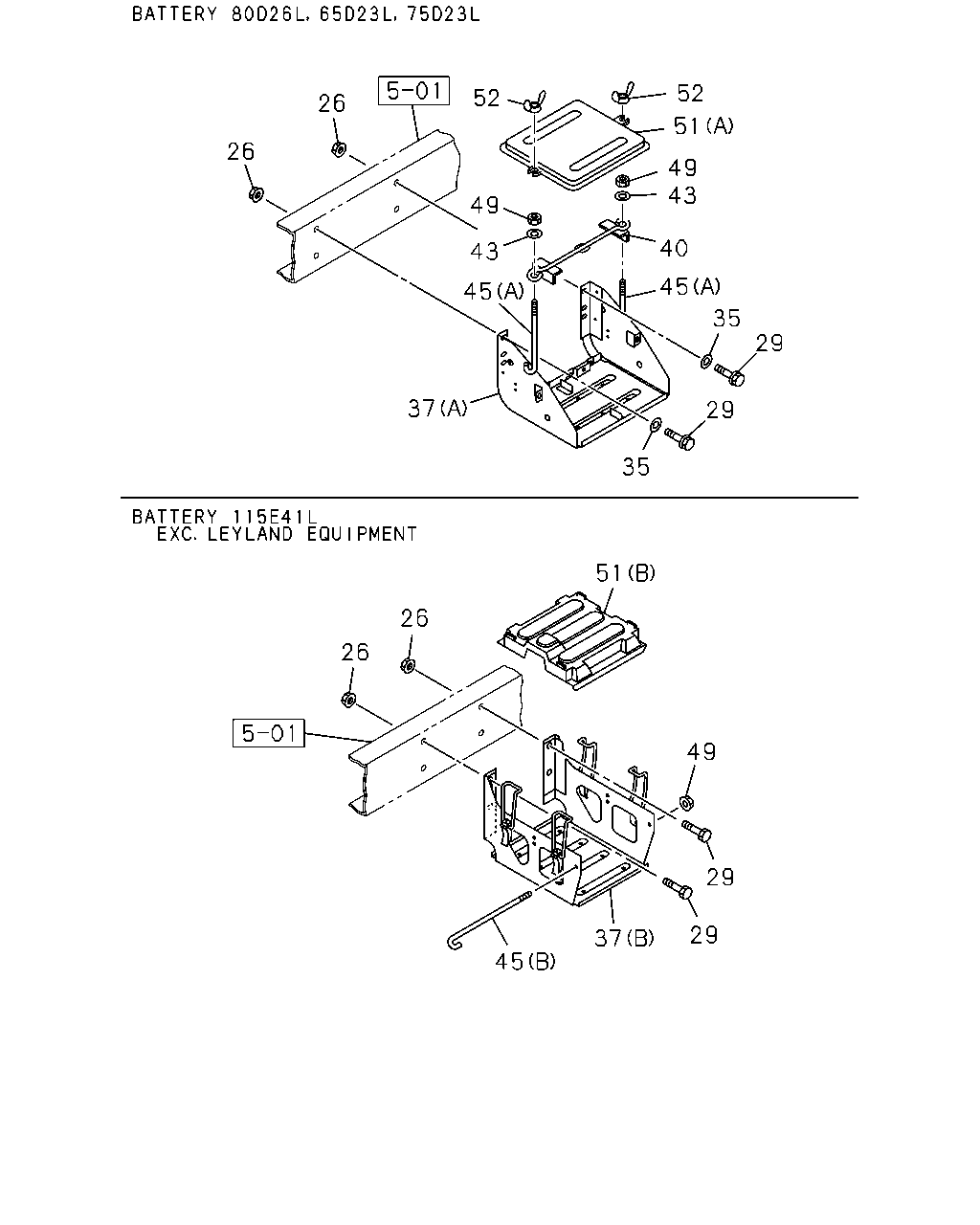

5-20 — BATTERY CARRIER (#77392) — 113 parça

51 51 49 40 45 26 29 29 49 37 93 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0905-0906	●	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1101	●	●	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204			●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-		●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-			●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908			●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0909-0910	●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0909-0910		●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-			●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0905-0906	●	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-0908	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-0908			●
29	02.334 BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0909-0910	●	●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0909-0910			●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0911-1204	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0911-1204			●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-			●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0907-	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	0905-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0905-0906	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0907-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	8-98091-497-0	01	1	0905-	●	●
40	02.335 CLAMP; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA>	8-98120-443-0	01	1	0905-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	0905-0906	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0907-	●	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C) L=250	1-53616-081-0	02	1	0905-1003	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C) L=250	1-53616-108-0	02	1	1004-1004	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1005-	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (B)	8-97134-740-0	01	1	0905-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A)	9-53616-615-0	02	1	0905-0906	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	9-53616-615-0	02	1	0907-	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	8-97134-740-0	02	1	0905-	●	●
49	02.334 NUT; ROD,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> 01.062 M8 FLANGE	0-91180-108-0	03	1	0905-	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1> 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C)	8-98123-097-0	01	1	1005-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	0905-0906	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0907-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	0905-1004	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	1-53612-029-1	01	1	1005-	●	●
93	02.335 SPACER; BOLT,BRKT,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA>	8-98120-442-0	01	1	0905-	●	●

52 52 26 51 26 49 43 49 40 43 45 45 35 29 37 29 35 51 26 26 49 29 29 37 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0905-0906	●	●
26	02.334 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	04	1	0907-1101	●	●	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1102-1204			●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-	●
26	02.334 NUT; BRKT WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-		●
26	02.334 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-		●
26	02.334 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1205-			●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0907-0908			●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0909-0910	●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0909-0910		●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W) 03.023 M10X35 FLANGE	0-28661-035-0	02	1	0911-			●
29	02.334 BOLT; BRKT TO FRAME 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0905-0906	●	●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-0908	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0907-0908			●
29	02.334 BOLT; BRKT TO FRAME 4HK1-TCS ENG(RJS) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0909-0910	●	●
29	02.334 BOLT; BRKT TO FRAME 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0909-0910			●
29	02.334 BOLT; BRKT TO FRAME FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0911-1204	●	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	0911-1204			●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-	●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-		●
29	02.334 BOLT; BRKT TO FRAME WHEEL BASE 2700MM(27W) 03.023 M10X35 FLANGE	0-28661-035-0	04	1	1205-			●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0905-0906	●	●
35	02.334 WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0907-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 65D23L<8EJ>,BATTERY 75D23L<8LZ> (A)	8-97384-068-2	01	1	0907-	●	●	●
37	02.333 BRACKET; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (B)	8-98120-393-0	01	1	0905-	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0905-0906	●	●
37	02.333 BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0907-	●	●	●
37	02.333 BRACKET; BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	8-98091-497-0	01	1	0905-	●	●
40	02.335 CLAMP; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA>	8-98120-443-0	01	1	0905-	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>	5-53615-004-1	01	1	0905-0906	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ>	5-53615-004-1	01	1	0907-	●	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0905-0906	●	●
43	02.334 WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 02.277 ID=8.4 OD=22	0-91614-708-0	02	1	0907-	●	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C) L=250	1-53616-081-0	02	1	0905-1003	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C) L=250	1-53616-108-0	02	1	1004-1004	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C)	8-98120-478-0	02	1	1005-	●	●
45	02.334 ROD; TENSION,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (B)	8-97134-740-0	01	1	0905-	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1> (A)	9-53616-615-0	02	1	0905-0906	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	9-53616-615-0	02	1	0907-	●	●	●
45	02.334 ROD; TENSION,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	8-97134-740-0	02	1	0905-	●	●
49	02.334 NUT; ROD,BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> 01.062 M8 FLANGE	0-91180-108-0	03	1	0905-	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1> 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0905-0906	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●	●
49	02.334 NUT; ROD,BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> 01.062 M8 FLANGE	0-91180-108-0	02	1	0907-	●	●
51	02.335 COVER; BATTERY LEYLAND EQUIPMENT<S9Z> BATTERY 115E41L<8MA> (C)	8-98123-097-0	01	1	1005-	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1> (A)	8-97120-747-0	01	1	0905-0906	●	●
51	02.335 COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> (A)	8-97120-747-0	01	1	0907-	●	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> (B)	1-53612-029-1	01	1	0905-1004	●	●
51	02.335 COVER; BATTERY BATTERY 115E41L<8MA> EXC. LEYLAND EQUIPMENT<S9Z> (B)	1-53612-029-1	01	1	1005-	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1> M8 WING NUT	0-91118-408-0	02	1	0905-0906	●	●
52	02.335 NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>, BATTERY 75D23L<8LZ> M8 WING NUT	0-91118-408-0	02	1	0907-	●	●	●
