◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10807 - EXR FUEL TANK 400L ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#7739) — 63 parça

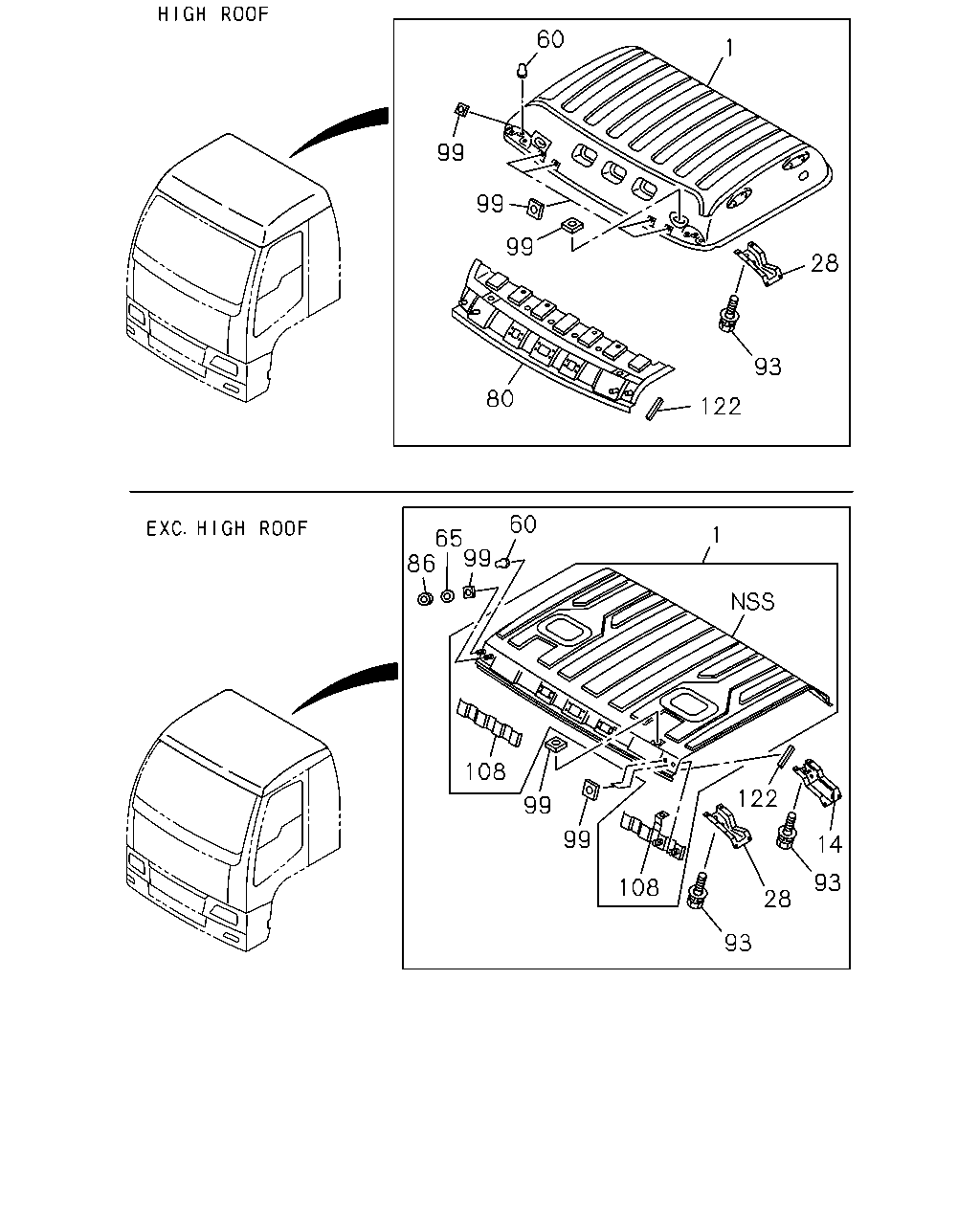

çizim 43184
60 1 99 99 99 28 93 80 122 60 1 65 99 86 108 122 99 99 14 93 108 28 93
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> 		1-61170-821-1 01 1 9902- ●
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-836-1 01 1 9902-0003 ●
1 PANEL; ROOF
HIGH ROOF<S2F> EXC. LAMPS TWO ROOF MARKER<TEC> 		1-61170-836-1 01 1 0004- ●
1 PANEL; ROOF
HIGH ROOF<S2F> 		1-61170-836-1 01 1 0004- ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-768-0 01 1 9902-9902 ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-848-0 01 1 9902-0003 ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-848-0 01 1 0004- ●
1 PANEL; ROOF
EXC. HIGH ROOF<S2F> 		1-61170-848-0 01 1 0004- ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-775-0 01 1 9902-9902 ●
1 PANEL; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-861-0 01 1 9902- ●
14 SUPPORT; ROOF
EXC. HIGH ROOF<S2F> 		1-73318-493-3 02 1 9902-0003 ●
14 SUPPORT; ROOF
EXC. HIGH ROOF<S2F> 		1-73318-493-3 02 1 0004- ● ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 9902-0003 ●
28 SUPPORT; ROOF FRT 1-73317-302-1 01 1 0004- ● ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 9902-0003 ●
28 SUPPORT; ROOF FRT 1-73317-301-1 01 1 0004- ● ●
60 COVER; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 05 1 9902- ●
60 COVER; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-79998-922-3 03 1 9902- ●
60 COVER; ROOF 1-79998-922-3 02 1 0004- ●
65 WASHER; PL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 02 1 9902- ●
65 WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 9902-0003 ●
65 WASHER; PL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0004- ●
65 WASHER; PL
EXC. HIGH ROOF<S2F> ID=8 T=2.3 		8-94368-403-1 01 1 0004- ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-741-0 01 1 9902-9902 ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 9902-0003 ●
80 PANEL; HEADER,ROOF
HIGH ROOF<S2F> 		1-61170-845-0 01 1 0004- ● ●
86 NUT; ROOF
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 02 1 9902- ●
86 NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 9902-0003 ●
86 NUT; ROOF
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 0004- ●
86 NUT; ROOF
EXC. HIGH ROOF<S2F> M8 FLANGE 		9-09130-408-0 01 1 0004- ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 9902-0003 ●
93 BOLT; SUPPORT
HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 10 1 0004- ● ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 9902-0003 ●
93 BOLT; SUPPORT
EXC. HIGH ROOF<S2F> M6X12 W/LK&PL WASHER 		8-94279-200-0 20 1 0004- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 10 1 9902-0003 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 0004- ● ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 04 1 9902-0003 ●
99 SEAL; BODY,METAL
30X30 ID=20 T=0.7 		1-61281-380-1 10 1 0004- ● ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 08 1 9902- ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 9902-0003 ●
99 SEAL; BODY,METAL
30X30 ID=9 T=0.7 		1-61281-444-0 01 1 0004- ● ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-0 02 1 9902-0003 ●
99 SEAL; BODY,METAL
55X55 ID=42 T=0.7 		1-61281-445-0 02 1 0004- ● ●
99 SEAL; BODY,METAL
DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902- ●
99 SEAL; BODY,METAL
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 04 1 9902- ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 9902-0003 ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 30X30 ID=20 T=1.0 		1-61270-920-0 09 1 0004- ● ●
99 SEAL; BODY,METAL
HIGH ROOF<S2F> 55X55 ID=42 T=1.0 		1-61270-921-0 01 1 9902-0001 ●
99 SEAL; BODY,METAL
LAMPS TWO ROOF MARKER<TEC> 75X50 ID=36 		1-61281-458-0 02 1 9902- ●
99 SEAL; BODY,METAL
EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, DOOR WITH UNDER VIEW WINDOW<YD8> 14X14 ID=10 T=0.7 		1-61281-427-0 02 1 9902- ●
99 SEAL; BODY,METAL
14X14 ID=10 T=0.7 		1-61281-427-0 10 1 0004- ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-5 01 1 9902-0003 ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-438-6 01 1 0004- ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-438-6 01 1 0004- ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-469-5 01 1 9902-9902 ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-857-1 01 1 9902-0003 ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F>,LAMPS TWO ROOF MARKER<TEC> 		1-61170-857-2 01 1 0004- ●
108 PATCH; MIRROR
EXC. HIGH ROOF<S2F> 		1-61170-857-2 01 1 0004- ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-771-2 01 1 9902-9902 ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-862-1 01 1 9902- ●
108 PATCH; MIRROR
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F> 		1-61170-772-3 01 1 9902- ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 9902-0003 ●
122 SEAL; FRT UPR 1-61270-919-0 02 1 0004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
