◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#77388) — 104 parça

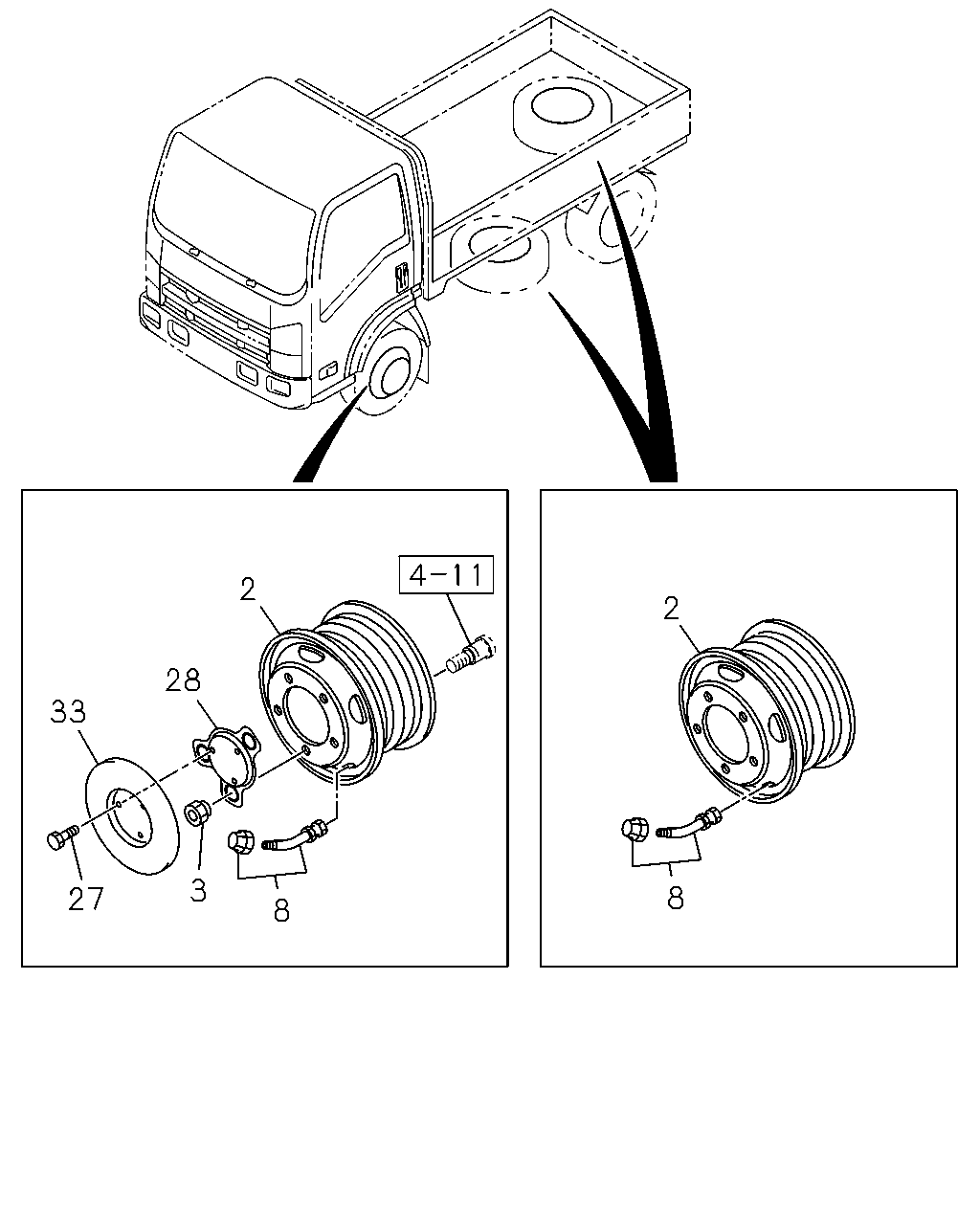

çizim 186446
2 28 33 27 3 8 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0907-1008 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1009- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0907-1008 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1009- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1202- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) M18 RH THREAD 		8-98007-907-0 05 1 0907-1008 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 RH THREAD 		8-98007-907-0 05 1 1009- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) M18 LH THREAD 		8-98007-908-0 05 1 0907-1008 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M18 LH THREAD 		8-98007-908-0 05 1 1009- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD 		8-97359-807-0 06 1 0905-1201 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 RH THREAD 		8-97359-807-0 06 1 1202- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD 		8-97359-808-0 06 1 0905-1201 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M20 LH THREAD 		8-97359-808-0 06 1 1202- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 0905- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0905- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 		8-98221-112-0 01 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 		8-98221-112-0 02 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 		8-98221-112-0 04 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 		8-98221-112-0 06 1 0905- ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 0905-0906 ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 0907- ● ● ●
28 05.864 BRACKET; COVER
G.V.W. 5.0-5.5TON(RPT) 		8-97169-249-0 02 1 0907- ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 0907- ●
28 05.864 BRACKET; COVER 8-97169-250-0 02 1 0905-0906 ● ●
28 05.864 BRACKET; COVER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.5-8.0TON(RPY) 		8-97169-250-0 02 1 0907- ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 0905-0906 ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 0907- ● ● ●

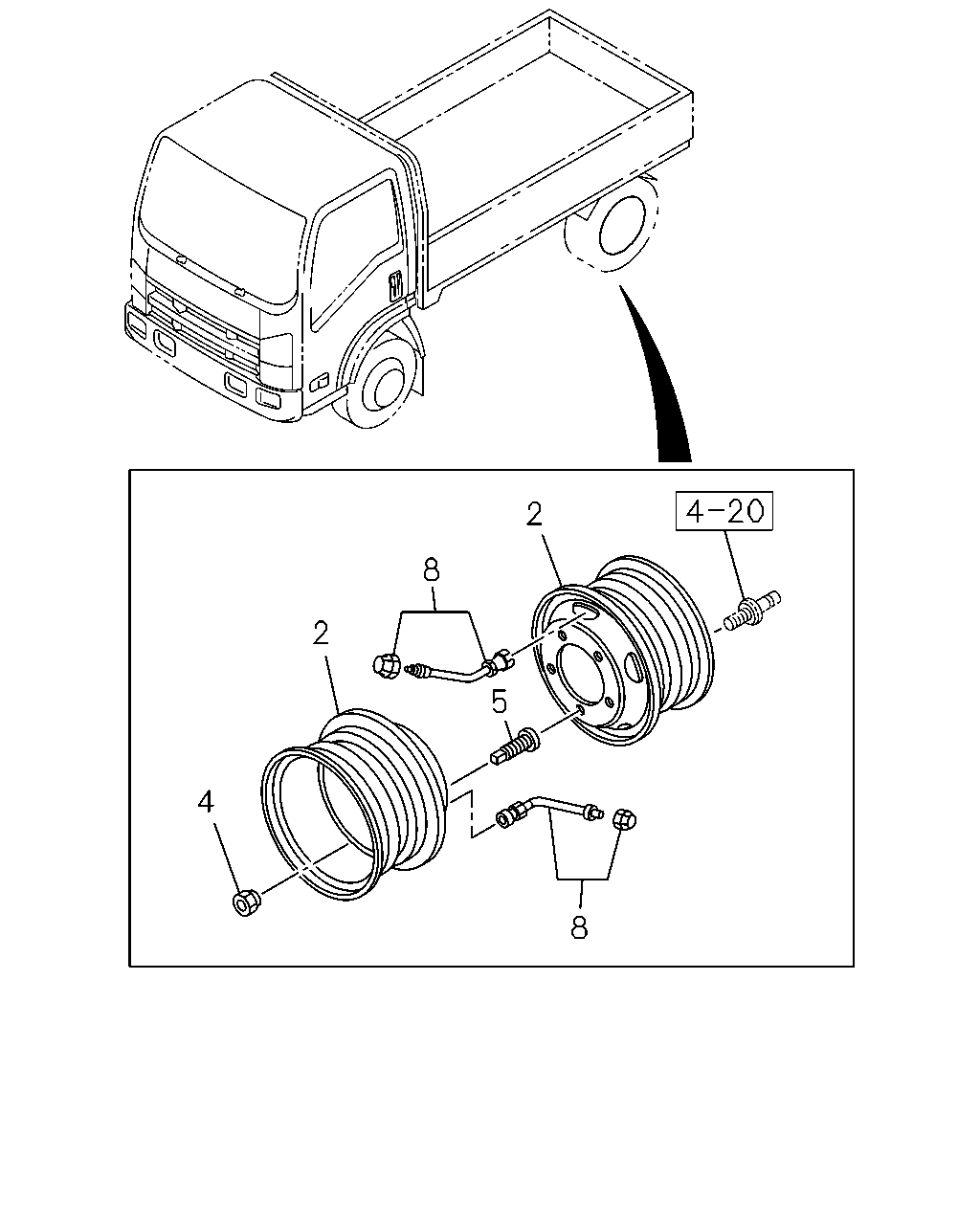

çizim 186452
2 8 2 4 5 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) SPARE 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 01 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 17.5X6.00 OFFSET=127 BLACK 6-HOLE 		8-98168-217-0 06 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0907-1008 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 1009- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0907-1008 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 1009- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0907-1008 ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 1009- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 01 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 01 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 02 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 02 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98012-857-0 04 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 17.5X6.00 OFFSET=127 WHITE 6-HOLE 		8-98168-216-0 04 1 1011- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 01 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 01 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 02 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) FRONT 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 02 1 1202- ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98012-855-0 04 1 0905-1010 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1011-1201 ● ●
2 05.803 WHEEL; DISC
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127 BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17 .5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE 		8-98168-215-0 04 1 1202- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) M27 RH THREAD 		8-98007-824-0 05 1 0907-1008 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 RH THREAD 		8-98007-824-0 05 1 1009- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) M27 LH THREAD 		8-98007-825-0 05 1 0907-1008 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) M27 LH THREAD 		8-98007-825-0 05 1 1009- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD 		8-97359-809-0 06 1 0905-1201 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 RH THREAD 		8-97359-809-0 06 1 1202- ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD 		8-97359-810-0 06 1 0905-1201 ● ●
4 05.813 NUT; WHEEL,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) M30 LH THREAD 		8-97359-810-0 06 1 1202- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0907-1008 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 1009- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0907-1008 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 1009- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0905-1201 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 1202- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),F&R 215/75 R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) ,FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0905-1201 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 1202- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) FRONT,REAR 		8-98221-106-0 06 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE 		8-98221-106-0 01 1 0905- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EE C(BQU),FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WHITE(BQV),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 EEC(CVZ),FRT&RR 205-16C-75R DISC 16X5.5J-116.5 WHITE(CWA) SPARE TIRE & DISC WHEEL REAR TIRE<R46> SPARE 		8-98221-106-0 01 1 0905- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU), F&R 215/75R17.5(MICHELIN)17.5X6.00-127 S ILVER(CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) SPARE 		8-98221-112-0 01 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) FRONT 		8-98221-112-0 02 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127 WHITE(AUJ),FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215 /75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER (CRV),FRT&RR 215/75R17.5 17.5X6.00-127 WHITE(CRW) REAR 		8-98221-112-0 04 1 0905- ● ●
8 05.875 VALVE; TIRE
FRT&RR 215/75R17.5 17.5X6.00-127 E-MARK(CRU) FRONT,REAR 		8-98221-112-0 06 1 0905- ● ●
