◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51240 - NNR/NPR EU-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65C - REAR LEAF SPRING ▶
4-65C — REAR LEAF SPRING (#77386) — 17 parça

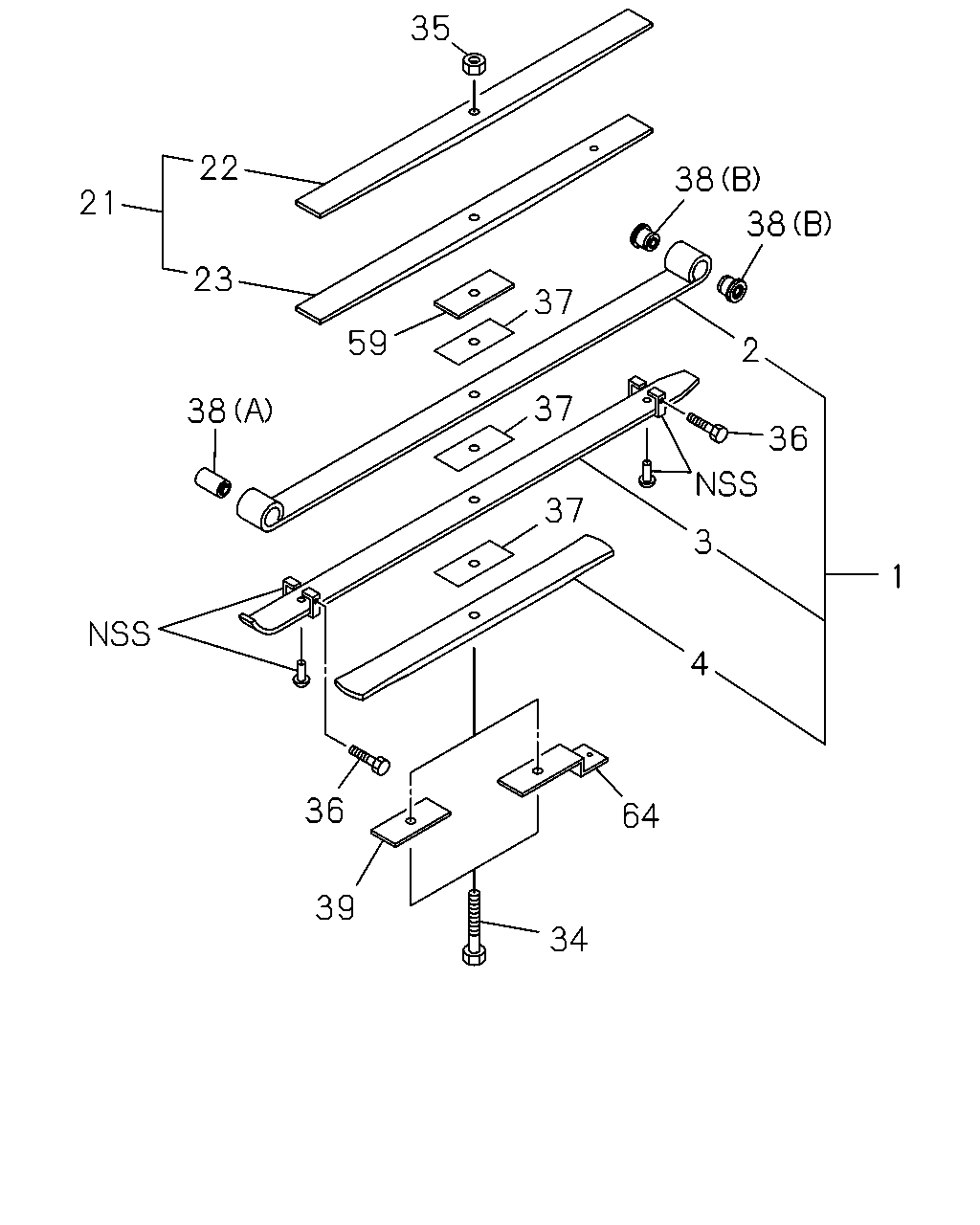

çizim 125066
35 22 38 21 38 23 37 59 2 37 38 36 37 3 1 4 36 64 39 34
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-637-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-638-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-639-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-640-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-641-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-642-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98037-643-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98040-307-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98040-332-0 02 1 -
37 07.518 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-97084-102-0 03 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-97074-826-0 01 1 -
39 07.518 SEAT; LEAF SPR,RR MAIN
07.513, T=8 ASM PART: B = 8-98025-046-0, 98025046 		8-98040-779-0 01 1 -
59 07.513 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 8-97387-900-0, 97387900, B = 8-98025-046-0, 98025046 		8-98034-524-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-97387-900-0, 97387900 		8-97225-579-1 01 1 -
