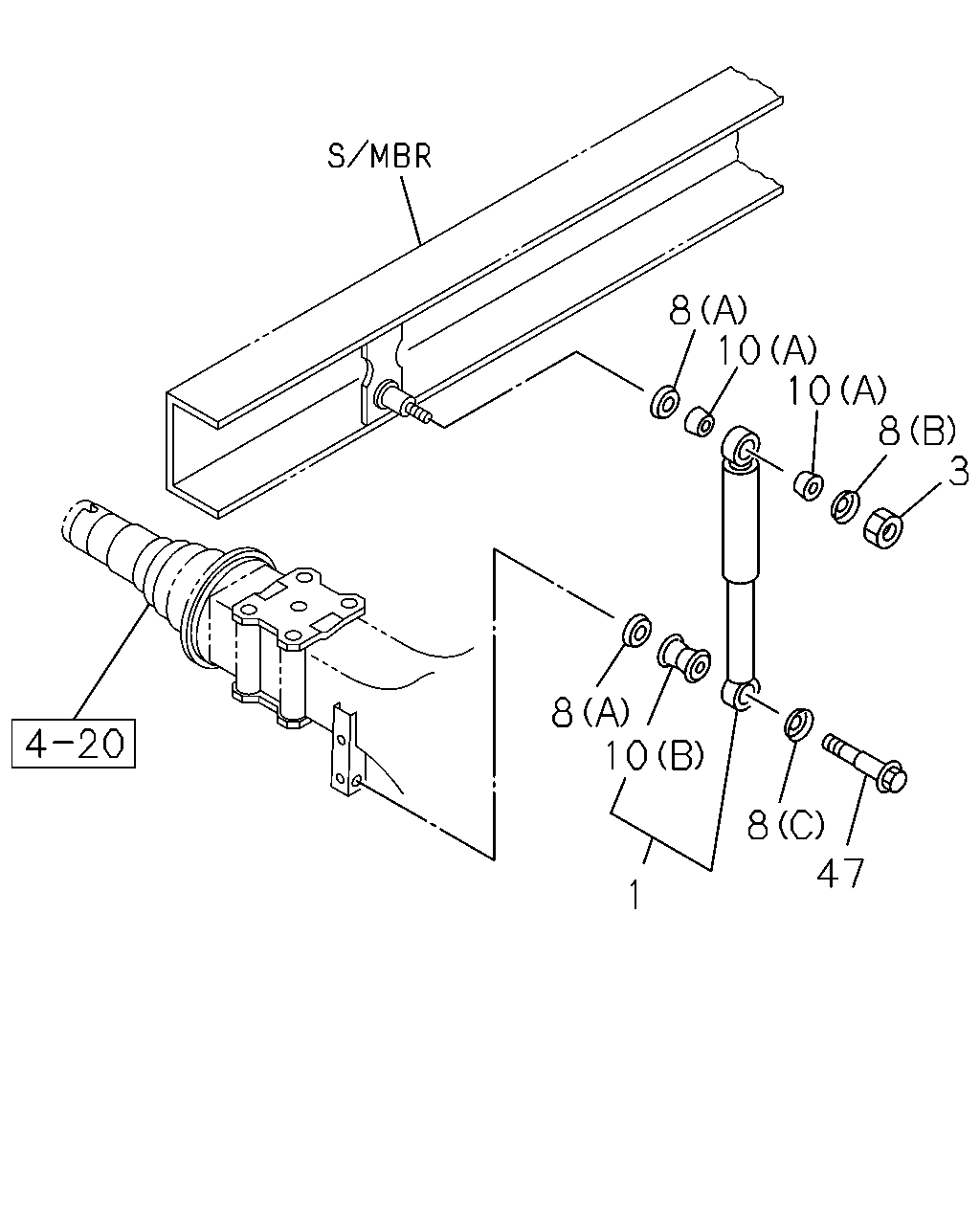

4-61 — SHOCK ABSORBER; REAR SUSPENSION (#77383) — 26 parça

8 10 10 8 3 8 10 8 47 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-654-2	02	1	0907-	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-97253-651-0	02	1	0907-0907		●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-97253-651-2	02	1	0907-1506		●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. FRAME STRAIGHT TYPE<7KJ>	8-98316-233-0	02	1	1507-		●	●
1	07.395 ABSORBER ASM; SHOCK,RR	8-98079-868-0	02	1	0905-0906		●	●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ>	8-98079-868-1	02	1	0907-		●	●
1	07.395 ABSORBER ASM; SHOCK,RR FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-133-0	02	1	1304-		●	●
1	07.395 ABSORBER ASM; SHOCK,RR EXC. FRAME STRAIGHT TYPE<7KJ> BEST VALUE PARTS	5-87610-132-0	02	1	1105-1506		●	●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	0905-0906		●	●
3	07.347 NUT; S/ABS 07.833 M14	0-91110-514-0	02	1	0907-	●	●	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0905-0906		●	●
8	07.347 WASHER; S/ABS (B) ID=15	8-97360-056-0	02	1	0907-	●	●	●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	0905-0906		●	●
8	07.347 WASHER; S/ABS (A) ID=20.0	8-97360-057-0	04	1	0907-	●	●	●
8	07.347 WASHER; S/ABS (C) ID=10.5	8-97360-058-0	02	1	0905-0906		●	●
8	07.347 WASHER; S/ABS (C) ID=10.5	8-97360-058-0	02	1	0907-	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS EXC. FRAME STRAIGHT TYPE<7KJ> (B) TOKICO	8-94382-149-0	02	1	0910-1002		●	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0905-0906		●	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0907-0909	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS G.V.W. 7.5-8.0TON(RPY) FRAME STRAIGHT TYPE<7KJ> (B) TOKICO	8-94382-149-0	02	1	0910-1002		●	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	0910-1002	●
10	07.388 BUSHING; RUBBER,S/ABS (B) TOKICO	8-94382-149-0	02	1	1003-	●	●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0905-0906		●	●
10	07.388 BUSHING; RUBBER,S/ABS (A) TOKICO	9-51631-014-0	04	1	0907-	●	●	●
47	07.347 PIN; S/ABS SETTING 02.483 M10X16 FLANGE	0-28051-016-0	02	1	0905-0906		●	●
47	07.347 PIN; S/ABS SETTING 02.483 M10X16 FLANGE	0-28051-016-0	02	1	0907-	●	●	●
